DRC Brand Good Quality Large Bore Alloy Wheel CKE6150 China CNC Metal Turing Lathe Machine Price For Sale

FOB Reference Price:Get Latest Price
  • 1 - 98
    US $19000.00
  • >=99
    US $18000.00
Supply Ability:
99 Set/Sets per Week High quality CKE6150-1000mm DMTG Economic CNC Turning Lathe Made
Port:
Dalian
Overview
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Automatic Grade:
Automatic
Max. Swing Diameter:
500mm
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DRC
Model Number:
CKA6150
Voltage:
220V
Power(W):
24KWA
Dimension(L*W*H):
3010*1910*2180
Weight:
2600KG
Certification:
CE ISO
After-sales Service Provided:
Overseas service center available
Brand:
DMTG
Cutting diameter:
1000mm
Max. swing over bed:
500mm
Spindle speed:
45-2000 r/min
Name:
High quality CKE6150-1000mm Economic CNC Turning Lathe
Control system:
Fanuc
Material:
High quality casting iron
Machine Type:
Flat Bed CNC Lathe
Spindle bore:
82 mm
Wedth of the bed:
400mm
Packaging & Delivery
Packaging Details
Sea packaging
High quality CKE6150-1000mm DMTG Economic CNC Turning Lathe Made by Dalian R&C Machinery
Delivery Time
3 monthes
Product Description

DRC Brand Good Quality Large Bore Alloy Wheel CKE6150 China CNC Metal Turing Lathe Machine Price

This machine is a vertical (Z), horizontal (X) two coordinate control of CNC horizontal lathe. To all kinds of shaft and disc parts automatically inside and outside the cylinder, cone surface, circular arc surface, end, grooving cutting and chamfering, and turning metric thread, straight face thread and imperial straight thread and taper thread turning processing.


Specifica CKE6150Z
                                 Specifica CKE6150P
1、Technical information
Max. swing over bed
φ500 mm
φ500 mm
Max. swing over slide
φ280 mm
φ280 mm
Max. length of workpiece
1000mm
520mm
Max. processing length
930mm
 430 mm
Max. turning diameter
(vertical 4 tools)
φ500 mm
500mm
Spindle center height
250 mm
250 mm
Width of bed
400 mm
400 mm
Max. Workpiece weight (only use chuck )
400 kg
400 kg
2. Main drive (Frequency conversion)
Main drive motor
7.5kw
6.5kw/8kw
Spindle hole diameter Main drive motor
φ82 mm
φ82mm
Spindle hole taper
Front end Ф90mm 1:20
Front end Ф90mm 1:20
Spindle nose
D8
D4
Spindle front bearing diameter
φ120mm
φ120mm



Spindle speed within gear


7~2200 r/min
low gear:
7~135r/min
Middle gear:
30~550r/min
High gear :
110~2200r/min
3. Tailstock
Diameter of tailstock quill
φ75mm

                   No tailstock
Taper of tailstock quill
Morse 5
                                                                                                        4.Feed system
Max. Turret travel
Horizontal (X)
280 mm
280 mm
Ball screw diameter× screw pitch
Horizontal(X)
φ20×4 (mm)
φ20×4 (mm)
Longitudina(Z)
φ40×6 (mm)
φ40×6 (mm)
Cutting force(Continuous)
Horizontal(X)
2500 N
2500 N
Longitudina(Z)
5000 N
5000 N
Cutting force(Continuous)
Horizontal(X)
4000mm/min
4000mm/min
Longitudinal(Z)
8000mm/min
8000mm/min
Max. cutting speed
Horizontal(X)
2000mm/min
2000mm/min
Longitudinal(Z)
4000mm/min
4000mm/min
5、Machine precision
Positioning accuracy
Horizontal(X)
0.018 mm
0.018 mm
Longitudinal(Z)
0.024mm
0.021mm
Repeatability
Horizontal(X)
0.006 mm
0.006mm
Longitudinal(Z)
0.011mm
0.008mm
Workpiece machining accuracy
IT6~ IT7
IT6~ IT7
Surface roughness of workpiece
Ra1.6
Ra1.6
6.Tool post (Electronical Vertical four)
Turret motor power
Power
180 W
180W
Speed
1500 r/min
1500 r/min
Tool shank section
25×25 mm
25×25 mm
Repeatability
0.008 mm
0.008 mm
Tool change time(single station)
3s
3s
Process  Details
Structural design of high rigidity

The bed is made of resin sand casting, artificial aging treatment, therefore, has good rigidity and shock absorption, can guarantee the processing of high precision cutting.

Precision, fast, vertical and horizontal drive


The machine longitudinal, transverse motion shaft driven by a servo motor, ball screw, high rigidity and precision composite bearing drive, pulse encoder position detection feedback semi closed loop control system. By using high frequency quenching guide international popular (hard rail) and "plastic" process, each axis of fast response, high precision, life long.

Automatic centralized lubrication system

Equipped with centralized automatic lubrication of forced lubricator ball screw and guide rail, which can effectively improve the machine's dynamic response characteristic and guide screw life.

Electric tool magazine


Machine tool operation system according to the ergonomics principle, independence and rotating the operation box set, it can move anywhere, convenient for the operator to nearby knife, is the embodiment of the humanized design.

Related Prodeucts

iHT 516 VDI turret type with Germany technology cnc slant bed


High speed machining center GV8

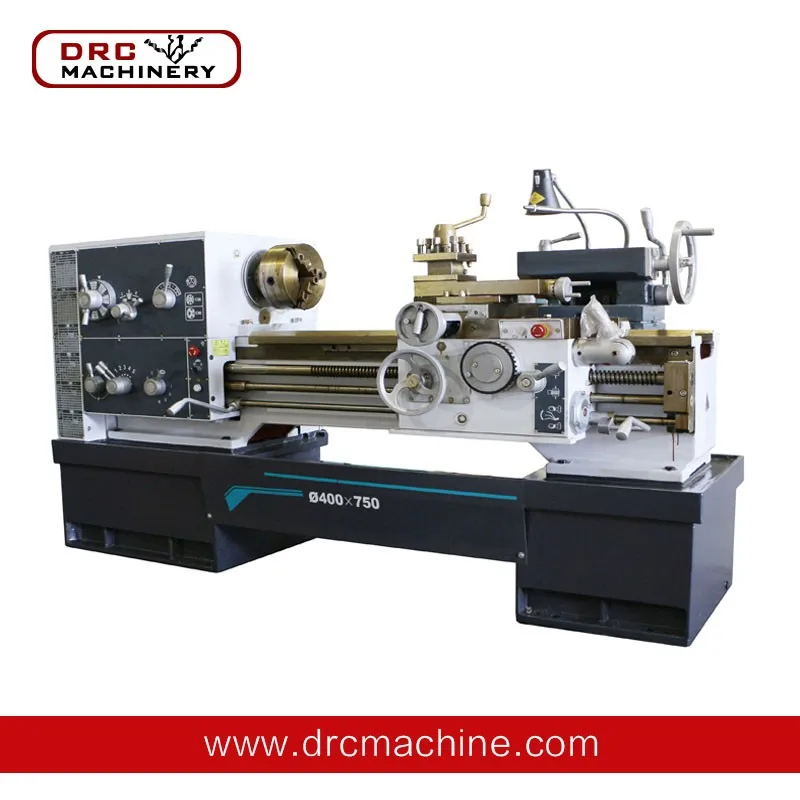

Conventional lathe CDE6140A
