DRC Brand High Precision IHT516 Cutting Wheel Metal Slant Bed CNC Lathe Machine Price For Sale With Chinese Top10 Manufacturer

FOB Reference Price:Get Latest Price
US $10,000-200,000 / Set | 1 Set/Sets IHT516 Cutting Wheel Metal Slant Bed CNC Lathe (Min. Order)
Supply Ability:
40 Set/Sets per Month IHT516 Cutting Wheel Metal Slant Bed CNC Lathe
Port:
DALIAN
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Automatic Grade:
Automatic
Max. Swing Diameter:
520MM
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
R&C
Model Number:
iHT516
Voltage:
380V50HZ
Power(W):
7.5/11/15
Dimension(L*W*H):
3400*1850*1800
Weight:
3200kg
Certification:
ISO9001 CE
After-sales Service Provided:
Overseas service center available
Machine Type:
metal lathe machine
Product type:
metal lathe
Name:
IHT516 metal cnc lathe machine
spindle hole diameter:
74mm
Speed range:
5-5000
Processing diameter:
390/384/296mm
Machine bed diameter:
520mm
Function:
turning, milling and other machining
Control system:
SIEMENS FANUC and other customer request
Precision:
High Precision Machine
Packaging & Delivery
Packaging Details
Suitable for sea transportion as international standard
DRC Brand High Precision IHT516 Cutting Wheel Metal Slant Bed CNC Lathe Machine Price For Sale With Chinese Top10 Manufacturer
Delivery Time
Shipped in 30 days after payment
Product Description

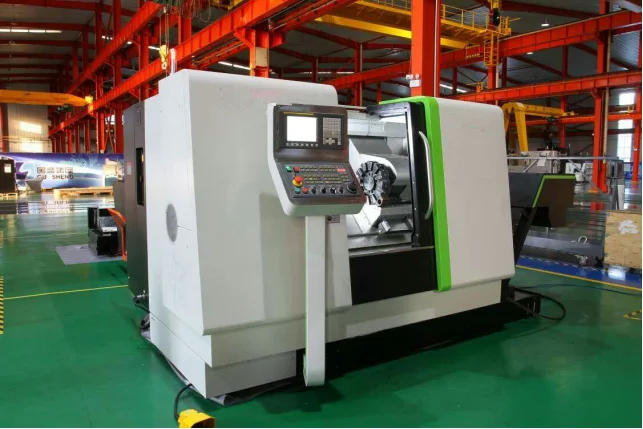

DRC Brand High Precision IHT516 Cutting Wheel Metal Slant Bed CNC Lathe Machine Price For Sale With Chinese Top10 Manufacturer

Product Application

 iHT516 Tuning machine with FANUC control system, Included Standard Equipment and Standard Control System Functions. Integrally molded low center of gravity casting bed, 30 ° saddle through optimized design, It has a large shock damping and a smaller amount of deformation, the main axle box, turret. Providing high-rigidity structure basis. 30 ° slant bed design to facilitate the operator upper and lower parts, but also to ensure. Smooth chip evacuation.

Main Features

1) Choose custom German SAUTER turret, small stature high rigidity, always keeping leading technology.

2) With same size requirements, the rigidity performance is higher

3) with the same rigidity performance, space occupied is smaller

4) Type interface of tool holder form fully compatible:VDI/BMT can according to customer's actual use habits to choose.

5) Axial loading tool/ radial loading tool, the tool dish all compatible: According to actual processing need to choose.

6) The spindle is designated by Germany, the perfect combination of high power and high torque

Specification
Parameter
IHT521
IHT516

Spindle
 Spindle head
FL 140 h5
FL 140 h5
Spindle maximum speed
5000rpm
5000rpm
Spindle bore
74mm
74mm
Spindle power / FANUC
7.5/11
7.5/11
Spindle bearing lubricant
grease
grease
Speed range
1-6000
1-6000
Working area
Center distance
674
694mm
Maximum swing over bed
520mm
520mm
Maximum cutting diameter
390
390mm
The diameter of the saddle
360
360
Z-axis travel
525
525
X-axis travel
225
225
X/Z axis measuring system
(X / Z); Max. Positioning
Absolute rotative
Absolute rotative
(X/ Z); Positioning
0.008/0.008mm
0.008/0.008mm
(X/ Z); Repeatability
0.005/0.005mm
0.005/0.005mm
Tailstock travel
316
316
Mobile tailstock
CNC control
CNC control
Tailstock maximum thrust
4000
4000
Tailstock sleeve
MK4
MK4
Process Details

Rich configuration


Electric turret, servo turret, power turret; high-power motors, high torque. Motor; large diameter hollow cylinder; chuck; drawer-type water tank; on the knife;

Oil mist separator and other options are available.


User- friendly design


1. Not only minimum space requirements but also to meet the work area to the maximum extent
2. Processing conditions, all surrounded by human aesthetic design, stainless steel cover available for your safety
3. Full clean space, but also to guarantee the durability of the lathe.


Modern popullar control packages


IHT series have optional FANUC 0I TF control package & SIEMENS 828D control package. 8.4' display, 10.4 display, extra interfaces etc. ready for customers.


High cost performance


German descent i H T series has the best parts, like a knife tower SAUTER, NSK bearings, etc. to ensure high-precision parts, as well as appropriate should the price to have a high cost performance.

Related Products

GV8 HIgh speed vertical machining center


MVL1060 Vertical machine center


DBM110 Horizontal boring and milling machine


Ender Users&Delivery
Why Choose Us

COMPANY INTRODUCTION:

DRC is a group company ,which is professional in products and sales of advanced CNC machine tools . Acting full operation of the six machine tool production company's overseas sales.
DRC is located in Dalian, which is one of the largest seaport cities of China.Our products exported to Russia, Dubai, Hungary, Italy, Argentina, the Philippines, India, Iran, more than 50 countries.
DRC has six factories in China, which covers many kinds of mechanical equipment.
Product Range:
CNC Lathe
Conventional Lathe,
Vertical Lathe
Machining Center
Boring and Milling Machine
Dental Milling Machine
Glass Tempering Furnace
Special Machine for Pipe Threading ,Valve Milling, End Facing and so on


After-Sale Service
FAQ
A: What is your minimum order quantity and warranty?
B: MOQ is one set, and warranty is one year.
A: Could you please tell me the payment way of your company?
B:The payment way is general T/T or L/C.
A: Do you have CE or any other certificate?
B: We have certifies, such as CE, Invention patent certificate etc.
A: What is the delivery time?
B: Some models are inshore , some models need about 2 months or more.
