DRC Brand Hot Selling High Efficiency RD-X330D Specific CNC Metal Lahte Valve Seat Cutting Machine For Sale

FOB Reference Price:Get Latest Price
US $15,000-25,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
20 Set/Sets per Month R&C Brand New Lathe Machines For Valve
Port:
Dalian
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Automatic Grade:
Automatic
Max. Swing Diameter:
DN50-DN300
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
R&C Machinery
Model Number:
Special Lathe For Valve
Voltage:
380v 50hz
Power(W):
16.5 kw
Dimension(L*W*H):
4200 x 2000 x 1900 mm
Weight:
4000kg
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Item name:
R&C Brand New Lathe Machines For Valve
Max.machining length:
470 mm
Max.machining diameter:
480 mm
Spindle speed range:
110/140/190 r/min
Distance between spindle and workbench:
385 mm
X axis travel:
150 mm
Z axis travel:
350 mm
Rapid feed:
X/Z: 3000 mm/min
Repositioning accuracy:
X: 0.01 Z: 0.015
Clamping way:
Hydraulic
Packaging & Delivery
Packaging Details
Packing in Seaworthy Wooden Cases
Delivery Time
Shipped in 30 days after payment
Products Description

DRC Brand Hot Selling High Efficiency RD-X330D Specific CNC Metal Lahte Valve Seat Cutting Machine For Sale

1.CNC multi station specialized valve processing machine are advanced machine tools for boring and milling work for flange and valve.
2.With 2 axis simultaneous or 3 axis simultaneous application, this series machines greatly simplify the previous process which finished by the conventional lathe and milling machine.
3.The CNC multi station specialized valve processing machine is made by integration casting work with simple structure, which assures its long service life and easy maintaining in the method during the service life.

Products Detail

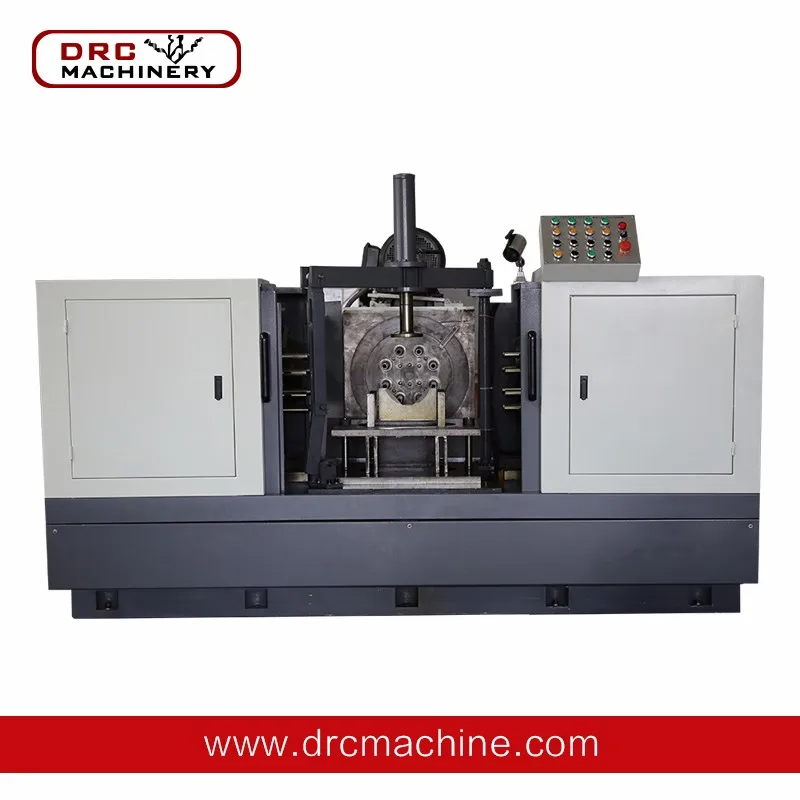

1.Three-side valve lathe suitable machining gate valves, Globe valve, Butterfly valve, ball valve, etc.

Item
RD-X330B
RD-330BX
Motor power   (kw)
5.5 x 3
6.5×3
Feed motor     (N.m)
28
Spindle speed range  (r/min)
110    140   190
(spindle can choose stepless speed change optional)
Distance from spindle nose to table surface   (mm)
385
Spindle taper
1:20
Max.processing diameter   (mm)
480 (More bigger can customer-made)
Max.processing length    (mm)
850  (More bigger can customer-made)
Z-axis travel    (mm)
350
X-axis travel    (mm)
180
Rapid traverse   (mm/min)
X:3000 Z:3000
Accuracy repeatability  (mm)
X:0.015   Z:0.01
Clamp
Hydraulic
CNC system
Domestic
Overall dimension   (mm)
3000×2000×1900
4200×2000×1900
Cover type
Semi-cover
Full-cover

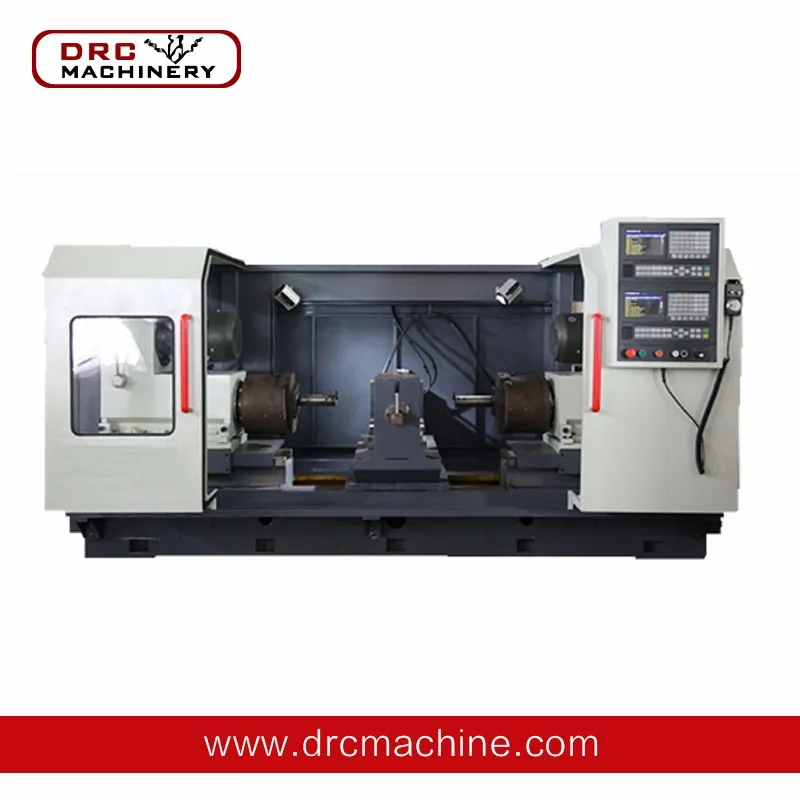

2.Three-side Valve Lathe RD -X320A/B

Specification
RD-X320A
RD-X320B
Voltage
380 AC
Feed motor
130BYG350
Power(kw)
3×4kw
Spindle speed  (r/min)
110   140   190
(spindle can choose stepless speed change optional)
Distance from spindle to table  (mm)
368
Spindle nose taper
1:20
Max.machining diameter  (mm)
480
Max. machining length  (mm)
600
Machining range
DN50-DN200
X axis travel  (mm)
350
Z axis travel  (mm)
120
Rapid speed  (mm/min)
X axis 3000   Z axis 3000
Repeated positioning accuracy
X axis 0.01   Z axis 0.015
Clamping type
Hydraulic
Controller
Domistic
Lubrication type
Automatic lubrication
Cover type
Full-cover
Semi-cover
Dimension  (mm)
2700×1700×1800
2450×1600×1200

Precision

High precision, Repeatedly accuracy ≤ 0.01 mm, Hydraulic fixture, Electronic lubrication pump.

Machining valve size from DN50 to DN300 and more. We can do customer-made CNC valve Lathe machine.

Efficient

High efficiency, Machining all sides of valve in a single set-up. One valve machining time: 2-3 minutes.

Economic

1.Make workpiece result in high consistence. There is no need to repeatedly realized.
2.Slash personnel cost, one staff could operate two Valve CNC Lathe Machines.
