DW89NC Overseas service stainless steel machine spiral pipe bender

FOB Reference Price:Get Latest Price
$13,000.00 - $18,000.00 / Set | 1 Set/Sets (Min. Order)
Max. Tube Diameter (mm):
89
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Online support, Video technical support, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
Liye
Extra Services:
Support customized
Material / Metal Processed:
Steel, stainless steel, copper, aluminum, metal
Condition:
New
Certification:
CE&ISO&BV
Automation:
Semi-automatic
Power (kW):
11
Applicable Industries:
machine equipment
Key Selling Points:
Easy to Operate
Weight (KG):
3500
Max. Bending Angle (Deg):
190
Bending Precision (Deg):
±0.1
Machine Type:
Pipe and Tube Bending Machine
Raw Material:
PIPE
Product name:
DW89NC Overseas service stainless steel machine spiral pipe bender
Color:
Blue
Oil Pump:
33L
Max. Wear Heart Distance:
3500mm
Pipe Bending Precision:
± 1°
Max hydraulic pressure:
14MPa
Factory location:
2 hours away from shanghai
Product Certification certification
CE Certified.
Valid from 2016-12-13 until 2049-12-31
Supply Ability
Supply Ability:
100 Set/Sets per Week DW89NC Overseas service stainless steel machine spiral pipe bend
Packaging & Delivery
Packaging Details
Plywood box for DW89NC Overseas service stainless steel machine spiral pipe bender.It depends on requirement.
Port
Shanghai
Video Description

machine spiral pipe bender



Product Description

 .jpg

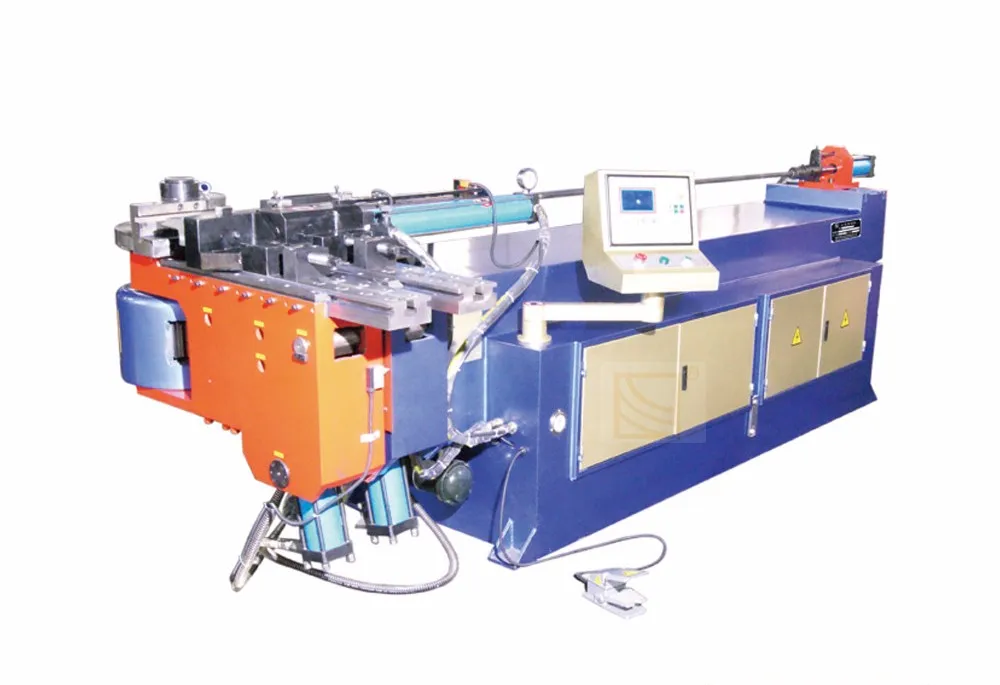

DW89NC Overseas service stainless steel machine spiral pipe bender



DW89NC1











Specification:

NC Semi-Automatic Pipe Bending Machine
SpecificationDW89NC
The Largest Processing Diameter (iron pipe) Φ89×6mm
Max. Wear Heart Distance3500mm
Max. Bending Angle190°
Max. Bending Radius250
The Main Oil Cylinder Diameter Φ150mm
Oil Pump33L
Pipe Bending Precision± 1°
Motor Power11kw
Hydraulic Pressure14Mpa
Can Be Bent Pipe Number Per Set16
Can Set Fitting File Number16 * 16
Measurement Size Of Machine (L*W*H)4550 * 1300 * 1300 mm
Weight Of Machine3500KG
Warranty1Year / Life-Long Maintenance



Feature:



1



 6



1. The product is controlled by microcomputer and driven hydraulically and it can bend various types of tube bender with different bending angle.

2. It applies Chinese character display and man-machine conversation operation, and can be operated manually, half circularly or full circularly.

3. It applies hydraulic and electrical elements with high performance.

4. Cooling system with large capacity is provided to control working temperature effectively.

5. The product has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry.

6. The movable foot switch has three functions, automatic startup, emergency stop and emergency stop continuity, which ensure high safety.

Standard accessories

1. One pair of standard mould (wheel mould, clamping mould and sliding plate mould)

2. One set of common tools

Categories of bent materials

Steel tube, stainless steel tube, copper tube, aluminum tube and multiple-unit tube

Special accessories

Auxiliary pushing device, core rod, wrinkle-proof mould, shaped mould, forming mould

Shapes

Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc.

Recommended using units

Automobile spare parts (brake line, bumper bar, silencer and seat, etc.). Industries including motorcycle manufacturing, electromobile manufacturing, iron art, fitness equipment, air conditioning, bicycle, steel furniture, sanitary and bathroom equipment, seats for relaxation, petroleum pipeline, shipbuilding and boiler.

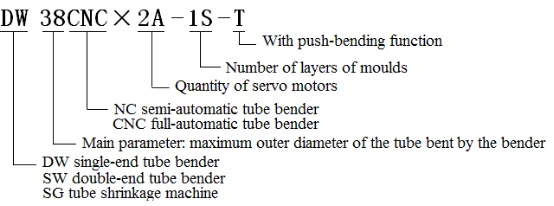

Selection Guide:

http://www.zjgly.net/en/xxzn.html








Similar product





nc bending machine

Company Information

.jpg

Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.

Our  company is an entity factory.The company has a mature team about production, product research and development,  and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.

bending machine &exhibition

Parts brand


PackingShipping



FAQ




If you are interested in our products Click here to send us a message
