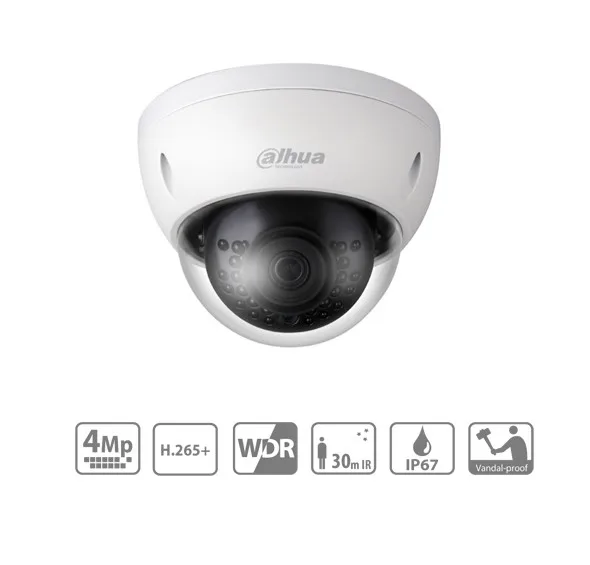

DaHua Original Ip Camera IPC-HDBW1431E 4mp Dome Camera Ip67 Poe Camera

  • 20 - 39 Pieces
    $58.00
  • >=40 Pieces
    $54.00
Type:
IP Camera
Style:
Dome Camera
Resolution:
4mp
Lead Time:
Quantity(Pieces) 1 - 1000000 >1000000
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DaHua
Model Number:
IPC-HDBW1431E
Sensor:
CMOS
Special Features:
Waterproof / Weatherproof
Product name:
IPC-HDBW1431E
Resolution:
4mp
Keyword:
HD IP Camera
Lens:
2.8mm
Feature:
Night Version
Image Sensor:
1/3" CMOS
Warranty:
1 Year
Certificate:
CE
Color:
Black+White
IR Distance:
30m
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export packaging
Port
yiwu ,ningbo ,shanghai
Lead Time :
Quantity(Pieces) 1 - 1000000 >1000000
Est. Time(days) 7 To be negotiated
Product Description
1.
1/3" 4Megapixel progressive CMOS
2.
H.265& H.264 dual-stream encoding
3.
20fps@4M(2688×1520) &25/30fps@3M(2304×1296)
4.
WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
5.
Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
6.
· 2.8 mm fixed lens (3.6 mm optional)
· Max IR LEDs Length 30m
· IP67, IK10, PoE

System Overview

The IR Megapixel Fixed camera delivers 4MP resolution with a 2.8mm/
3.6mm fixed lens. The camera's elegant blend of aesthetics combined
with a range of easy mounting solutions provides an excellent choice for
a variety of small to mid-size applications at an affordable price.

Functions

1.Smart Codec (H.265+ & H.264+)

2.Intelligent Video Analysis (IVS)

3.Wide Dynamic Range (WDR)

4.Smart IR Technology

5.Protection (IP67, IK10, wide voltage)

6.Environmental

7.Image Flip

8.Interoperability

The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.


Technical Specification
Day/Night
Auto(ICR) / Color / B/W
Camera
BLC Mode
BLC / HLC / WDR(120dB)
Image Sensor
1/3" 4Megapixel progresive CMOS
White Balance
Auto/Natural/Street Lamp/Outdoor/Manual
Effective Pixels
2688(H)x1520(V
Gain Control
Auto/Manual
RAM/ROM
512MB/32MB
Noise Reduction
3D DNR
Scanning System
Progressive
Network
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Ethernet
RJ-45 (10/100Base-T)
Minimum Illumination
0.08Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/F2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
Interoperability
ONVIF Profile S&G, API
S/N Ratio
More than 50dB
Streaming Method
Unicast / Multicast
IR Distance
Distance up to 30m(98ft)
Edge Storage
NASLocal PC for instant recording
IR On/Off Control
Auto/ Manual
Web Viewer
IE, Chrome, Firefox, Safari
IR LEDs
24
Management Software
Smart PSS, DSS, DMSS
Lens
Smart Phone
IOS, Android
Lens Type
Fixed
Certifications
Mount Type
Board-in
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Focal Length
2.8mm (3.6mm optional)
Electrical
Compression
H.265/H.264H/MJPEG(Sub Stream)
Power Supply
DC12V, PoE(IEEE 802.3af)(Class 0)
Smart Codec
Support H.265+/H.264+
Power Consumption
< 5.5W
Bit Rate Control
CBR/VBR
Detailed Images

Our brand and service

we have dahua and hikvsion brand ,we do camera bussiness about 15 years .we have one professional team.
our company located in china international FuTian market yiwu zhejiang .

if you want do camera bussiness .please contect to us and welcome to our company check.
