Dagu rover 5 tracked chassis mexico articulated 4 wheel robot

FOB Reference Price:Get Latest Price
US $3,000-5,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
AVATAR
Model Number:
AVT-600-bb0c
Motor Stepping Angle:
1.8
Speed Reduction Ratio:
7.5
Climbing Angle:
30
Rated Output Torque:
54NM
Rated Output Speed:
0-15m/min
Height of Chassis:
75mm
Rated Traction:
1148N
Dimension:
630*370*200mm
Product Keywords:
dagu rover 5 tracked chassis mexico
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box
Port
Qingdao Shanghai Guangzhou
Lead Time :
7 working days after full payment
Application

AVT-600 steel body robotic running track machine with remote control

AVT-600 robotic running track machine is mainly used for secondary development of robot products. The platform is equipped with various interfaces for installation, such as, mechanical arm, cameras, draft gear, etc.

Application

1. Robot competition in colleges and universities
2. Lab robot research
3. The second development of robotics
4. Pipeline detection robot, power station detection robot, EOD robot secondary development, etc.



Specification
Model
AVT-600 robotic running track machine
Motor Stepping Angle
1.8°
Speed Reduction Ratio
7.5
Rated Output Torque
54NM
Rated Output Speed
0-15m/min
Climbing Angle
30°
Height of Chassis
75mm
Rated Traction
1148N
Dimension
630*370*200mm
Advantages

1. Fully digital control. It adopts stepper motor, which can control the turning, speed and stroke precisely, ensuring accurate working.


2. Automatic tensioning
of guiding wheels. No need to adjust manually, which can ensure good tension and working of track.

3. Shock absorbing structure with two degrees of freedom
. High quality load bearing wheels and excellent torsional spring form two degrees of freedom(concave convex shock absorption and center of gravity shock absorption). This design will make it more stable and stop structure from plastic deformation caused by fluctuation and drop acceleration, ensuring durable working.

4. Many mechanical expansion slot
. There are mechanical expansion slots in the front, back and upper sides. You can equip other devices for different demands from clients.

5. Modular design for electronic part.
The power control system is independent modular with standard circuit interface, good for secondary development and equip other electronic equipment.

6. Multiple power mode, you can equip
battery, gasoline generator, etc.

7. Multiple control model, you can use
ADSL cable control or remote control as options.

Developed Robot Case

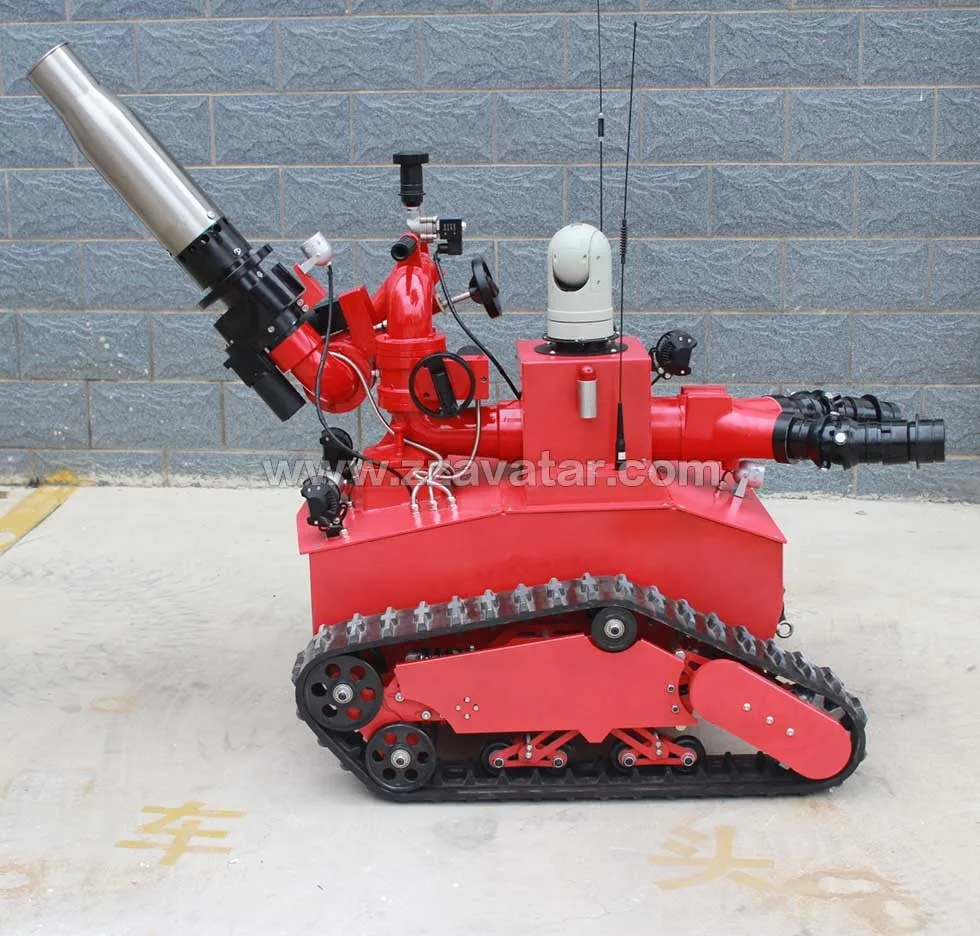

Multi-functional Crawler for Firefighting Robot

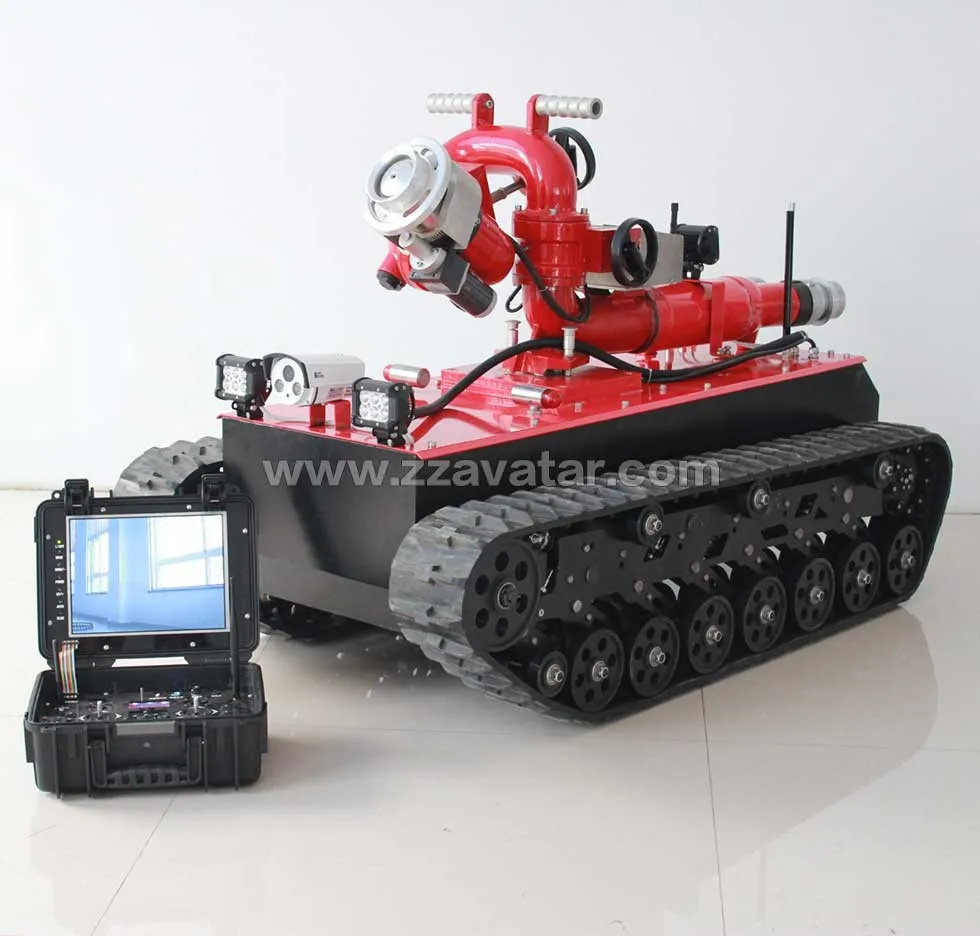

Firefighting Robot with Robotic Chassis

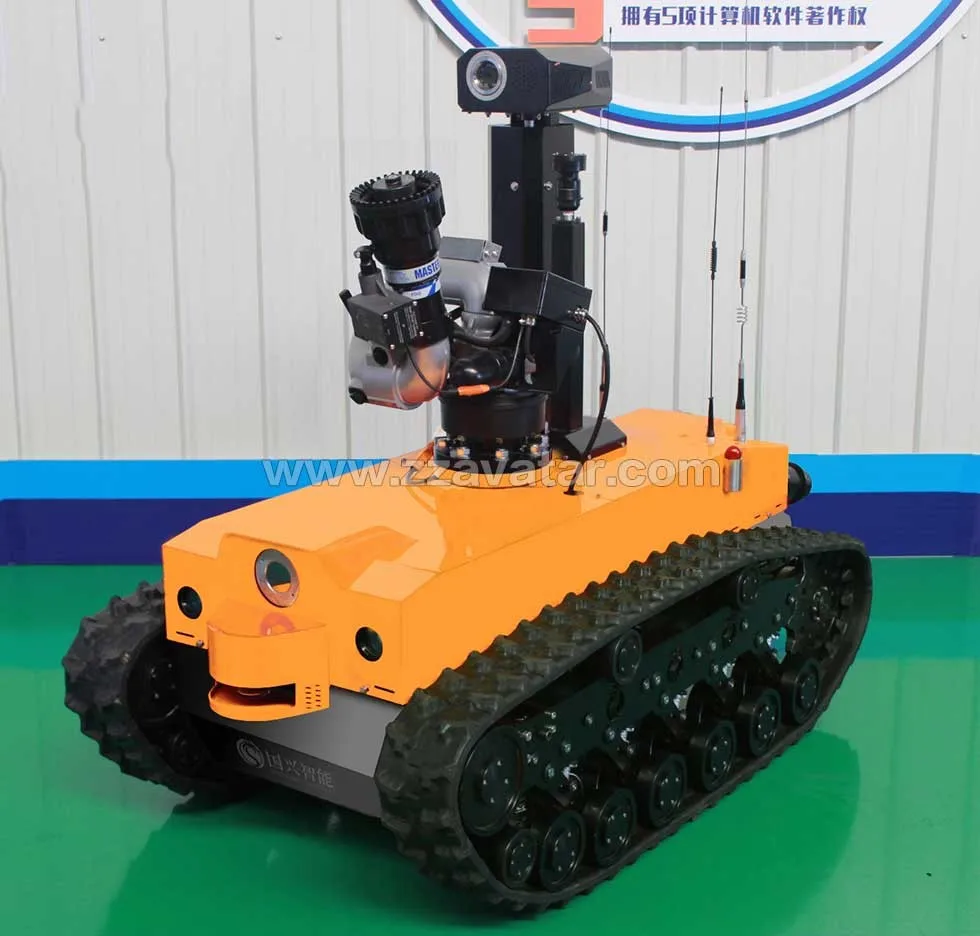

Explosion Detection Robot
