Deep Cycle Rechargeable 12V 24V 48V 72V 40Ah LiFePO4 Battery Pack for Electric Boat Yachts UPS Energy Storage System

FOB Reference Price:Get Latest Price
$352.00 - $557.00 / Pieces | 1 Piece/Pieces (Min. Order)
Nominal Capacity:
40Ah / Customized
Nominal Voltage:
72V/ Customized
Battery Size:
18*65mm/Optional
Lead Time:
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Sunbang-Power
Model Number:
72V-40Ah LiFePO4 Battery Pack
Type:
LiFePO4
Anode Material:
LiFePO4
Housing:
Metal, Plastic, Shrink Film
Discharge Current:
100-300A
Charge Current:
10-20A
Application:
Electrocar, Energy storage, IOT, AGV, UPS, Electric Vehicles, Solar Power Storage
Certification:
UL, ce
Weight:
35-120KG
Voltage/Capacity:
72V/40Ah/Customized
Energy/Watt Hour:
2880Wh
Pack Method:
20S16P
Cycle Life:
≥500 times
Warranty:
1 Year
OEM/ODM:
Acceptable
Package:
PVC, Plastic Case, Iron Box
Protection:
Over charge/Over discharge/Short circuit
Certificates:
CE, UL, UN38.3, MSDS, FCC
Supply Ability
Supply Ability:
100000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Netural Package
Port
Hong Kong
Lead Time :
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 10 To be negotiated
Product Description
Deep Cycle Rechargeable 12V 24V 48V 72V 40Ah LiFePO4 Battery Pack for Electric Boat Yachts UPS Energy Storage System
Nominal Voltage (V)
72V
Nominal Capacity (Ah)
40Ah
Energy(Wh)
2880Wh
Pack Mode
20S16P
Charge Current (A)
0.2-1C A (Standard to Maximum)
Discharge Current (A)
1-5C A (Standard to Maximum)
Charge Cutoff Voltage (V)
84V±0.05V
Discharge Cutoff Voltage (V)
50V±0.05V
Charge Temperature
0~45°C
Discharge Temperature
-20~60°C
Operating Temperature
-20~60°C

Storage Temperature
1 month: -20~60°C
3 months: -20~35°C
1 year: -20~25°C
Relative humidity: 65±20%

Protection
Short circuit protection, overcharge protection, over discharge protection, over-current protection, over heating protection
Charge Mode
CC/CV
Weight (include charger and packing)
16-18Kg
Applications
EVs, UPS, Solar Energy Storage, E-boat

1. High operation voltage.
2. High energy density.
3. Long cycle life, more than 500 charge/discharge cycles ( 800% capacity remained ).
4. Minimal self-discharge, less than 10% monthly.
5. Wide temperature range. Operation from :-20°C~+60°C: Charging among 10-45°C, discharging among -20°C~60°C.
6. No memory: can be charged & discharged at anytime.
7. Environmentally compatible.
8. High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking experiment, with acupuncture, smash, drop test and so on.

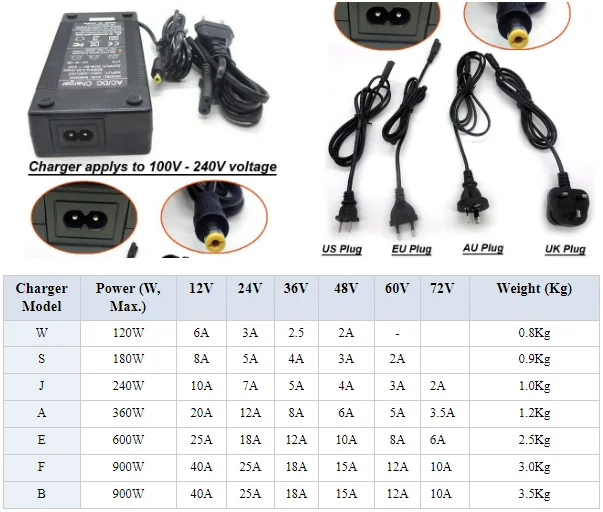

9. Charger. USA, Europe, UK, Australia standard plug, with UL, PSE, CE, FCC, KC certifications.

10. Wires & Connectors. Rhos standard, length and wiring types & connector types are customized according to client's need.

How do I choose a Lithium Battery Charger?
1. Identify how many cells you need to charge to find the correct voltage you need (1 Lithium-ion cell = 3.7V, 2 Lithium-ion cells = 7.4V, 3 Lithium-ion cells = 11.1V and so on)
2. The charge current cannot be more than C, where C represents the battery capacity, subject to protection circuitry
3. For a fully discharged lithium battery, the time necessary to have 80% of the charge of your battery is calculated by dividing the battery capacity by the charger's output current. E.g. if you have a 4 cell battery (14.8V) which is 2.2A and a 2A charger, your battery will be 80% charged within roughly 1 hour (2.2 / 2 = 1.1). The last 20% need 2 to 3 hours of supplementary charge to reach 100% of the capacity.

Pack Parameters

Pack Options

Volts
Pack Mode
Pack Capacity
Dimension
Application
3.7V/3.2V
1S2P/Customized
7.2Ah/Customized
Flexible/Customized
POS Machines
7.4V
2S1P/Customized
2.2Ah/Customized
Flexible/Customized
Drones
14.8V
4S1P/Customized
2.6Ah/Customized
Flexible/Customized
Vacuum Cleaner
18V
5S10P/Customized
20Ah/Customized
Flexible/Customized
Powered Tools
60V
20S12P/Customized
40Ah/Customized
Flexible/Customized
UPS
P.S.
Above pack mode, pack capacity and dimension is open for customization.
Main Products
12V XXAh Lithium Storage Battery Pack
Nominal Voltage
12V/Customized
Nominal Capacity
XXAh/Customized
Pack Mode
4SXXP/Customized
Std Charge Current
0.2-1.5CA
Std Discharge Current
1-3CA
Applications
EVs, UPS, Solar Energy Storage, E-boat
24V XXAh Lithium Battery Pack
Nominal Voltage
24V/Customized
Nominal Capacity
XXAh/Customized
Pack Mode
5/7SXXP/Customized
Std Charge Current
0.2-1.5CA
Std Discharge Current
1-3CA
Applications

EVs, UPS, Solar Energy Storage, E-boat
36V XXAh Lithium Battery Pack
Nominal Voltage
36V/Customized
Nominal Capacity
XXAh/Customized
Pack Mode
10/12S/XXP/Customized
Std Charge Current
0.2-1.5CA
Std Discharge Current
1-3CA
Applications

EVs, UPS, Solar Energy Storage, E-boat
48V XXAh Lithium Battery Pack
Nominal Voltage
48V/Customized
Nominal Capacity
XXAh/Customized
Pack Mode
10/15SXXP/Customized
Std Charge Current
0.2-1.5CA
Std Discharge Current
3C-20C
Applications

EVs, UPS, Solar Energy Storage, E-boat
Product Applications

1. Light: headlamp, emergency light, solar flashlight, searchlight, lantern,bicycle light, LED light, military flashlight, high-end flashlight, high power flashlight, bright flashlight.
2. Outdoor sports products: camping light, mountain bike light, emergency light, self-defense flashlight,
3. Customer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player, speaker, microphone, sound equipment, audio, Digital camera.
4. Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes, electric blanket.Medical devices
5. Instruments and meters: water meter, gas meter.
6. Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor.
7. Power tools: Automatic Doors, Baby Monitors, Burglar Alarms, Car Alarms, Central Heating Timers, CNC Machines, Computers, Cordless Phones, Electric Shavers, Electric Toothbrushes, Emergency Lighting, Flashguns, Gas Fires, Multi-meters, Optical Power Meters, PLC Machines, Standard Li-ion Pack, Torches & Lamps, Vending Machines, VHF & UHF Radios, electric drill, lawn mower.
8. UPS, GPS and etc.

Why Choose Us

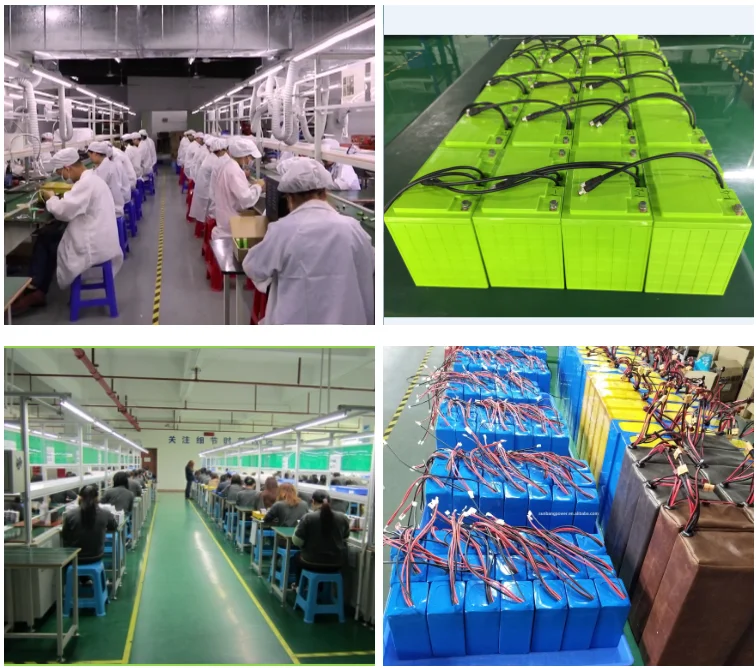

Factory and Company. Shenzhen Sunbang Technology Co., Ltd. was founded in the year of 2008, with 200 experienced employees, over 3000m² comfortable workplace with office based in one of the Silicon Valleys in Shenzhen. And factory, after relocated to Jiangmen City, is equipped with a full set of automation devices for professional lithium battery pack production and assembly.

Product. More than 10 years of  focusing on manufacturing and providing lithium batteries, the customization of Lithium ion and polymer battery pack, LiFePO4 battery pack, Energy Storage battery and offering OEM/ODM service to customer with small order. Products are widely sold in North America, Europe, Australia, South America.

Team. Standard modern company structure: In Shenzhen, Sunbang has a dedicated Sales & Service team to take care of clients' requirements. In Jiangmen, a technical team stands by to offer professional solution and advice to your technical problems and a specified QC team for product quality control and management as guarantee and support.

Advantages.

1. Product: premium battery supplier to provide high quality product.

2. Price: perfectly streamlined manufacture and assembly structure for further adjustable pricing.

3. People: customer first is the principle of our service. A satisfied customer has a bigger chance for future cooperation.

Certifications

Sunbanng provides different certifications conforming to different market requirements.

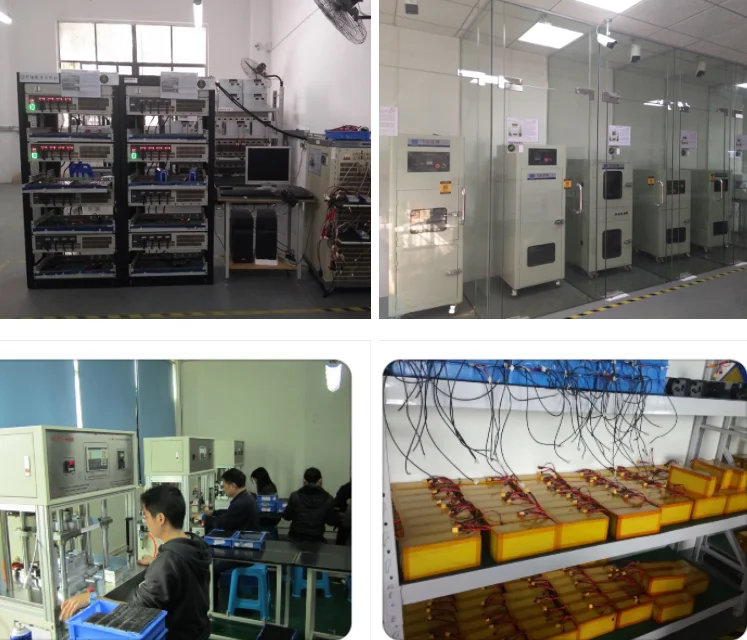

Product Processing
Packing & Delivery

Battery Packaging Options:

PVC, Plastic Case, Aluminium Case in cartons filled with foams and plastic bubble bag.

Product Delivery:

Express supported: DHL, Fedex, UPS, TNT, etc. price may vary due to season changes.

Bulk transportation: Freight and Train Supported.
