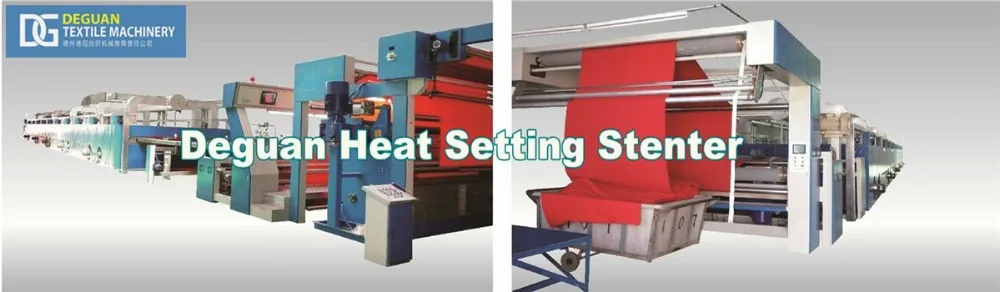

Deguan Factory Directly Supply Heat Setting Stenter, 10 Chamber Oil Heat Source 2600mm

FOB Reference Price:Get Latest Price
$185,000.00 - $278,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
DGLD2400 DGLD2800 DGLD3200
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 75 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Automatic
Place of Origin:
Shandong, China
Brand Name:
DEGUAN
Voltage:
220V/24V
Power(W):
380V/3P/50HZ
Certification:
ISO9001
Warranty:
365 days
Name:
Heat Setting Stenter
Fabric Type:
Open width fabric
Special device:
Monfors Style
Fabric Width:
1000mm--3600mm
Speed:
5-60m/min
Temperature:
100~220
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Unit/Units per Year
Packaging & Delivery
Packaging Details
Standard Package suitable for sea shipment
Port
Qingdao Port ,Tianjin Port,China
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 75 To be negotiated
Product Description

Product Application

The Heat Setting Stenter Machine is used for cotton/chemical fiber/mixed knitted woven fabric in open width status.

According to the width size of the fabric, we can offer the following models with different normal work width:

DGLD2400/2600/2800,which are popular sales according to customer's usage.

The machine is equipped with horizontal rollers, single padder, mechanic weft straightener. All parts and components are applied some famous brand in order to keep excellent quality.

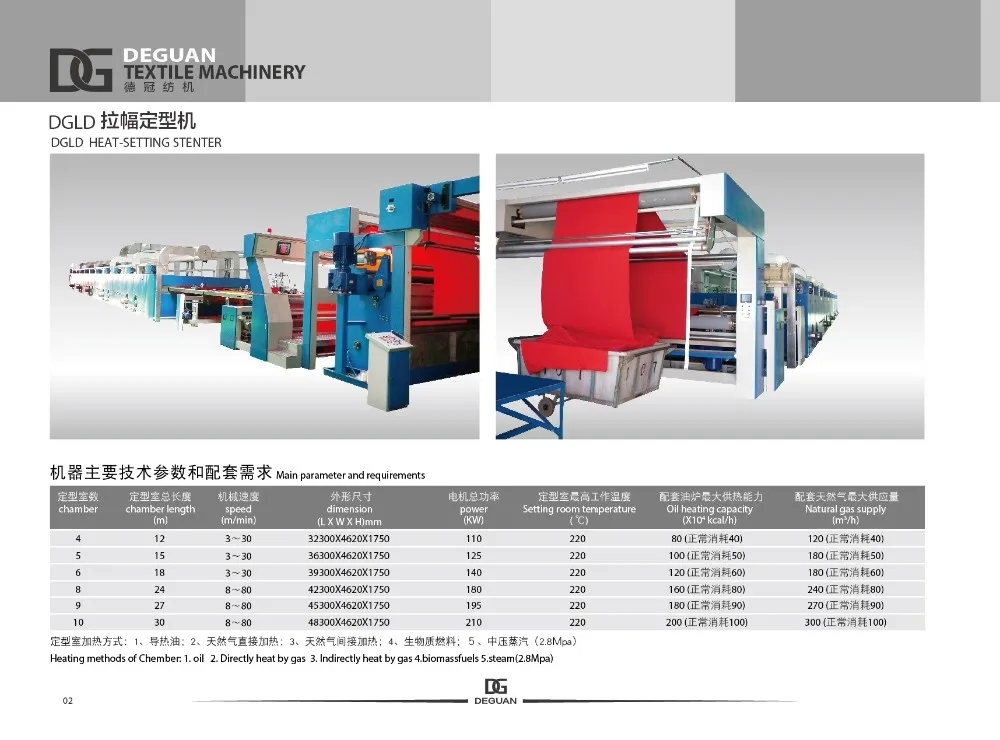

Main Parameter and Requirements
BRAND NAME
DEGUAN/ DG
MODEL
DGLD HEAT SETTING STENTER
ORIGION
CHINA
YEAR OF MANUFACTURE
ACCORDING TO ORDER
Main Matching Fabric
open width fabric (70~350g/m²) made of cotton, cotton/polyester,wool,synthtic fiber and other blended fibers
Heat source
Natural gas/oil/steam
Stentering type
Hot air circulating
Chain type
Pin+Clip
Rail type
Pitch 60mm;Oil-free lubricated
Holding type
Carbon Steel+Polymer wearing strip
Working type
Horizontal return chain
Working width
1000~3600mm
Working speed
5-60m/min
Chamber width
3000mm
Insulating board thickness
150mm
Pinning & brush overfeed ratio
20%~40%
Temp.& Breadth adjustment type
Adjustment on each chamber
Standard machine power supply
380V/3PH/50HZ
Control power supply
220V/24V
Steam specification of steam box
3-6kg/cm²
Steam consumption of steam
100-150kg/h

Main Features

Functions of Stenter Machines

Heat setting is done by the stenter for lycra fabric, synthetic and blended fabric.
Width of the fabric is controlled by the stenter.
Finishing chemical apply on fabric by the stenter.
Loop of the knit fabric is controlled.
Moisture of the fabric is controlled by the stenter.
Spirility controlled by the stenter.
GSM of the fabric is controlled by stenter.
Fabric is dried by the stentering process.
Shrinkage property of the fabric is controlled.
Curing treatment for resin, water repellent fabric is done by the stenter.

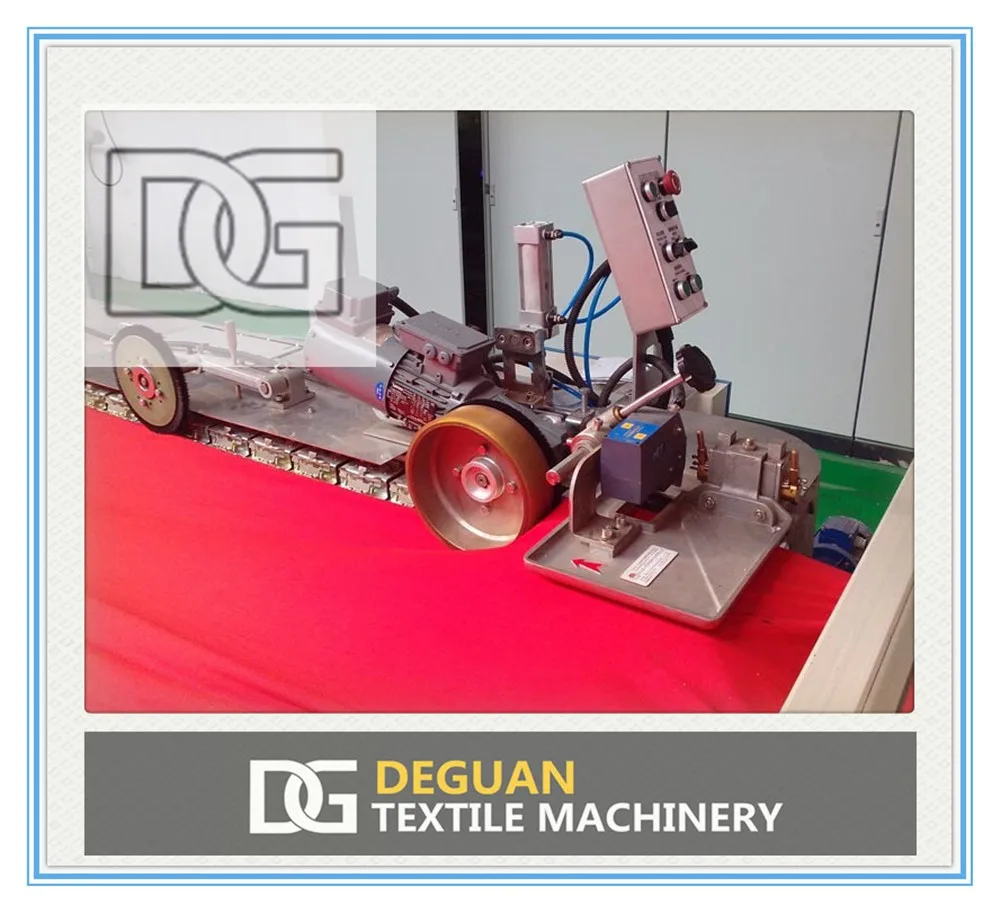

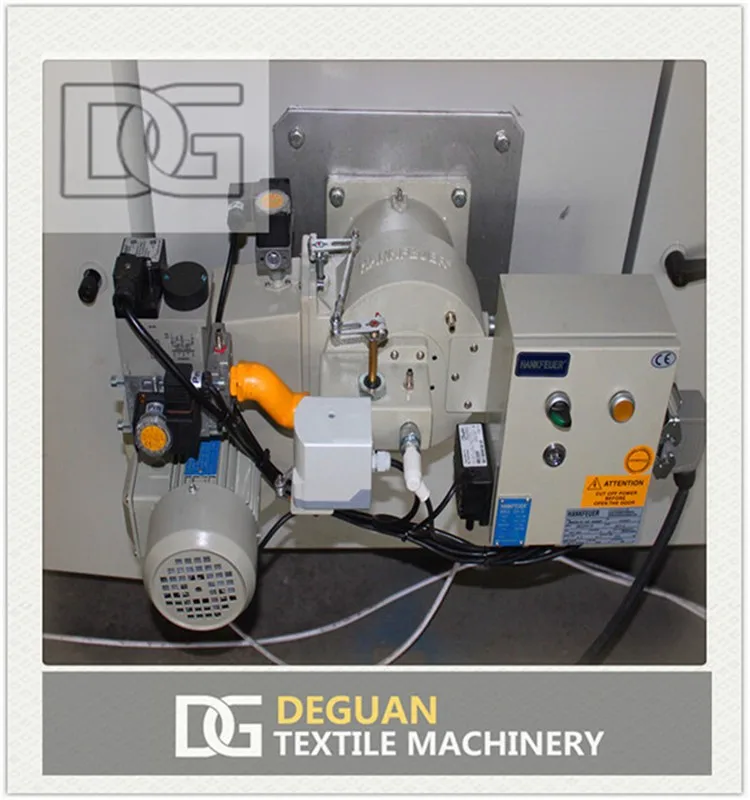

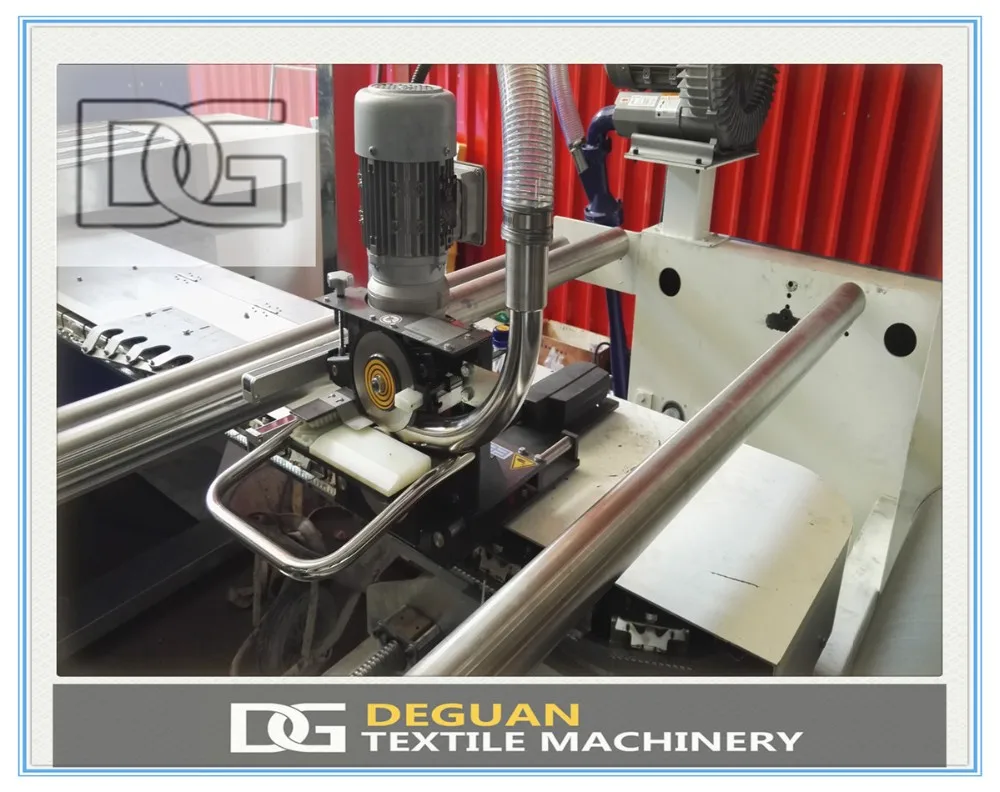

Detailed Images

Why Should We Choose DEGUAN?


1. Original manufacturer and reliable supplier
2.. Good price with good quality
3. Expert could design with your request
4. Excellent after-sale service and long term spare parts offered
6. Professional salesman help you anytime


Stenter--Then Role Part in Textile Finishing Processing

Stenter machine, also called Heat Setting Stenter, is the most powerful equipment during the whole textile finishing processing line. As the necessary and mult-function machine, Stenter always play the role part of textile finishing machinery series products.

1. Finishing For woven fabrics
2. Drying For knitting fabrics
3. Curing For woven and Knitting fabrics
4. Heat setting of woven and knitting fabrics

Methods of Chamber Heating

1. Thermal Oil
2. Natural Gas
3. Steam

The stenter machine is equipped with horizontal rollers, single padder, and mechanic weft straightener, burners,etc. Parts and components are applied with Schneider/Honeywell/Siemens / Delta / Omron / Hankfeuer and other famous brands in order to keep machine in excellent quality.



Your choice will never let you down!

The production base of Textile Machinery is founded by the professional technicians and stuff, who have more than ten years' experience in this industry.
Our market and clients come from Southeast Asia, Middle-East Asia, East Europe, Middle Asia, South America and Africa. We take pleasure in offering textile finishing machine products series with excellent quality and the best service.
High standard textile finishing machines along with warm service, we hope your choice will never let you down, and we cherish every opportunity to cooperate with you.


Cooperation with DG

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

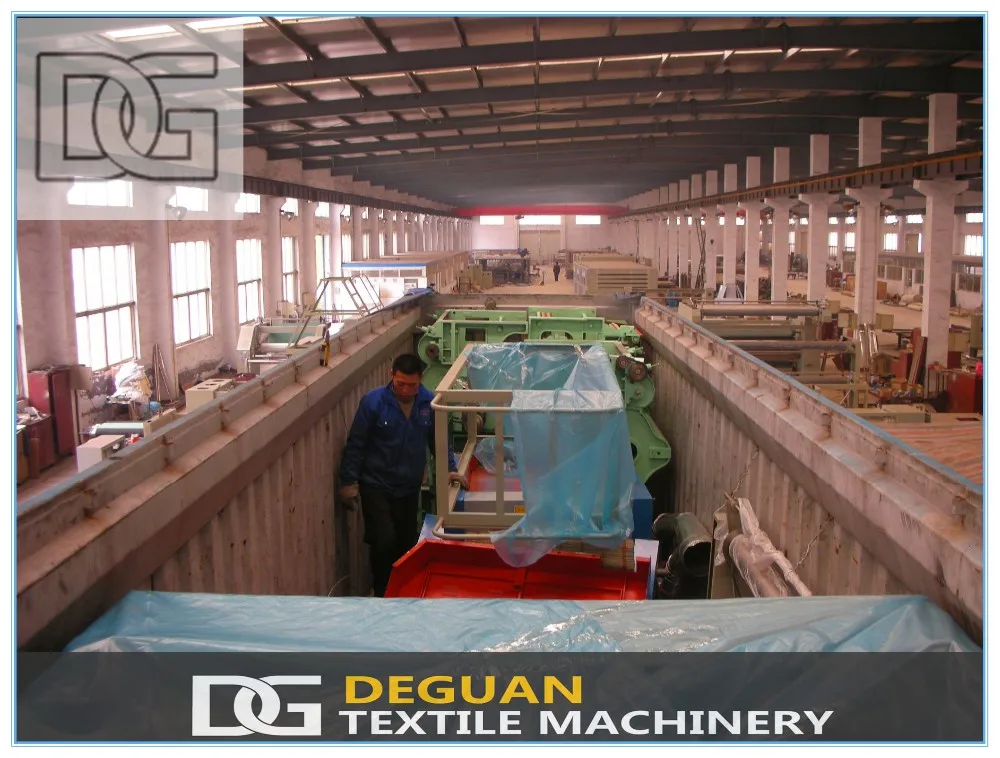

Deguan Factory
Packing & Delivery
Packaging



Packaging Details
Our market and clients come from Southeast Asia, Middle-East Asia, East Europe, Middle Asia, South America and Africa. Deguan takes pleasure in offering textile finishing machine products series with excellent quality and the best service.

High standard textile finishing machines along with warm service, we hope your choice will never let you down, and we cherish every opportunity to cooperate with you.
Packaging



Packaging Details
1.The normal package is Naked.

2. If export to european countries,the wooden box will be fumigated.

3. If container is too tigher,we will use pe film for packing or pack it according to customers special request.

4.  All of your requirements could be considered and met upon early notice.
