Diamond Cutting Alloy Wheel CNC Lathe Rim Repair Machine CK6160W

FOB Reference Price:Get Latest Price
$6,000.00 - $8,500.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
Wheel Repair lathe CK6160W
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets) Less
Samples:
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Place of Origin:
Shandong, China
Brand Name:
HaiShu
Condition:
New
Dimension(L*W*H):
1900X1400X1750
Certification:
CE Certificate
Voltage:
380V
Machining diameter of the wheel:
24"
Max. machining length of the workpiec:
500
Tool holder form:
Fixed turret,Electric turret (optional)
Clipping method:
Three-jaw chuck
Function:
Repair rim wheel
Detection method:
Probe (or infrared scan)
Section of turning tool:
25X25
Range of spindle speed:
150~2800 rmp
Main motor power:
3kw
Name:
Diamond Cutting Alloy Wheel CNC Lathe Rim Repair Machine CK6160W
CNC or Not:
CNC
Automatic Grade:
Automatic
After-sales Service Provided:
Overseas service center available
Max. Swing Diameter:
660mm
Power(W):
3kw
Weight:
1300kg
Supply Ability
Supply Ability:
10000 Set/Sets per Year Alloy Wheel CNC Lathe Rim Repair Machine CK6160W
Packaging & Delivery
Packaging Details
Export fumigation-free packed in wooden cases
Diamond Cutting Alloy Wheel CNC Lathe Rim Repair Machine CK6160W
Port
QINGDAO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description
Product Description

Diamond Cutting Alloy Wheel CNC Lathe Rim Repair Machine CK6160W

RSM585 rim straightening machine
Working range 10 "~ 26" wheels

CK6160Q wheel lathe
Repair 5~22-inch wheels

CKL35 alloy wheel lathe
Repair5~ 35-inch wheels

CK6180W alloy wheel cnc lathe
Repair 5~28-inch wheels

CK6166A cnc wheel lathe cutting machine
Repair 5~24-inch wheels

CK6187W wheel repair lathe
Repair 5~30-inch wheels

Product Name
Diamond Cutting Alloy Wheel CNC Lathe Rim Repair Machine CK6160W
Max. wheel diameter
24"
X-axis maximum stroke
320
Main motor power
3
Rail width
260
Max. workpiece length
500
Measuring tool
Laser, probe (optional)
Measurement method
Point measurement and quick scan

Features:
1. The machine's control system is a specially developed CNC system by our company for the wheel repair lathe. It uses a liquid crystal touch screen operation, make up for the universally system's shortcomings for the wheel repair, professional is strong, full functions, good performance, easy to operate.
2. The machine can meet both the touch probe and the laser non-contact measurements. Laser measurements can be used for intermittent measurements of points, as well as for rapid and continuous scanning measurements. The depth of the wheel surface is not limited by the size of the probe, nor is the loss of the probe.
3. The program optimization is in the system of computer to complete, the operation is very simple.don't need another computer.
4. Haishu system has teaching programming function, not only can complete the whole surface of the wheel hub repair, but also through teaching to repair the part of the wheel hub.
5. The machine uses wheel specific fixtures, when the wheel clamping, rim positioning and center hole positioning are , allowed, the user optional.
6. The machine door is manual or pneumatic, you can choose.
7. The machine case is fully protected.
8. The system interface language can be set according to customer requirements.
9. The dedicated CNC system used by this machine is constantly innovating. Our company promises free upgrade after the sale, and can realize online remote operation, debugging, teaching and technical services.
3. Uses
The machine tool suitable for High-precision turning and repair processing for surface of car wheel.
The machine tool has also the function of the general CNC lathes .

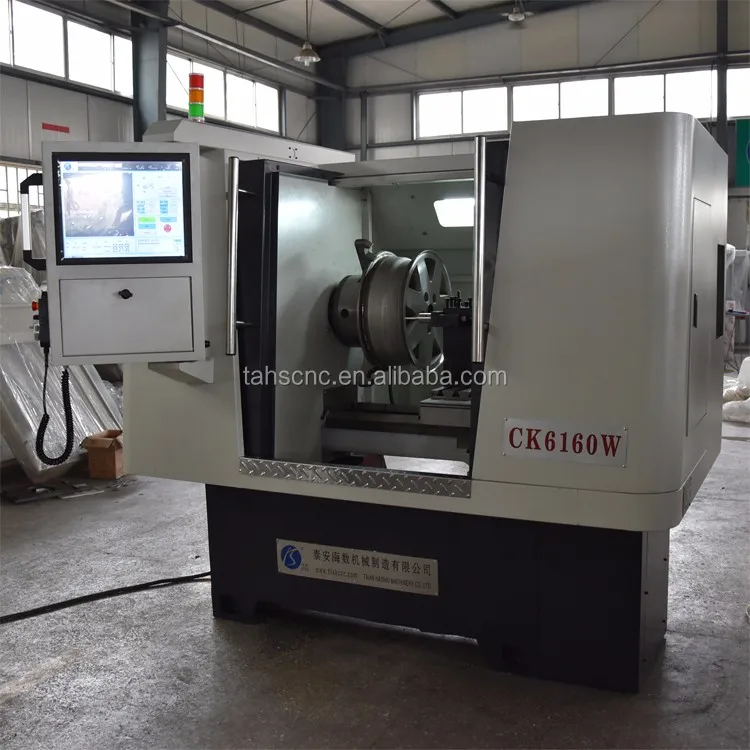

Products Show

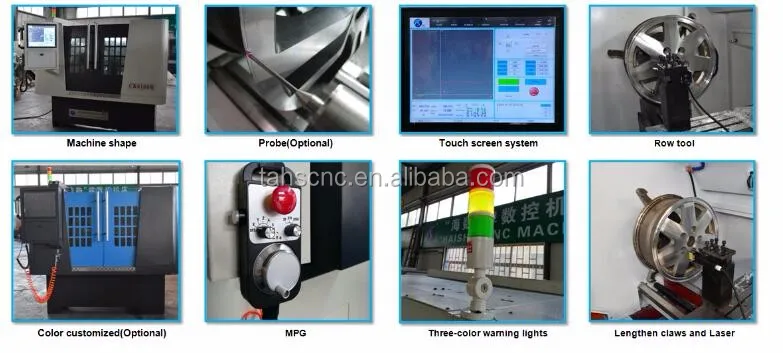

PC MAG Repair Lathe Rim Repair Machine CK6160W Main parts:

Standard configuration

1 CNC system: "HAISHU" LCD touch screen CNC system.
2 Laser probe
3 Precision spindle unit
4 Z-axis dual servo motor drive
5 X, Z axis linear guide
6 Precision screw vice
7 Software and hardware limit
8 Rail protection system
9 Automatic lubrication system
10 Air cooling system
11 Air gun
12 MPG
13 Warning lights
14 Full protection outer casing
15 Chip removal box
16 Long jaw chuck
17  2 Station row turret
18 Z safety brake

Our Service

Thank you for your interest in our production of CNC machine tool products, in order to protect your legal rights, from you for purchasing our CNC machine tools worries, we like all of our customers to purchase CNC machine tool products, on product quality and after-sales service to make the following committed to:

1, three bags a year, life-long service
2, free training operators

3, receiving customer feedback, provide solutions within 24 hours
4, CNC equipment parts are used in the world and China's well-known brand manufacturers
5, the company exports are the new equipment CNC equipment, packaging before the error, have good debugging, fully meet customer requirements, before allowing shipment


Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Warehouse

Warehouse

About HAISHU Machinery

As the professional CNC machine designer and manufacturer, Taian HAISHU Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory. More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative CNC wheel machine products include wheel CNC machine, wheel repair machine, brake drum lathe and other customized CNC machines custom CNC equipment for special requirements.

HAISHU Machinery is not only manufacturing best quality CNC wheel machine products but also providing custom design, fabrication and after sale service. If you have any questions or inquiries, please contact me, we will reply as soon as possible.

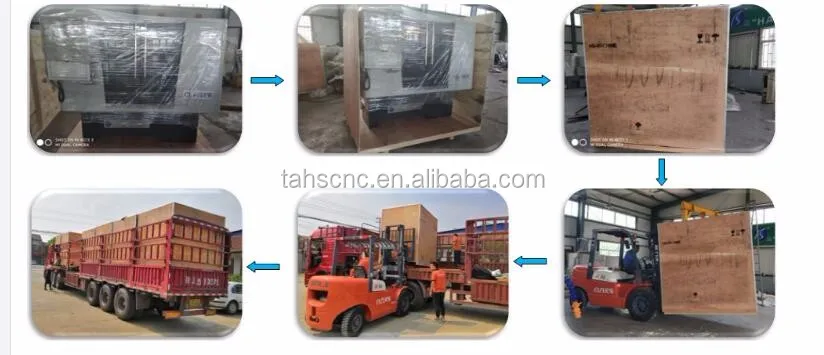

Packing & Delivery

Packing and Delivery:
• Inside package is plastic film, outside is wooden or plywood case
• We can supply fumigation package .
• Shipping, train, express or upon clients' demands.

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , wheel lathe machine,pipe cnc lathe and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Taian City ,Shandong Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!

3.If need CIF Price, please kindly tell us the port of destination..
