Diesel Concrete Pup Machine Mini Concrete Pump Truck

FOB Reference Price:Get Latest Price
$10,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JB40R-JZC350
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Dimension(L*W*H):
6000x2300x3150MM
Weight:
5200kg
Warranty:
12 Months
Condition:
New
Power Type:
Diesel
Place of Origin:
Henan, China (Mainland)
Brand Name:
Langzheng
Power(W):
82KW
Certification:
ISO CE
Features:
Mini Concrete Pump Truck
Item:
JB40R-JZC350
Max. Theoretical Concrete Output:
40M3/h
Max. Concrete Pumping Pressure:
10Mpa
Delivery Cylinder:
180x800mm
Oil Tank Capacity:
350L
Diesel Model:
DEUTZ
Mixer Type:
JZC350
Capacity of Charge:
560L
Capacity of Discharge:
350L
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export package or as your requirements
Port
Qingdao/Other main ports in China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description

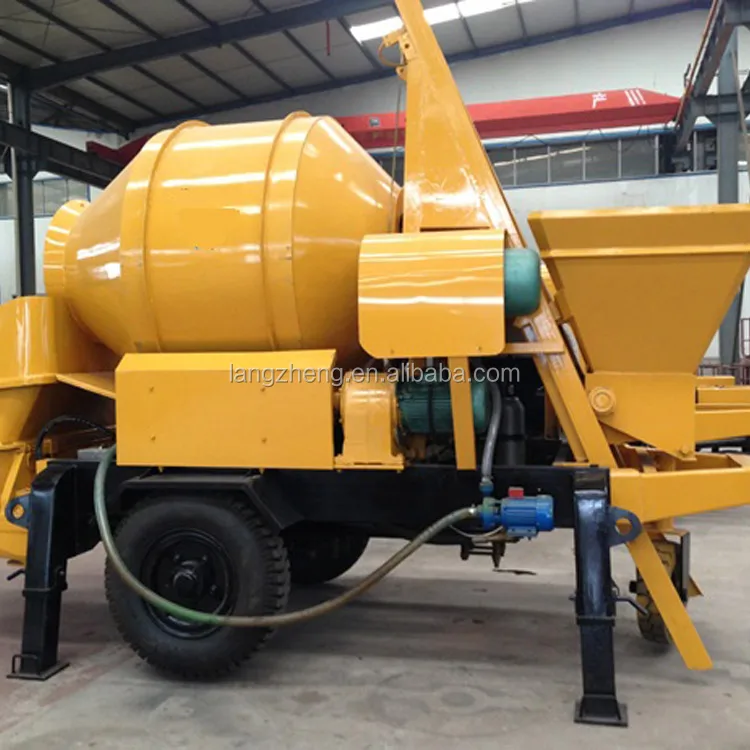

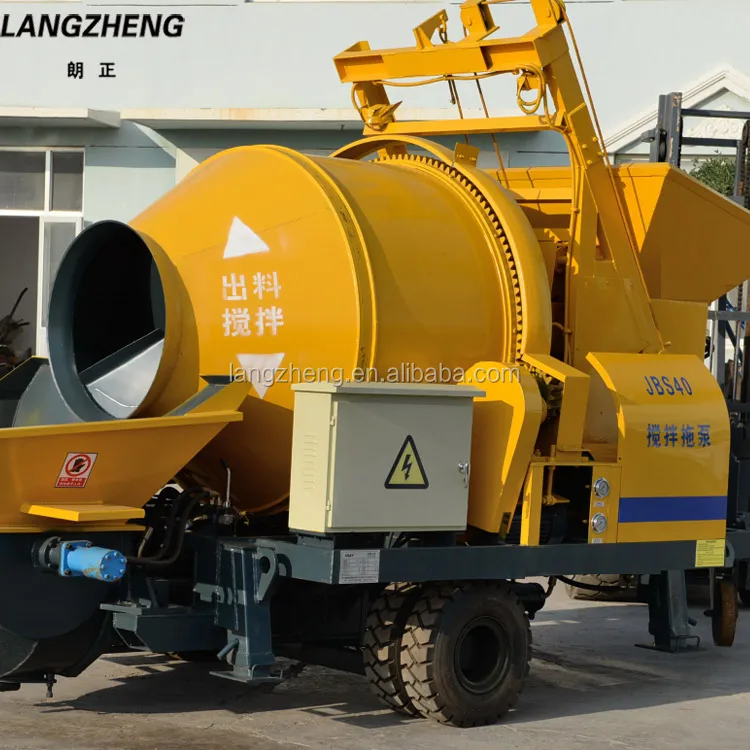

Diesel Concrete Pup Machine Mini Concrete Pump Truck

The improvement of people’s living standard and the request about housing condition, in addition, the increasing number of migrant workers caused a shortage of young adults,which make the concrete machine with mixer and pump with high efficiency and less labors needs popular with rural house-building.

It is a combination of concrete mixer and concrete pump, obviously, it has all advantages of them. There are two main mixer pumps in our company. One is electric, the other is diesel.
Our concrete pump and mixer is combined with hopper,pumping system, hydraulic system, clean system and electric system and has the function of feeding, mixing and pumping.

Pictures
Main Technical Parameter
ItemUnitJB30R-JZC350JB40R-JZC350
Rated Outputm3/h3040
Max. Pressure On ConcreteMpa1010
Delivery Cylindermm140×1100180×800
Main Oil Cylinder Bore/Rod Diameter Xmm80/55×1200100/70×1000
Oil Tank CapacityL250350
Outlet Opening Diametermm100125
Inner Dia. of Delivery Pipemm100125
Diesel Model WEIFANG4100DEUTZ
Diesel PowerKW6282
Max. Diameter Of Aggregatesmm3040
Maximum Delivery Horizontal DistanceM600700
Maximum Delivery Vertical DistanceM120150
Mixer Type JZC350JZC350
Capacity of ChargeL560560
Capacity of DischargeL350350
Water Pump Motor Control ElectromagneticElectromagnetic
Diameter of Drummm14401440
Mixing Times45-6045-60
Length×Width×Heightmm5500×2300×27006000×2300×3150
WeightKg50005200

Detailed Images

Detailed Images

Working Process







Advantage:



1) The characteristics of electrical type:
1. The electric type is driven by electrical machine;
2. It is more suitable for new rural construction, small building and grouting pile and so on projects;
3. Adopts twin-shaft mixer, greatly improve the mixing quality of concrete and reach the standard of commodity concrete;
4. Full automation, achieve feeding, mixing and stirring and high pressure pumping integration, which greatly improve the working efficiency;
5. More stable performance than concrete pump, compact structure makes the function more smooth and reliable, lower fault rate and long life span.

2) The characteristics of diesel concrete pump mixer:
1. More convenient to construction and the best choice under the no electricity condition;
2. Adopts the diesel as the driving force, higher pumping distance and further transmission distance;
3. High disposition and compact structure;
4. Easy automation operation and maintenance;
5. Excellent performance and low energy consumption;
6. Twin-shaft concrete mixer, faster mixing speed and higher working efficiency;
7. Small power, small volume, flexible mobility;
8. Durable in use and low costs;
9. Short construction period and less labor need;
10. Accuracy mixing proportion and good mixing quality
