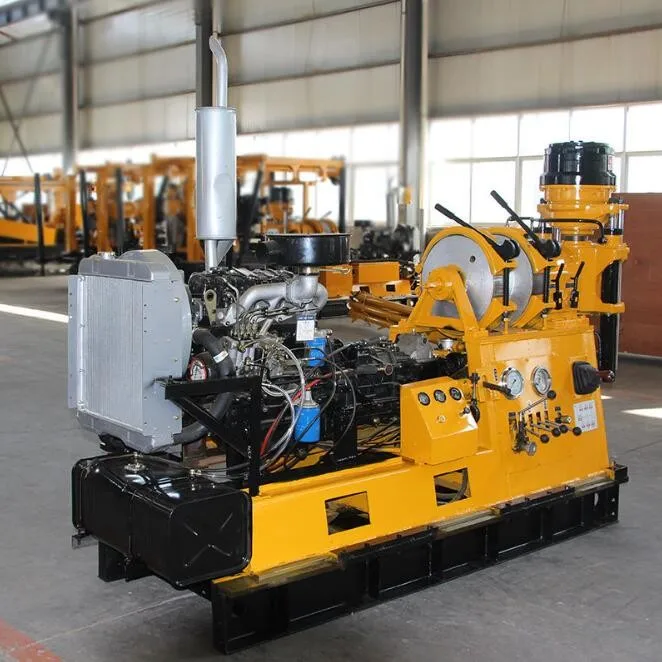

Diesel oil widely used water well drilling rig

FOB Reference Price:Get Latest Price
$16,000.00 - $26,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ORHZ-130Y/130YY/180Y/180YY/200Y/200YY
Power(W):
13.2KW/14.7KW
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Construction works , Geological survey and Well drilling
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Place of Origin:
China (Mainland)
Brand Name:
Orangemech
Usage:
Water Well
Dimension(L*W*H):
2.4*0.8*1.4m
Weight:
740KG
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
Application:
Geological Exploration
Feature:
High Drilling Efficiency
Drilling depth:
130-200m
Drill angle:
90-75
Stroke:
450mm
Reciprocal time:
93/min
Drill mast Height:
6.5m
Drill rod dia.:
42-60mm
Drilling type:
Alloy High Speed Rotary
Function:
Wells Drilling Machine
Supply Ability
Supply Ability:
590 Set/Sets per Year
Packaging & Delivery
Packaging Details
Packing by wooden case.
Port
Any port in China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Description

Product Application

 hydraulic drilling rig is a light weight drilling rig. This product is widely used for general geological exploration of railway, road, bridge, dam and tall building base, geological core drilling, small grouting holes, blasting holes, civil wells and earth central air conditioning wells, etc.

SPECIFICATIONS
Tech parameter
Model(YY series are equiped with moving slide)
ORHZ-130Y/130YY
ORHZ-180Y/180YY
ORHZ-200Y/200YY
Drilling depth(m)
130
180
200
Open hole diam.(mm)
220
220
325
End hole diam.(mm)
75
75
75
Drill rod diam.(mm)
42-60
42-60
42-60
Drill angel(°)
90-75
90-75
90-75
Matching power(KW)
13.2
13.2
14.7
Weight without power(KG)
600/740
620/750
880/970
Dimension(m)
2.4*0.8*1.4
2.4*0.8*1.3
2.7*0.9*1.5
Spindle
Speed(r/min)
142/285/570
130/300/480/830/1045
64/128/287/557
Stroke(mm)
450
450
450
Winch
Max pull force(kg)
2000
2100
2500
Pull speed (m/s)
0.41-1.64
0.35-2.23
0.12-0.95
Rope diam.(mm)
Ø9.3
Ø9.3
Ø12.5
Roll capacity(m)
27
27
35
Drill Mast
Rated load(ton)
18
18
18
Height(m)
6.5
6.5
6.5
Mud pump
Flow(L/min)
95
95
145
Max.pressure(MPa)
1.2
1.2
2
Times/min
93
93
93
Inlet hose diam.(mm)
51
51
51
Outlet hose diam.(mm)
23
23
38

Main Features

Feed by hydraulic cylinder, the drilling efficiency is higher and it can save labor. The machine is equipped with our national patent technology--taper clutch, with characteristics of strong torque transmission, easy operation and free maintenance.


Vertical spindle are fixed by four groups of bearings to ensure that the rotator has enough rigid for gravel layer and other complex geological conditions.

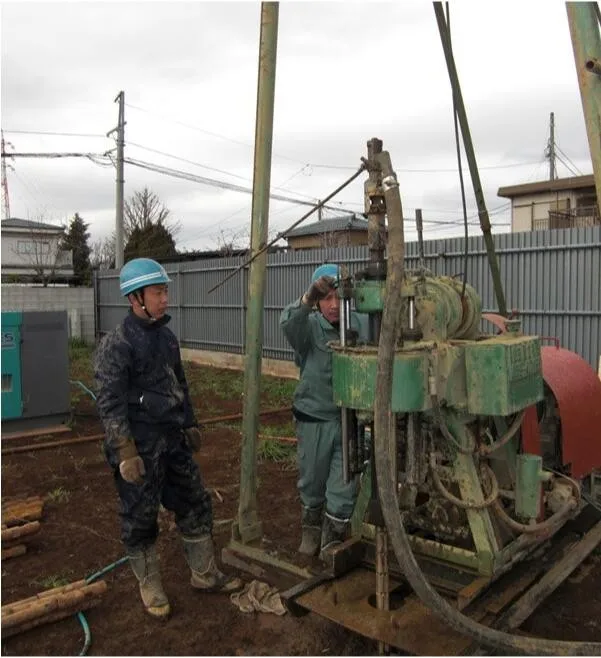

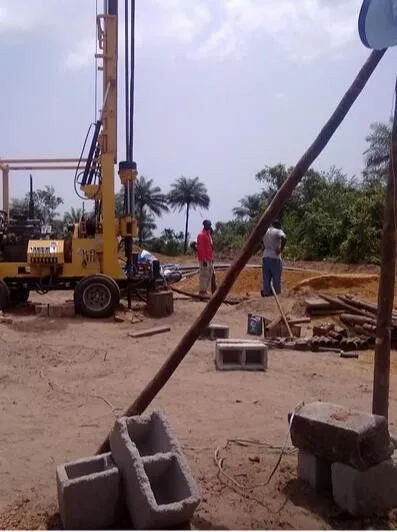

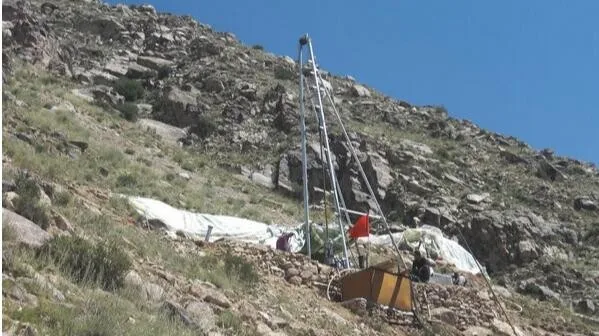

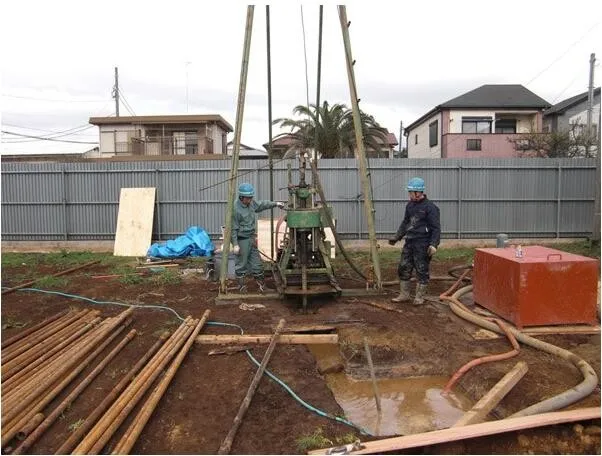

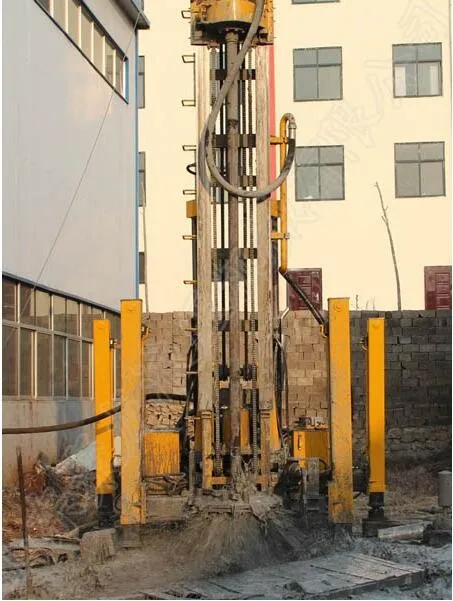

Project Show

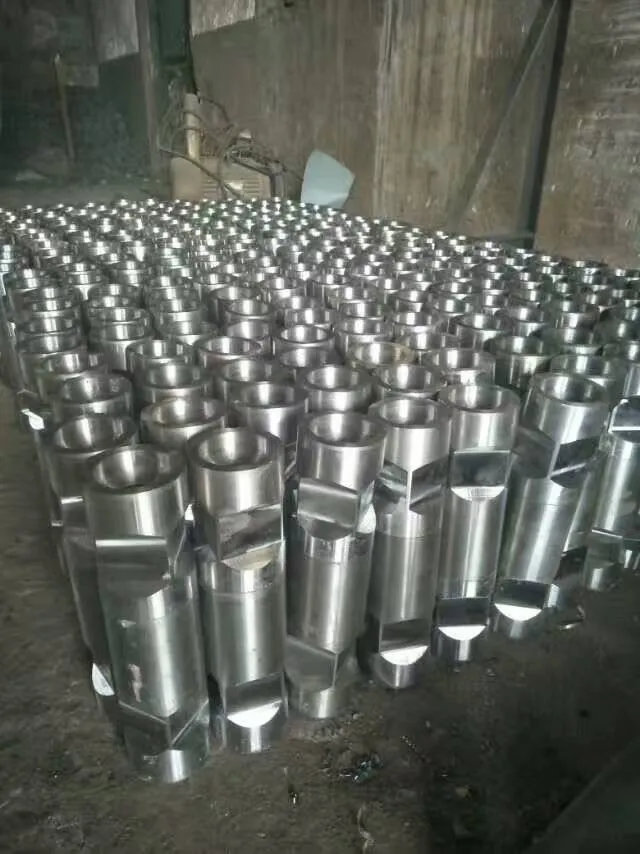

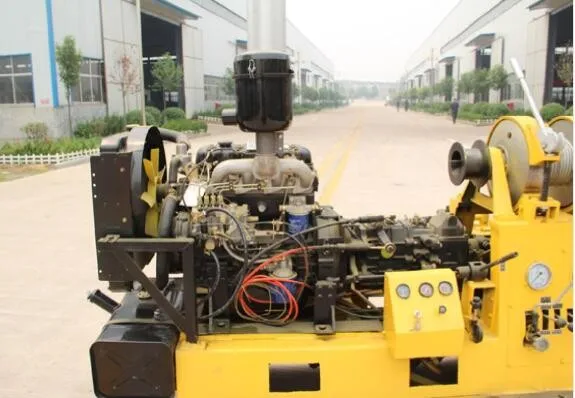

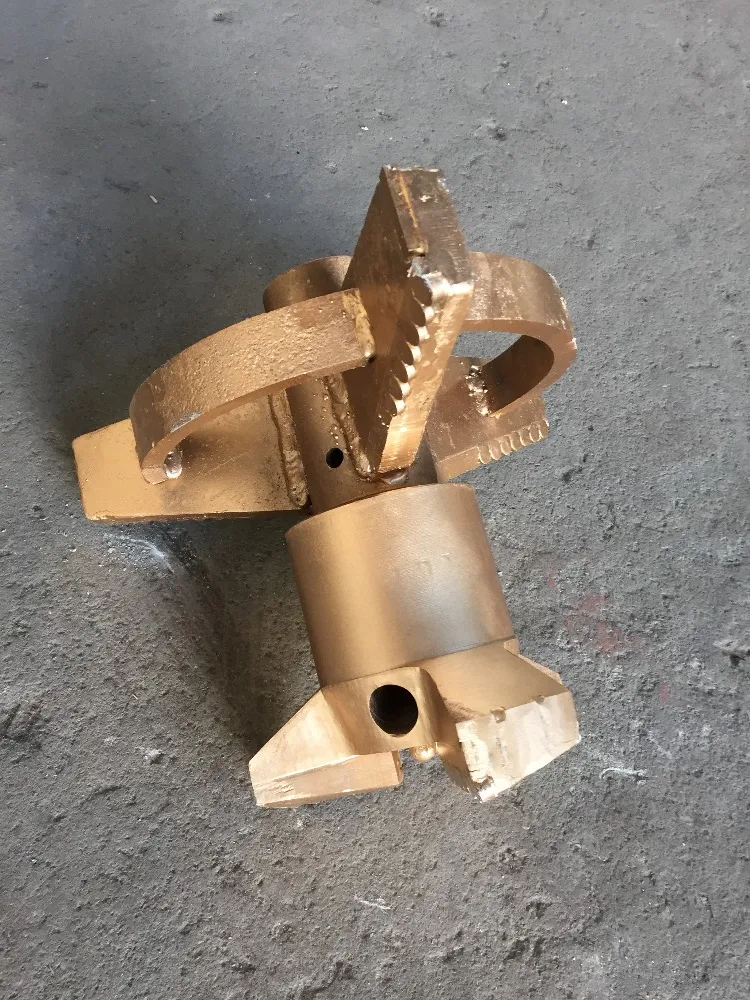

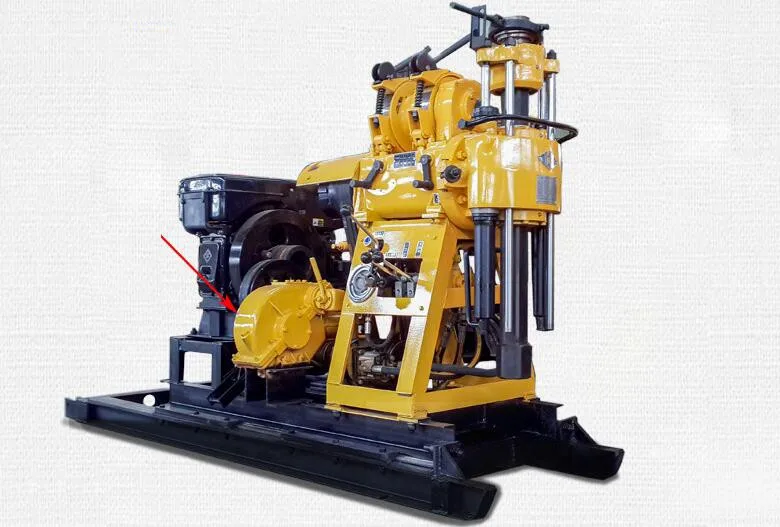

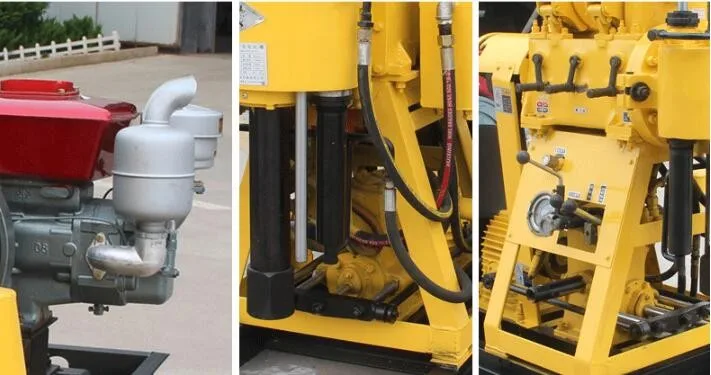

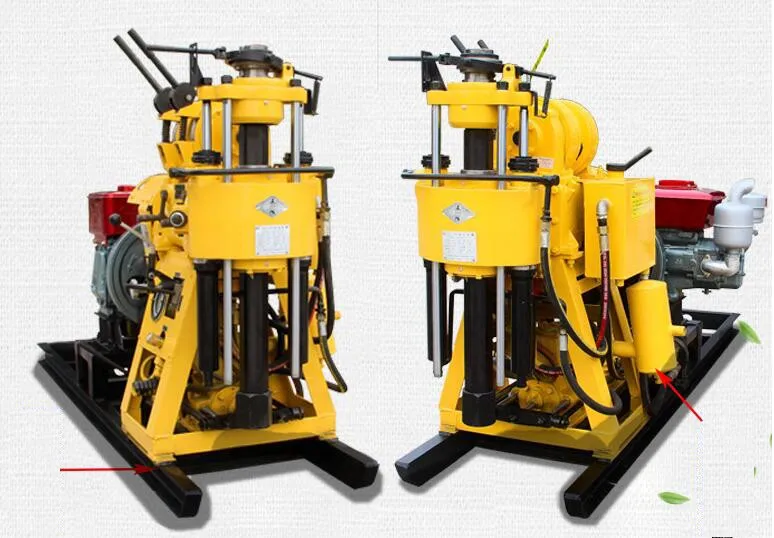

Detailed Images

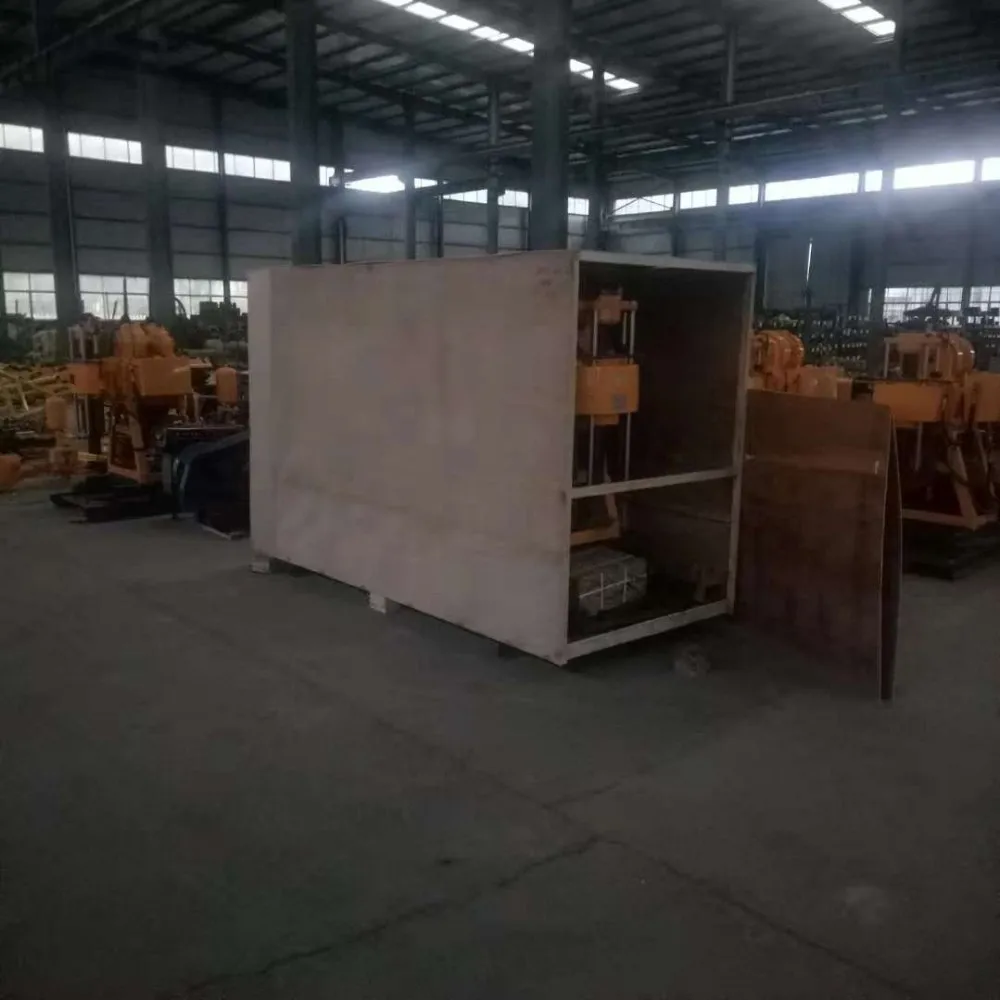

Wooden case packaging

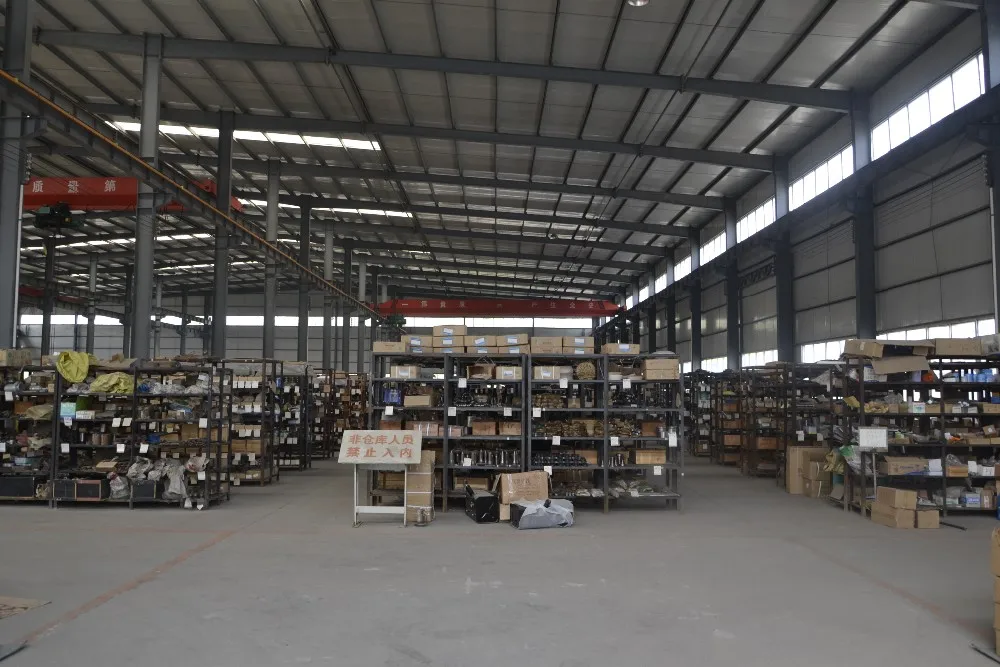

Work ROOM

Our products are also exported to over 40 countries and regions like South America Eastern Europe, Southeast Asia and Africa, etc. Excellent quality and good service win us trust and reward from customers from domestic and overseas.

Now we have 22 national patents and passed the authentication of IS9001 quality control system smoothly. With strong technical force, advanced equipment, skilled workers and strict inspection system.

Related Products

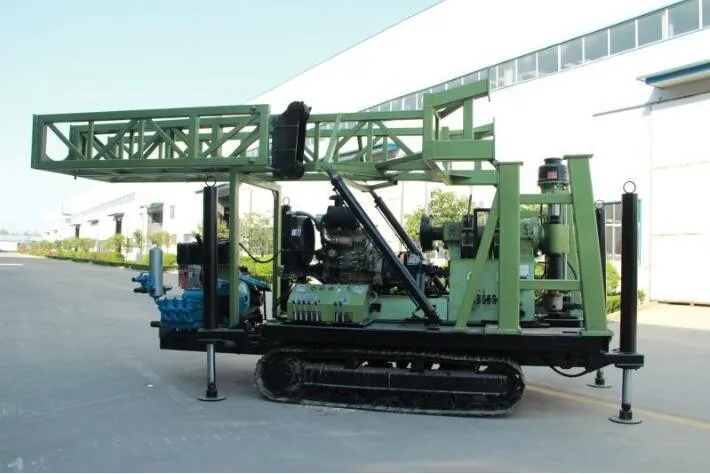

Water well drilling rig
