Diesel power vertical wood band saw for wood working

  • 1-9 Sets
    $3,700.00
  • >=10 Sets
    $3,500.00
Type:
Band Saw Rip Saw Frame Saw
Model Number:
MJ329
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Farms, wood sawmill
Condition:
New
Use:
Woodworking
Style:
Vertical
Place of Origin:
Hebei, China
Brand Name:
YSDMILL
Usage:
Log cutting
Voltage:
380V/50Hz/3Phase
Power(W):
18.5kw(22kw)
Dimension(L*W*H):
1260*1000*2300mm
Weight:
1300kg
Certification:
ISO/CE/SGS
Warranty:
18Months
After-sales Service Provided:
Field installation, commissioning and training
Application:
Saw mills
Name:
Table band saw
Maximum cutting dia:
600mm
Saw wheel diameter:
36inch(900mm)
Saw wheel rpm:
680r/min
Motor Power:
18.5kw
Saw guide/wheel elevate:
Automatic/Manual

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X50X50 cm
Single gross weight:
50.0 kg
Package Type:
Plastic film outside, wooden case or as customer requirement.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 20 >20
Est. Time(days) 7 To be negotiated
Video Description

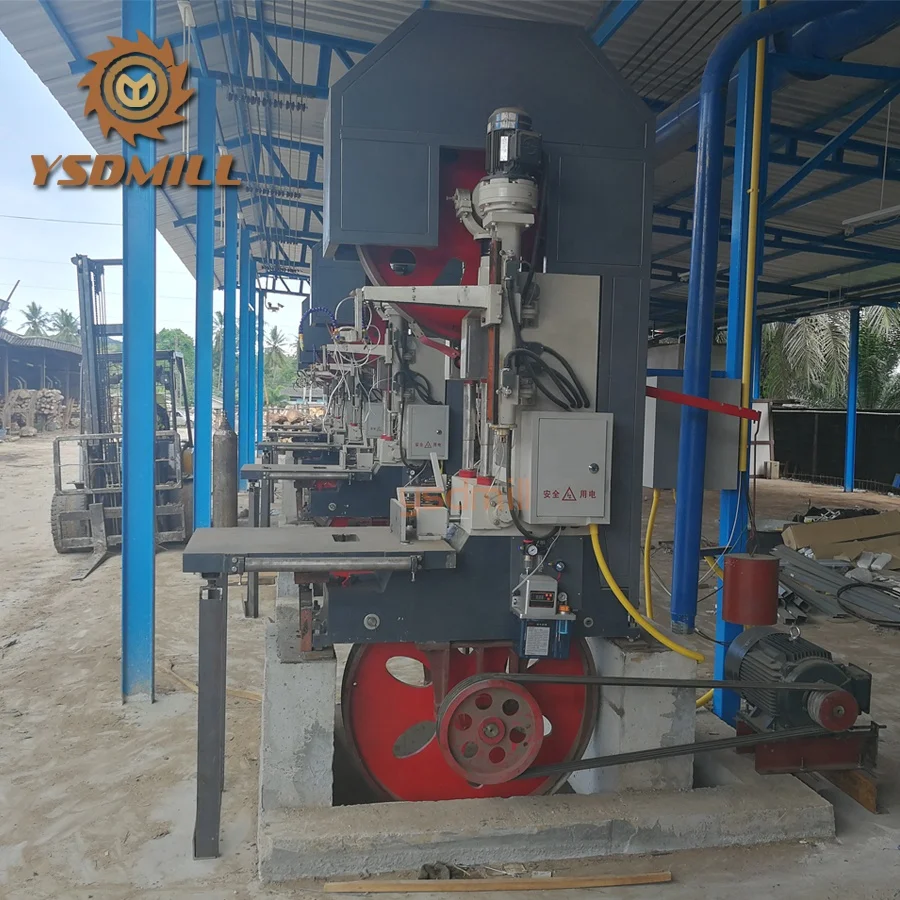

Product Description

Product Application

The vertical style table band saw can use for cutting both Round log and square timber, table power feeder is optional, and the saw wheel and table size can customer made as customer requirement, Our main product is 32/36/40/42inch saw wheel band saw. All our band saw use steel saw wheel and cast-iron body,  for high prrcision cutting and long working life.

Model
MJ329
MJ3210
MJ3210A
Max sawing diameter
650mm
800mm
800mm
Saw wheel diameter
900mm(36inch)
1000mm(40inch)
1060mm(42inch)
Saw wheel rpm
650r/min
Table size
500*630mm
Auto wood feeder
Optional
Saw guide elevate
Automatic / Manual
Saw wheel elevate
Automatic / Manual
Saw blade spec
1.05*125*6400mm
1.15*125*6900mm
1.15*125*7100mm
Motor
18.5kw(25HP)
22Kw(30HP)
22Kw/30Kw(Optional)
Voltage
380V/50Hz/3Phase(Customer made)
Weight
1000kg
1100kg
1350kg
Overall size
1160*900*2040mm
1260*1000*2300mm
1360*1060*2400mm

Main Features

1) Simple structure , easy in installation and maintation.

2) Adopting advanced world famous brand components in bearing parts ,electric parts .

3) Manual lubrication pump for screw and gear.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the pipe or the spiral conveyor ,which can directly collect sawdust .

Detailed Images

Machine Parts

Name: Saw wheel bearing

Brand: YSDMILL / NTN

Original: Germany

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

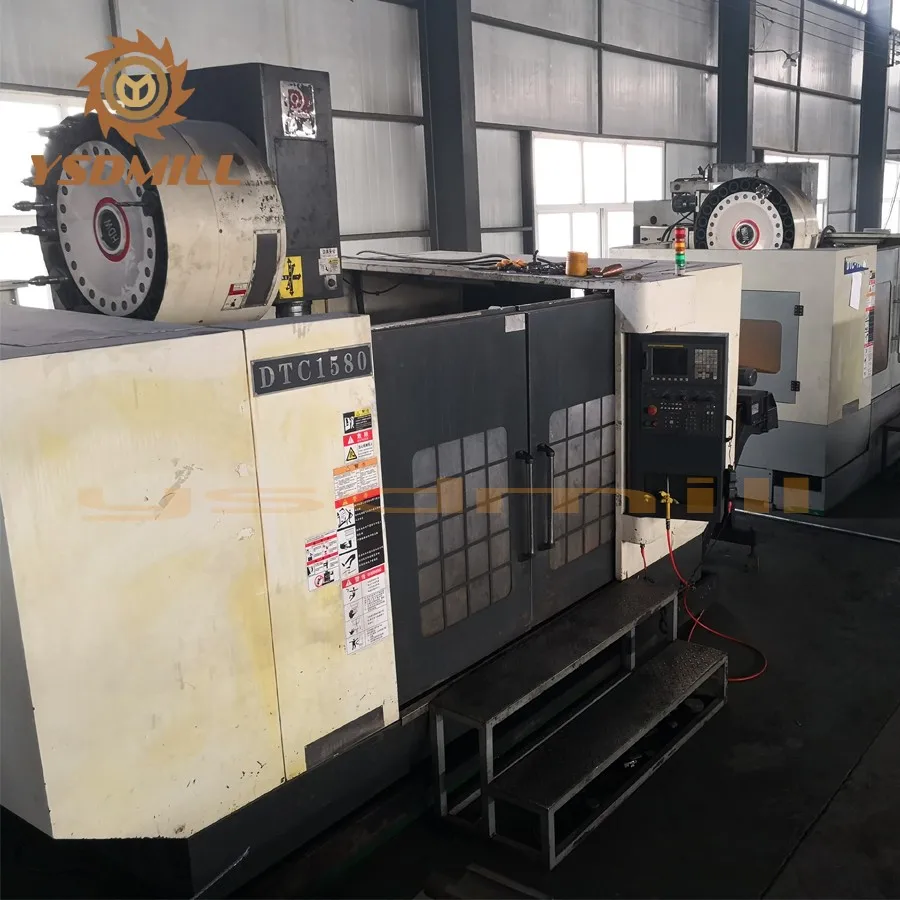

Machine Parts Process

Name: Machining process
Brand: YSDMILL
Original: CHINA
High precision machine parts process for quality production.

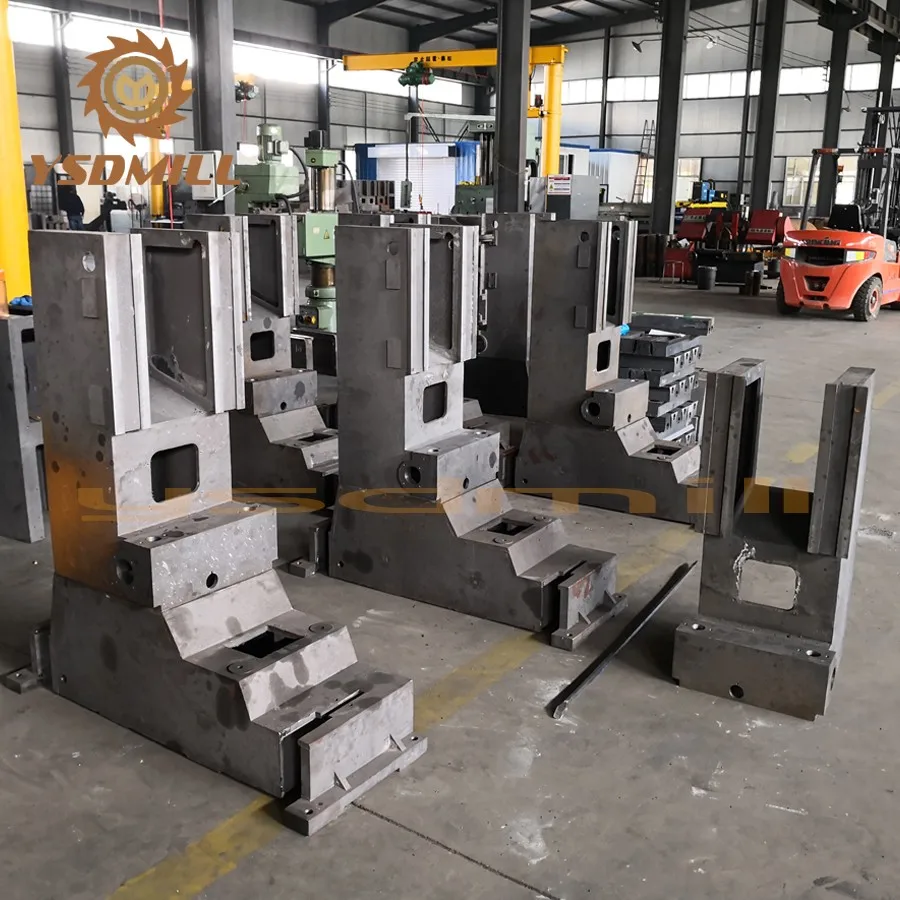

Machine Parts

Name: Band saw body
Brand: YSDMILL
Original: CHINA
Cast-iron band saw body .

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1160*900*2040mm
Weight
1T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
1160*900*2040mm
Weight
1T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
