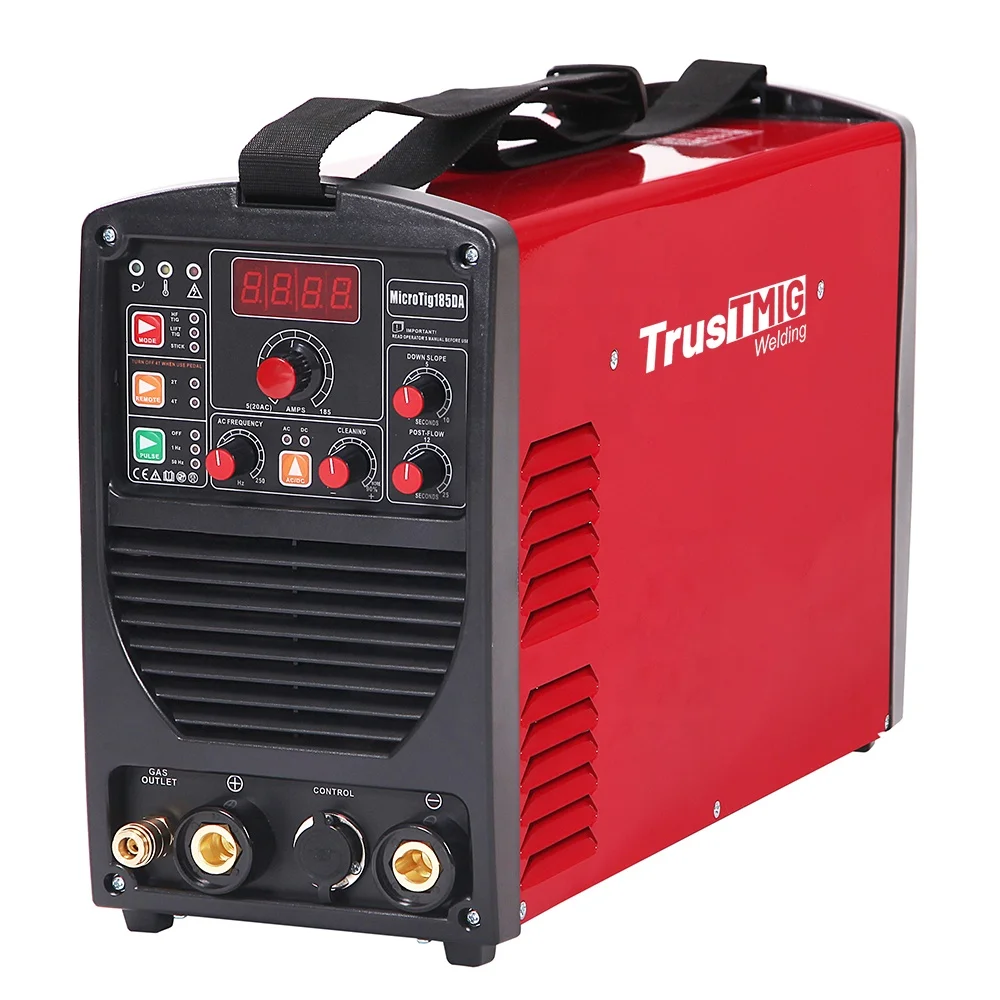

Digital IGBT Inverter AC DC Inverter TIG MMA Welder for Sale

$390.00 / Set | 1 Set (Min. Order)
Model Number:
MicroTig185DA
$390.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 100 Sets)

More

Graphic customization (Min. Order: 10 Sets) Less
Samples: $390.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $390.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Material / Metal Processed:
Carbon Steel, Stainless Steel, Aluminium Alloy
Rated Input Voltage:
230 V
Max. Load Power Capacity:
6.6 kVA
Output Polarity:
AC/DC TIG
Rated Duty Cycle @40°C (TIG):
35%
Rated Output Current (TIG):
185 A
Rated Output Voltage (TIG):
20 V
Welding Current/Voltage Range:
TIG: 5-185A, MMA: 5-150A
Condition:
New
Place of Origin:
Beijing, China
Brand Name:
ALAND
Arc Current:
TIG: 5-185A, MMA: 5-150A
Pulse Frequency:
1-50HZ
Pilot Arc Current:
10A
Rated Duty Cycle:
35%
Motor Type:
DC MOTOR
Dimensions:
530mm*185mm*325mm
Usage:
AC DC TIG MMA Welding
Voltage:
1*110V/220V
Certification:
CE CCC
Warranty:
1 Year
After-sales Service Provided:
Online support, Free spare parts, Video technical support
Key Selling Points:
Long Service Life
Weight (KG):
18.5 KG
After Warranty Service:
Video technical support, Online support, Spare parts
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction works , Energy & Mining, Advertising Company
Local Service Location:
United Kingdom, United States, Italy
Showroom Location:
Canada, United Kingdom, United States, Italy
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Product Name:
Digital IGBT Inverter AC DC Inverter TIG MMA Welder for Sale
Color:
As Request
Application:
AC DC TIG Welding, MMA Welding
Function:
TIG MMA
Aluminum Welding:
Yes
110V/220V:
Optional
2T/4T function:
Yes
AC TIG Current:
20-185A
DC TIG Current:
5-185A
Portable:
Yes

Packaging & Delivery

Selling Units:
Single item
Single package size:
64X37X37 cm
Single gross weight:
26.500 kg
Package Type:
By Cartons
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 30 To be negotiated
Digital IGBT Inverter AC DC Inverter TIG MMA Welder for Sale

Product Description

What can you expect from our MicroTig185DA?
Functions: AC DC TIG Welding, DC TIG Welding, HF TIG Arc Ignition, MMA (Stick Welding)
Suitable Material: Aluminum Alloy, Stainless Steel, Carbon Steel

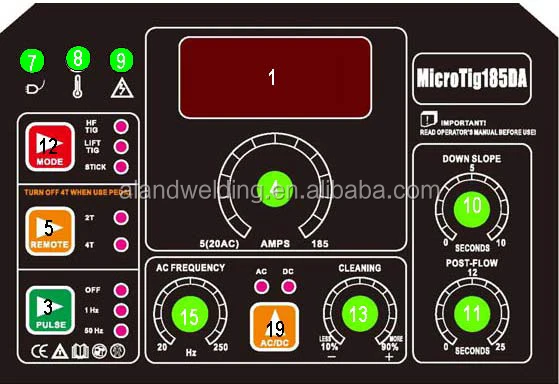

Features:
1. IGBT inverter , 32bits MCU inside
2. Portable
3. Analog operation panel design
4. Advanced square wave for AC TIG.
5. 2T/4T function
6. Foot Pedal and finger control Current function
7. 1Hz and 10Hz Pulse selection.
8. Current down slop and gas post flow time adjustment

Optional:
- Dual Voltage: 110V/220V

- Display: LCD
- Foot pedal
Main Parameters:
Model
MicroTig185DA

Input
Voltage
1x110V, 50/60Hz
1x220V, 50/60Hz
Fuse rating
37A
32A




AC TIG
No-load Voltage
80V
80V
AC TIG
Current Adjusting Range
20A~125A
20A~185A
AC Balance(SP % )
10%~90%
10%~90%
AC Square Wave Frequency
20~250Hz
20~250Hz
Rated Duty Cycle
35%
35%









DC TIG
Current Adjusting Range
5~125A
5~185A
Rated Duty Cycle
35%
35%
Initial current/crater-fill current (fixed)
10A
10A
Current Down-slope Time
0~10S
0~10S
Base Current
5A
5A
Pluse Time On
0.5
0.5
Pluse Frequency
1Hz or 50Hz
1Hz or 50Hz
post gas Flow Time
0~25s
0~25s
Pre gas Flow Time
0.2s(fixed)
0.2s(fixed)
Arc starting Mode
Contacting & high frequency arc striking
Contacting & high frequency arc striking



MMA
No-load Voltage
60 - 80V
60 - 80V
Base current Adjusting Range
 DC: 5~105A
AC: 20~105A
 DC: 5~150A
AC: 20~150A
Rated Output Current
105A
150A
Rated Duty Cycle
35%
35%
Efficiency
≥83%
Net Weight
18kg
Protection Class of enclosure
IP21S
Outline Dimensions
530x185x325mm

Production Workshop

FAQ.

1. Why Choose us?
- We have nearly 10 years experience in welding industry and export to all over the world. - We have experienced R&D team. We can adjust the parameter and panels design as per your request.
- Most of key parts are adopted top brand to ensure the quality. Such as the IGBT of Infineon (Simens). - Each machine will be inspected before shipping. - One year warranty, life-long technical support and design service.
2. Could you get a customized sample?

Yes, we can adjust some configuration and parameters as your request.
It also includes OEM service.
3. How is your quality control?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements, acting as excellent quality and the best possible welding results.
4. What voltage could you provide?
110V/220v, 220/380V, 230V etc.
We can make it as per your country voltage.
5. Can you send me the video to show how the machine works?
At present, some machines have video. We will try to make video of featured machine in future.
6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
