Digital ac voltmeter dc voltage meter

FOB Reference Price:Get Latest Price
$8.65 - $9.50 / Piece | 100 Piece/Pieces (Min. Order)
Samples:
$8.50 /Piece | 1 Piece (Min. Order) | Buy Samples
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Maxwel
Model Number:
DP
Display Type:
Digital Only
Measuring Range:
0-600V AC/DC
Accuracy Class:
0.5%
Operating Temperature:
-10 to 50
Dimensions:
96x96,72x72,48x48mm
Accuracy:
0.5% ±1 digit
Display:
LED
Display color:
Red or Green
Color:
Black
Product name:
Digital Panel Meter
Frequency:
50/60 HZ
Function:
Measure Current Volt
Power:
220VAC/110VAC
Model:
DP96, DP72, DP48
Certificate:
ISO9001
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Exporting carton
Port
Ningbo, Shanghai
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated

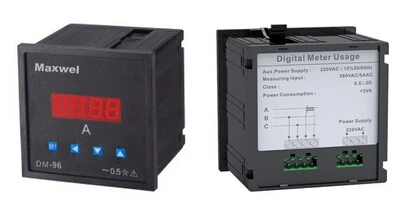

Digital ac voltmeter dc voltage meter



Digital DC Voltmeter



Display: 3 1/2 digital. LED display (red or green)
Accuracy: 0.5% ±1 digit
Auxiliary power: AC 110V ± 10% 50/60HZ or AC 220V± 10% 50/60HZ
Input signal: AC voltage
Measuring range: 0-600V DC or according to your own requirement.
Consumption: <3.2VA

Max Signal Consumption: <0.3VA
Operating Environment: temperature -10~50°c humidity:≤85%

Storage Environment: temperature -30~60°c humidity:≤70%

Heat resistance: case of non-combustible plastic material
Voltage Testing: over 2000V

Fasterning: By means of nuts, absolutely safe, fast, robust, side-by -side





Digital AC Voltmeter







Function: Measure AC voltage



Display: 3 1/2 digital. LED display (red or green)
Accuracy: 0.5% ±1 digit
Auxiliary power: AC 110V ± 10% 50/60HZ or AC 220V± 10% 50/60HZ
Input signal: AC voltage
Measuring range: 0-600V AC, for the voltage over 600V can use the potential transformer.
Consumption: <3.2VA



Max Signal Consumption: <0.3VA
Operating Environment: temperature -10~50°c humidity:≤85%



Storage Environment: temperature -30~60°c humidity:≤70%



Heat resistance: case of non-combustible plastic material
Voltage Testing: over 2000V



Fasterning: By means of nuts, absolutely safe, fast, robust, side-by -side







Size of rectangular type meter



Model Unit A B C D
DP-96 mm 96 92 75 10
mm 3.74 3.62 2.95 0.39
DP-72 mm 72 58 75 9
mm 2.83 2.68 2.95 0.35
DP-48 mm 48 44 110 8
mm 1.89 1.73 4.33 0.31



The item B for the size of panel cut-out of swithboard



1.



Digital meters ,AC
Nominal Size     96×96, 72×72, 48×48, 96×48, 72×36
Accuracy   +-0.5%  +-bytes
For through current   0.1A 0.5A 1A 1.5A 2A 3A 4A 5A
For through voltage   50V 100V 200V 300V 400V 500V 600V
Transformation ratio   1- 9999A or 1- 9999KA
Transformation ratio   Adjustable



2.



Digital meters ,DC
Nominal Size     96×96, 72×72, 48×48, 96×48, 72×36
Accuracy   +-0.5%  +-bytes
For through current   0.1A 0.5A 1A 1.5A 2A 3A 4A 5A
For through voltage   50V 100V 200V 300V 400V 500V 600V
Transformation ratio   1- 9999A or 1- 9999KA
Transformation ratio   Adjustable



3.

Digital ALARM AC meters
Nominal Size     96×96, 72×72, 48×48, 96×48, 72×36
Accuracy   +-0.5%  +-bytes
For through current   0.1A 0.5A 1A 1.5A 2A 3A 4A 5A
For through voltage   50V 100V 200V 300V 400V 500V 600V
Transformation ratio   1- 9999A or 1- 9999KA
Transformation ratio   Adjustable



4.



Digital ALARM DC meters
Nominal Size     96×96, 72×72, 48×48, 96×48, 72×36
Accuracy   +-0.5%  +-bytes
For through current   0.1A 0.5A 1A 1.5A 2A 3A 4A 5A
For through voltage   50V 100V 200V 300V 400V 500V 600V
Transformation ratio   1- 9999A or 1- 9999KA
Transformation ratio   Adjustable



5.



Digital FREQUENCY meters
Nominal Size     96×96, 72×72, 48×48, 96×48, 72×36
Accuracy   +-0.2%  +-bytes
Frequency range   0 -999.9 Hz (50-500V)
Rated auxiliary power supply   AC 110, AC220V, AC380V, AC/DC48-250V  (50/60Hz)
Performance   Stable
Package quantity     1



6.



Digital POWER-FACTOR meters
Nominal Size     96×96, 72×72, 96×48
Accuracy   +-0.5%  +-bytes
Measuring range   0- 360 degree angle
Input current (AC)   0- 5A
Input voltage (AC)   0-150V,  0-300V,  0-500V
Special features    Mono-phase/3 phase, frequency/phase position/power factor (Changeover between them)
