Direct fired rotary drum dryer for metal dust

FOB Reference Price:Get Latest Price
$3,000.00 - $60,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ZKRD
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Drum Drying Equipment
Application:
Mining&Metallurgy Processing, cow dung, chicken manure woodchips wood chips, fertilizer
Condition:
New
Place of Origin:
Henan, China
Brand Name:
ZHENGKE
Voltage:
220v/380v
Power(W):
3-75kw
Dimension(L*W*H):
Varied
Certification:
ISO, CE
Key Selling Points:
Energy saving
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Energy & Mining
Local Service Location:
India
Showroom Location:
India
Product name:
Direct fired rotary drum dryer for metal dust
Key word:
Direct fired dryer
Name:
Direct fired dryer
Capacity:
0.5-45t/h
Color:
as required
Material:
Q235
Usage:
Reduce Material's Moisture
Raw material:
woodchips, slag , sawdust
Installation:
Engineer Guide
Warranty:
One Year
Supply Ability
Supply Ability:
50 Set/Sets per Month Direct fired dryer
Packaging & Delivery
Packaging Details
The packing of Direct fired dryer:standard export package
Port
Tianjin/Qingdao/Shanghai
Products Show

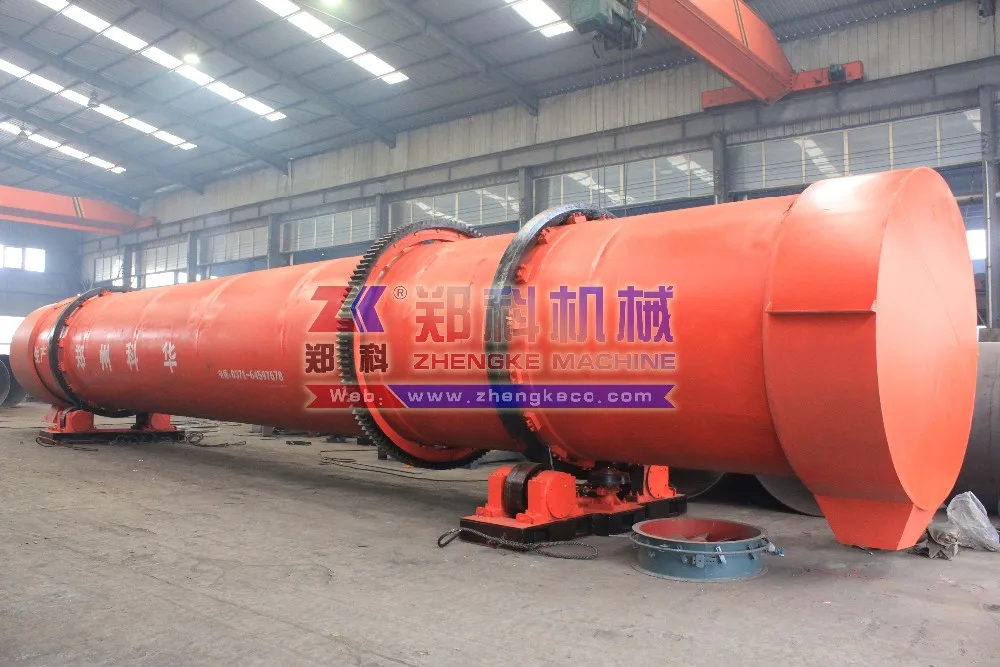

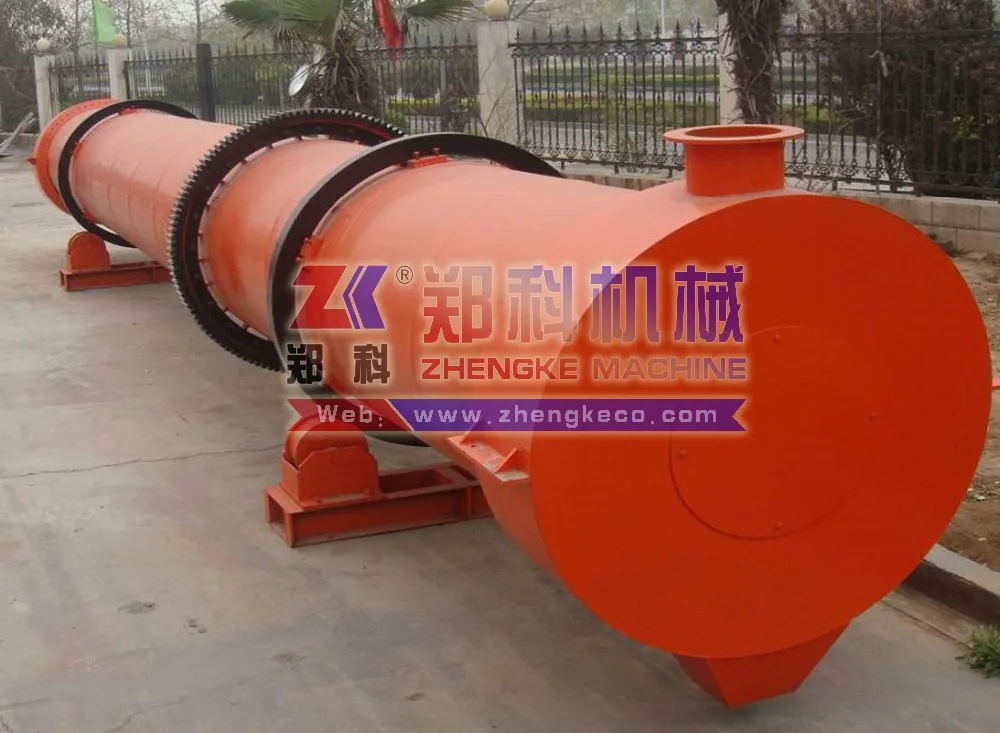

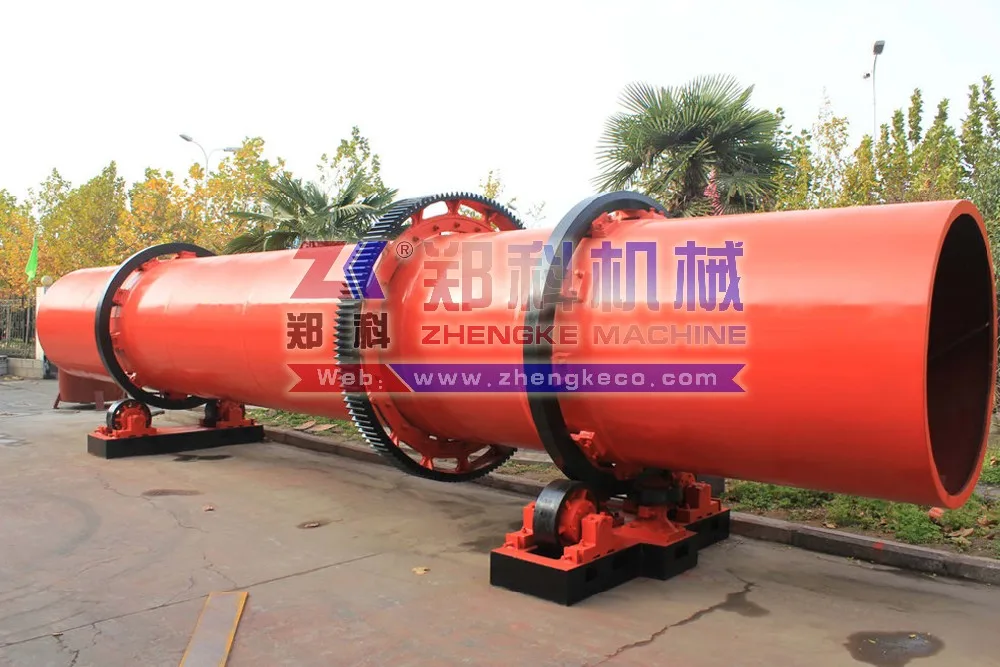

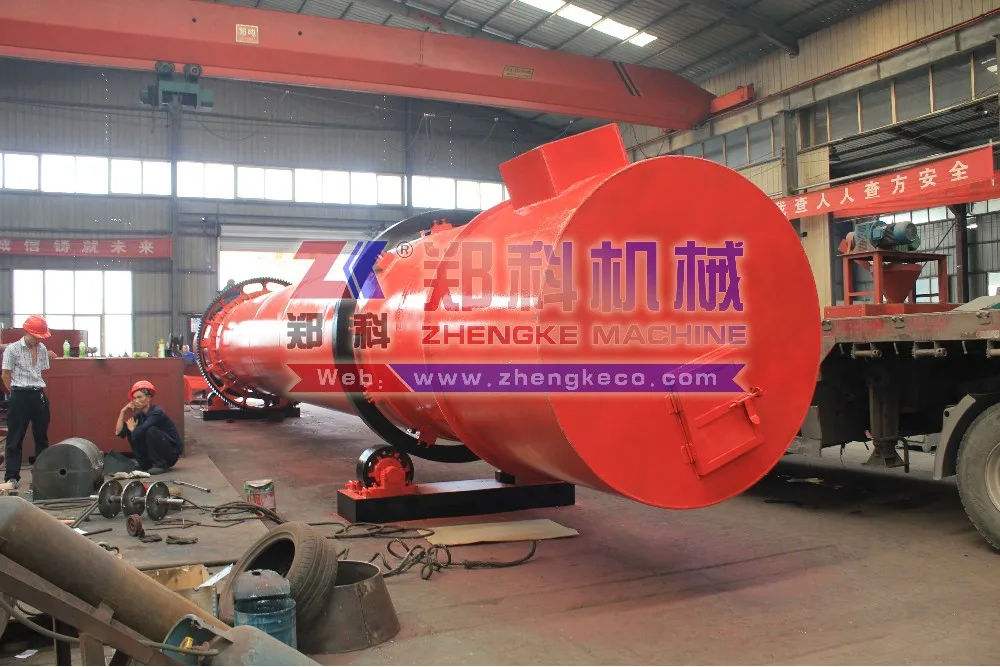

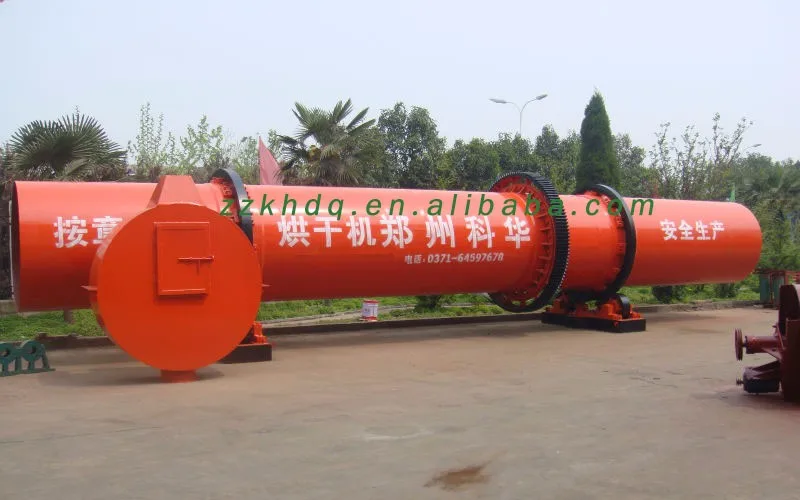

Direct fired rotary drum dryer for metal dust

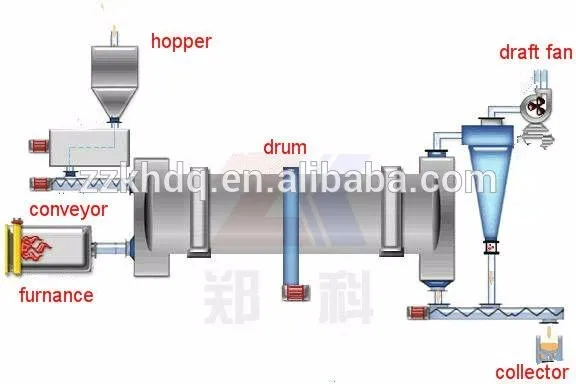

Direct fired rotary drum dryer for metal dust is mainly consist of drum barrel, roll ring, wheel gear, lifting board, chain, reduction gears and motor etc parts. It is matched with coneyor, dust remover and draught fan etc. quipments.

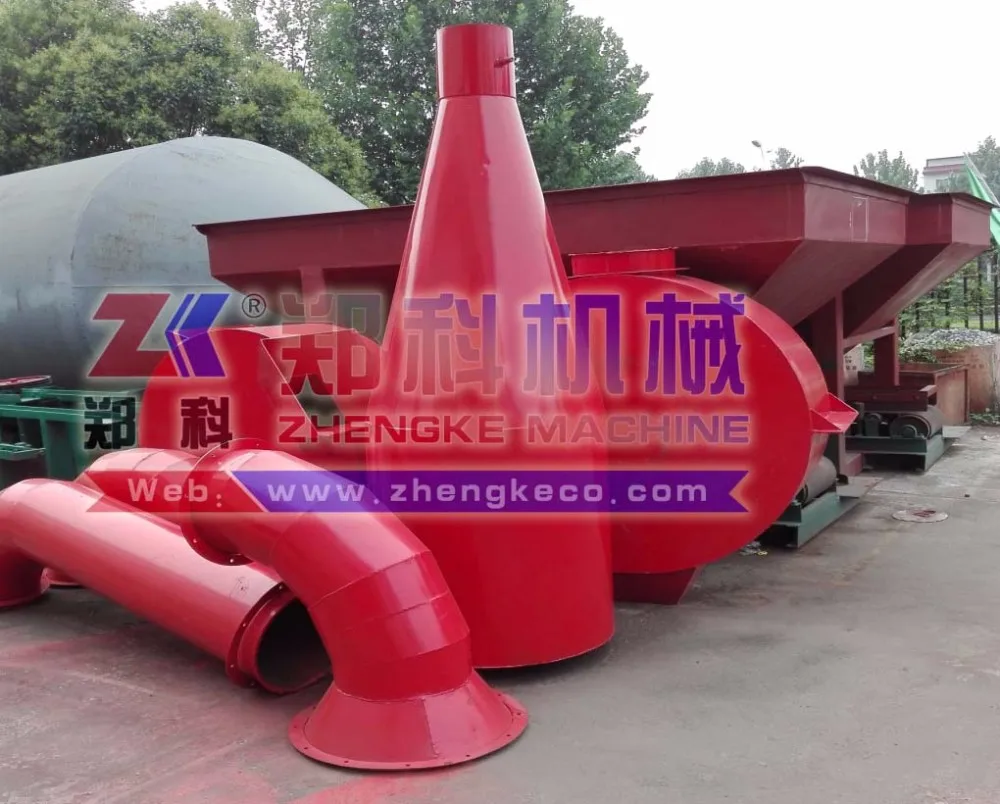

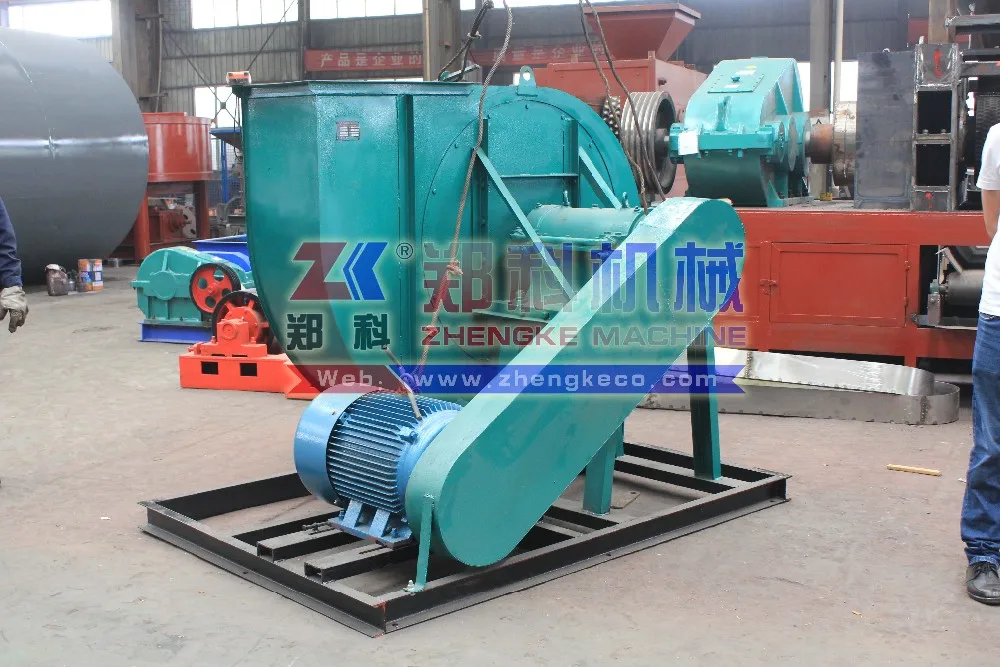

Dust collector                                                                              Induced draught fan

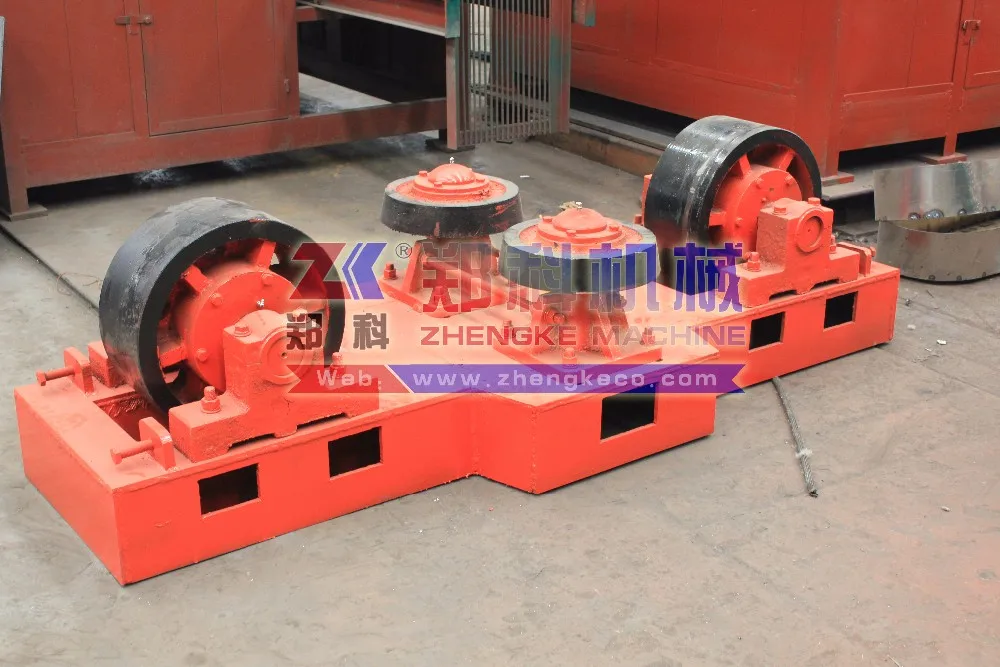

Carrier roller

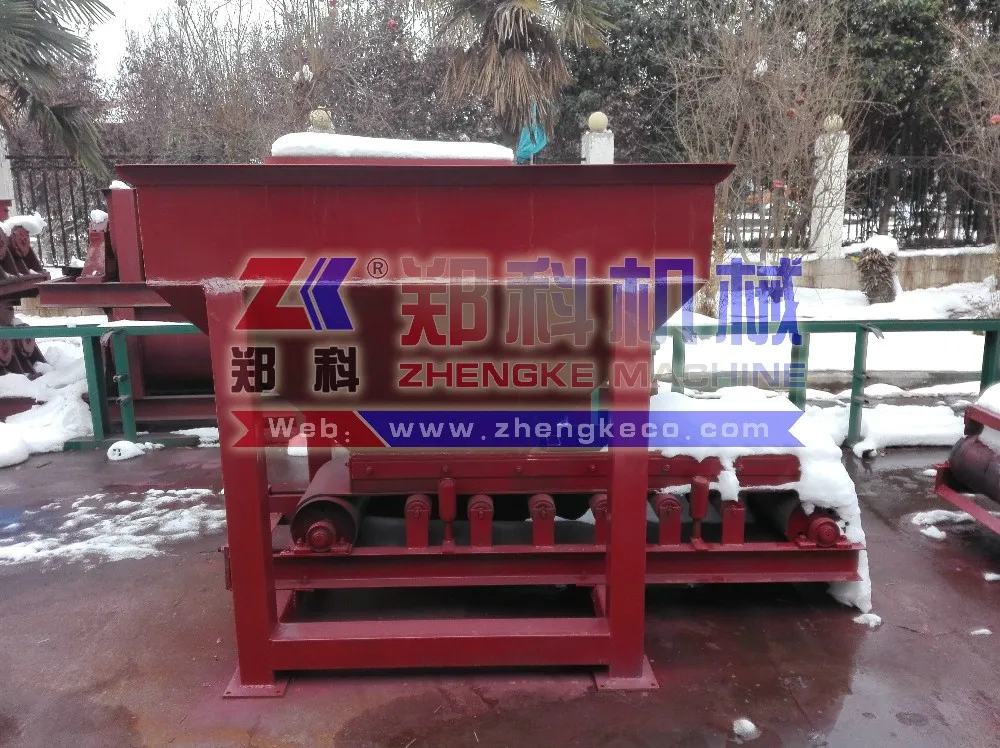

 Discharge device                                                                          Feeding device

Raw Material

The raw material of Direct fired rotary drum dryer for metal dust

Direct fired rotary drum dryer for metal dust is a kind of drying equipment used to minimize the moisture content of the material it is processing. Direct fired rotary drum dryer for metal dust is used for drying sawdust,  coal, slag, mineral powder, sand, sludge, coal slurry, brown coal, flay ash, gypsum, and other material.

Working Principle

The working principle of Direct fired rotary drum dryer for metal dust

Direct fired rotary drum dryer for metal dust is rotating cylinder with horizontal line and a slightly sloping line. The heat carrier and materials flow into the cylinder. With the rotation of cylinder, the materials move to the drum barrel due to the gravity. During the materials move, which directly or indirectly get the heat, so that the wet materials to be dried. Then the dry materials at the discharge will be sent out by the belt mesh.

Product Parameter

The product parameter of Direct fired rotary drum dryer for metal dust

Model
(mm)
Gradient
( °)
Speed
(r/m)
Power
(kw)
Capacity
(t/h)
Weight
( t )
ZKRD600×6000
3-5
3-8
3
0.5-1.5
2.9
ZKRD800×8000
3-5
3-8
4
0.8-2.0
3.5
ZKRD800×10000
3-5
3-8
4
0.8-2.5
5.6
ZKRD1000×10000
3-5
3-8
5.5
1.0-3.5
6.7
ZKRD1700×10000
3-5
3-8
7.5
1.8-5
14.5
ZKRD1200×12000
3-5
3-8
11
2-6
14.8
ZKRD1500×12000
3-5
2-6
15
3.5-9
17.8
ZKRD1800×12000
3-5
2-6
18.5
5-12
25
ZKRD1800×14000
3-5
2-6
18.5
5-15
27
ZKRD1800×20000
3-5
2-6
22
8-20
30
ZKRD2000×18000
3-5
2-6
30
8-23
45
ZKRD2200×18000
3-5
1.5-6
37
10-25
48
ZKRD2200×20000
3-5
1.5-6
37
12-28
56
ZKRD2400×20000
3-5
1.5-5
45
18-30
60
ZKRD2800×20000
3-5
1.5-5
55
20-35
68
ZKRD3000×20000
3-5
1.5-5
55
25-40
78
ZKRD3000×25000
3-5
1.5-5
75
30-45
104.9

Note:Above technical parameters are for reference,can be separately designed according to customer's actual situation.


Certifications

The certifications of Direct fired rotary drum dryer for metal dust

Our company develops and through continuous reforms, and was awarded the title of "Excellent Management Standard Enterprise"by Ministry of Agriculture and took the leading position to obtain ISO9001 international quality system management certification in 2002.Briquette machine series are also with CE certificate.

FAQ

Q:About your company, do you have own factory?

A: Zhengzhou Kehua Industrial Equipment Co., Ltd is a professional mauufacturer, which has over 20 years experience. We also have special team to provide desinging for customers.

Q: Can you supply the whole production line or only the rotary dryer?

A: We can not only supply rotary dryer, but also we can provide whole production line for customers according to the actual condition.

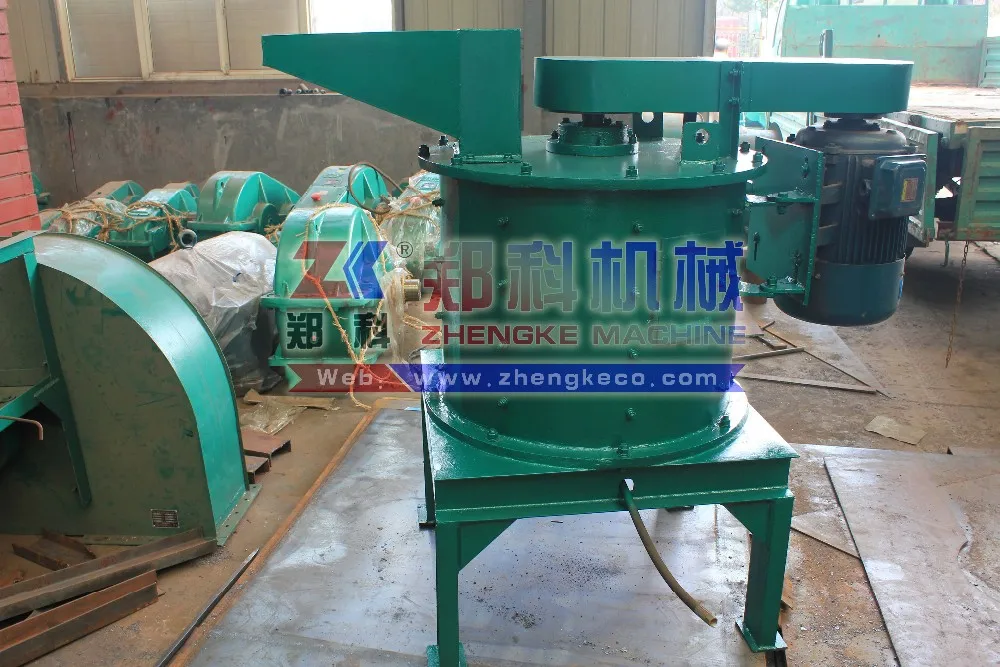

Dosing machine                                                        Vertical crusher

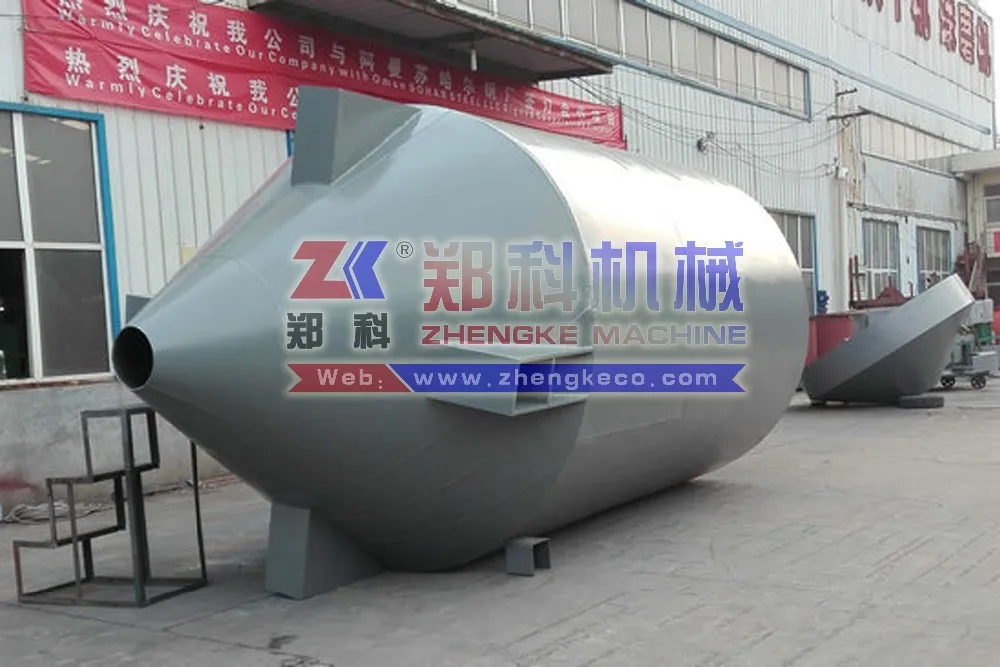

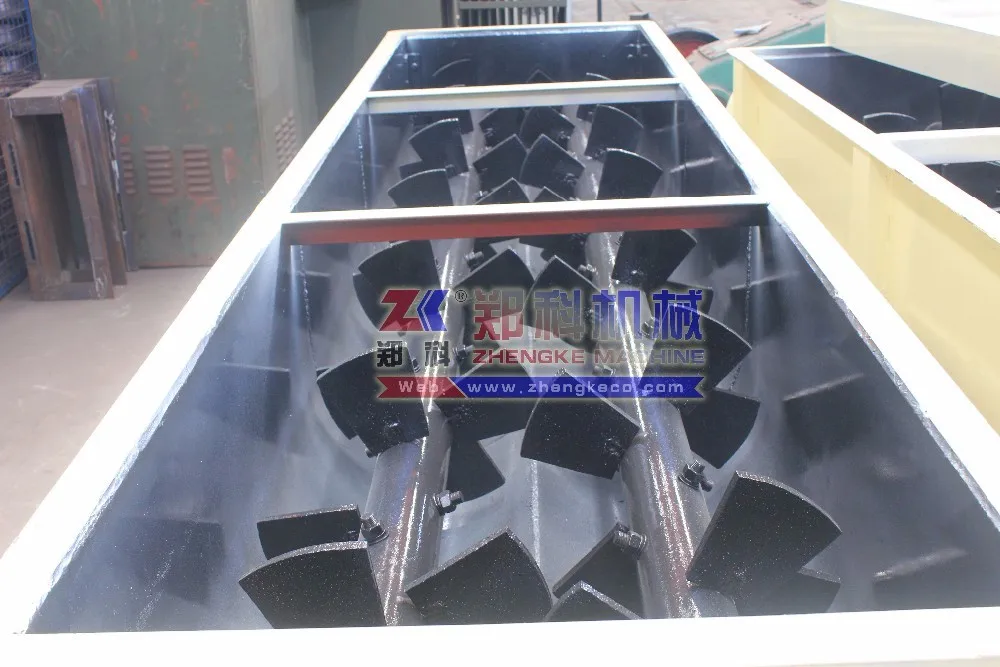

Double shaft mixer                                                               Vertical dryer

If you have another question, please feel free to contact us as below:


Customer Photo

The customer of Direct fired rotary drum dryer for metal dust

Direct fired rotary drum dryer for metal dust active demand in more than 20 countries such as Malaysia, India, Philippine, Northern Ireland of United Kingdom, Indonesia, Australia, Israel, Moldova, Oman, Egypt, United States, South Africa, Russia etc..
