Direct sales cnc wood router four spindle 4 rotary 4 axis multi head wood cnc router machine

FOB Reference Price:Get Latest Price
$7,150.00 - $9,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
UNICHCNC
Model Number:
LXM1520-4
Voltage:
220V/380V
Dimension(L*W*H):
2000x3500x1550mm
Certification:
CE ISO FDA
Name::
wood cnc router with four spindles
Control system::
NC-studio ,DSP ,mach3
Spindle rotating speed::
0-24000rpm/min
Guide::
Taiwan Hiwin Square Rail

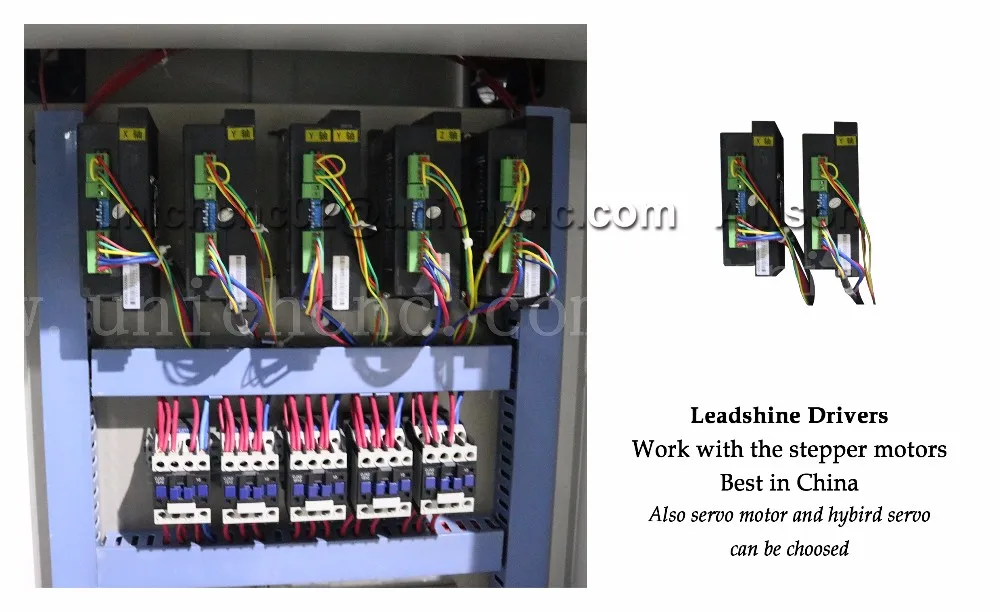

Drive system::
Leadshine stepper motor and driver
Command code::
G code(*.nc,*.mmg,*.uoo,etc.),*.eng
compatible software::
compatible with any software generating G code file in windows 7/8
Available tool::
3.175, 4, 6, 8, 12.7 mm
Packaging area::
2170x3280x1710mm
Gross weight::
1500kg
Weight:
1500KG
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
24 months
Power(W):
3.0KW
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Free fumigation wooden box
Port
Qingdao port
Lead Time :
7-15 working days
Product Description

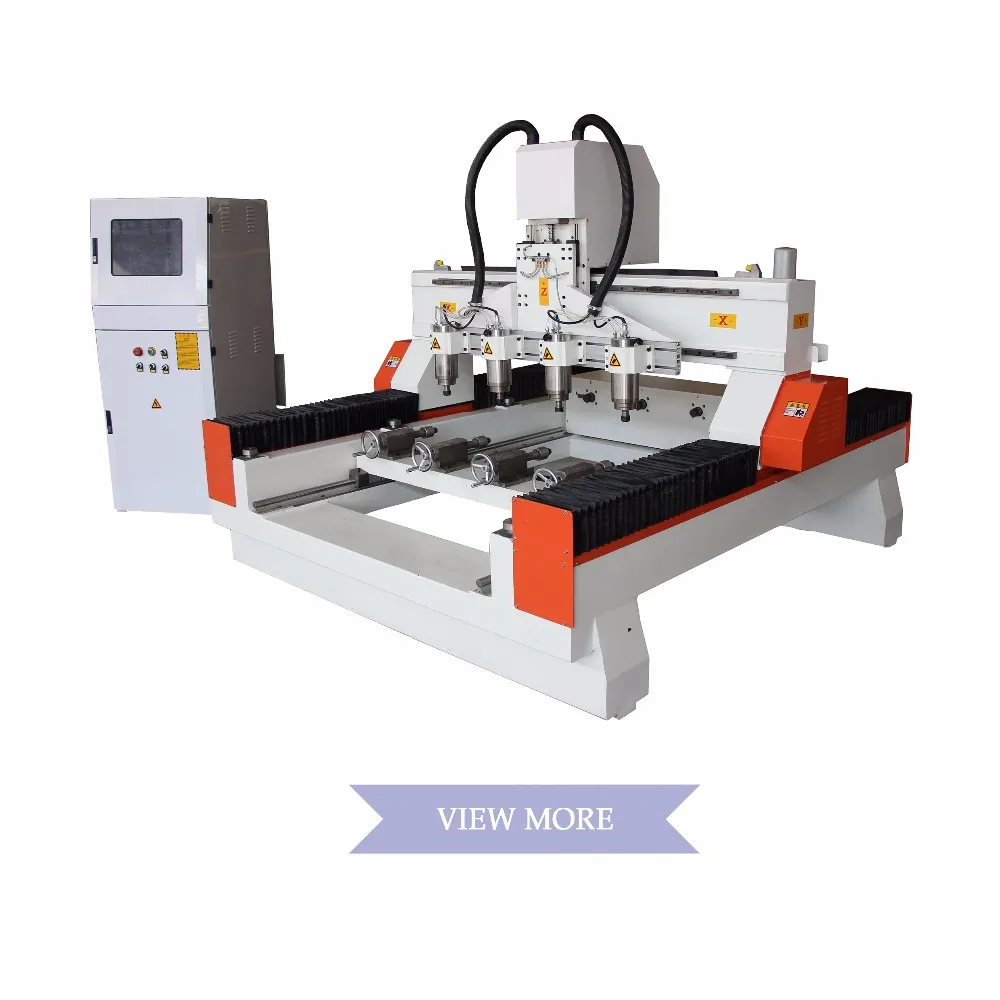

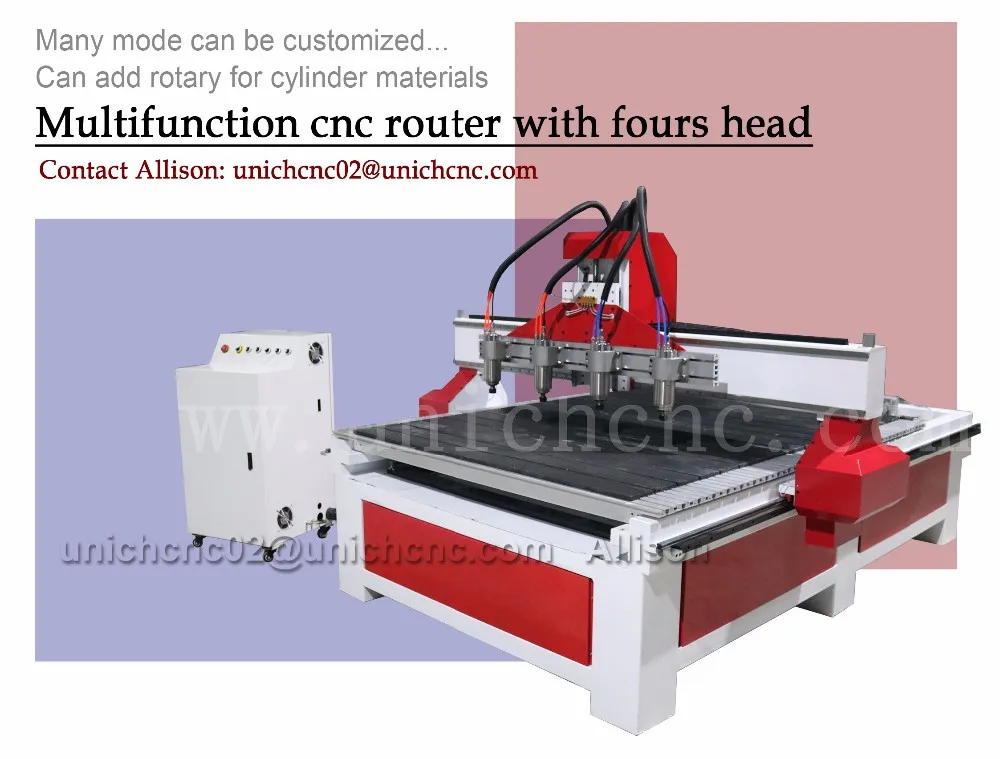

High efficiency Multi purpose Integrated functions unich cnc engraving machine

This multifunction cnc router is designed by JINAN UNICH MACHINERY CO.,LTD.
It is very useful in the furniture industry, wood craft, acrylic craft, Aluminum copper craft and other engraving industry.
The main advantage is that this model of machine can engrave 4 items at the same time, which can save a lot of time, greatly increase the
working efficiency. Also the high quality of machine keep the High speed, High stability and Good work effect.
Also the working area, the amount of spindles (heads) and rotary can be customized.

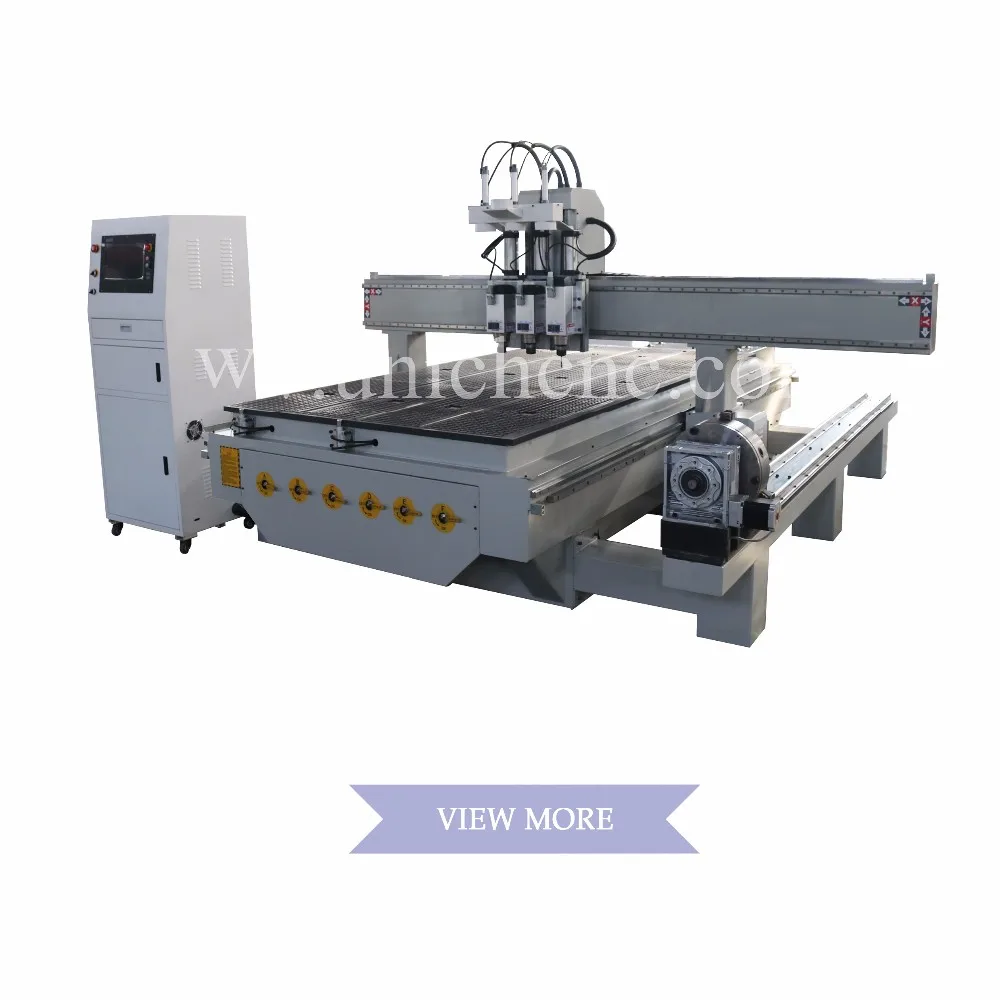

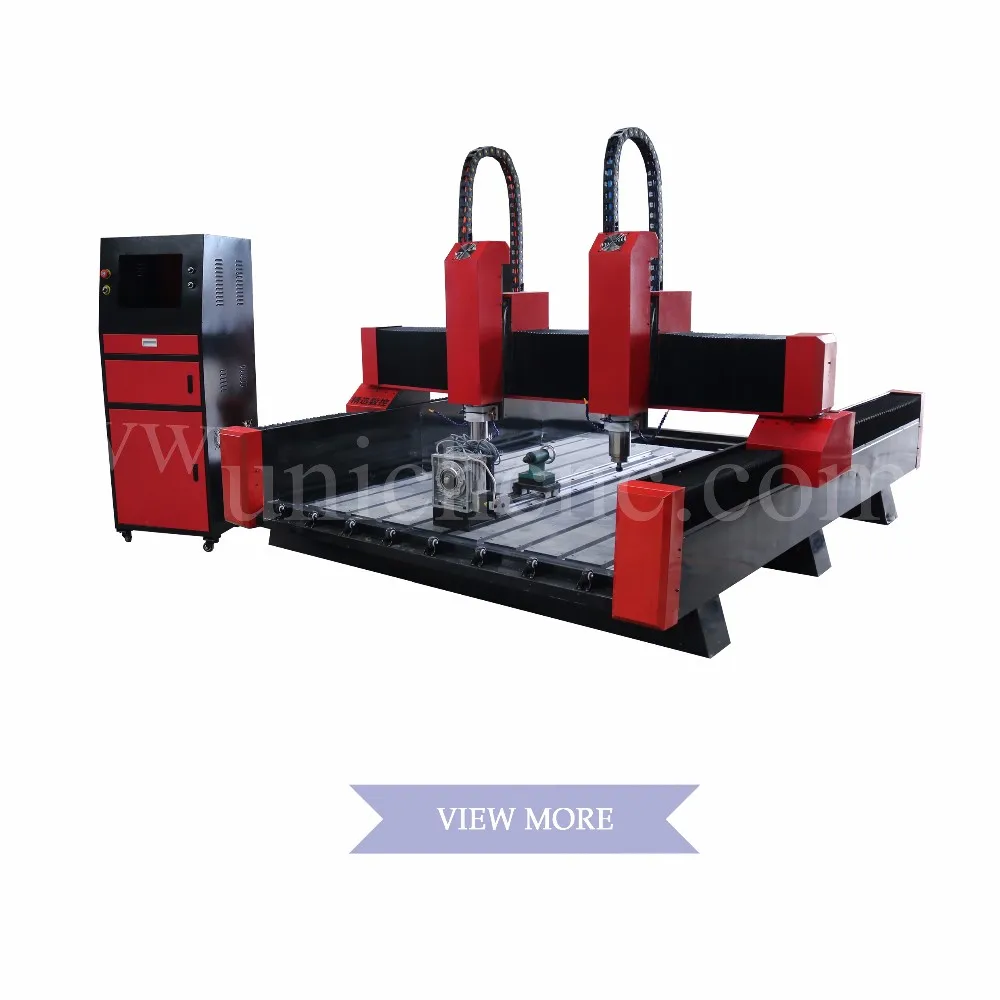

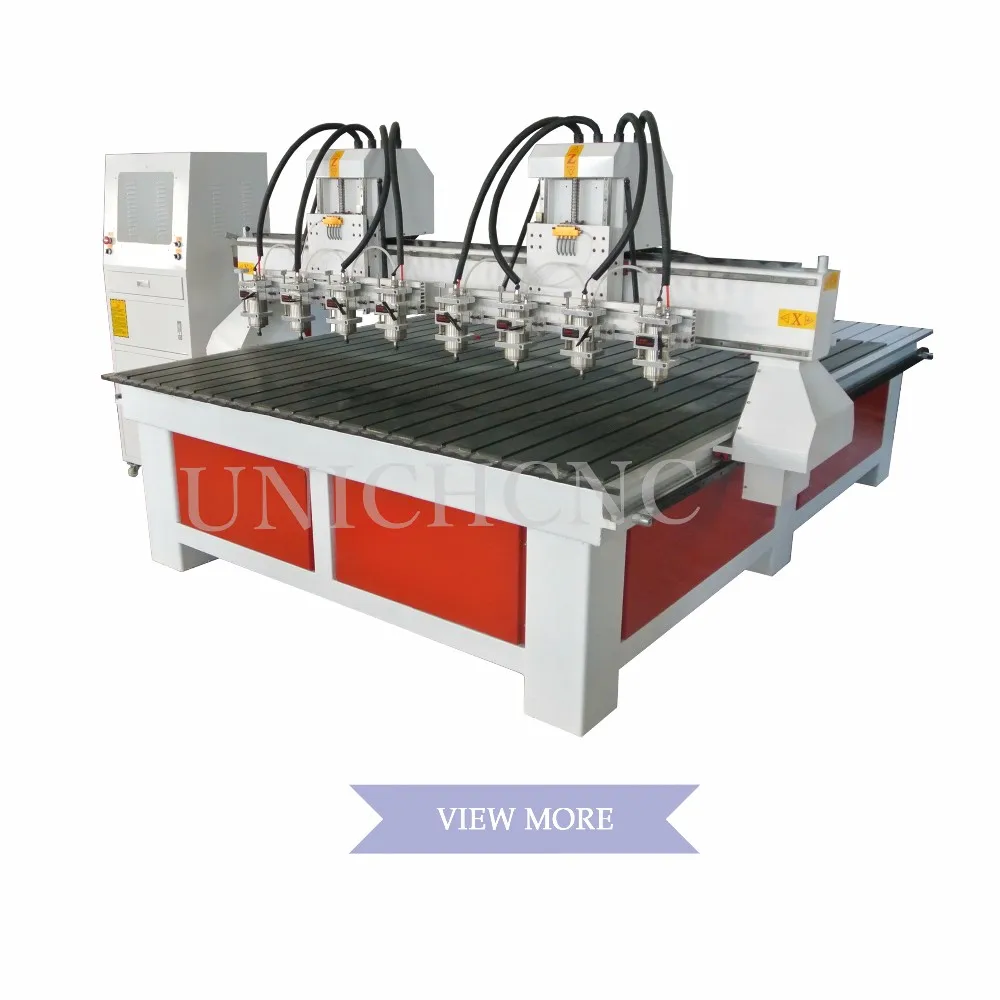

Multi Spindles CNC Router More Models
WORKING AREA
   1300*2500mm ; 1500*2500mm ; 1500*3000mm ; 2000mm*3000mm; 2000*4000mm
SPINDLE WORKING WAY
Independent
Multi spindle
Multi process
Mix
AMOUNT OF SPINDLE
2-4 and more
2-10 and more
2/3/4
2-10 and more
SPINDLE POWER
   1.5 kw/ 2.2 kw/ 3.0kw   water-cooling and air-cooling can be choosed

Technology Parameter
LXM 1530-4
1
Working Area
1500*3000mm (1300*2500mm and other model optional)
2
Z axis Feeding Height
180mm( can be customized )
3
Spindle Model

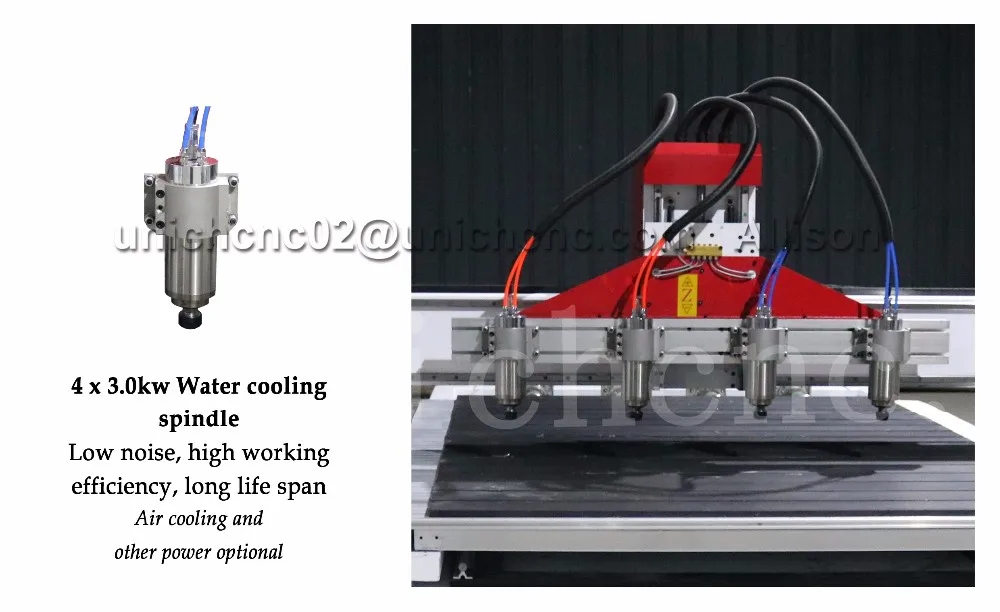

4 x 3.0kw water cooling spindle (Air cooling optional)
4
Moving System
Stepper motors and drivers (Servo motors/Hybird servo optional)
5
Control System
NC studio (Mach3 DSP optional)
6
X Y axis transmission
Gear and Rank
7
Z axis transmission
Ball screw
8
Rails
X Y Z axis Hiwin Linear Square Rails
9

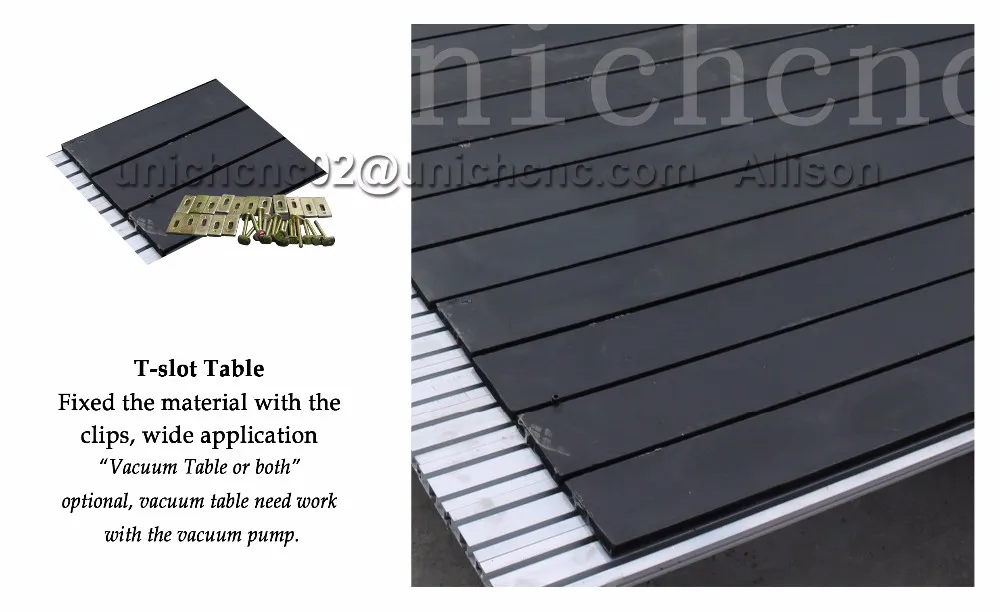

Table
T-slot table (Vacuum table optional)
10
Motion Positioning Accuracy
± 0.03mm
11
Repositioning Accuracy
± 0.05mm
12
Z-axis setting
Auto Z origin tool high sensor
13
Voltage
220V/380V
14
Software
ArtCAM software
15
Optional Parts
Dust Collect
Stainless Water tank and Water pump

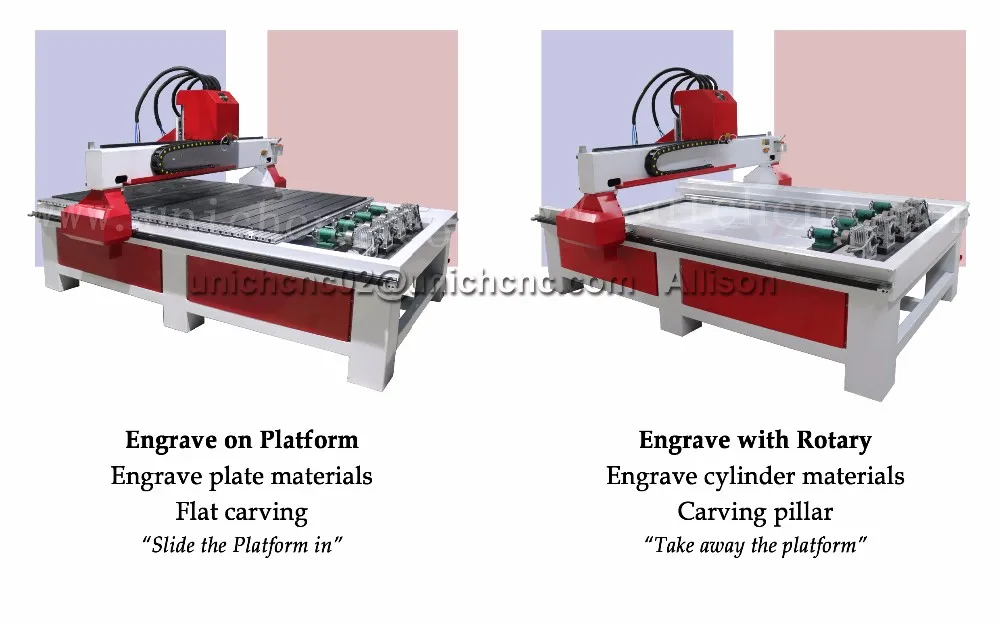

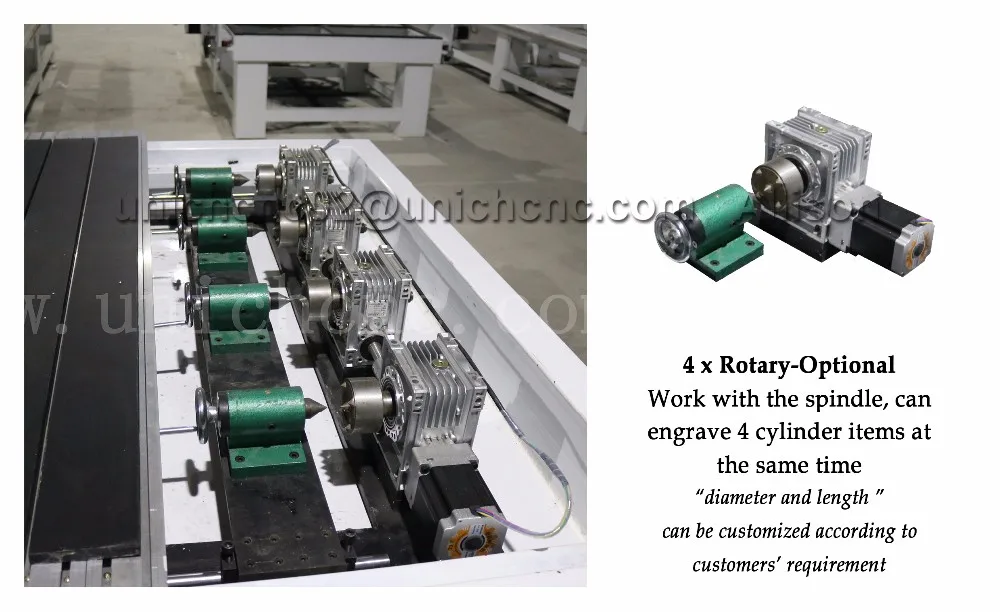

Rotary for cylinder materials
Vacuum Pump

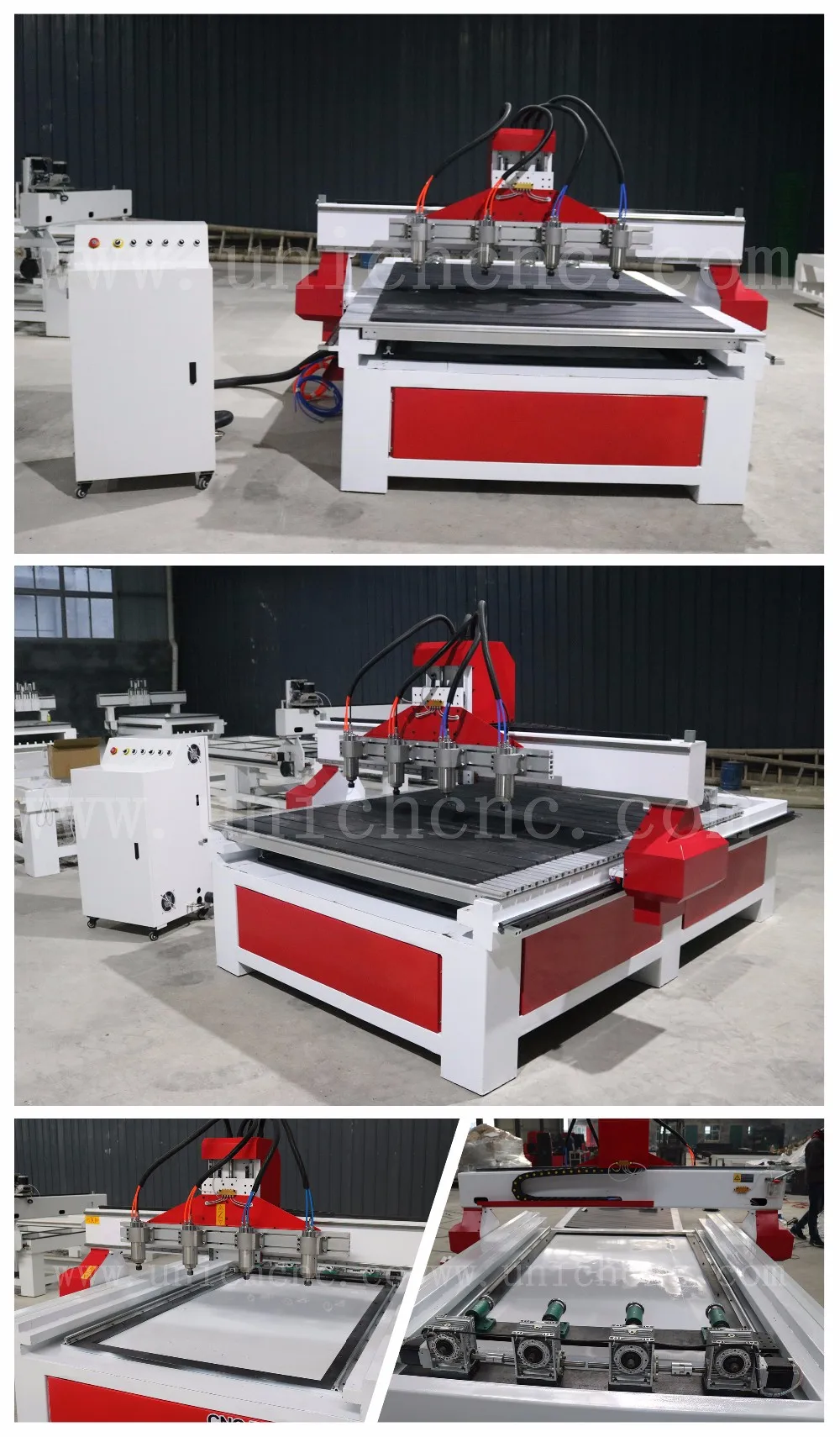

Detailed Images
Our Company

                           1. Our Company is specialized in the production of cnc equipment for more than 15 years.

                           We are the professional Machinery manufacturer

                           2. The UNICH company sets research and development, production, sales, maintenance services as a whole.

                           The machine can be customized according to the requirement.

                           3.Our machines combine of high precision,fast speed and reliability as a whole, can used on various materials,

                           formed a series of laser cutting and engraving machine industrial advantages.
                           4.These years, the UNICH Company continue to adopt international advanced production technology

                           and production processes, development and production of high qualityhigh price ratio of numerical control equipment,

                           continuing to create maximum value for customers.
                           5.Unich company takes the "quality, integrity, innovation, service" spirit, always adhere to the customer demands as the guide.
                           6.We have perfect after sale service, our engineers can solve the problems through the perfect distance service,

                           and also available to service machinery oversea.

                         1.24 months warranty period: during the warranty period, the main parts excluded the consumable parts,

                          break caused by the quality problem, can be replaced free of charge.
                          2.The machine free installation and fully test before send to the customers.
                          3.24 hours technical support by Internet or by Telephone, free instructions and problem solving for whole life.
                          4.Before send the machine to customer, we will provide the shipping video and photos.
                          5.Our engineers available to service machinery oversea.

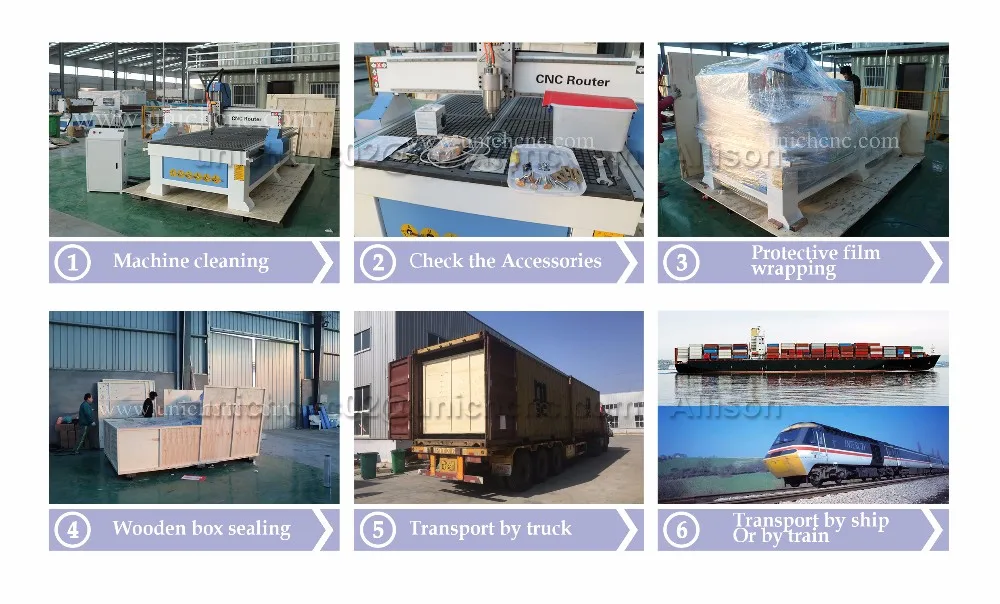

Packing & Delivery

About the Transport

1.For the transport, two ways can be choosed, by ship or by train (Usually for city inland)
Please tell Allison the nearest port or your city, we will compare and arrange the suitable transport ways for you.
2.For transport machine to your address, it is available for major areas, please contact Allison for more information.
3.Customer designated transport is also available, we can give you the EXW price.

FAQ

Q1: How to customize a suitable multi-spindle machine?

Please contact Allison, provide the information as follow, I will recommend you a suitable model:

The size and sort of your materials ; The amount of spindle ; The power of spindle ;

Engraving effect (Show the photo of your product is better)


Q2: I am a freshman of my industry, don't know much about what I will need toward the machine.

As there are many customers customized machine at our company, please tell us the main products you want to product, or the main job you want the cnc machine to finish, we can recommend according to your requirement and our experience.


Q3: I am familier with the cnc machine, I want to replace some of part according to my preference.

You can customize machine according to your requirement, we have many options for you.

Please tell me the which part you want to change and the brand or configuration of machine part you want.

Also if there is some optional part you want to add, please contact me.
