Double Side Folder Gluer Machine For Cardboard Corrugated Box

FOB Reference Price:Get Latest Price
$44,610.00 - $59,750.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
EASY1100
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Application:
Beverage, Commodity, Food, Machinery & Hardware, Medical
Packaging Material:
machines are packed in steel frames and vacuum PE bags.
Type:
Gluing Machine
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Yadu
Power:
9.5kw
Voltage:
3P/380V/50HZ
Weight:
4t
Automatic Grade:
Automatic
Certification:
CE Certification
Packaging Type:
Case
Driven Type:
Electric
Dimension(L*W*H):
6.5*1.85*1.5m
Color:
Requirement
Warranty:
1 Year
Bearing:
envelop,CD/DVD,Straight(optional),4/6 corners boxes(optional)
Box formation:
Straight line box, double sides, 4/6 corners boxes(optional)
Folding method:
fold 1st line 180° and 3rd line 135°
Features:
Box forming
Usage:
folding and gluing boxes
Speed:
Max.120m/min
Product name:
Folder Gluer Machine
Glue type:
Gluing Machines
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
packed in stardard wooden boxes
Port
Shenzhen,Guangzhou Or Ningbo
Lead Time :
Shipped in 30 days after payment

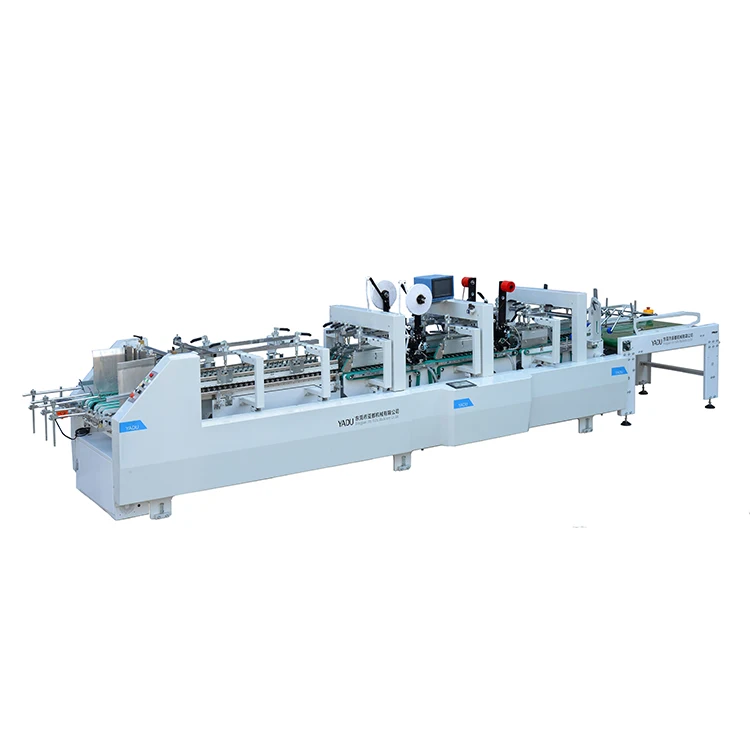

Double Side Folder Gluer Machine For Cardboard Corrugated BoxDSC_4753 .jpg

Product Description

 Optioanal device



1.Folder gluer device can finish carrier boxes in one time;

2.We can do big size machine for your bigger size cardboard and corrugated boxes.

3.Alignment patching device has window function, which can finish facial tissue boxes, toys boxes ,electricity boxes.

Character
1.The machine is equipped with light structure ,main driving system are synchronous belts with precise synchronous driving gears.
2.Feeder has friction system with efficient feeding knives which make feeding smoothly.
3.Simple and functional strip centering device is equipped pressing wheels which makes sure feeding precision.
4.New and functional glue structure is efficient. The glue length can be set in interface computer.
5.Gear shape cutting tape
6.Stacker with counting sensor.
7.The electricity is Schneider or Omron parts.
8.Touch screen plate for controlling machine with alarm systems.
9.Customized systems according to special inquiry.
10.With 90°rotary system ,which can rotary 90°without stopping and finish four sides to gluing in one time .



 SPECIFICATIONS FOR EASY1100 FOLDER AND GLUER

 Processing material

 Specifications and weight
 Carton boardMax. 800 gsm  Length 6.5 meters
 Corrugated board type N, E & F  Width 1.4 m
 Ability Height 1.5 m
Maximum speed  120m/min Weight 3.5 tons
 Jog speed  20 m/min Installation See machine installation instructions
 Folding box thickness  20 mm Connection charge 11 KW
 Maximum paper exit width  1100mm Compressed air 6bar
   Air compressor energy 10 m3/h
 Machine installation diagram





Job steps








Jobs



Product Comparison
Product Comparison

Model (Group)

EASY800

EASY1100

Overall Dimension

6*1.45*1.5m

6.5*1.85*1.5m

Weight

3 T

4 T

Power

7 KW

9.5 KW

Voltage3P/380V/50HZ

Speed

MAX 120m/min

Packaging Materials

Machines are packed in steel frames and vacuum PE bags.

Machine Features
