Double die Extrusion Blow Moulding Film Application Inflation Machine

FOB Reference Price:Get Latest Price
$1,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
FB-H
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Film
Plastic Processed:
PE
Screw Design:
Single-screw
Automatic Grade:
semi-auto
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HONGQI
Voltage:
220V/380V
Dimension(L*W*H):
4.6*2*4M
Weight:
2.7T
Certification:
CE, ISO9001
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Engineers available to service machinery overseas
Warranty:
1 Year
certification:
CE, ISO9001
head:
double die head
name:
Double die Head plastic blown film machine, extruder machine sale
max film width:
400-700mm*2
max output:
46-70kg/h
Power(W):
26KW
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
rust film and strech film wrapped, wooden packaged
Double die Head plastic blown film machine, extruder machine sale
Port
Ningbo
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 To be negotiated

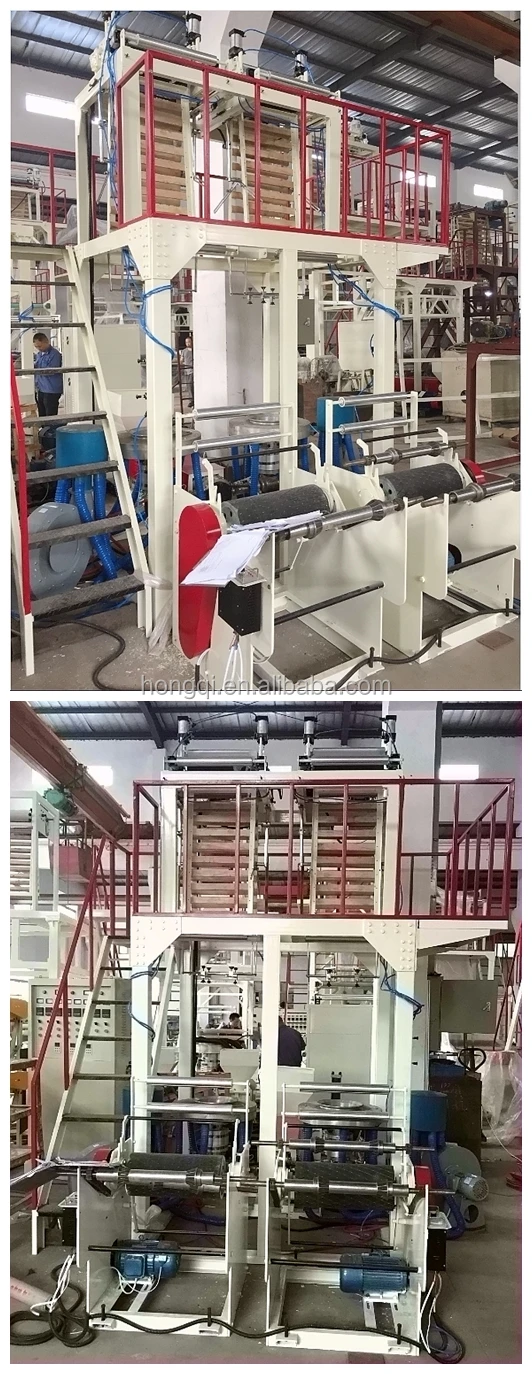

Twin die Head plastic blown film machine



Product Description




It is used for blowing the various plastic film of low density polyethylene(LDPE) and high density polythylene(HDPE) colour striped

plastic film, etc. Which are widely used for packing food, fruit, garments, textile, dailly necessities and other civil and industral products.

Characteristics:

1. It use one screw stem to extrude, and two head die to putout the film, adopts two take-up, and two winders, so it can do high output

and use little power.

2. The screw stem and cylinder are made of 38CRMOALA high quality alloy steel affer fine finishing and nitrided treatment, which has

high hardness, strong resistance to corrosion, durable service.

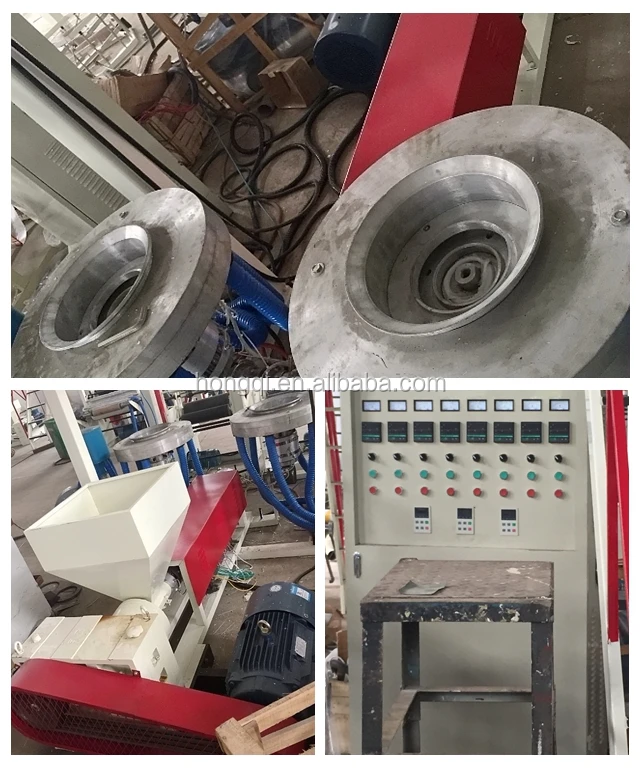

3. The die head is plated with hard chrome, of screw mandrel type structure with even and smooth discharging, the blown plastic film

has fine finishing; The blower is of labyrinth structure with even air output.

4. The coiling unit adopts pressure rewinding or center rewinging, which is driven by torque motor, with even and easy roll changing.





Main Technical Variables
ModelFB-H-500FB-H-600FB-H-700FB-H-800
Screw diameter(mm)55mm55mm60mm65mm
Screw L/D RatioL/D28:1L/D28:1L/D28:1L/D28:1
Screw rotation10-100r/min10-100r/min10-100r/min10-100r/min
Power of main motor15kw15kw18.5kw22kw
Max.Extrude Output46kg/h46kg/h60kg/h70kg/h
Single-face Thickess of film0.01-0.10mm0.01-0.10mm0.01-0.10mm0.01-0.10mm
Max Film Folding Dia.400mm×2500mm×2600mm×2700mm×2
Total Power26kw26kw30kw40kw
Machine of weight2700kg2800kg3200kg3600kg
Overall Dimension(L×W×H)4600×2000×4000mm4800×2200×4300mm5000×2400×4800mm6800×2600×5500mm
Design and specifications are subject to change without notice.


Packaging & Shipping





Our Services



We guarantee fix for the equipment for 1 Year and only change spare parts which belong to the bad quality

of equipment in one year(except man-made causation)



Debugging and Installation:Seller delegates engineers to RECIPIENT to make a supervision of correct installation,

commissioning and provide training by asking of Buyer. Buyer will pay for round trip tickets, habitations, food for

Seller’s engineers,and USD100 per day for subsidy.



Company Information



workshop



FAQ



  Double die Head plastic blown film machine, extruder machine sale

 1. Q: Are you a factory or trading company?

      A: We are a factory

  2. Q: What certificate do you have?

      A: We have ISO9001, SGS, GB4455 and CE certificate.

  3. Q: How dose your factory do regarding quality control?

      A: We have a special QC department in charge of product's quality.

  4. Q: How long is the warranty period?

      A: All of our products have one year warranty.

  5. Q: What's the main market of your company?

      A: we have customers all over the world.

  6. Q: What is your delivery time?

      A: Normally, It needs about 30 working days. The exact time depends on production management.

  7. Q: Can we visit your machine operation in your factory?

      A: We have own plastic making company, you can see the machine operation.

  8. Q: Where is your factory located? How can we visit there?

      A: Our factory located in dongshan economic Industry Zone, Ruian City, Zhejiang Province, CHina.

           You can by air to Wenzhou Airport and by High-speed rain to Ruian Station.
