Double-sphere thread union rubber expansion joint with EPDM

FOB Reference Price:Get Latest Price
$9.99 - $199.00 / Pieces | 1 Piece/Pieces Thread union rubber expansion joint more favorble quantity (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Huayuan
Model Number:
JGD-A
Type:
Union
Material:
Carbon Steel, EPDM/NBR/CR
Technics:
Casting
Connection:
Female
Shape:
Equal
Head Code:
Square
Name:
Double sphere union joint
Product name:
Screwed flexible joint
Size:
DN15-DN80
Key word:
Threaded union rubber joint
Certificate:
ISO9001-2015, CE
Company type:
Factory
Media:
Water, gas, acid
Pressure:
PN10/PN16
Usage:
Pipe fitting
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month Thread union rubber expansion joint produced on request
Packaging & Delivery
Packaging Details
Inner package of double sphere thread union rubber expansion joint with EPDM: Cartons
Outer package of double sphere thread union rubber expansion joint with EPDM: Wooden cases
Port
Any port in China
Lead Time :
7 days
Why Choose Us
Product Description

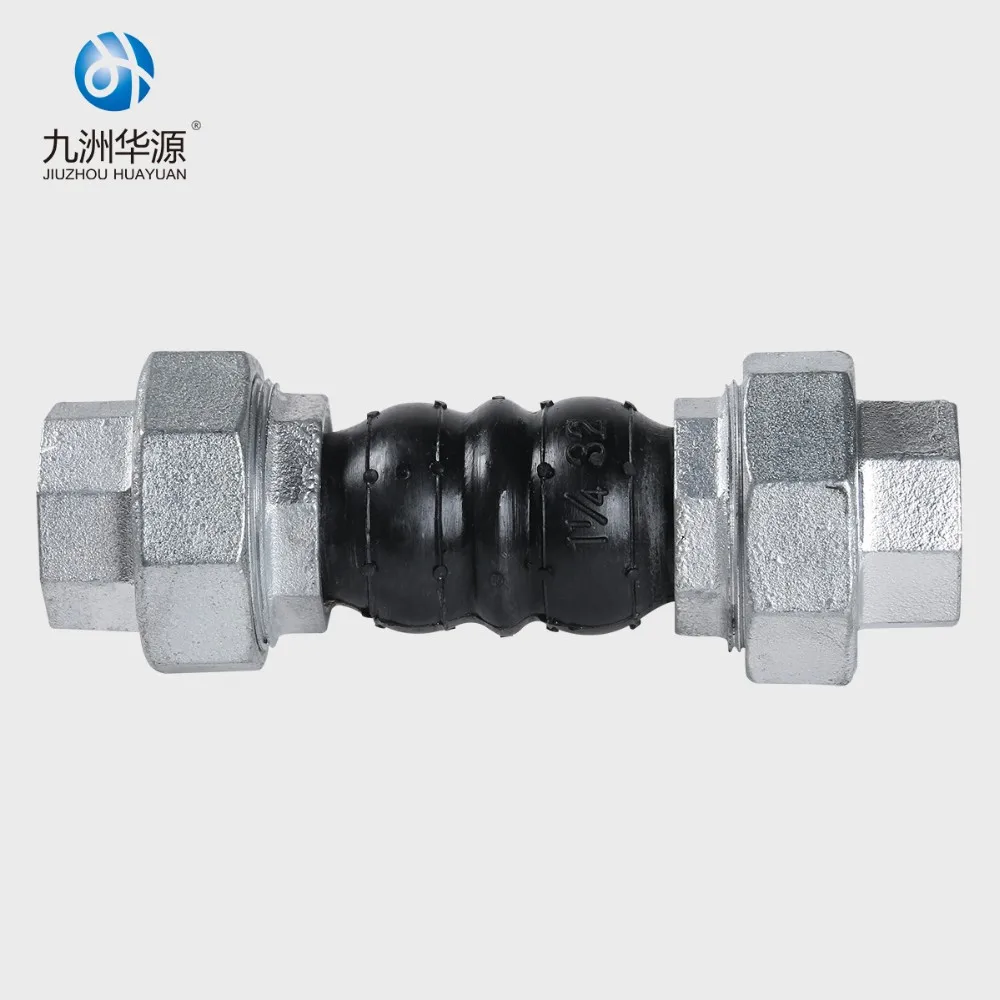

Double sphere thread union rubber expansion joint with EPDM

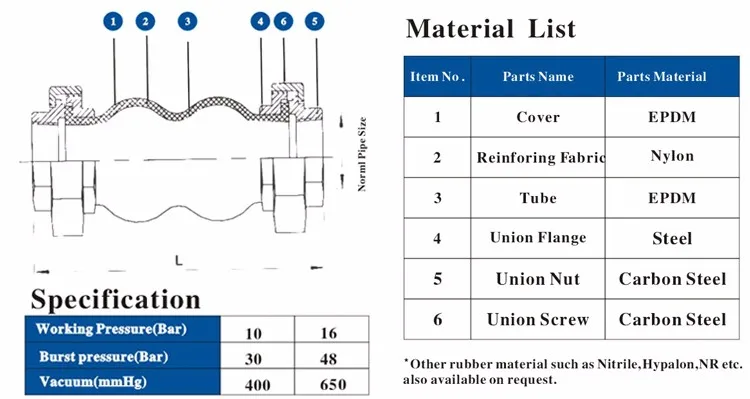

The form: this product consists of rubber pipe ,made of inner glue ,multi-layer proofinf and cord fabric and outer glue abd metal woggle joint .
It is applicable for the connection of inlet and outlet pipes of various fancoil sets of air conditionings in the guest rooms of hotels and restaurants.

Double sphere thread union rubber expansion joint advantage:

A: 15 minutes zinc plating, high pressure resistance, high temperature resistance, oil resistance, wear resistance, corrosion resistance, acid and alkali resistance.

B:Connect with pump, valve, fire fighting equipment, pipe which vibrate big, pipe which hot and cold change frequently.

C: Natural rubber content of forty-seven percent, can continue to use for 15 years without aging.



Nominal Diameter
Neutral Length
Movements
DN
NPS
L
Ext.
Comp.
Lateral.
Angular.(°)
15
1/2
200
5-6
22
22
45"
20
3/4
200
5-6
22
22
45"
25
1
200
5-6
22
22
45"
32
11/4
200
5-6
22
22
45"
40
11/2
200
5-6
22
22
45"
50
2
200
5-6
22
22
45"
65
21/2
265
8-10
24
24
45"
80
3
285
8-10
24
24
45"

Double sphere threaded union rubber expansion joint with EPDM

1.All expansion joints are finshed with retaining flanges,limit rod units are available on special request.
2.Pressures shows are recommended“operating”,test pressure is 1.5time“operating”,burst pressure is 3 time “operating”.
3.Vacuum rating is based on neutral installed length without external load.Products shall not be installed “elongated”on vacuum applications.
4.Do not weld near the expansion joints or weld the steel flanges to the piping after the expansion joints are installed .This will either burn or seriously damage the expansion joints.
Huayuan Product Specifications in this catalogues for reference only. Huayuan reserve the right to change design ,
construction,specification and materials without prior notice and without incuring any obligation.Any precise measurements,kindly contact with Huayuan technical service directly.

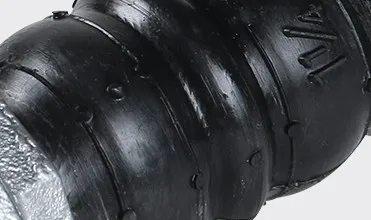

Product Details

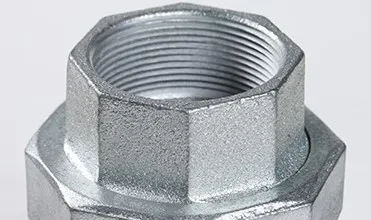

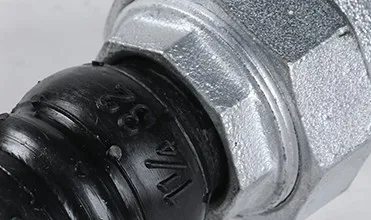

Double sphere thread union rubber expansion joint with EPDM is equipped with standard threaded BSPT.


Double sphere thread union rubber expansion joint with EPDM is equipped with galvanized.

Double sphere thread union rubber expansion joint with EPDM can be customized DN15-DN80.

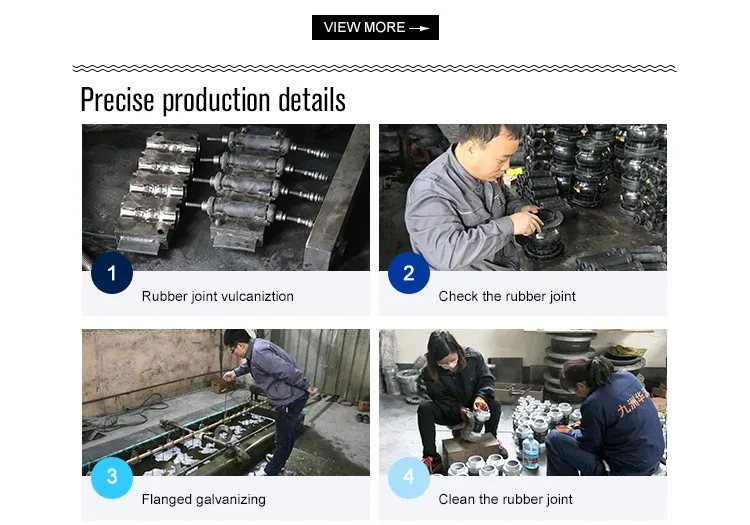

Double sphere thread union rubber expansion joint with EPDM after surface and treatment and inspection of finished products.

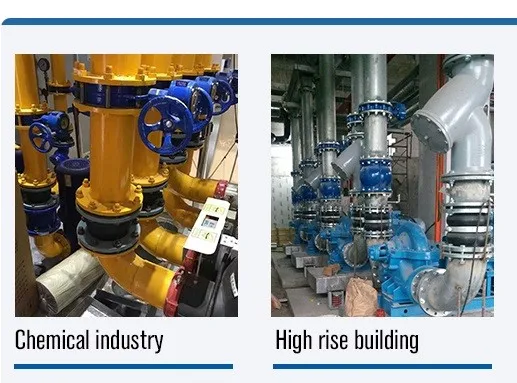

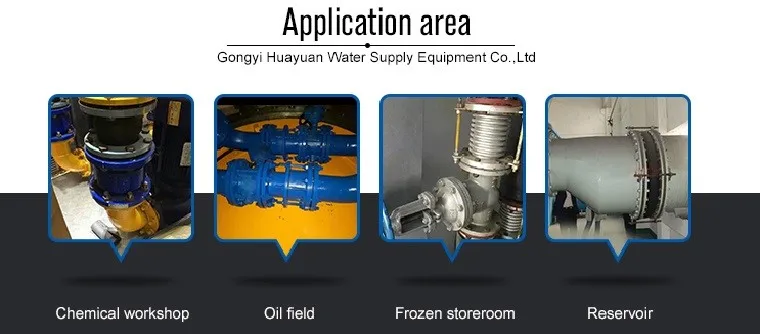

Double sphere thread union rubber expansion joint with EPDM has good comprehensive properties, it is widely used in chemical engineering, construction, water supply, drainage, oil, heavy industry, freezing, sanitation, plumbing, fire protection, power and other basic projects.


About Us

Our raw material is imported natural rubber from Malaysia and Indonesia, with a content of fortyseven percent,according to the different materials, it can be made ofacid, alkali resistant, corrosion resistant, oil resistant, high temperature resistant, radiation resistant, wear-resistant, aging resistant and so on.
Certificate&Customer
FAQ

Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.

Q: What are your payment terms?
A: T/T (30% as despot, the rest 70% will be paid before delivery), L/C at sight

Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.

Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.

Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests.

Q: Do you accept small quantity order?
A: Of course we do.

Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.

Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.

Q: And what's your packing?
A: Carton cases inside, export wooden cases outside.
