Dual band Gigabit 2.4G+5.8G 4G LTE wireless powerful router with MTK7621 chip

  • 1 - 999 Pieces
    $37.50
  • 1000 - 1999 Pieces
    $35.00
  • 2000 - 9999 Pieces
    $34.30
  • >=10000 Pieces
    $32.60
Color:
Black
Lead Time:
Quantity(Pieces) 1 - 1 2 - 100 101 - 1000 >1000
Est. Time(days) 2 15 30 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Samples:
$40.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Max. LAN Data Rate:
1300Mbps
With Modem Function:
yes
Standards And Protocols:
Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac
Wi-Fi Supported Frequency:
2.4G & 5G
Wi-Fi Transmission Standard:
802.11b
Wired Transfer Rate:
none
2.4G Wi-Fi Transmission Rate:
300 Mbps
Encryption Type:
WPA-PSK
Products Status:
New
Type:
Wireless
Application:
SOHO
Function:
Voip, FireWall, QoS, VPN
LAN Ports:
4
WAN Ports:
1
Certification:
FCC, ce, RoHS
Brand Name:
zbt
Place of Origin:
Guangdong, China
5G Wi-Fi Transmission Rate:
1300Mbps
Main Chip:
MT7621
Flash/RAM:
16M Flash+512M RAM
Interface:
4 LAN(10/100/1000M) /1 WAN
Maximum power:
12W
Antenna:
removable 4*5dBi antenna
Frequency Range:
2.4 GHz and 5.8 GHz
Wireless standard:
802.11b/g/n/ac
Wireless speed:
Up to 1200Mbps
other Interface:
1 SIM + 1 SD + 1 USB port
Color:
Black/White
Product Certification certification
CE Certified.
FCC Certified.
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Neutral Packing: 1pcs/1 packing box; 20pcs/1 carton
OEM packing box are acceptable
Port
SHENZHEN

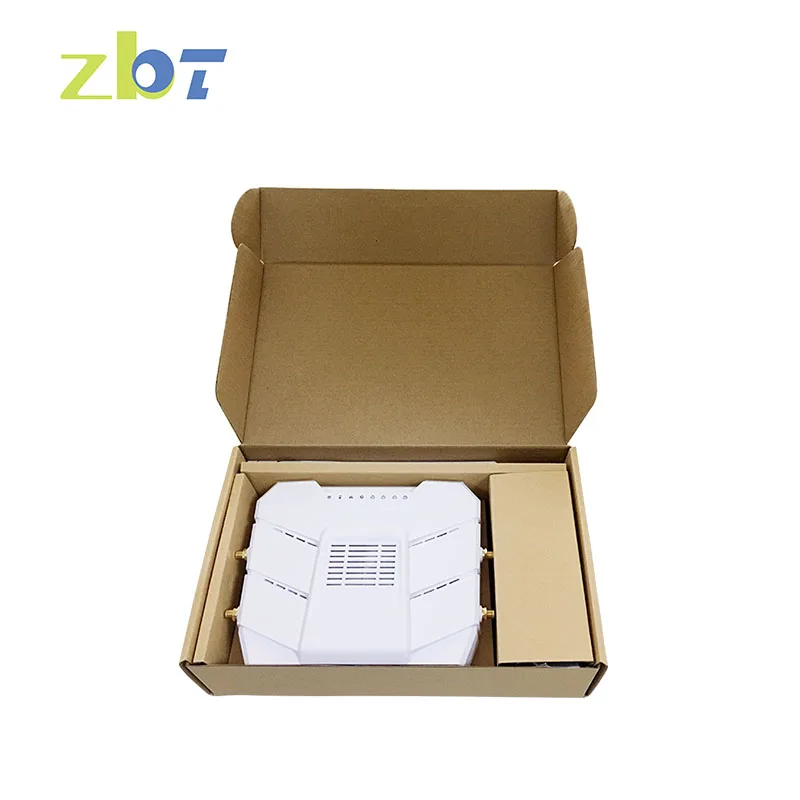

Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 1 2 - 100 101 - 1000 >1000
Est. Time(days) 2 15 30 To be negotiated
Video Description

Dual band Gigabit 2.4G+5.8G 4G LTE wireless powerful router with MTK7621 chip



Warm Reminder

1. The price quoted not include the 4G modem as different country use different frequency bands.

 2.  Please let me know your frequency bands or the using country and then i can choose the right modem and update the  price to you.



Product Description
Hardware:

ZBT-WE1326-KC uses the latest MTK7621 wireless solution. It is dual band and gagibit router with 4 detachable 5dBi antennas.

Wireless:

Support IEEE802.11AC/N/G/B/A wireless protocol, max wireless rate could be 1200Mbps , 4×5Dbi high gain antennas.

Software:

Preload the OpenWRT



The mian features:

A. 1 USB2.0 port and 1 PCI-E

B. Provide 1 Micro SD Card slot

C. The transmission rate get to 1200Mbps

D. Provide 5 gigabit Auto MDI/MDIX Ethernet port

D. support IEEE IEEE802.11AC/N/G/B/A wireless protocol

E. Latest Dual core network chipset MT7621,Clock Frequency get 880Mhz



Hardware

Main Chipset

MT7621/Dual core/880MHz

RAM

DDR3  512MB (Maximum DDR3 512MB)

 SPI FLASH

SPI  16MB  (Maximum 32MB)

Protocol

IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE802.11ac ,IEEE802.11a
IEEE 802.3,IEEE 802.3u

RT Power

802.11b   18dBm±2dBm

802.11g   15dBm±2dBm

802.11n   15dBm±2dBm

802.11ac  depends on the 11AC mode

Reception Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER

802.11ac: depends on the 11AC mode

Work Channel

2.4GHz choose :1-13

5GHz choose :149,153,157,161,165

Wireless Rate

Max 300Mbps

Work Frequency

2.4GHz

Antenna

4*detachable 5dBi antenna

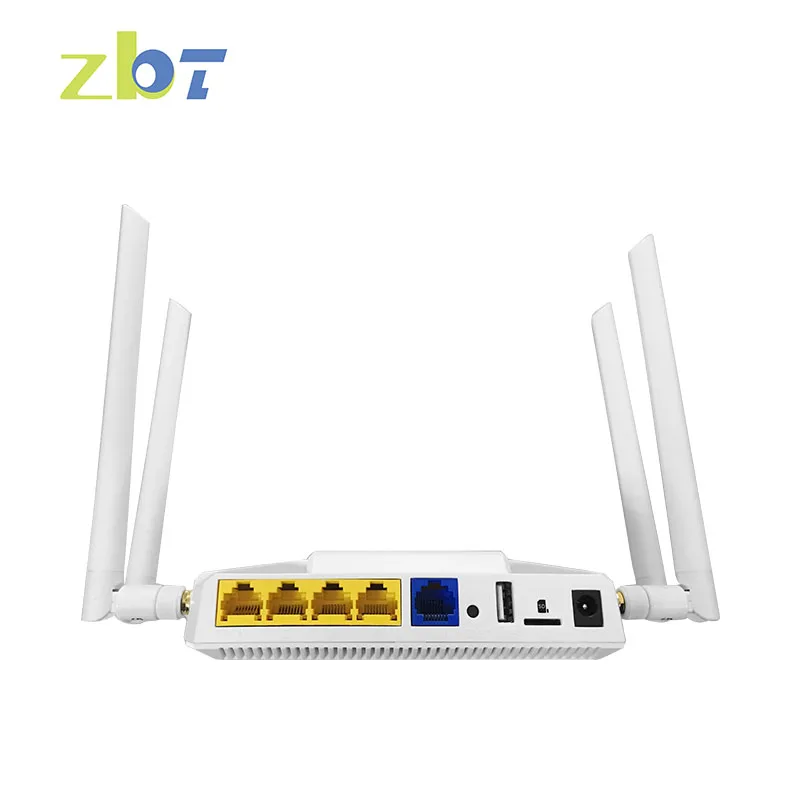

Interface

1*PCI-E slot

1*SIM card slot

1*USB 2.0 port

1*Micro SD card slot

1*10/100/1000M WAN port(Auto MDI/MDIX)
4*10/100/1000M LAN port(Auto MDI/MDIX)

LED

Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4

Button

Reset/WPS

Max Power consumption

< 12W

Dimension(L*W*H)

164*137*35MM

Software

WAN Type

PPPoE,Dynamic IP, Static IP

Work Mode

AP

Router

DHCP

Server, Client, DHCP Client List, Address Reservation

Port Forwareding

Virtual Server, Port Triggering, UPnP, DMZ

Firewall Security

Dos, SPI Firewall

IP Address Filter/MAC Address Filter/ Domain Filter

IP and MAC Address Binding

DDNS

Support

VPN Pass-Through

PPTP, L2TP, IPSec (ESP Head)

Band Ctrl

Support

Static Router

Support

System Log

Support

Other Function

Client filter

MAC Address Filter

URL Filter

long-distance WEB management

Others

Work Environments

Operating Temperature:0℃ ~ 40℃;
Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing

Power Adapter

12V 2A

Authentication

CE,FCC,ROHS




Dual band Gigabit 2.4G+5.8G 4G LTE wireless powerful router with MTK7621 chip


Company Information

We are a professional router manufacturer in China and have in this line since 2010. Our products cover home router, 3/4G wireless router, vehicle router, outdoor CPE/APG, repeater, openWRT wifi router...We also have our researching team so that we have the ability to provide OEM&ODM. Most of our product have passed the CE, FCC, RoHs certificate. Besides, our company have taken part in a lot exhibitions around the world every years.
