Dual band WiFi router modem travel wifi USB small openwrt router

  • 1 - 1999 Pieces
    $22.00
  • 2000 - 4999 Pieces
    $18.50
  • >=5000 Pieces
    $17.50
Model Number:
Oolite
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Max. LAN Data Rate:
300Mbps
With Modem Function:
No
Standards And Protocols:
Wi-Fi 802.11ac, Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n
Wi-Fi Supported Frequency:
2.4G & 5G
Wi-Fi Transmission Standard:
802.11ac
Wired Transfer Rate:
None
2.4G Wi-Fi Transmission Rate:
150 Mbps
Type:
Wireless
Application:
MINI WIFI
Function:
Firewall
LAN Ports:
1
WAN Ports:
1
Certification:
None
Brand Name:
Oolite
Place of Origin:
China
Model Numbe:
mini box V3.2
chipset:
QCA9531 & QCA9887
RAM:
128Mbyte
Frequency:
5.180GHz-5.850GHz; 2.412-2.472GHz
ROM:
16MB
small wifi route Software:
openwrt
Wireless Speed:
300Mbps
Port:
1WAN+ 1 LAN
Interface:
1*USB;1*WAN+1*LAN;1*PCIE;1*UART console
size:
64mm x 44.7mm x22.5mm(L x W x H)
Products Status:
Stock
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Lead Time :
15-25 working days after payment
Product Description

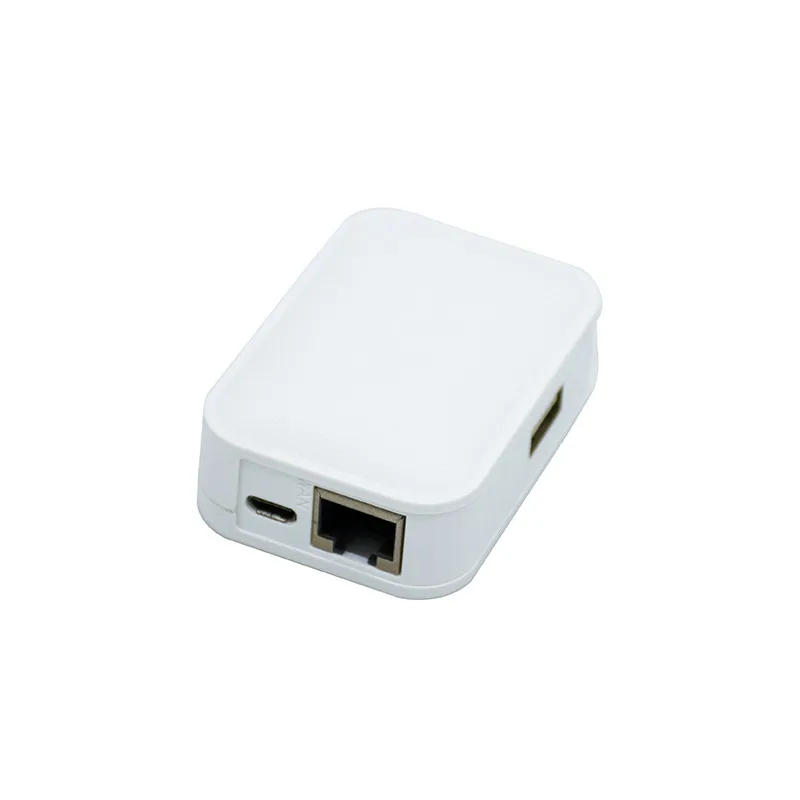

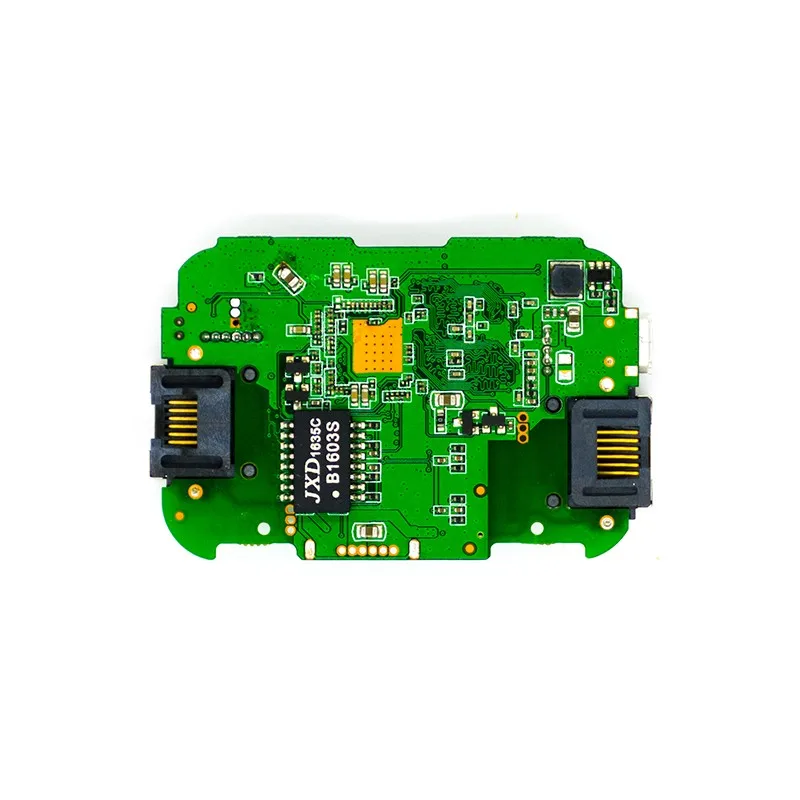

MiniBox V3.2 is exquisite portable and small wireless router that supports 5G WIFI and 2.4G WIFI. It compatible 802.11 a/b/g/n/ac maximum wireless rate can reach to 300Mbps.It is made up of base board and module.The base board use the QCA9531 chip that is a highly integrated and feature-rich IEEE802.11n 2x2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms. The module use the QCA9887 chip which integrates a multi-protocol MAC, PHY, analog-to-digital/ digital-to-analog converters (ADC/DAC),1x1 radio transceivers, and PCI Express interface in an all-CMOS device for lowpower consumption and small form-factor applications.

MiniBox V3.2 has 2 FE RJ45 ports which support both wired connection and wireless connection at the same time.it allows users not only able to share their internet by wired connection but also wireless connection.Its power consumption is very low.

Applications Stage

● Smart home network equipment
● Wireless WIFI device
● Industrial field

1. Features

>> CPU: QCA9531 with 550 MHz MIPS 24Kc and QCA9887
>> Supports 20/40/80 MHz at 5 GHz
>> RAM: 128MB DDR2 RAM (64MB optional)
>> Flash: 16MB SPI NOR Flash(8/16/32/64M option)
>> EEPROM:32Kbit
>> USB: 1×Micro USB (support 1×USB2.0)
>> Power supply voltage: 5V
>> Port: 1WAN+ 1 LAN
>> Antenna: 3×external antenna.
>> PCIE:1× PCIE
>> 1×RESET Button
>> 1×UART console

2. MECHANICAL

3. ELECTRICAL SPECIFICATIONS

RF hardware performance

4. ENVIRONAMENT

Our Company


Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on .The company was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China ,We are focus on ODM and OEM service to the customer all over the world with professional R&D team . Factory equipped with sophisticated manufacturing machines ,include 1 High-speed SMT production lines and 2 product-assembly lines, about 40 staff, Production capacity for wifi modules can be 2000pcs per day.
We are focus on Qualcomm Atheros AR9XXX, QCA9XXX, IPQ, QCA40XX and MT76XX ,Allwinner, Intel x86 with wifi, lora, NB-iot, 3G/4G communication devices ODM/OEM.Usually for Industry application.

Our Service

1. we have long business relationship shipping agent, we can provide you best price, best service based on your destination.
2. we provide best after service, if there is any doublt after you get products, we try our best to service for you.

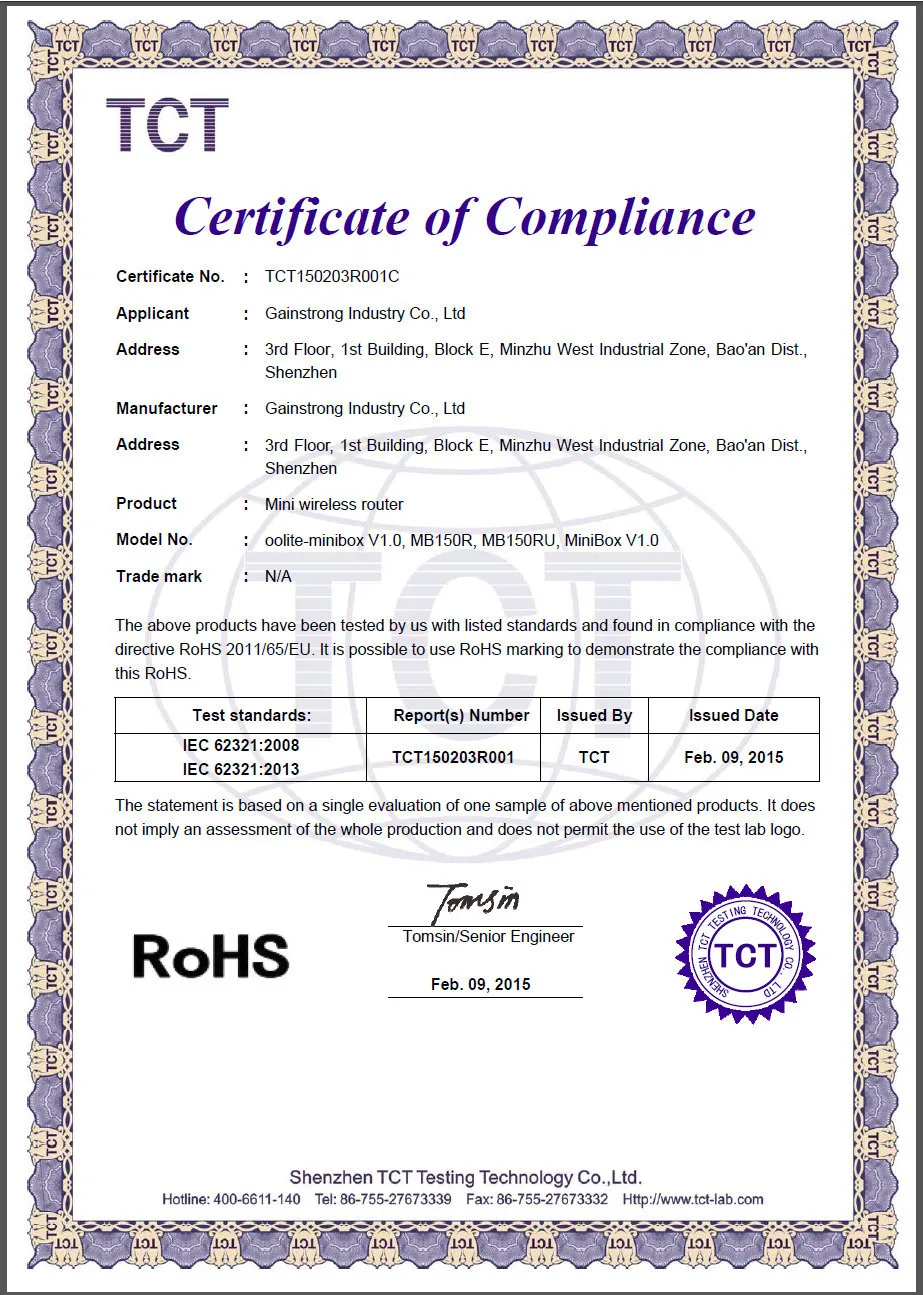

Certifications
Packing & Delivery

Packing


plastic tray or blister
Delivery

16/128MB high power openwrt wifi router

1) By DHL or Fedex express;
2)By sea to the main coastal city in your country;
3)By airmail or EMS;
4)Any other viable methods for delivery accepted by both parties.

FAQ

1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.

2.Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

3.Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
