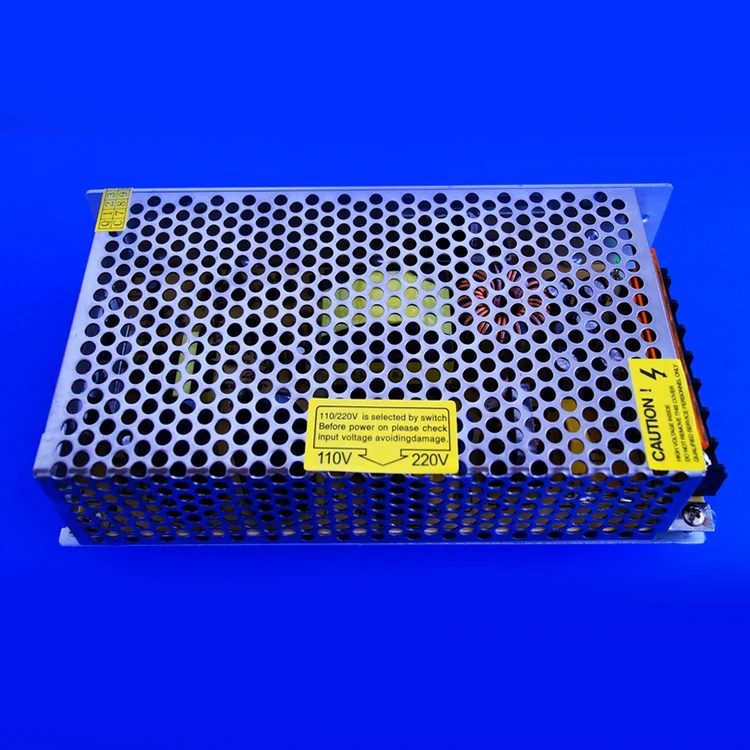

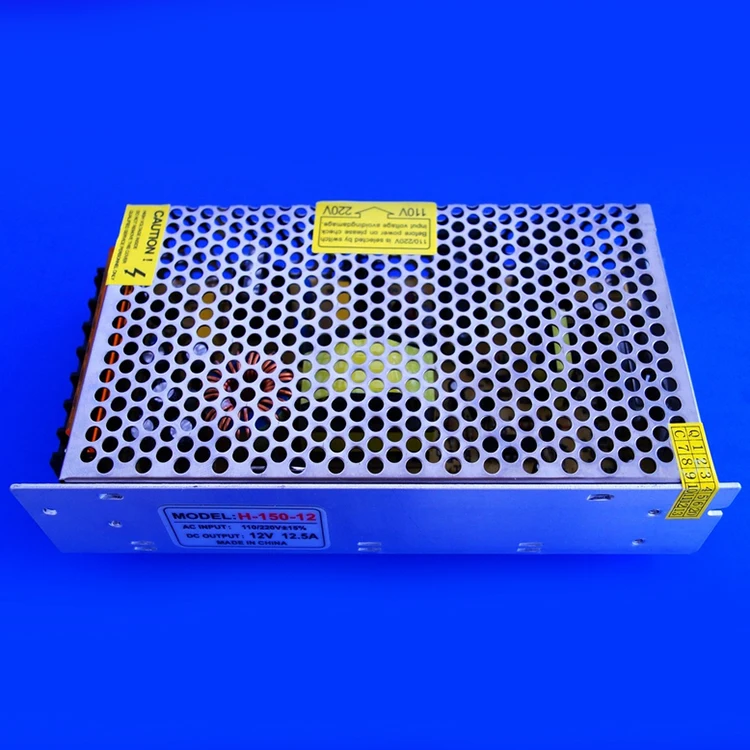

Dual output Switch mode 150w 12.5a 220v ac 12v dc power supply

FOB Reference Price:Get Latest Price
$1.00 - $50.00 / Pieces | 50 Piece/Pieces Keywords:220v 12v power supply (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Sunshineopto/OEM
Model Number:
SUN-150W-12V
Output Power:
101 - 200W
Output Type:
DUAL
Input Voltage:
110/220VAC
Output Voltage:
12V ±2%DC
Output Frequency:
50~60Hz(except Dc input)
Output Current:
12.5A±0.5%
Product Name:
Dual output Switch mode 150w 12.5a 220v ac 12v dc power supply
Operating Temperature:
-20℃~+50℃, 20%~95%RH(without condensation)
Storage Temperature:
-40℃~+80℃, 20%~95%RH(without condensation)
Voltage Adjustment Rate:
≤0.5%
Load Adjustment Rate:
≤1%
Canning Material:
Aluminum
N.W.:
540g
Appearance Dimension:
198(L)*98(W)*42(H)mm
Warranty:
2 years
Keywords:
220v 12v power supply
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week We can work overtime if the order quantity is very large.
Packaging & Delivery
Packaging Details
Cartons
Port
shenzhen/yantian
Lead Time :
7-10 work days

      Dual output Switch mode 150w 12.5a 220v ac 12v dc power supply

Product Description

Model No.

SUN-150W-12V

Appearance Dimension

198(L)*98(W)*42(H)mm

N.W.

540g

Canning Material

Aluminum

Input voltage

AC110V/220V 50-60Hz

Output voltage

12V ±2%DC

Output current

12.5A±0.5%



Environmental Conditions

Operating Temperature

-20~+50, 20%~95%RH(without condensation)

Storage Temperature

-40~+80, 20%~95%RH(without condensation)

Relative Humidity

0.02~0.05%/

Heat-dissipating Method

Natural Cooling / Fan Cooling / Blower Cooling

Input Features

Rated Input Voltage Range

220VAC

Input Voltage Range

110/220VAC±15%

Input Frequency Range

50~60Hz(except Dc input)

Input Under-voltage Protection

115~150% interim mode

Input Under-voltage Recovery

Automatic recovery

Input Over-voltage Protection

115~150% interim mode

Input Over-voltage Recovery

Automatic recovery

Impact Current

≤1% (the highest input voltage full load)

Overall Efficiency

≤0.5% (rated input full load)

Output Features

Output Voltage Range

12V±2%(Dual Outputs)

 Output Current Range

12.5A±0.5%(Dual Outputs)

Ripple & Noise(mVp-p)

≤100 mVp-p

Rise Time

≤50 ms

Output Delay

≤S

Voltage Adjustment Rate

≤0.5%

Load Adjustment Rate

≤1%

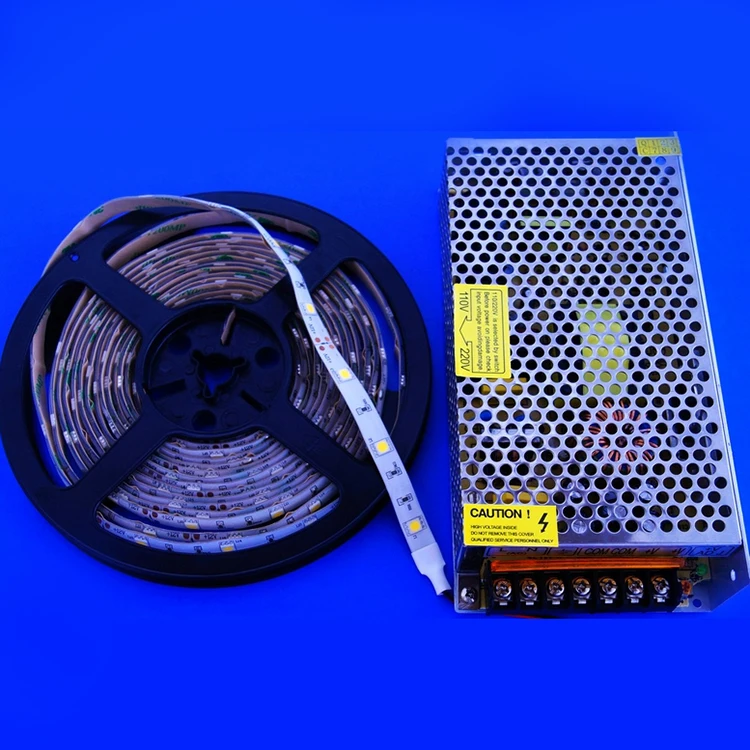

Applications:

General Illumination

- Outdoor & Indoor architectural lighting

- Decorative lighting

- Flood lighting,cast light lamps

- Street lamp,Tunnel lamp

- Replace the old equipment

Competitive Advantage:

1 .Output Over Current Protection: Current drooping type

2. Output Short Circuit Protection: IGBT

3. Output Over-voltage Protection: Soft start protection

4. Reliability Requirements

5 MTBF:50,000 HOURS

6 Annual Repair Rate<0.3%
