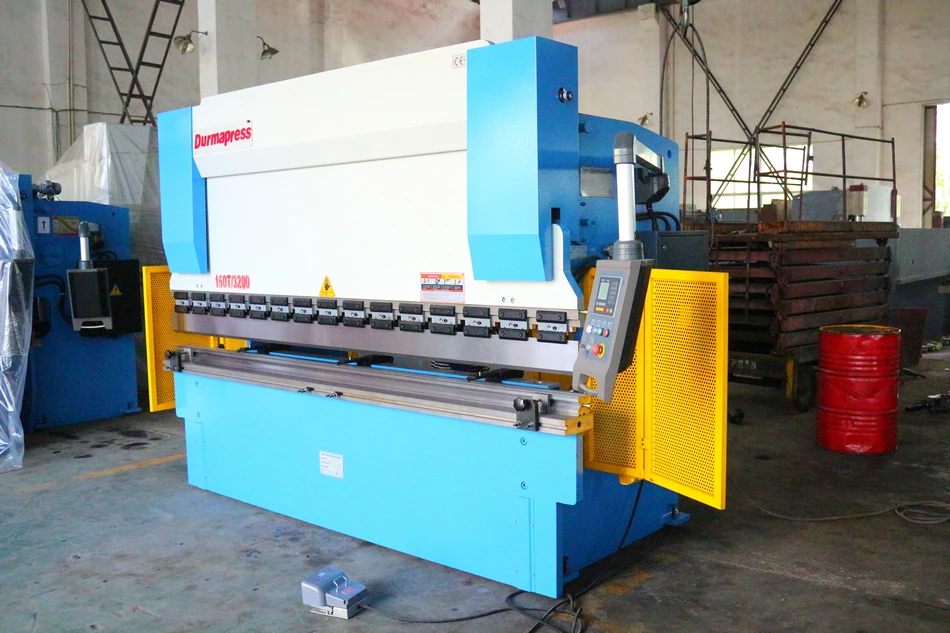

Durma WC67Y 160T/3200 cnc bending machine with press brake

FOB Reference Price:Get Latest Price
$12,900.00 - $13,900.00 / Sets | 1 Set/Sets press braake tooling (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
DURMAPRESS
Material / Metal Processed:
Stainless Steel
Automation:
Automatic
Extra Services:
Buffing / Polishing
Certification:
ce
Product name:
160T/3200 sheet metal press brake
Main Motor:
Siemens Germany
Electric system:
France Schneider
Pump:
Germany Rexroth
Hydraulic Valve:
Germany Rexroth
Grating ruler:
Spain FAGOR
Seal ring:
Japan NOK/Germany FIETZ
Pipe connector:
Germany EMB
Footswitch:
South Korea Karcon
Warranty:
5 years
Machine Type:
Press Brake
After-sales Service Provided:
Engineers available to service machinery overseas
Raw Material:
Sheet / Plate Rolling
Power:
Hydraulic
Model Number:
WC67Y/K
Supply Ability
Supply Ability:
100 Set/Sets per Day
Packaging & Delivery
Packaging Details
1.Whole film packaging machine;
2.Anti-collision package edge;
3.Fumigation-free plywood wooden box with iron binding belt.
Port
shanghai port for press braake tooling
Lead Time :
Shipped in 15 days after payment
Our Company
Product Description

Main features for the CNC press brake

Overall welded and processed structure.
Closed loop control mode composed of electric-hydraulic servo valve and measure ruler.
Ensure the highest control precision, bending accuracy and repositioning accuracy are also reach to the highest level.
Back gauge mechanism can be multi-axes controlled.
Integrated hydraulic system decreases the pipe connections, oil leakage, and increases the stability and overall beautifies.
Worktable equipped with hydraulic and mechanical compensation to avoid the deformed upper beam from affecting the quality of the workpiece, it is automatically adjusted by the CNC controller with convenient and accuracy.

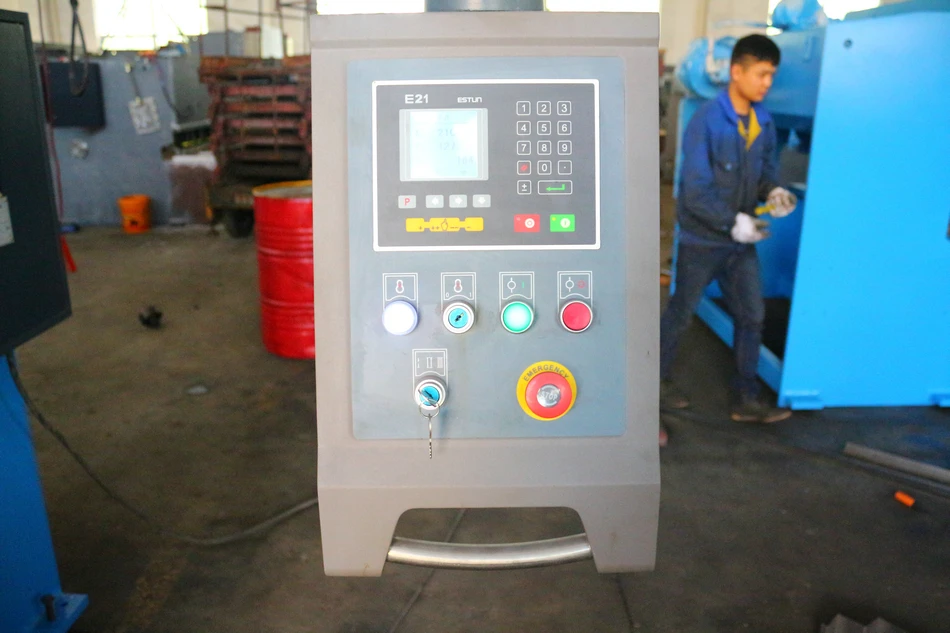

CNC controller normally uses Holland DELEM, Italy ESA, Swiss CYBELEC, all with multi-languages.

Detailed Images

Adjustment Back gauge

The bakgauge can be quickly adjusted by motor , and it can be fine adhusted by hand with a displayer

Quick clamp

Optional for Kyokko quick clamps with the high precision.

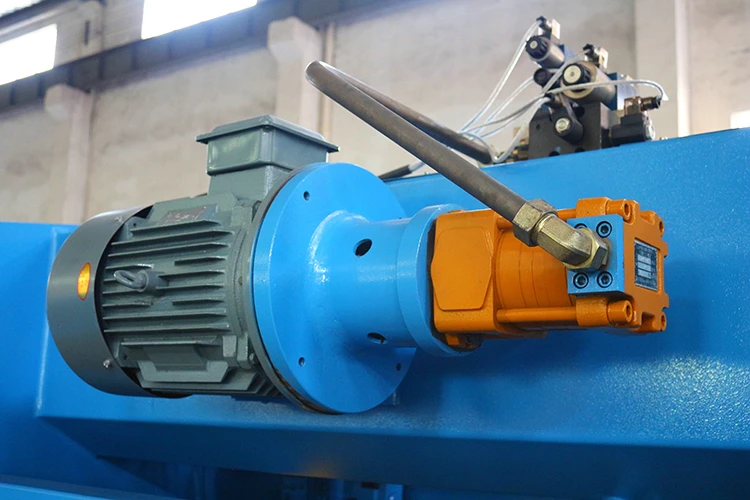

Main motor

Siemens brand from Germany

Optional for ABB or WNN

Main motor

Backgauge with Ball screw and polished rod from Taiwan

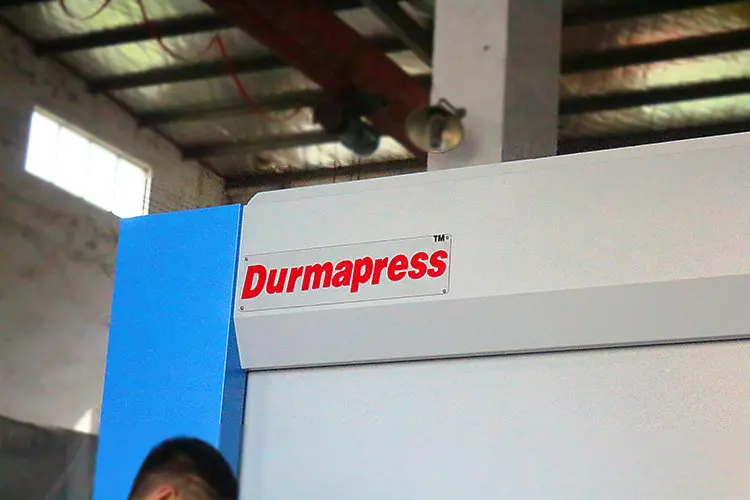

Durmapress brand

Chinese famous brand.

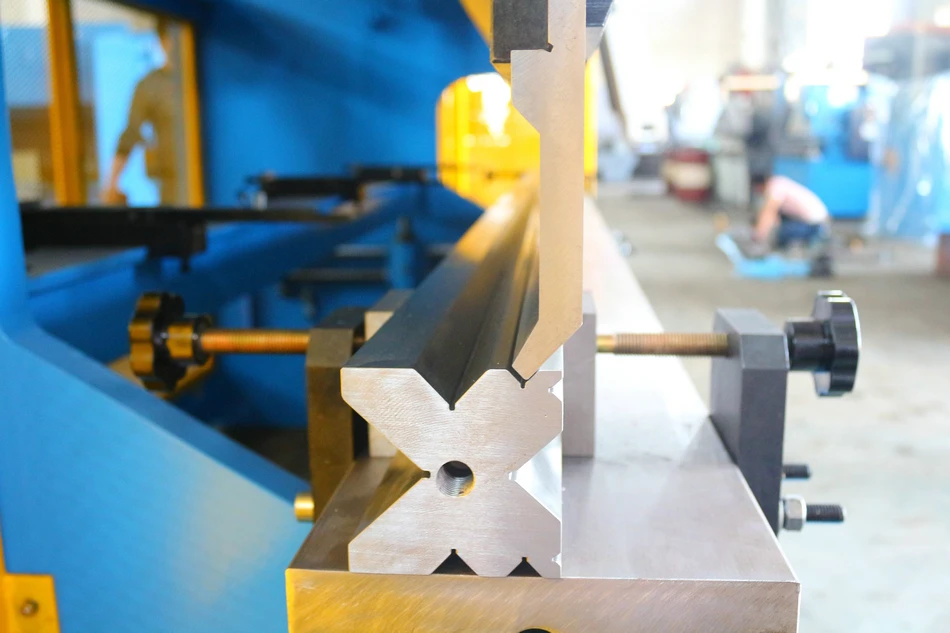

Upper and down die

Machine with one set standard toolings with upper punch segmented and multi-V die in one pc.
C-throat gap high strength.

Main Technical parameter for 160T/3200 press brake
ITEMS
PARAMETER
UNIT
Model
WC67Y-160T/3200
set
Normal Force
1600
KN
Max. Bending Length
3200
MM
between columns
2510
MM
Throat Depth
320
MM
Slide Stroke
200
MM
Open height
450
MM
Main motor
11
KW
Weight
11000
KG
Overall dimensions
3200*1900*2700
MM
Certifications
Our Service

Pre-Sales Service

* Technical solution.
* Online video authentication machine work.
* Cutting samples provided by DHL.

After-Sales Service

* Supplier will provide detail manual for software, hardware and trouble shooting, also supplier should give necessary guidance online if Buyer need. If it’s necessary, Buyer should send regular his technical staff to Supplier for technical training.

Exhibitors
Packing & Delivery
Packaging
Size
3200(L) * 1900 (W) * 2700(D)
Weight
11000kg



Packaging Details
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by soms softmaterials,mainly using pearl wool.
3.The outmost is wooben case with fixed formwork.
FAQ

How about your machine quality?We are worry about the quality.
Durmapress is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Durmapress machines.And where there are our machines,there are good reputation and terminal user satisfaction.
Whether the machine price can be more discount
Durmapress always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
Actually Durmapress also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
How about your manufactory in CHINA
Durmapress located in Maanshan city ,Anhui province province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 10 years in this area and totally have about 150 staffs.Rich experience in this field with professional technical supporting and oriented service.
We welcome your visit to us any time.
Do you accept L/C payment term?
Yes,we accept 100% L/C at sign from almost all countries.
