ED316H48 newest 3u server case with 16 HDD bays NVR storage case huge data server

Feedback Ratings
US $200.00 / Piece | 1 Piece (Min. Order)
Color:
Model Number:
ED316H48
US $200.0
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order:: 20 Pieces)
Customized packaging (Min. Order:: 20 Pieces)

More

Graphic customization (Min. Order:: 20 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Application:
Server
Type:
Rack
Form Factor:
ATX
Material:
Plastic, Steel, SGCC 1.2mm
Style:
With Fan
Front Ports:
USB, Other
Brand Name:
EDNSE
Place of Origin:
Guangdong, China (Mainland)
Size Diemension:
480x430x132mm,18.9"x16.9"x5.2"
M/B support:
(6.7"x6.7")
PSU support:
ATX single psu
Customized Items:
logo,and others
sheet metal thickness:
1.2mm
plastic material type:
ABS
drive bays:
hot plug 16x3.5"HDD,non-hot plug 2x2.5",1xCD-ROM(slim DVD)
backplane:
of sata or minisas ports,support sata or mini sas HDDs
system cooling:
middle 4x8025 PWM cooling fan,rear 2x6025 PWM cooling fan

Packaging & Delivery

Selling Units:
Single item
Single package size:
70X60X20 cm
Single gross weight:
16.0 kg
Lead Time :
Quantity(Piece) 1 - 100 101 - 1000 >1000
Est. Time(day) 7 30 To be negotiated



ED316H48 newest 3u server case with  16 HDD bays NVR storage case huge data server

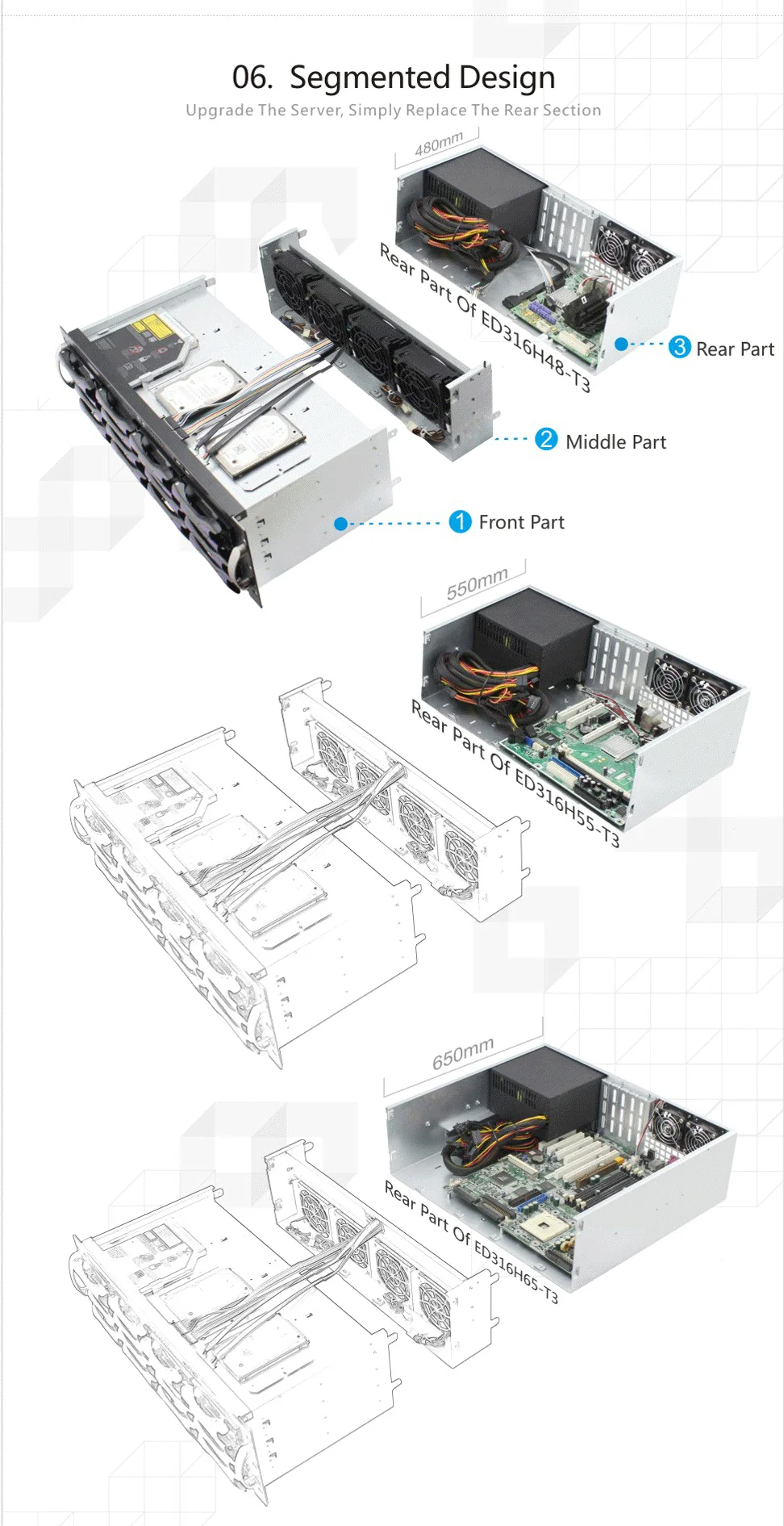

 ED316H series : 480mm depth,550mm depth,650mm depth.



 model ED316H48 :depth 480mm.

 model ED316H55:depth 550mm.

 model ED316H65:depth 650mm.



 difference:

 1.main board support

 depth:480mm,support mainboard:(6.7"x6.7")

 depth:550mm,support main board:(12"x9.6")(9.6"x9.6")(6.7"x6.7")

 depth:60mm,support main board:(12"x13")(12"x10.5")(12"x9.6")(9.6"x9.6")(6.7"x6.7")

 2.PSU support

 depth:480mm,ATX single psu

 depth:550mm,1U or 2U single standard/ATX single psu/1U or 2U redundant 1+1 PSU

 depth:650mm,1U or 2U single standard/ATX single psu/1U or 2U redundant 1+1 PSU



the others is the same.





Product Description

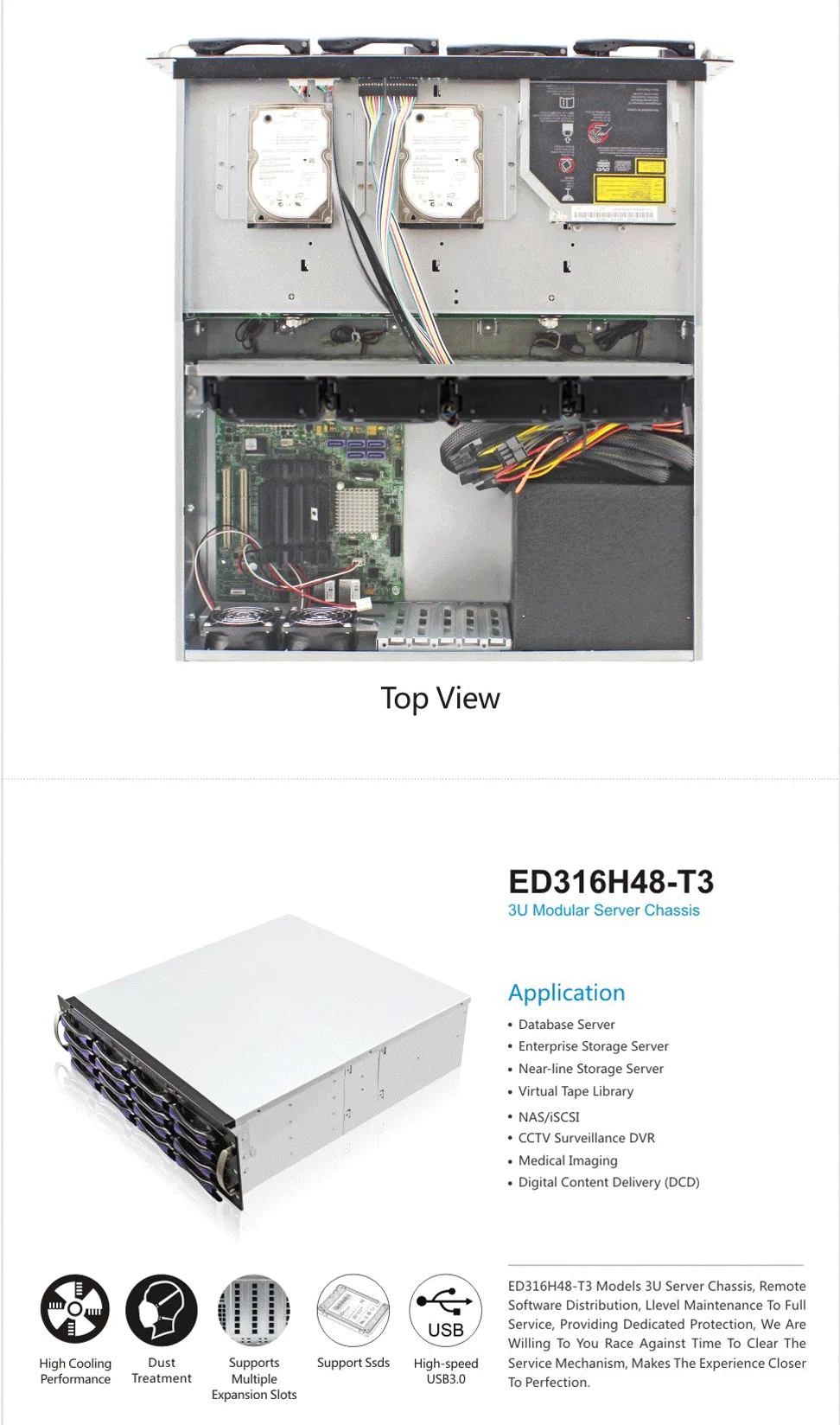

ED316H Series- Model ED316H48

Order model

ED316H48

Material

metal material:SGCC,thickness:1.2mm,other:ABS

M/B support

(6.7"x6.7")

PSU support

ATX single psu

Processor Support

DP Xeon(Intel),DP Opteron(AMD),Core(Intel)

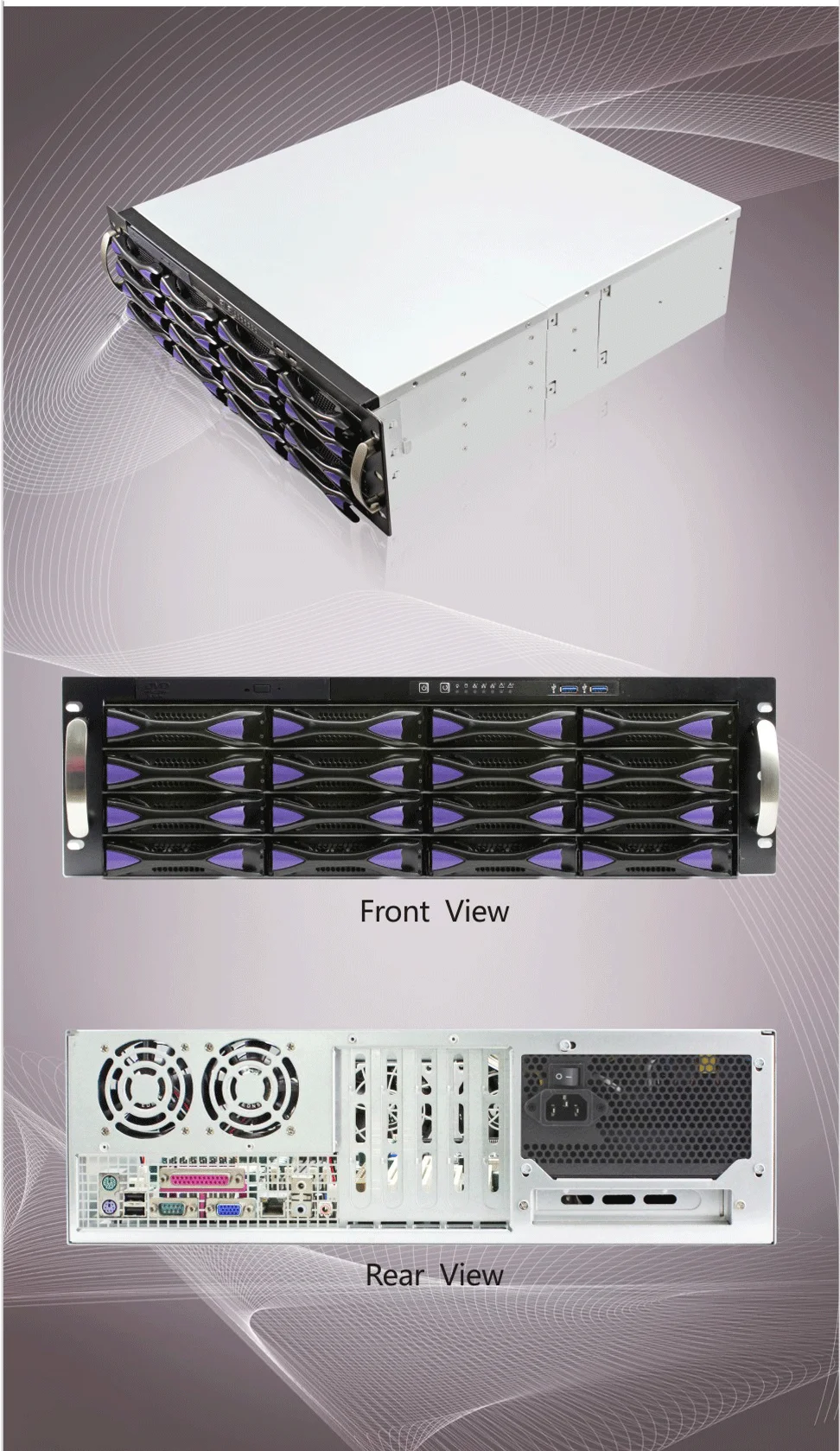

Dimensions

L x W x H 480x430x132mm,18.9"x16.9"x5.12"(inch)

Drive Bays

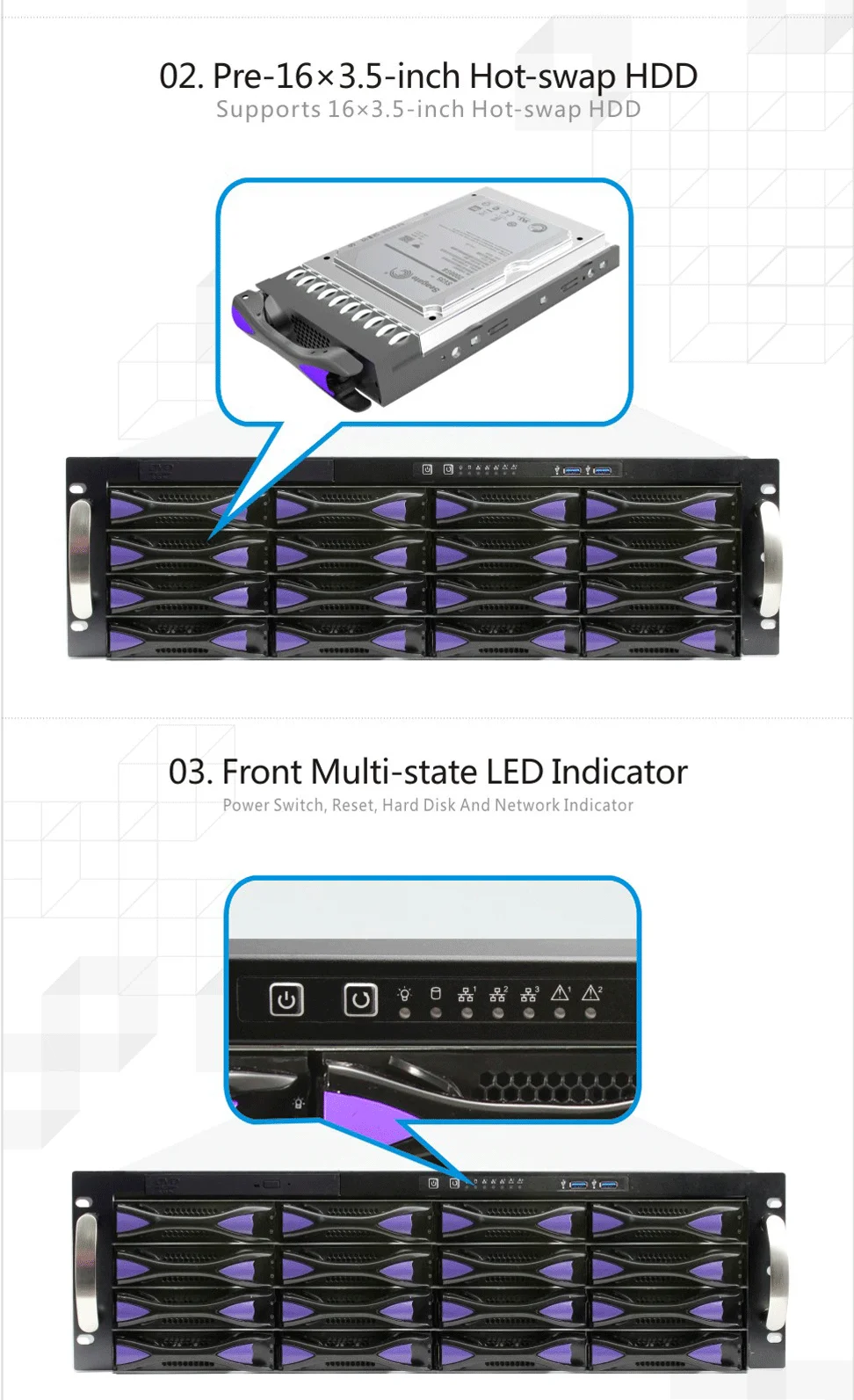

External:Front Hot-swap 16x3.5"HDD,1xSlim CD-ROM;internal:front 2x2.5"HDD

Backplane

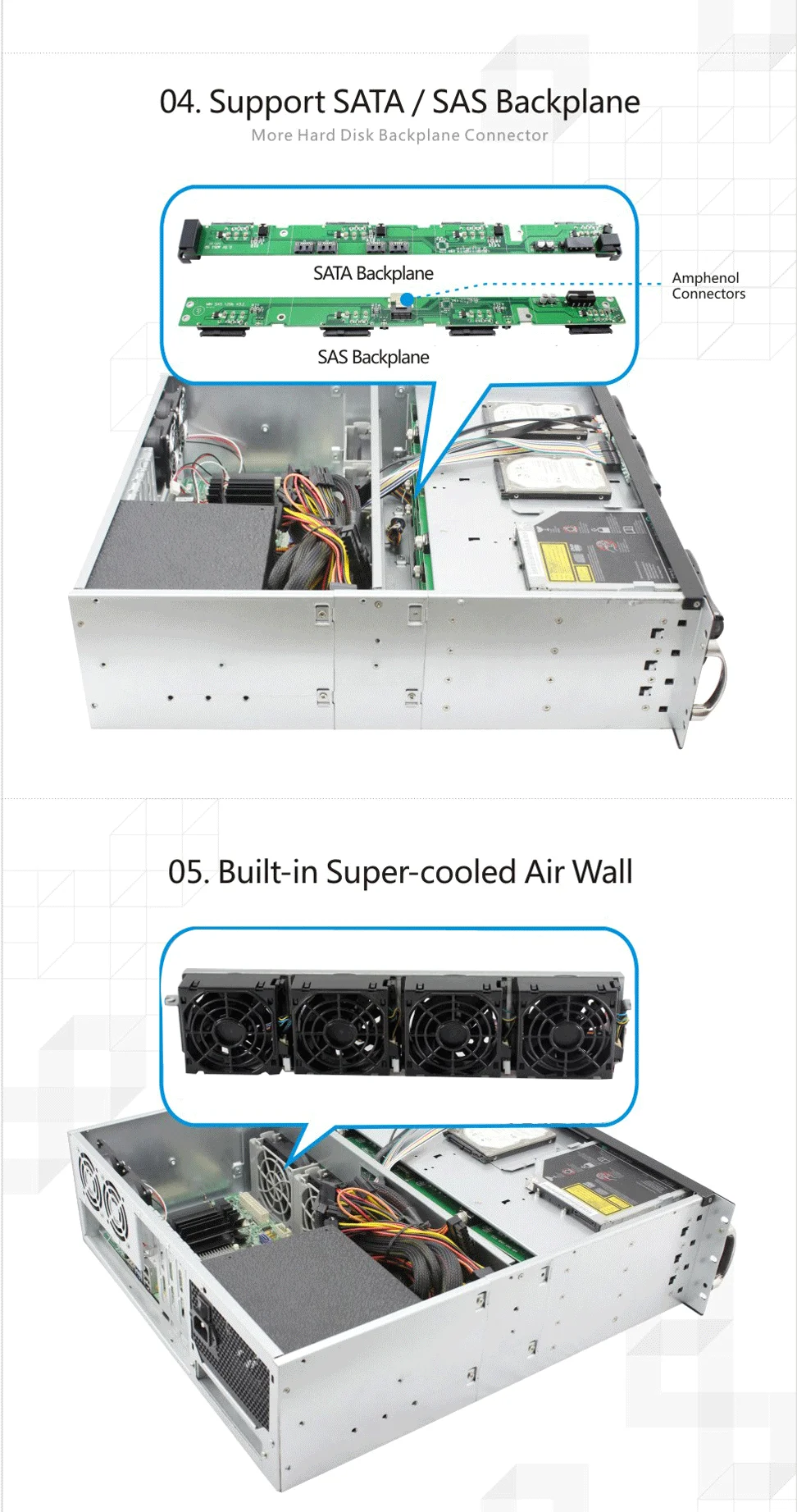

Backplane with sata or minisas ports x4,support SATA or SAS hard disk.

System Cooling

Middle 4 x 8025 mm PWN,rear 2x6025mm PWM

expansion slot

vertical type x5(ATX)

front pannel

front control:power on/off,system reset,indicator:power LED,HDD Activity LED,LAN Activity LED,Failure LED

indicator light : power(x1),HDD(x1),LAN NIC(x3),ALARM(x2)

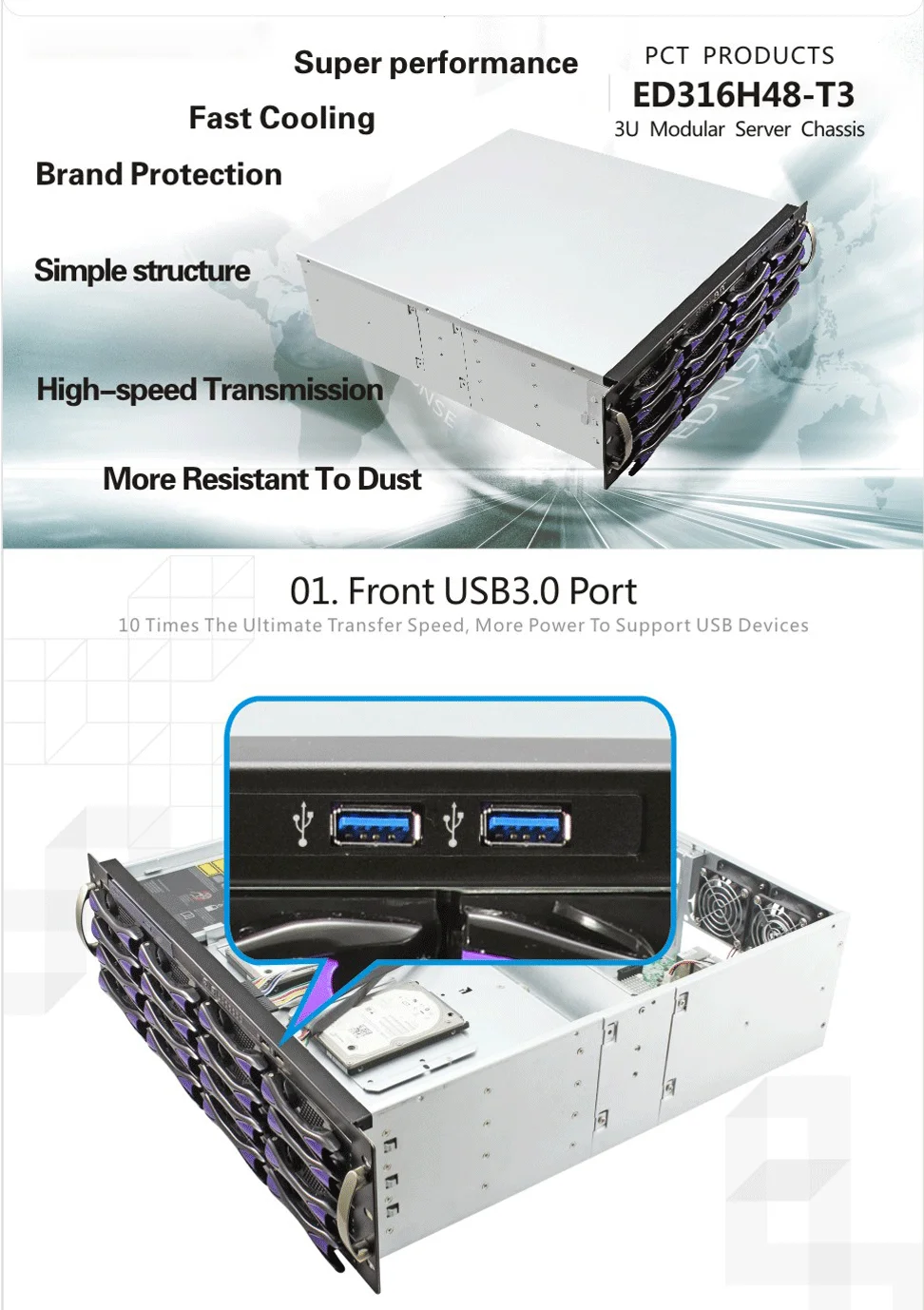

USB: 3.0 x2

Rear window

compatible with PSU(one of the three or according to customer needs)

Weight

N.W:12.2kg  G.W:13.7kg(single carton) +1.5(double carton)

carton size

665mm(L)x550mm(W)x195mm(H)

Packing contain

chassis x1

backplane x4

80x25mm PWM fans+60x25mm PWM fans

display&switch&USB cables x1

parts pack x1

others

3 types for choice (choose one of the three)

Purchase Notes

1  1.two types of backplane for choice,mini sas backplane or sata backplane.

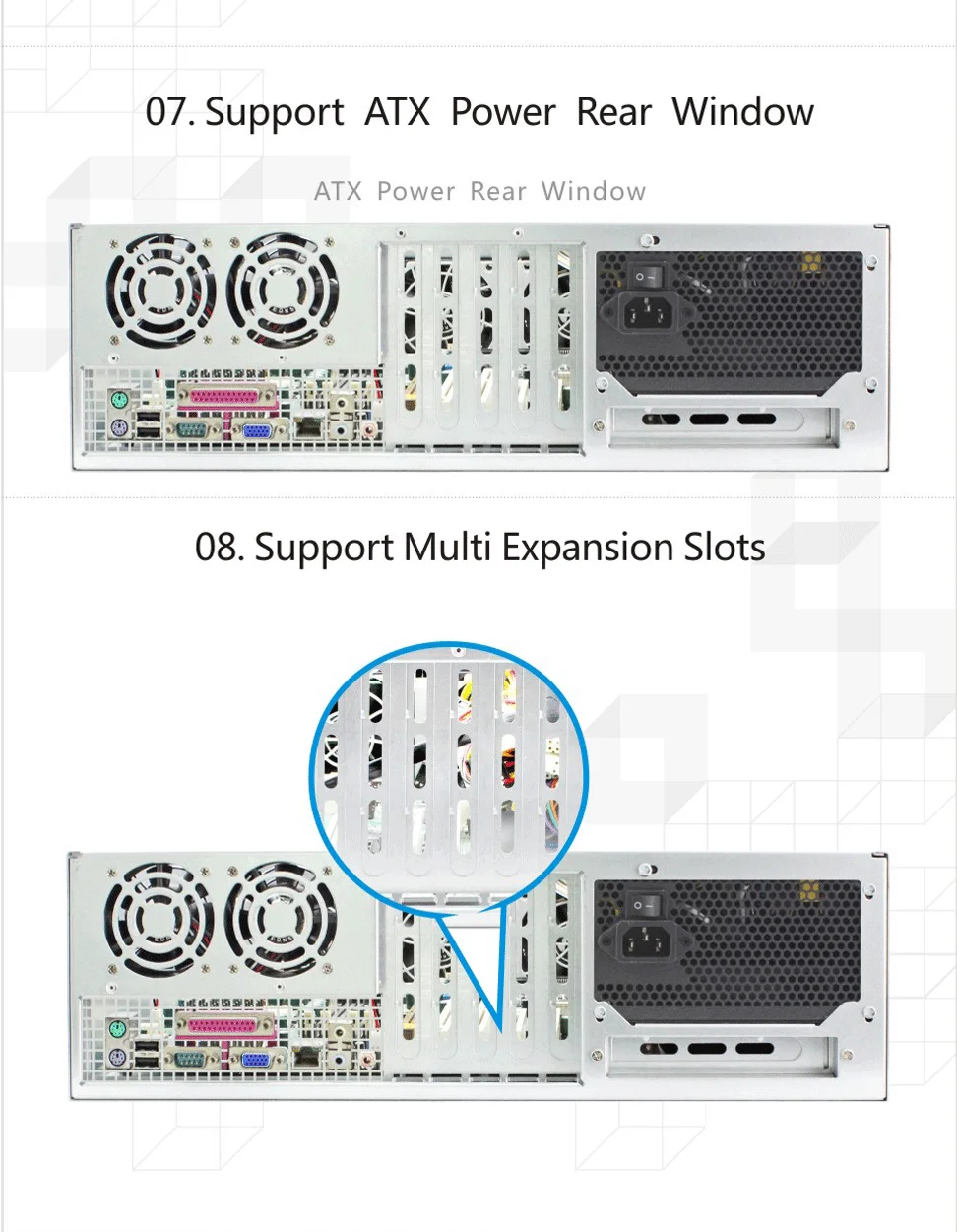

2.making rear window according to your needs.

we make rear window which is compatible withATX single psu

 below photos for your reference:





3. about HDD tray ,we have 3 types.but usually to type A:3..png
