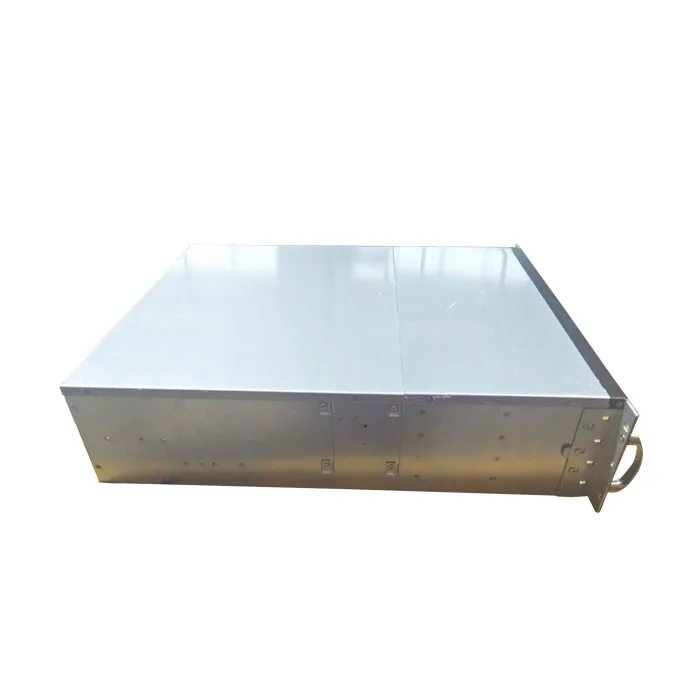

ED316H55-T3 3u server case with 16 HDD bays with 4xsata backplane and ATX rear window rack mount server case JBOD case

Feedback Ratings
$185.00 / Piece | 1 Piece (Min. Order)
Model Number:
- +
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customized logo (Min. Order: 20 Pieces)
Customized packaging (Min. Order: 20 Pieces)


Graphic customization (Min. Order: 20 Pieces) Less
Contact Supplier
Report Suspicious Activity
Quick Details
Products Status:
Form Factor:
Plastic, Steel, SGCC 1.2mm
With Fan
Front Ports:
USB, Other
Brand Name:
Place of Origin:
Guangdong, China (Mainland)
Size Diemension:
M/B support:
PSU support:
ATX single psu
Customized Items:
logo,and others
sheet metal thickness:
plastic material type:
drive bays:
hot plug 16x3.5"HDD,non-hot plug 2x2.5",1xCD-ROM(slim DVD)
of 4xsata ports,support sata or mini sas HDDs
system cooling:
middle 4x8025 PWM cooling fan,rear 2x6025 PWM cooling fan

Packaging & Delivery

Selling Units:
Single item
Single package size:
76X60X25 cm
Single gross weight:
17.0 kg
Package Type:
pack in carton
Lead Time :
Quantity(Piece) 1 - 100 101 - 1000 >1000
Est. Time(days) 7 30 To be negotiated


ED316H55-T3 3u server case with  16 HDD bays with 4xsata backplane and ATX rear window rack mount server case JBOD case


 ED316H series : 480mm depth,550mm depth,650mm depth.


 model ED316H48 :depth 480mm.

 model ED316H55:depth 550mm.

 model ED316H65:depth 650mm.



 1.main board support

 depth:480mm,support mainboard:(6.7"x6.7")

 depth:550mm,support main board:(12"x9.6")(9.6"x9.6")(6.7"x6.7")

 depth:60mm,support main board:(12"x13")(12"x10.5")(12"x9.6")(9.6"x9.6")(6.7"x6.7")

 2.PSU support

 depth:480mm,ATX single psu

 depth:550mm,1U or 2U single standard/ATX single psu/1U or 2U redundant 1+1 PSU (according to rear window type)

 depth:650mm,1U or 2U single standard/ATX single psu/1U or 2U redundant 1+1 PSU(according to rear window type)


the others is the same.



Product Description
ED316H Series- Model ED316H55 (with ATX rear window/with 4xbackplane of 4xsata ports)

Order model

ED316H55(with ATX rear window/with 4xbackplane of 4xsata ports)


metal material:SGCC,thickness:1.2mm,other:ABS

M/B support


PSU support

ATX single psu

Processor Support

DP Xeon(Intel),DP Opteron(AMD),Core(Intel)


 L x W x H 550x430x132mm,21.65"x16.9"x5.12"(inch)

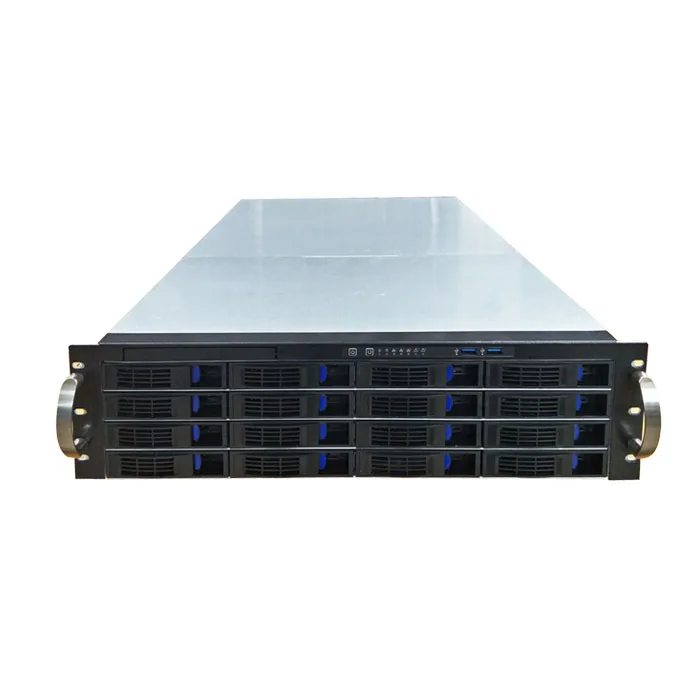

Drive Bays

External:Front Hot-swap 16x3.5"HDD,1xSlim CD-ROM;internal:front 2x2.5"HDD


Backplane with sata ports x4,support SATA or SAS hard disk.

System Cooling

Middle 4 x 8025 mm PWN,rear 2x6025mm PWM

expansion slot

vertical type x5(ATX)

front pannel

front control:power on/off,system reset,indicator:power LED,HDD Activity LED,LAN Activity LED,Failure LED

indicator light : power(x1),HDD(x1),LAN NIC(x3),ALARM(x2)

USB: 3.0 x2

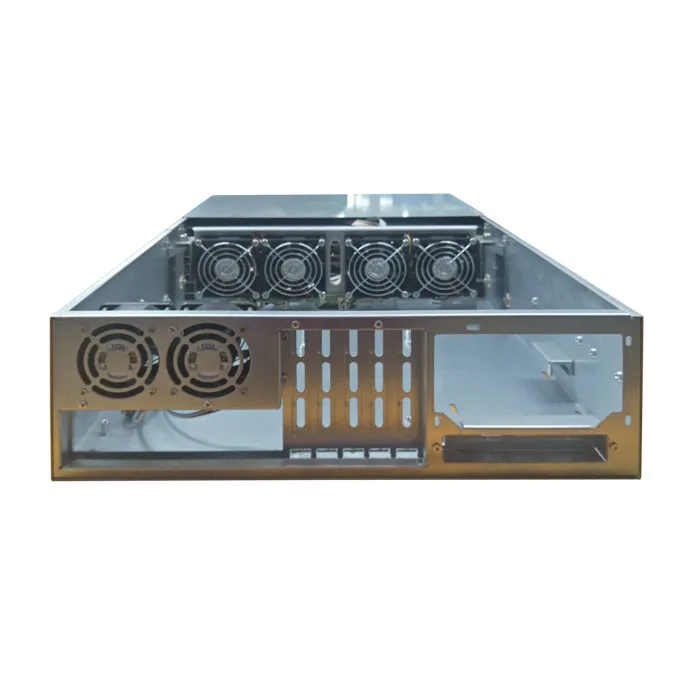

Rear window

ATX type,compatible with ATX PSU


N.W:13kg  G.W:14.6kg(single carton) +1.5(double carton)

carton size

single:730mm(L)x550mm(W)x195mm(H) double:860mm(L)x600mm(W)x250mm(H)

Packing contain

chassis x1

backplane x4

80x25mm PWM fans+60x25mm PWM fans

display&switch&USB cables x1

parts pack x1

HDD Tray

3 types for choice (choose one of the three)

Purchase Notes

1  1.two types of backplane for choice,mini sas backplane or sata backplane.we default to below sata backplane.


2.making rear window according to your needs.

we default to make rear window which is compatible with ATX single psu

 below photos for your reference:



3. about HDD tray ,we have 3 types.but usually to type A:
