EEG.1B.302 Circular Push Pull Connectors 2pin connector

FOB Reference Price:Get Latest Price
$0.01 - $4.50 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SCT
Model Number:
SCT-EEG-1B302-CLL
Type:
Push-pull connector
Application:
Audio & Video
Gender:
Female
fixed female socket:
EEG
Series:
00B, 0B, 1B, 2B, 3B
Poles:
2-32P
Material of contacts:
Brass in gold
Material of plug:
Brass in chrome
Certification:
ISO9001/CE/ROHS
Terminal Type:
Solder or PCB
Cable assembly:
Yes
IP rating:
50
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
10pcs/bag, 10bags/box, 4 boxes/carton
Port
SHENZHEN YANTIAN
Lead Time :
3-7 days
Product Description

SCT-B series

SCT-B Series are replacement connector which are designed with security of the push-pull self-latching system and 360°screening for full EMC shielding.


Size option: 00B, 0B, 1B, 2B, 3B

Poles: 2-32pin

Max matings: 5000 times

Contact type: Solder

Items
Specifications
Series
SCT-B
Part No.
SCT-EEG-1B302-CLL
Size options:
1B
Shell Style/Model:
Fixed receptacle, nut fixing (back panel mounting)
Keying:
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Insert Configuration:
1B.302 : 2 Low Voltage
Contact Dia.:
1.3 mm (0.051in)
Bucket Dia.:
1 mm (0.039in)
Max. Solid Conductor:
0.5 mm^2 (AWG 20)
R (max):
3.6 mOhm
Rated Current (A):
15A
Vtest (contact-shell):
1350 V (AC), 1910 V (DC)
Vtest (contact-contact)
1500 V (AC), 2120 V (DC)

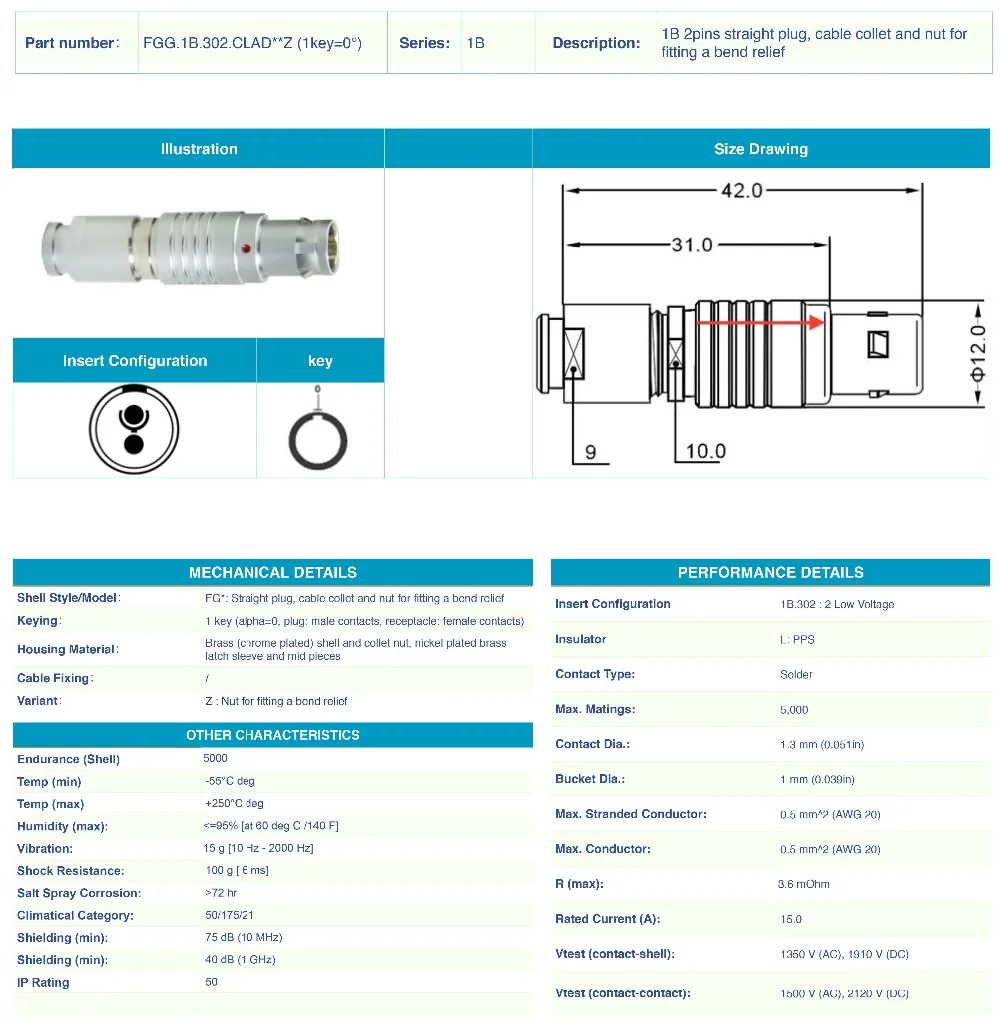

Drawing & Datasheet

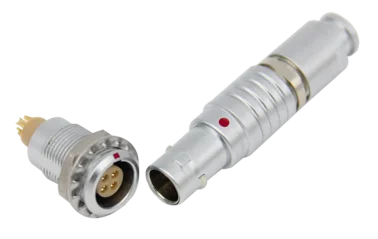

Connector of B series


EGG fixed socket-Solder type

ECG fixed socket-Solder type

EEG fixed socket-Solder type

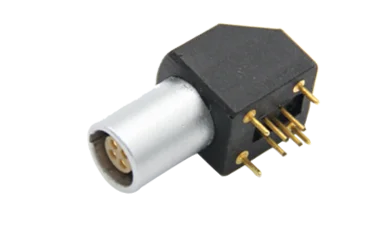

EPG elbow socket- PCB type

EXG elbow socket-PCB type

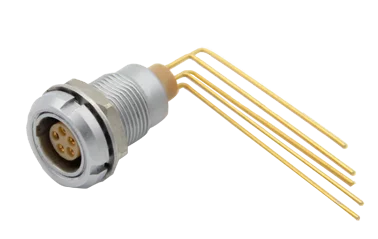

ECG fixed socket- Elbow PCB type

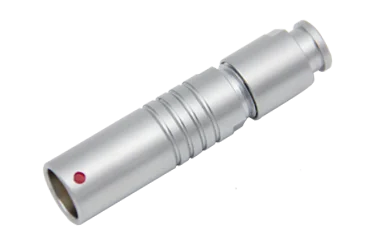

FEG male plug- with bend relief

PHG female straight socket

PHG female straight socket

Why Choose Us

MANUFACTURING

Over 16 years experience on manufacturing connectors, cable assemble, Scondar commit to offer high quality products & service to our clients.

HIGH QUALITY

We take care for quality from initial production step,under close cooperation of quality management, technical purchasing and suppliers

THE FACTORY

Our factory with ISO 9001:2015 certificate, and all product with RoHS compliant, meet different markets request, such as UL,CE certificate.

SAVE COST

SCONDAR as China based connectors supplier, So we have lower stand-by cost & management cost than many companies.

DELIVERY

Our production management & stock management gives us control over your order and we take pride in our delivery to you in time.

FREE SAMPLES

Free samples are always available for your quality evaluation, So you can save more and increase your profit without worry about quality.

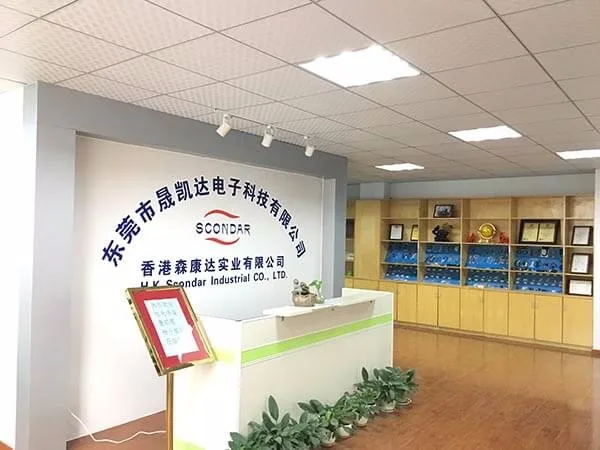

ABOUT SCONDAR

ABOUT SCONDAR Electronic Co., Ltd.

Scondar is China-Based manufacturer, providing connectors and wire harness,cable assembly for over 10 years.Our factory have full ISO 9001:2015 certification.

Our connectors are designed with push-pull self-latching system and 360°screening for full EMC shielding. The connector and socket are mated well & reliable.

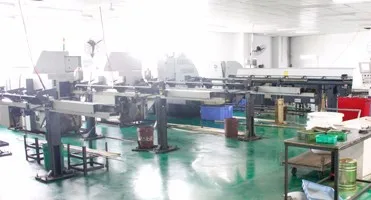

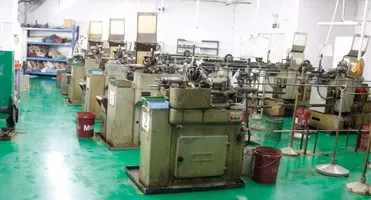

Machining workshop

Connector shell

Machining workshop

Connector contacts

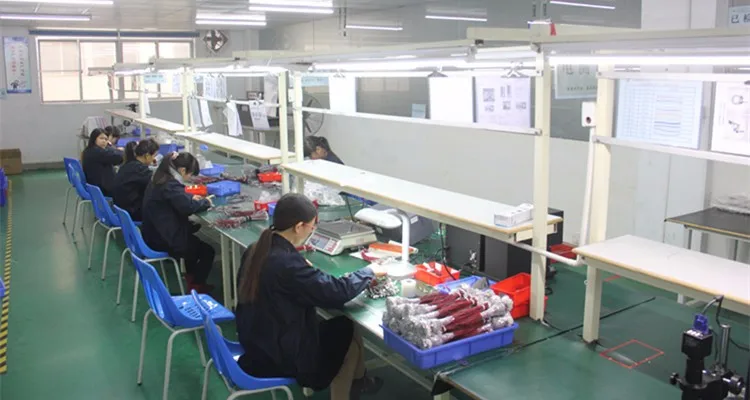

Assembly Line

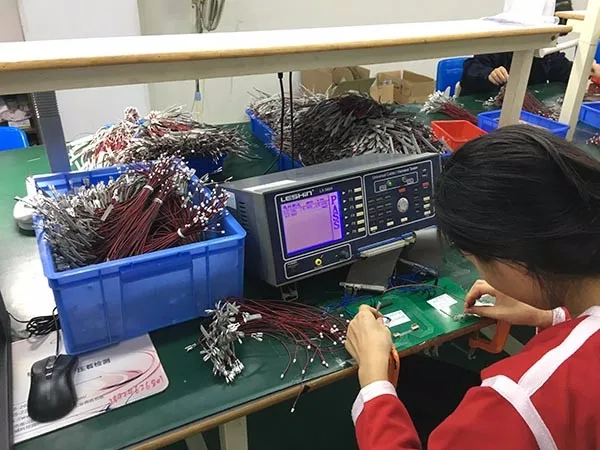

Connector Cable Connection Testing

Quality Checking

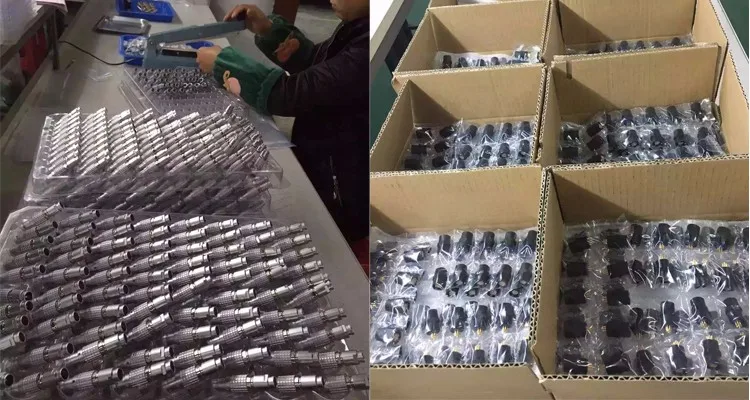

Packing & Delivery

Packing Details  : Packing, solid bicycle saddle.

Delivery Details : 3-30 days after order of Solid bicycle tire tubes
