ELM327 Car Universal OBD2 EOBD Diagnostic Scanner Code Reader with 25k80 Type C port and wifi Connection Voltage live display

  • 1-49 Pieces
    $23.64
  • 50-99 Pieces
    $22.87
  • 100-499 Pieces
    $22.09
  • >=500 Pieces
    $21.31
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Graphic customization (Min. Order: 1000 Pieces)
Customized logo (Min. Order: 1000 Pieces)

More

Customized packaging (Min. Order: 1000 Pieces) Less
Samples: $23.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $23.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Viecar
Model Number:
B0078
Power:
W
Voltage:
9-36V
Certification:
CE FCC ROHS
Type:
Code Reader
Applicable Models:
Universal
Warranty:
12 Months
Product Name:
Viecar VP003 OBD2 Diagnostic Scanner
Size:
56*45.8 *24mm
Device Weight:
30g
Package:
Box Package
Shipping:
DHL UPS EMS TNT Fedex
Connection:
USB + WIFI
Support System:
Android / IOS / Windows
Main Chip:
PICF25K80
MOQ:
1 Piece
Hardware Version:
V2.1

Packaging & Delivery

Selling Units:
Single item
Single package size:
14X8.5X3 cm
Single gross weight:
0.1 kg
Package Type:
color box
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 200 201 - 1000 1001 - 10000 >10000
Est. Time(days) 5 8 15 To be negotiated
Product Description

ELM327 Car Universal OBD2 EOBD Diagnostic Scanner Code Reader with 25k80 Type C port and wifi Connection Voltage live Display


Product description

The VP003 is a USB Bluetooth OBD product with the following features:

1. Compatible with dual mode Bluetooth 4.0 data transmission and USB2.0 transmission;

2. Nine protocols supporting the OBD II/EOBD standard

3. Wide power supply range: 9~36V power supply; reliable overcurrent and overvoltage protection;

4. With standby low power mode to ensure the safe use of car batteries;

5. With digital tube display voltage, current, enhance customer experience

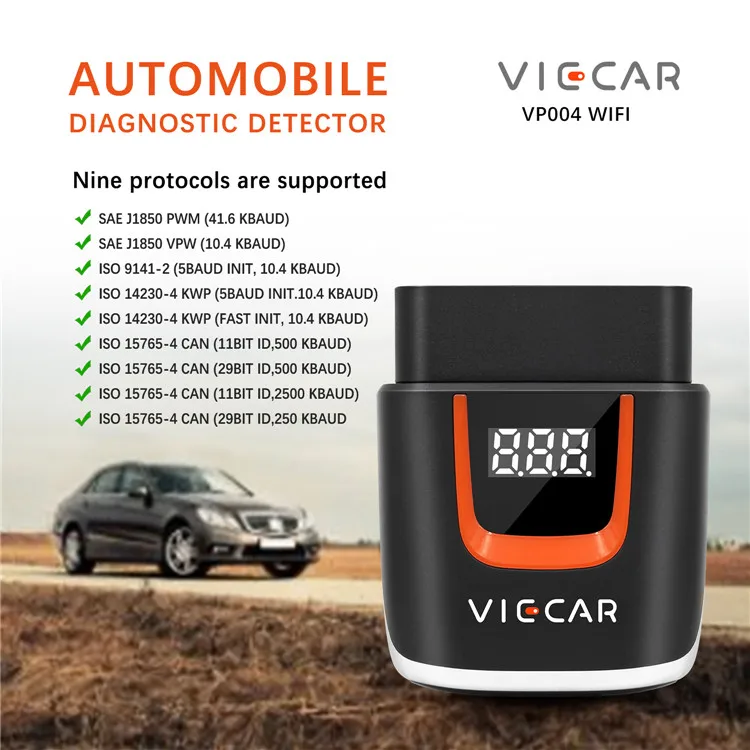

Supported agreement

SAE J1850 PWM (41.6 Kbaud )

SAE J1850 VPW (10.4 Kbaud )

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 Kbaud )

ISO 14230-4 KWP (fast init, 10.4 Kbaud)

ISO 15765-4 CAN (11bit ID, 500 Kbaud)

ISO 15765-4 CAN (29bit ID, 500 Kbaud)

ISO 15765-4 CAN (11bit ID, 2500 Kbaud)

ISO 15765-4 CAN (29bit ID, 250 Kbaud)


Supported vehicle data

Read error diagnostic code

Clear the fault code (clear the error code and turn off MIL)

Engine revolutions per minute (RPM)

Calculated load value

Coolant temperature

Fuel system status

Speed

Short-term fuel situation

Long-term fuel situation

Intake manifold pressure

Fuel injection advance time

Intake air temperature

Air flow rate

Throttle absolute position

Oxygen detection voltage associated with short-term fuel state

Fuel system status

Fuel pressure

Fuel consumption monitoring, etc.

Remarks: The number of data items supported by the model year is also different, subject to actual support.

 B0078-17.jpgB0078-18.jpgB0078-19.jpgB0078-20.jpgB0078-21.jpgB0078-22.jpgB0078-24.jpgB0078-25.jpg

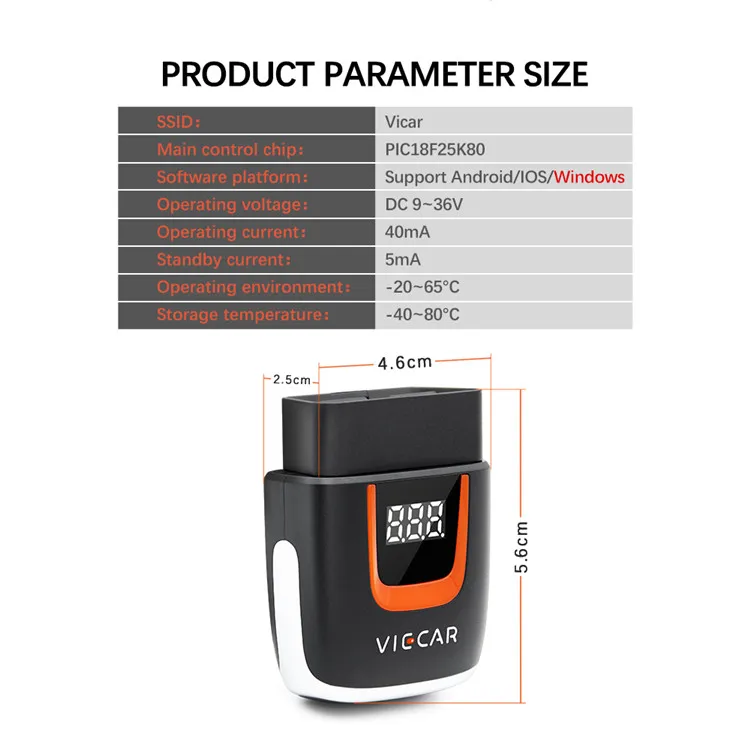

Technical Parameters

SSID: Viecar

Main control chip: PIC18F25K80

Software platform: support Android / Windows / iOS

Working voltage: DC 9~3 6V

Working current: 40mA

Standby current: 5mA

Operating environment: -20 ~ 65 ° C

Storage temperature: -40 to 80 ° C

Dimensions: 56*45.8 *24mm


software platform

Compatible software

Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc.;

Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc.;

iOS version: Auto Doctor, OBD Car Doctor, DashCommand, EOBD, etc.;

Saipan version: OBDScope.

2. Compatible platform

Software support platform: Windows XP, Windows 7/8, Android, iOS, Saipan and other systems.




Packing & Shipping

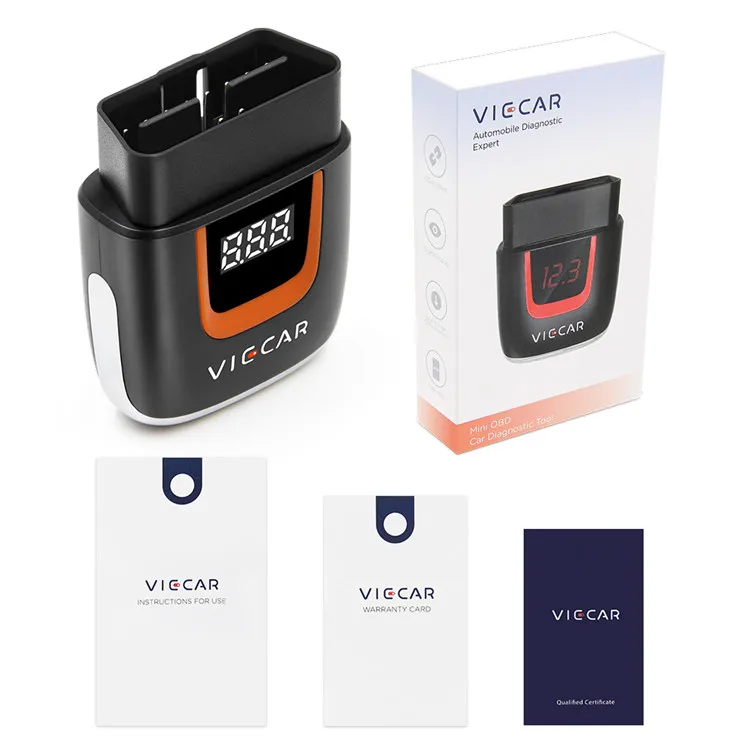

Packing List





1*VP004 Main Unit

1*User Manual

1* Warranty Card

1*  Qualified Certificate



Package:

Box package + Standard carton box package
