EOC Slave WIfi with 4*10/100Mbps ethernet ports wifi router

FOB Reference Price:Get Latest Price
$30.00 - $35.00 / Units | 1 Unit/Units eoc slave wifi (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Baudcom EOC Slave WIfi
Model Number:
BD-EOC-S2/S4 EOC Slave WIfi
Name:
EOC Slave WIfi
Interface:
2 or 4 pcs of 10/100M self negotiation
EOC Management:
WEB/CLI/SNMP
Signal Frequency:
7.5MHz-30MHz
Physical layer speed:
200Mbps;
Chipset:
INT6400
Module technique:
OFDM
Based on:
HomePlug AV solution
Channel number:
2 or 4
With or without wifi:
Either is ok
Supply Ability
Supply Ability:
500 Unit/Units per Week eoc slave wifi
Packaging & Delivery
Packaging Details
HS code:8517622990
1)eoc slave wifi will be packaged in 32cm*28cm*16cm,2units per carton,3kgs
2)The EOC Slave WIfi will be well packaged by carton with Foam or other shock proof materials to protect goods from being damaged
Port
eoc slave wifi will be shipped from shanghai ningbo or any port in China
Lead Time :
Shipped in 5 days after payment
Video Description

Product: 100M Ethernet over Coax EOC Slave WIfi

Our advantage:Warranty is 3 years with good quality/Low MOQ:1Piece/Low price/OEM or ODM accepted.

Overview

 The 100M Ethernet over Coax EOC Slave  is the Ethernet over Coax (EOC) Slave based on HomePlug AV solution for Ethernet access on coax. It work together with EOC master which is based on HomePlug AV solution as well to construct a 2 layer Ethernet data transmission channel on CATV coax cable provide the Ethernet access service based on coax cable.

The E 100M Ethernet over Coax EOC Slave uses INT6400 chipset, and OFDM module technique of highly interference resistant, take up the low frequency 7.5MHz-30MHz to transfer data, the physical layer speed is 200Mbps, while the max MAC layer throughout is 100Mbps. BD-EOC-S2/S4 for data access could use current coax cable, easy and fast to construct without any effect of existing CATV on the cable. Inthe actual network constructive application, one master could connect 253 slaves maximum, and the network structure could be star or tree. The BD-EOC-S2 is 2 Ethernet port slave, BD-EOC-S4 is 4 Ethernet ports slave.



100M Ethernet over Coax EOC Slave WIfi  Picture:
Features

 Low frequency modulated eoc slave, use INT6400 chipset, HomePlug AV solution.

Work on low frequency 7.5-30MHz, will not affect the existing CATV.

Physical layer speed: 200Mbps; Max MAC layer throughout is 100Mbps.

Support encryption for both uplink and downlink data.

2 or 4 pcs of 10/100M self negotiation Ethernet interface.

Support slave (CPE) isolation.

Support VLAN configuration based on slave port or user end port.

Support bandwidth (speed) limitation for both uplink and downlink.

Support QOS configuration based on slave port or VLAN.

Support broadcast storm control.

Support data packages count

Automatically distribute slave configurations to newly connected slaves, available to use as soon as correctly connected and power on.

Support WEB/CLI/SNMP management

Support on-line upgrade

Typical Application:

Network access

VOD(video on demand service)

IPTV

Video Surveillance

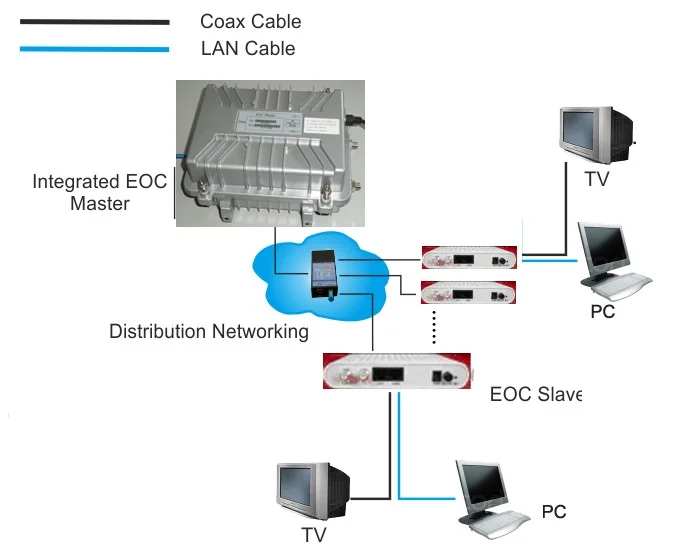

EOC Slave Application Diagram:




Packaging & Shipping

Packaging&Shipping

The EOC Slave WIfi will be well packaged by carton with Foam or other shock proof materials.



Certifications



Factory Production





Product Testing



FAQ

FAQ

1.How can i get a EOC Slave WIfi  sample ?

You need place sample order to us.We will arrange the sample production for you.

2.Could you do design for us?

Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order?

After we made agreement on the EOC Slave WIfi ' parameters, we will make proforma invoice  for your confirmation.when we got your advance payment (deposit) we will arrange the EOC Slave WIfi  production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a  ship forwarder help you clear the custom.

4.How about the shipping?

For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

6.what's your EOC Slave WIfi ' advantages ?

A. good quality and competetive prices.

B. Strictly quality control when producing.

C. Professional team work, from design, development, producing,assemble,packing and shipping.

D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
