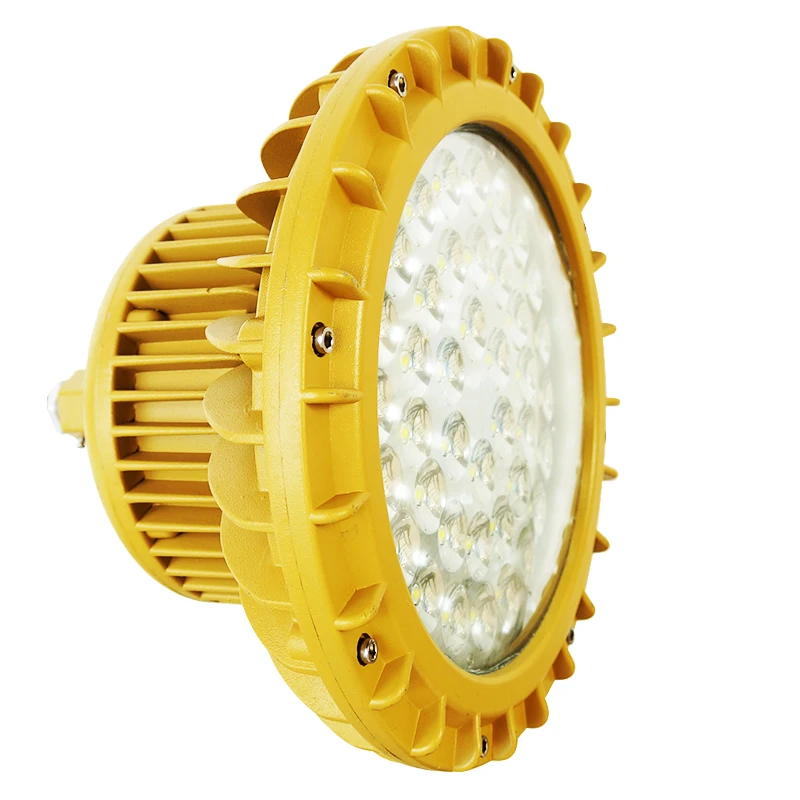

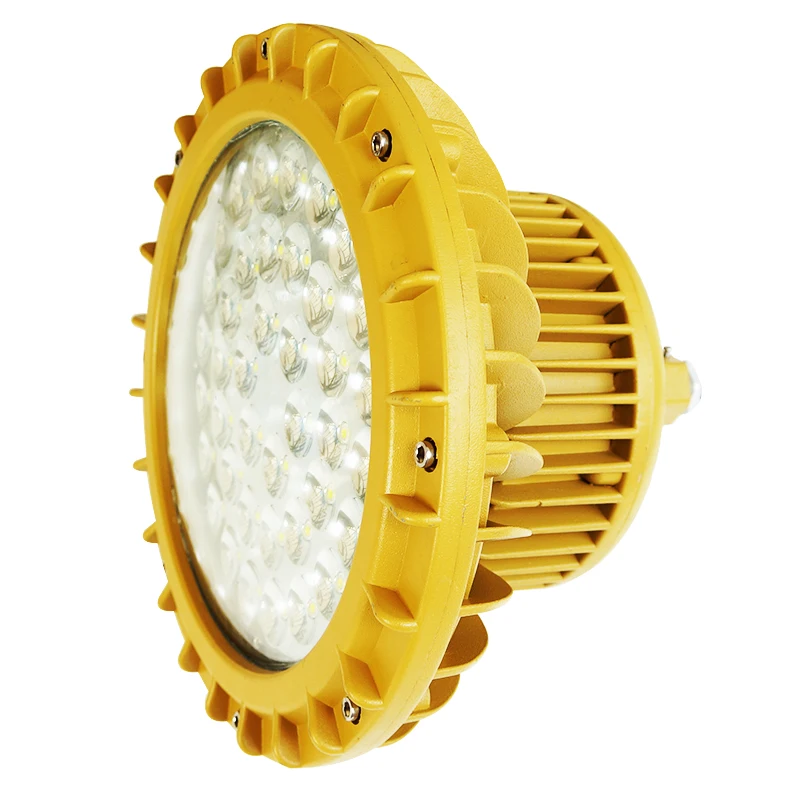

EU ATEX IECEx approved explosion proof high bay warom explosion proof light

Feedback Ratings
  • 1-49 Pieces
    $239.00
  • >=50 Pieces
    $205.00
Model Number:
BLC6238-100
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Contact Supplier
Samples - $239.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Input Voltage(V):
220v
Lamp Power(W):
100
CRI (Ra>):
80
Lamp Luminous Flux(lm):
11000
IP Rating:
IP66
Working Lifetime(Hour):
100000
Working Temperature(℃):
-20 - 55
Emitting Color:
White
Certification:
BV, CCC, CQC, ATEX , IECEx, ISO 9001
Place of Origin:
Zhejiang, China (Mainland)
Base Type:
cree led
Brand Name:
CHHI
Light Source:
LED
Product Name:
explosion proof high bay warom explosion proof light
Power:
100W,90W, 80W
EX Code:
Ex II2G EX db op is IIC T6 Gb/Ex II2D EX tb op is IIIC T80 ℃ Db
Material:
Die-casting Aluminum
Protection Level:
IP66
Warranty:
5Years
Application:
Gas Industry oil plant
Features:
Explosion proof
SIZE:
320*285mm
Item Type:
Explosion-proof Lights
Color Temperature(CCT):
Pure White
LED Light Source:
Cree led
Lamp Luminous Efficiency(lm/w):
110

Packaging & Delivery

Selling Units:
Single item
Single package size:
36X36X35 cm
Single gross weight:
11.0 kg
Package Type:
standard package customized EU ATEX approved 100w iecex atex explosion proof flood light explosion proof flameproof lighting
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Specification

EU ATEX approved led high bay lamp explosion proof hazardous led lighting

Specification
Certification
International IECEx Approval, Europe union ATEX Approval.
EX code
Ex Ⅱ2G EX db op is IIC T6 Gb/Ex Ⅱ2D EX tb op is IIIC T80 ℃ Db
Material
die-cast aluminum alloy with Electrostatic epoxy powder coating
Rated voltage
220V
Power
100W, 90W, 80W
Luminous flux
11000lm, 9900lm, 8800lm
Protection rate
IP 66
Insulation grade
1
Corrosion proof grade
WF2
Size
Φ320x285mm
Weight
8.2 kgs
Service life
100000 hours

Feature

1.Imported high luminous efficiency Cree LED

2 Have our own mould

3.Exposed fasteners material all stainless steel

4. Smooth explosion proof mould junction surface, several process of finishing

5.Silicone galvanized wire with oxidation resistance, fire resistance ,temperature suit for -20 degree to 200 degree

6. High thermal conductivity 2.0 aluminum base

7. Insulation temperature resistance  ceramic connection terminal

8. Wide voltage 95V-305V , safety output 36V

9.Strictly quality control from material purchase, during production ,random waterproof anti vibration,all test before delivery

Product Description
Model
BLC6236
BLC6237
BLC6238
Power(W)
20,30,40
50,60,70
80,90,100
Luminous flux(lm)
2200 , 3300 , 44000
5500 , 6600, 77000
8800 ,9900 ,11000
Size
Φ205x250mm
Φ252x255mm
Φ320x285mm
Installation Process
Applications
Certifications
Company Information
FAQ

Q1. Can I have a sample order for explosion proof light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Regular sample needs 3-5 days, we also accept customized sample the lead time it depends

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for explosion proof light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.

Q9: What is your payment method?

A: 1. 30% T/T deposit, 70% balance before shipment,

    2.Place trade assurance order pay by visa mastercard T/T, L/C
