EVA PP PE Film Squeezer For Waste plastic Recycling

FOB Reference Price:Get Latest Price
$4,000.00 - $6,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
MOOGE TECH
Model Number:
FS
Voltage:
380V 50HZ
Certification:
ISO9001
Application:
Plastic Film
Automatic Grade:
Automatic
Dimension(L*W*H):
3m*1m*3m
colour:
customized choice
mositure:
5%
screw material:
40cr
Production Capacity:
300KG/H
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
30kw
Weight:
1000kg
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
the film squeezing drying machine will be wrapped with film to avoid the dust and dirty material,
what's more the machine will be packaged in plywod case.
Port
shanghai
Lead Time :
shipped in 30 days after payment
Product Description

Features and Applications of PP PE film squeezing dewater machine

 1)    Dries the plastic film material by squeezing mechanically. Final mositure content: ≤3%

 2)    Processes 300 kg to 500 kg per hour proportional to the system capacity.

 3)    Extruder type reducer is used depending on the system capacity.

 4)    By transferring the dirty material to the squeezing machine after the washing phase. The humidity of the material is minimized via the squeezing method and therefore energy consumption for the second phase at the agglomeration machine is minimized.

 5)    Made of heavy duty steel and sheets completely by gas welding manufacture.

 6)    The squeezing machine is environmentally protected with protection panels in order to prevent any danger arising around the machine for a number of reasons.

 7)    While the squeezing rate was at 10% on the previous models, after modifications and improvements that rate reduced to minimum levels.

Film Squeezing Machine
model
FS-300
FS-500
Capacity
300kg/hr
500kg/hr
Screw Diameter
250mm
325mm
Screw Length
1500mm
2000mm
Main motor power:
30KW
45KW

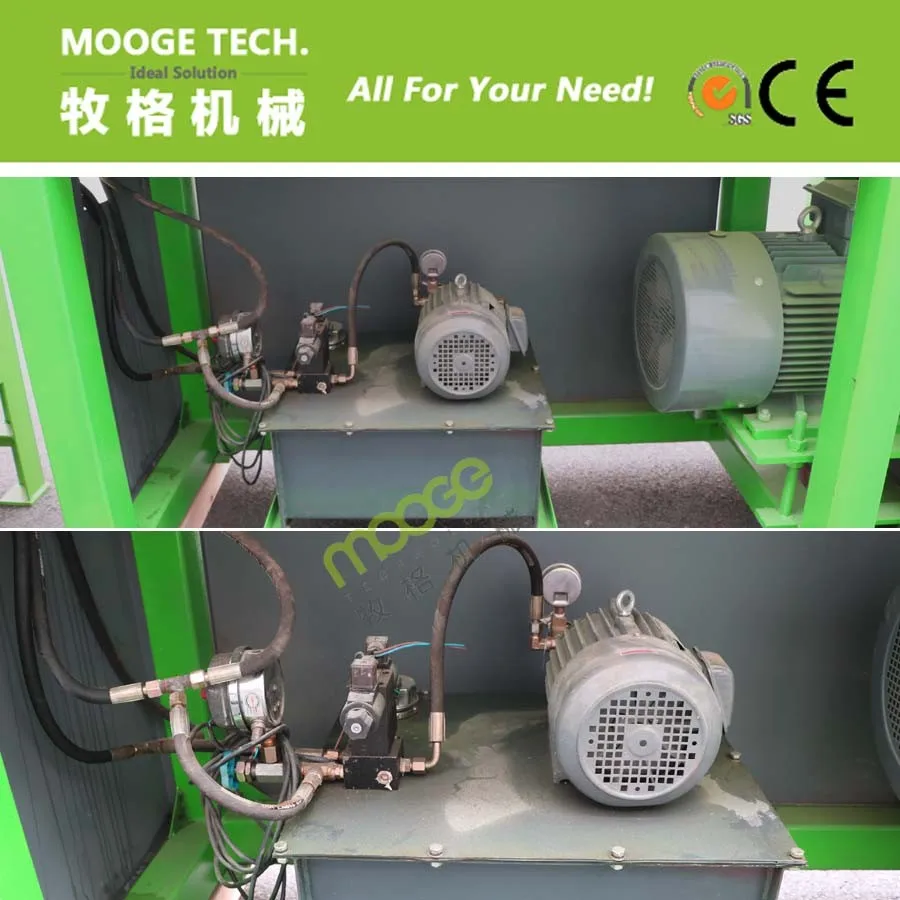

Hydraulic power
1.5KW
1.5KW
Screen Diameter
2mm
2mm
moisture remain
5-8%
5-8%
Material broker motor power
1.5KW
1.5KW
The comparison between dewatering machine and squeezing machine
Item
Dewatering Machine
Squeezing Machine
Working Principle
the centrifuge force originated from the main shaft high speed rotating throws the film and water together to the screen net, the water was separated through the screen net, while the film stay inside the machine. This machine has advantages of high efficiency, good dehydration, easy operation, compact structure, easy cleaning, safe and reliable quality,etc.
The crowded drying machine can dry the film flake immediately. Equiped with rotating screw, special reduction gear box, which could dewater and drythe film flakes.

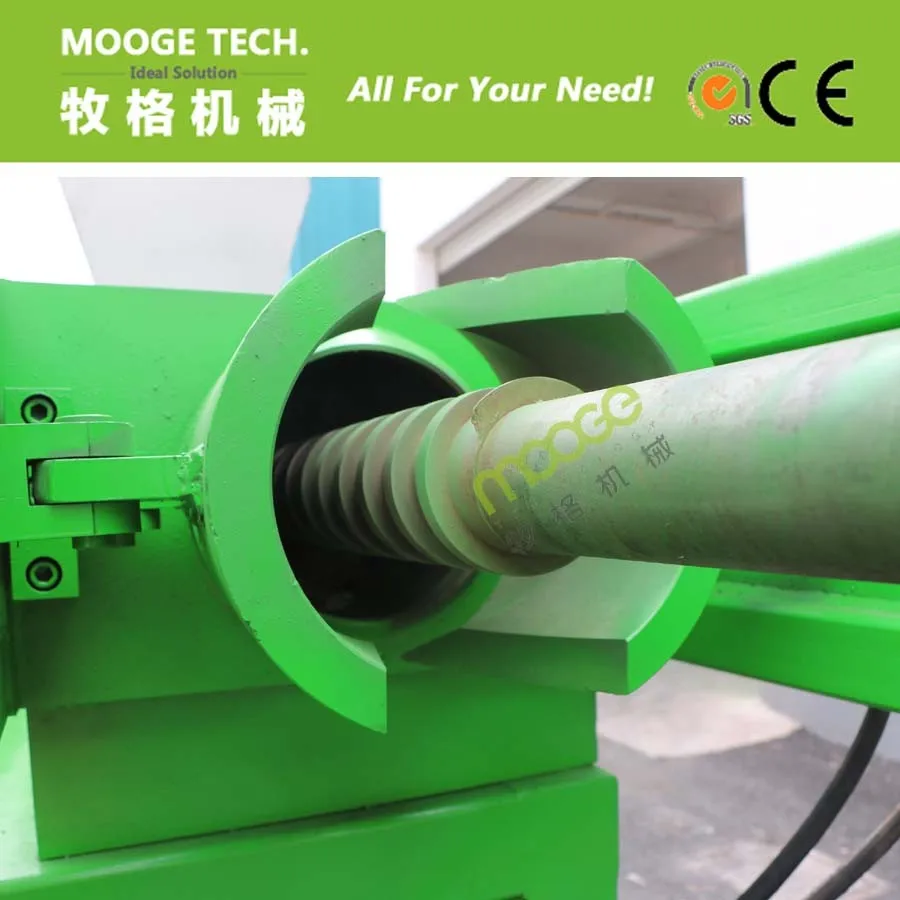

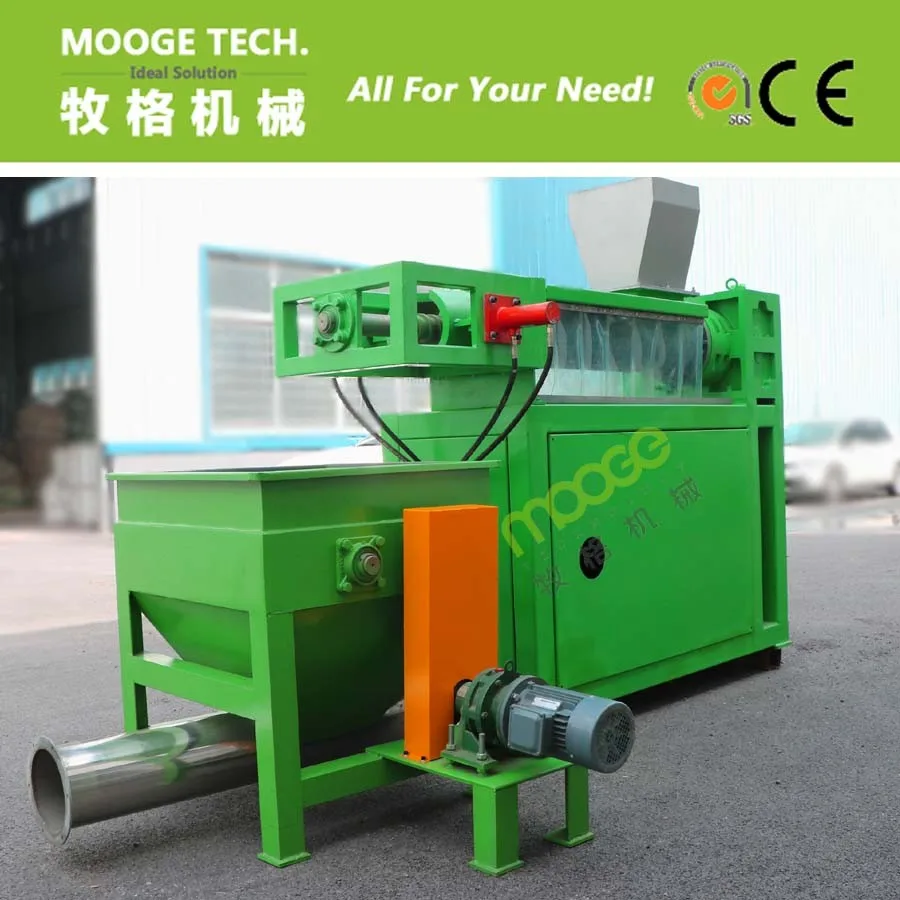

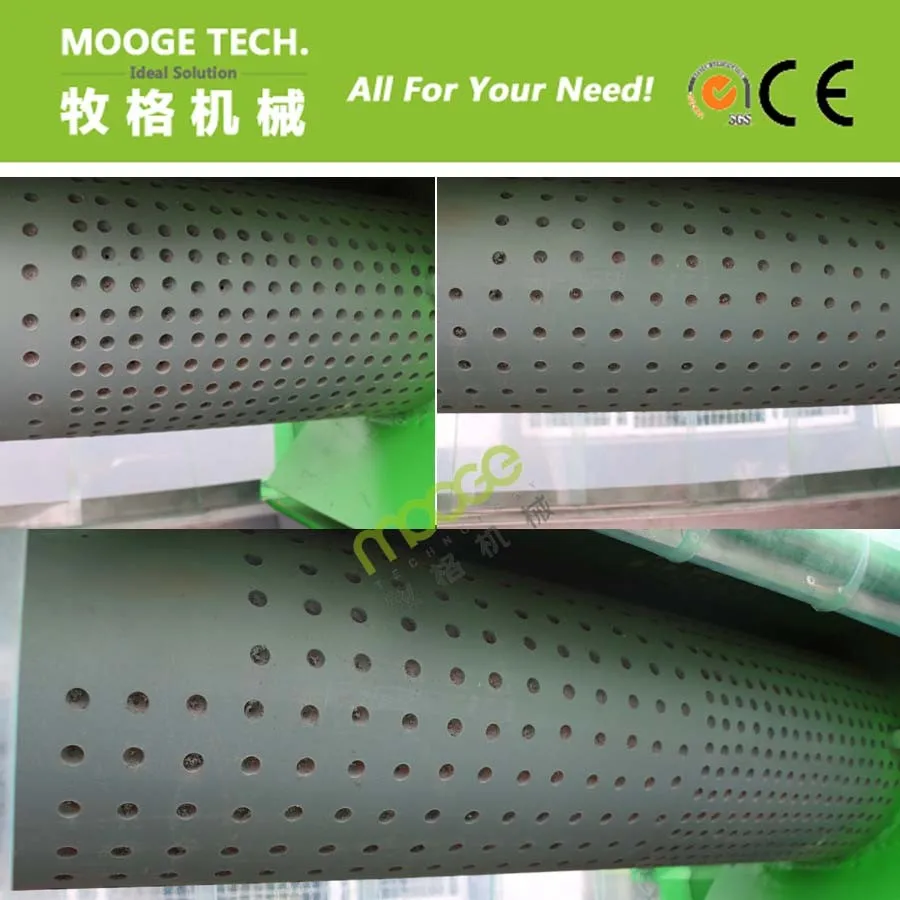

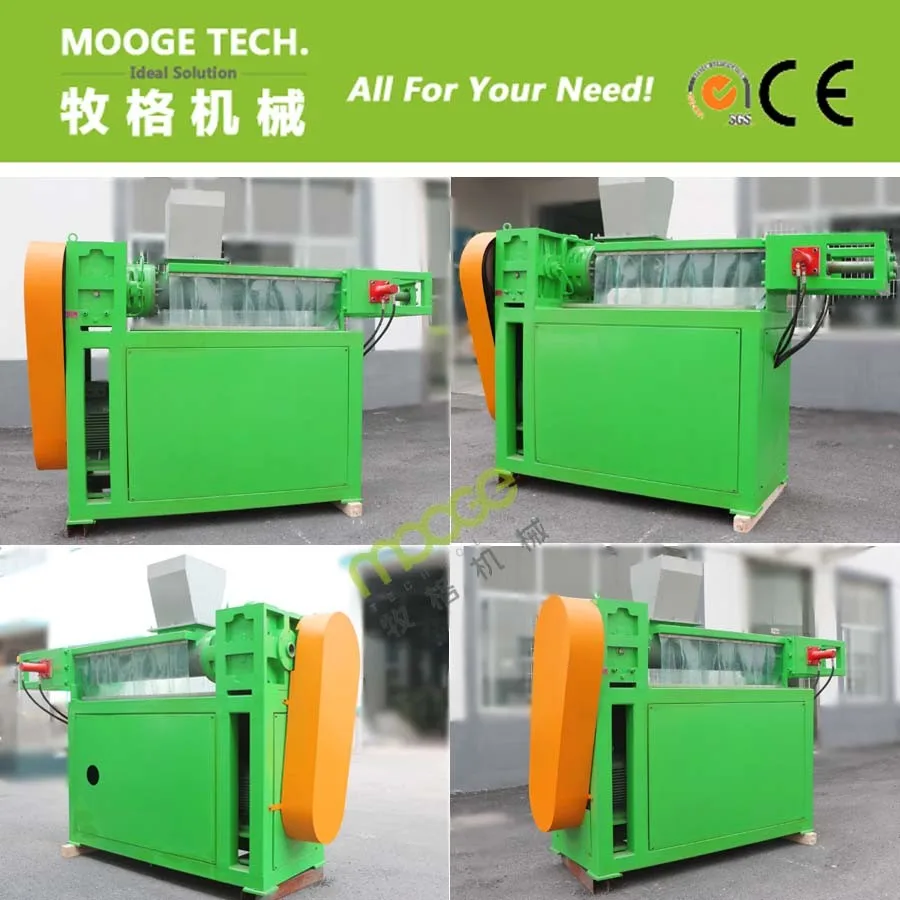

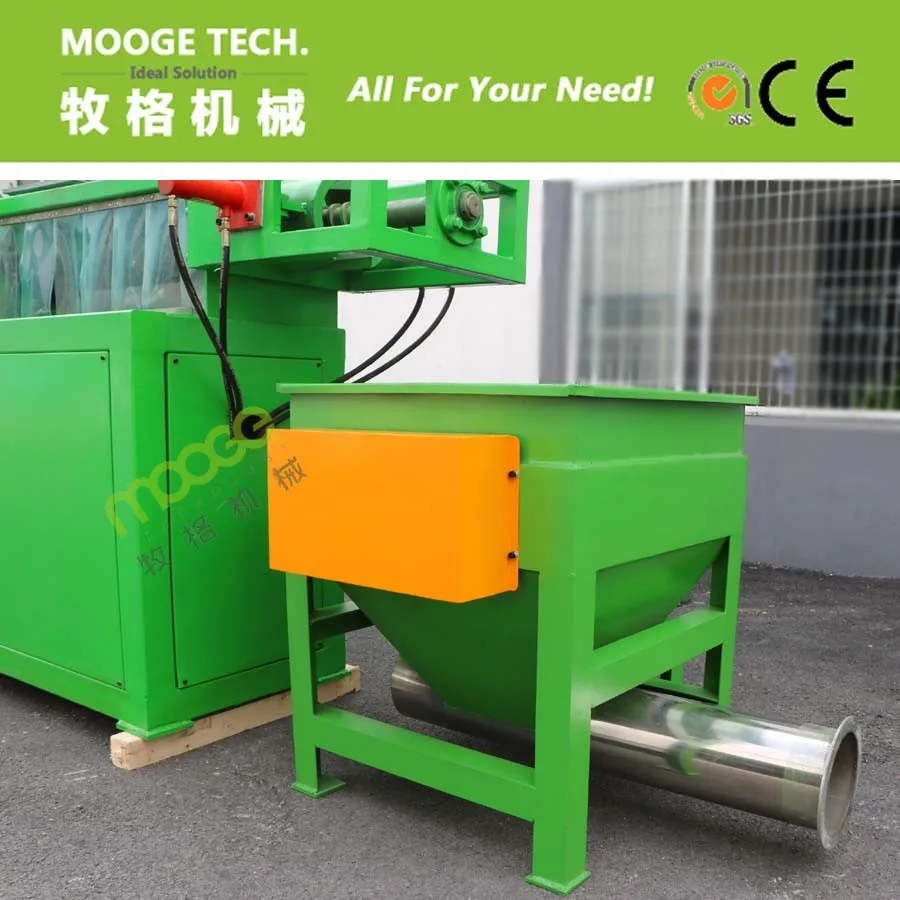

Detailed Images
Packing & Delivery
Certifications

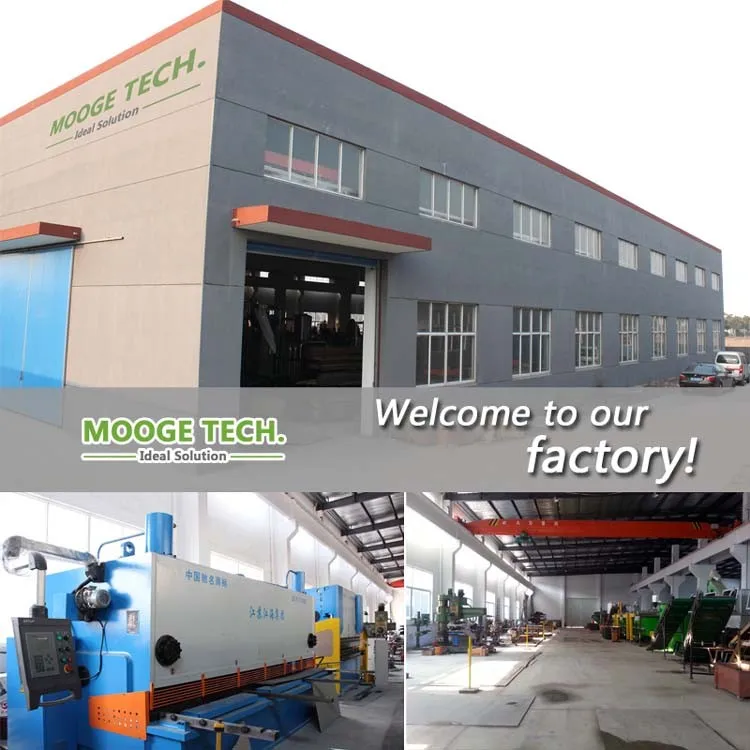

Our Company
