EX360MS(NIR) External Trigger Function 60FPS USB 2.0 Cheap Global Shutter Camera

FOB Reference Price:Get Latest Price
$150.00 - $180.00 / Pieces | 1 Piece/Pieces (Min. Order)
Type:
Digital Camera
Style:
Compact Design
Resolution:
752x480
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Contrastech
Model Number:
EX360MS(NIR)
Sensor:
CMOS
Special Features:
Industrial Grade Camera
Format:
1/3''
Pixel Size:
6.0μmx6.0μm
Output color:
Near Infrared
SNR:
45dB
Exposure:
Global Shutter
Frame Rate:
60FPS
Data Output Type:
USB 2.0
Dimension (L x W x H):
54.2mm x 29.0mm x 29.0mm
Type:
USB2.0 Industrial Camera, Machine Vision Camera
Warranty:
12 Months
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Each unit in a Anti Static Bag, then put into carton.
Port
Shanghai/Ningbo
Product Description

Explore Series USB 2.0 Camera

VT-EX USB2.0 Series is the latest developed HD digital camera by Contrastech, which follows the Industrial high speed USB bus standard. It is the best choice for cost performance. Ultra-small design greatly enhances the controllability and connection of installation space, and maintenance is more quick and simple.


Our company fully accepts secondary development and provides powerful secondary development function library which includes VC, VB, C# and supports Dshow. The advanced control function of the product can be done by SDK function library. Meanwhile, you will fast integrate the product in your OEM systems by following sample application provided by Contrastech.


Hangzhou Contrastech Co., Ltd series camera conforms to TWAIN requirements and supports TWAIN commercial application, such as ACDSee, Photoshop, IPP, Kodaking, Image etc., which all could use the equipment for image capture.


VT Series supports various famous picture processing and measure-control software, including Labview of USA NI company, MIL and Matlab of Canada Matrox company.

Features

> Support Multi-camera Operation

> Compact Design, Save Installation Space
> Support Labview Halcon Matlab seamlessly
> Professional SDK Provided
> 29*29 Compact Design

For more information and SDK, you can get from Our Website: www.contrastech.com

Major Applications:

1. Semiconductor& Component Inspection
2. Manufacturing quality control
3. Food & Drink Inspection
4. Intelligent Transportation System
5. Microscope and Medical Imaging

Model Explanation
Model
EX360MS/EX360CS
EX360MS(NIR)
EX130MS
EX300CS
EX500MS
EX500CS
Max Resolution
752×480
1280×1024
2048×1536
2592×1944
Sensor
Global CMOS
Rolling CMOS
Rolling CMOS
Rolling CMOS
Optical Size
1/3"
1/2"
1/2"
1/2.5"
Pixel Size(μm)
6.0×6.0
5.2×5.2
3.2×3.2
2.2×2.2
Dynamic Range
>80dB-100dB HDR
68.2dB
61dB
71dB
Max Frame Rate
60fps
15fps
6fps
3.5fps
Color Category
Mono/Color/NIR
Mono
Color
Mono/Color
Exposure Mode
Global Exposure
Rolling Exposure
Rolling Exposure
Rolling Exposure
Sensitivity(550nm)
4.8V/lux-sec
2.1V/lux-sec
1.0V/lux-sec
1.4V/lux-sec
Output Category
USB2.0
Lens Mount
Standard C-Mount
Power Input
USB(2.5W)
Hardware Control
I/O input (external trigger)
Programmable Control
Image Resolution, GRB gain, Exposure Time, Contrast, Gamma Chart, Image Rollover, RAW
Operating System
Windows 2000/XP/Vista/7/8/10, Arm and Linux
Dimension
54.2 mm × 29.0 mm × 29.0 mm
Product Dimension

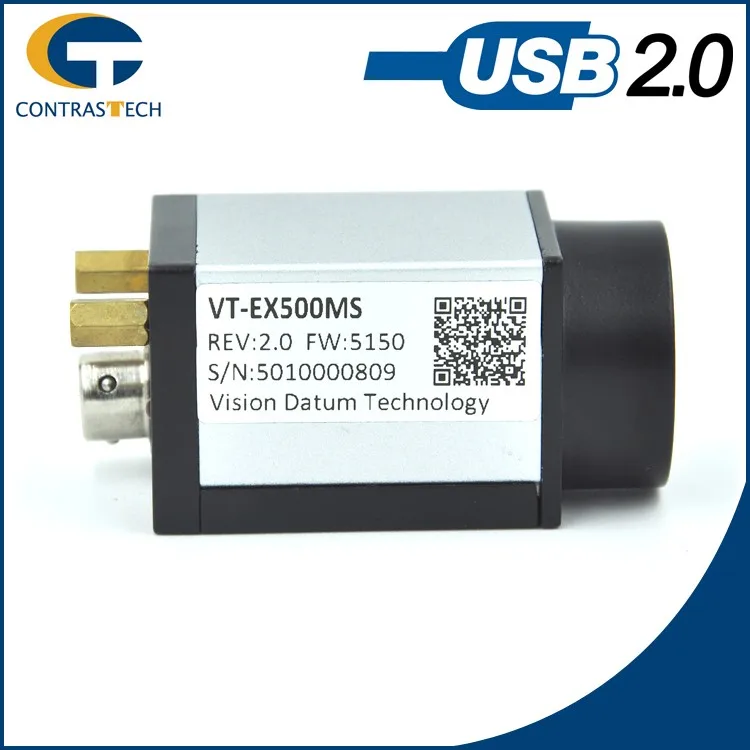

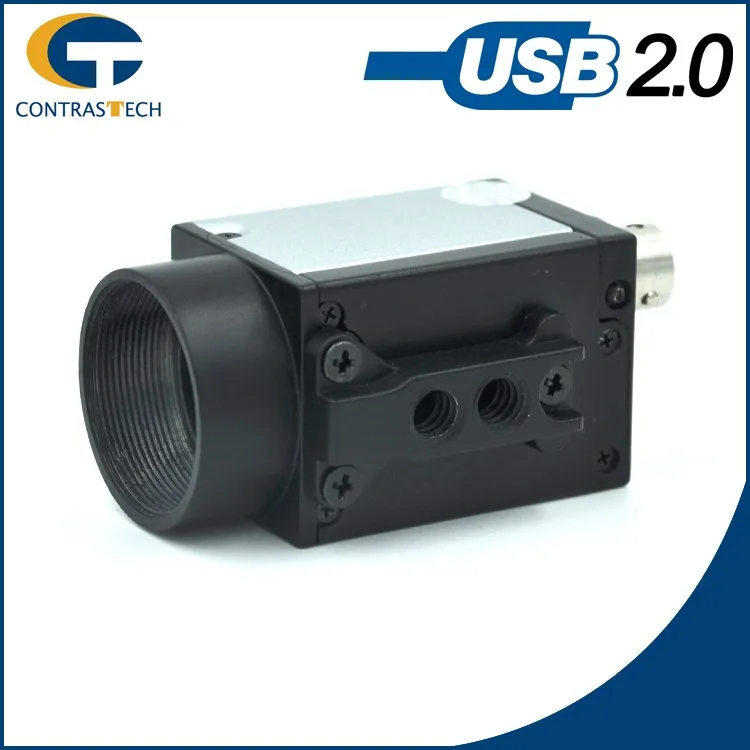

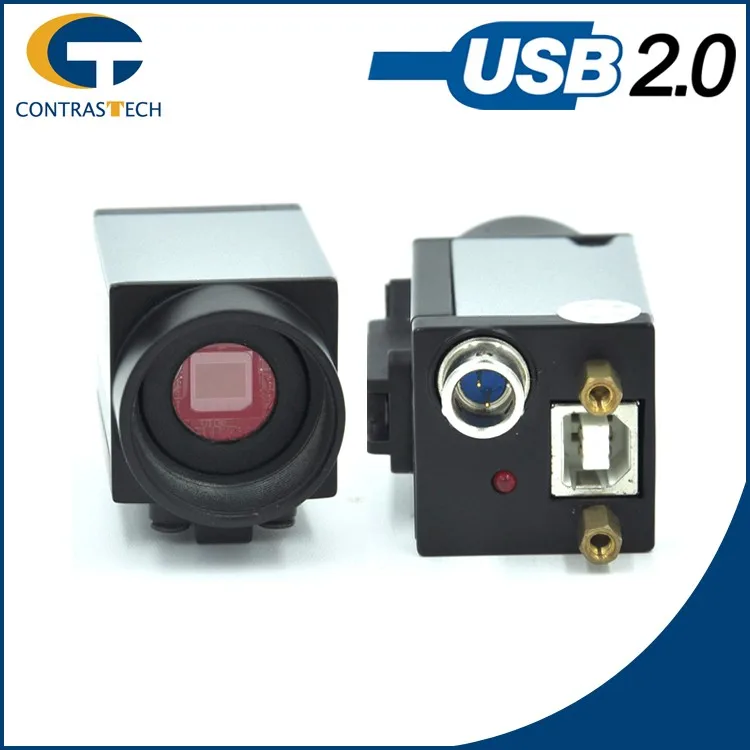

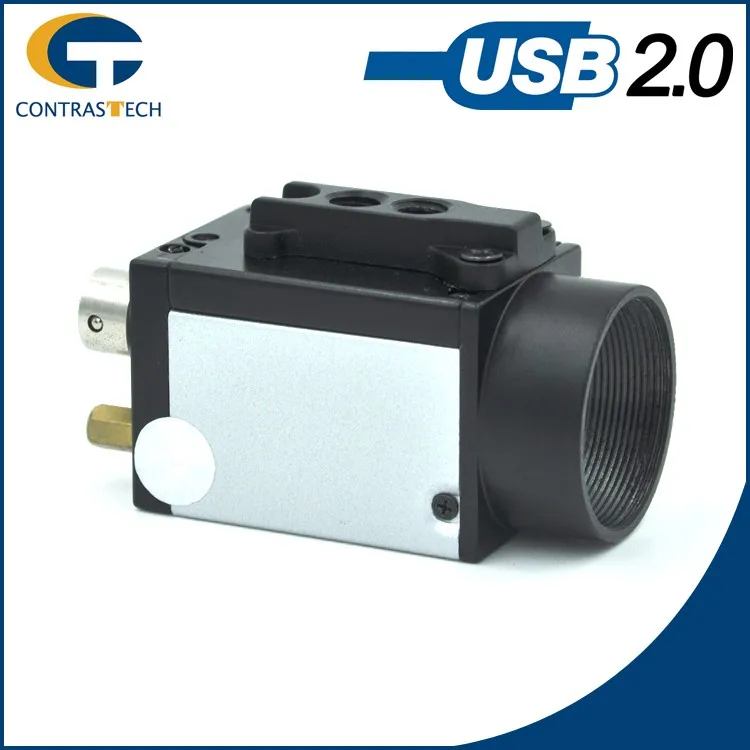

Detailed Images

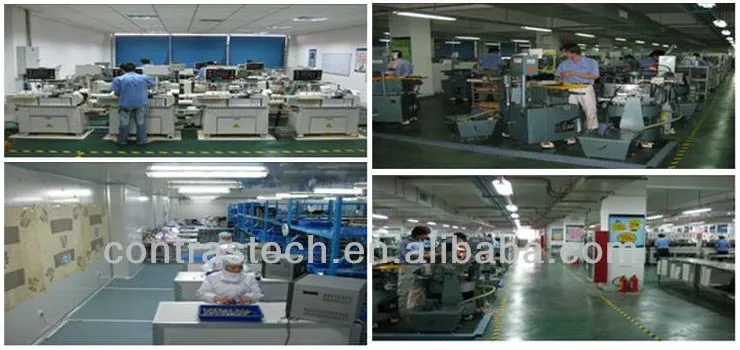

Our Company

As one high-tech enterprise Hangzhou Contrastech Co., Ltd. specializes in providing professional machine vision software, hardware and equipments. Contrastech has been researching and developing machine vision applications, and the major products include industrial camera, scientific standard camera, high definition frame grabber card, industrial FA lens, telecentric lens, machine vision lights and image processing software. The Engineering Dept. of Contrastech have lots of mature and successful machine vision solutions based on automatic industrial inspection, high precision measuring and module distinguishing.

Our Service

1. Any inquiries will be replied within 24 hours.
2. Professional manufacturer. Welcome to visit our website: http://www.contrastech.com/
3. OEM/ODM available:
Please let us know your details, then we can help you to design and put it into production.
4. High quality, ultra-Small designs, reasonable and competitive price, fast lead time.
5. After-Sale Service:
1). All the products will have been strictly Quality Checked in the house before packing.
2). All the products will be well packed before shipping.
3). All our products have 1 year warranty. Free Technology Support at any time.
6. Faster delivery:
Small order in stock, and 2 to 4 weeks for large order(above 50pcs).
7. Payment: You can pay for the order via:T/T,L/C,D/P and Western Union.
8.Shipping
We have strong cooperation with UPS,TNT,DHL,ARAMEX,EMS,FEDEX and so on.
You also can choose your own shipping forwarder.


Camellia Qian
Email: sales1 @contrastech.com
SKYPE: contrastech-sales01
QQ: 2775478961
Wechat: camellia1987520
