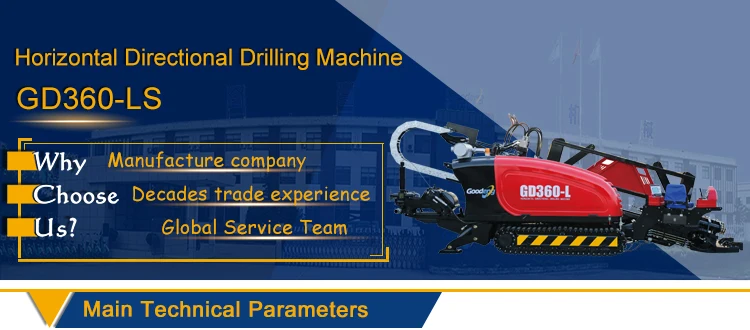

Easy maintenance 380/760kN GD360-LS HDD Rig Horizontal directional drilling Machine

  • 1 - 4 Sets
    $78,000.00
  • >=5 Sets
    $75,000.00
Brand Name:
GOODENG
Model Number:
GD360-LS
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
6 Months
Condition:
New
Applicable Industries:
Construction works
Place of Origin:
China
UNIQUE SELLING POINT:
High operating efficiency
The rotating cab:
optional
The rig shape:
beautiful
display screen:
Optional DCI Aurora Colorful
Dimension:
7300*2230*2310mm
Whole Rig Weight:
9500/10500kg
Max Crossing Length:
450m
Max Aperture Diameter:
12000m
Max Mud Pump Flow:
400L/min
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
40GP CONTAINER
Port
SHANGHAI,TIANJIN,NINGBO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated

36T_01

Rig Weight9500/10500 kgDimension(L*W*H)7300*2230*2310(mm)
Max. Push&Pull Force380/760 kNMax. Torque14000 N·m
Max. Push&Pull Speed36 m/minMax. Rotation Speed135 r/min
Engine Power153 kW/154 kWMax. Mud Pump Flow400 L/min
Caterpillar Walking Speed2.5-4.0(km/h)Max. Mud Pump Pressure8 Mpa
Entry Drill Angle13°-23°Max. Climbing Gradient18°
Max. Aperture Diameterø1200mm(Soil Depended)Max. Crossing length450m(Soil Depended)



36T_02

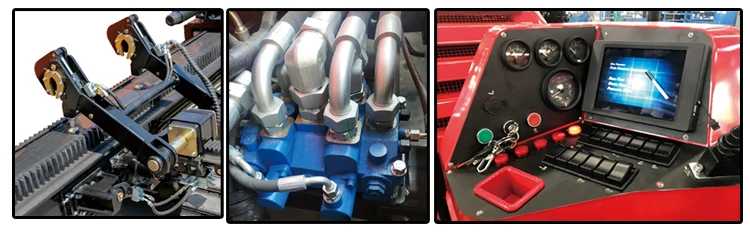

1.Cummins engine.
2.Military technology hydraulic gear pump.
3.Push & pull and rotation hydraulic system adopt series of parallel control technology and the international first-class components.
4.Rotation and push & pull pilot control.
5.The power head rotation is driven by the Eaton motor achieves infinitely variable speed. Push & pull adopts Eaton motor and three gears speed regulation.
6.Driving head reserves reinforced power - push & pull force.
7.Wire-control steel track walking with hydraulic driving.
8.Man-machine construction manner .
9.φ73×3000 mm or φ76×3000mm or φ83×3000mm drill rod.
10.Reasonable electric design.
11.Rig shape is“people-oriented”.
12.Rig is advanced, and the working efficiency has been improved by 30%.
13.Humanization design:the mechanical arm ,air-condition cab , rod-loading box, auto anchor, auto thread oil machine etc.
14.The DCI Aurora colorful display screen dashboard.

36T_03



1. What about the warranty time?

    A:12 months after shipment or 2000 working h ours,whichever occurs first.

2. What about the delivery time?

    A:20 days after receiving the deposit.

3.What kind terms of payment can be accepted?

    A: On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or

 against the copy of original BL for old client.

 On L/C term, 100% irrevocable L/C without "soft clause" can be accepted.

4.What logistics ways we can work for shipment?

    A: We can ship machine by sea and road.

 5. What about the after-sales service?

      A: We have office and professional after-sales service team in many countries.

After you receive the new machine, we will provide you one engineering training installation and debugging service for 3-5days.

If there are some problems, our after-sales service personnels will arrive the project site in shortest time.
