Easy operation machine used to making small toilet paper roll

FOB Reference Price:Get Latest Price
$10,000.00 - $30,000.00 / Set | 1.0 Set/Sets (Min. Order)
Model Number:
CIL-SP-B
Power(W):
5.5KW
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 70 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt
Showroom Location:
None
Condition:
New
Type:
Slitting Rewinder
Computerized:
Yes
Place of Origin:
Fujian, China
Brand Name:
Xinda Machinery
Voltage:
380V 50Hz
Dimension(L*W*H):
6400x2200mmx1900mm
Weight:
4500kg
Certification:
CE Certificate
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Production Capacity:
240m/min
Key Selling Points:
High Productivity
Max. workable width:
3000mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 YEAR
Core Components:
PLC
Product name:
Easy operation machine used to making small toilet paper roll
Output paper:
Toilet Paper Tissue Paper roll
Machine type:
Small Toilet Paper Making Machine
Automatic Grade:
Full-Automatic
Working Speed:
150-240 M/min
Function:
Embossing,Rewinding ,Perforating ,Trimming and Cutting
Application:
Homehold Toilet Paper Rewinding Machine
Usage:
Paper Making Mill
Machine name:
Automatic Tissue Paper Roll Rewinding Machine
Product Certification certification
CE Certified.
Valid from 2011-06-09 until 2049-12-31
Supply Ability
Supply Ability:
100.0 Set/Sets per Year Easy operation machine used to making small toilet paper roll
Packaging & Delivery
Packaging Details
Easy operation machine used to making small toilet paper roll
in exporting wooden case
Port
Xiamen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 70 To be negotiated
Product Description

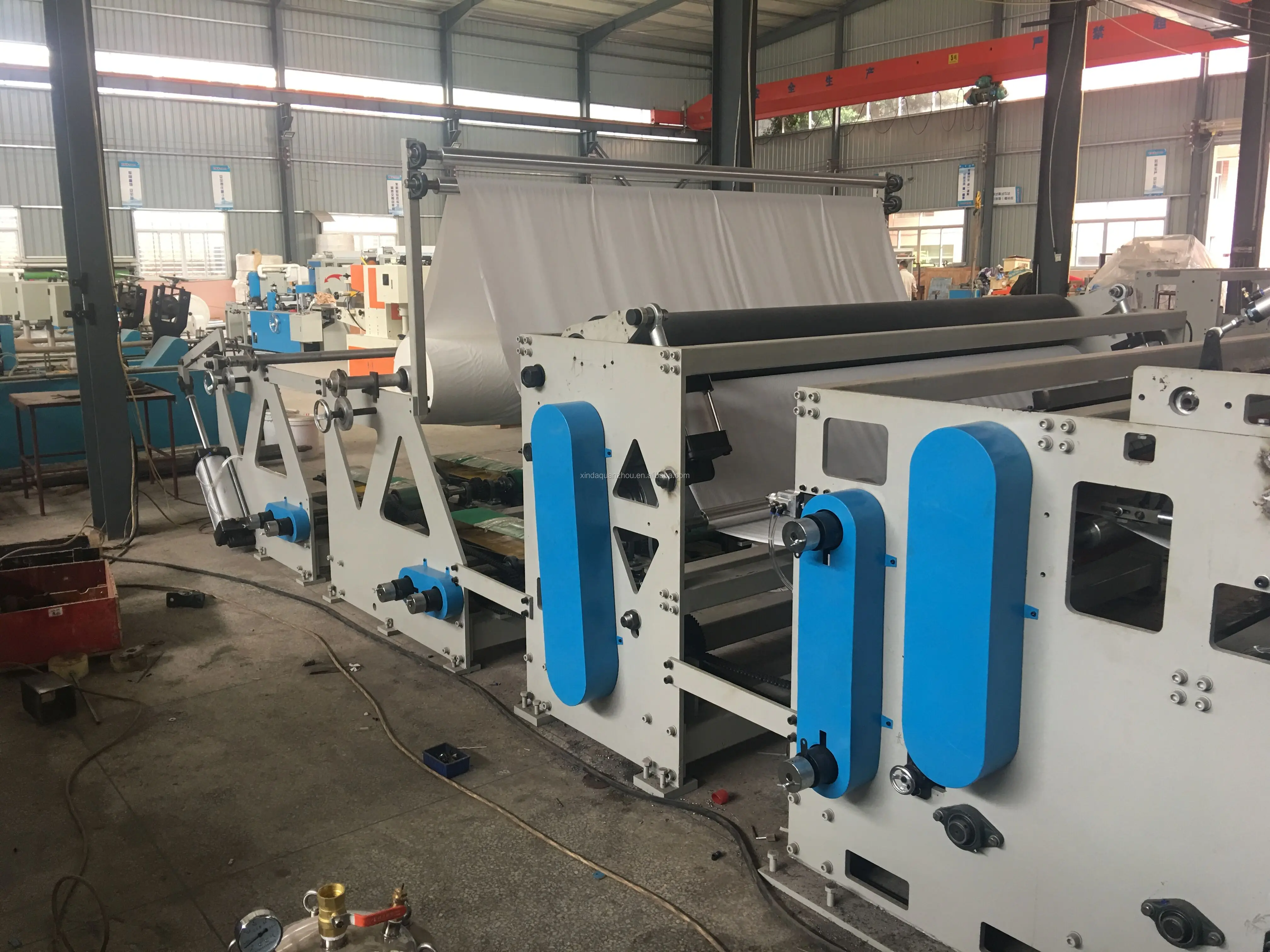

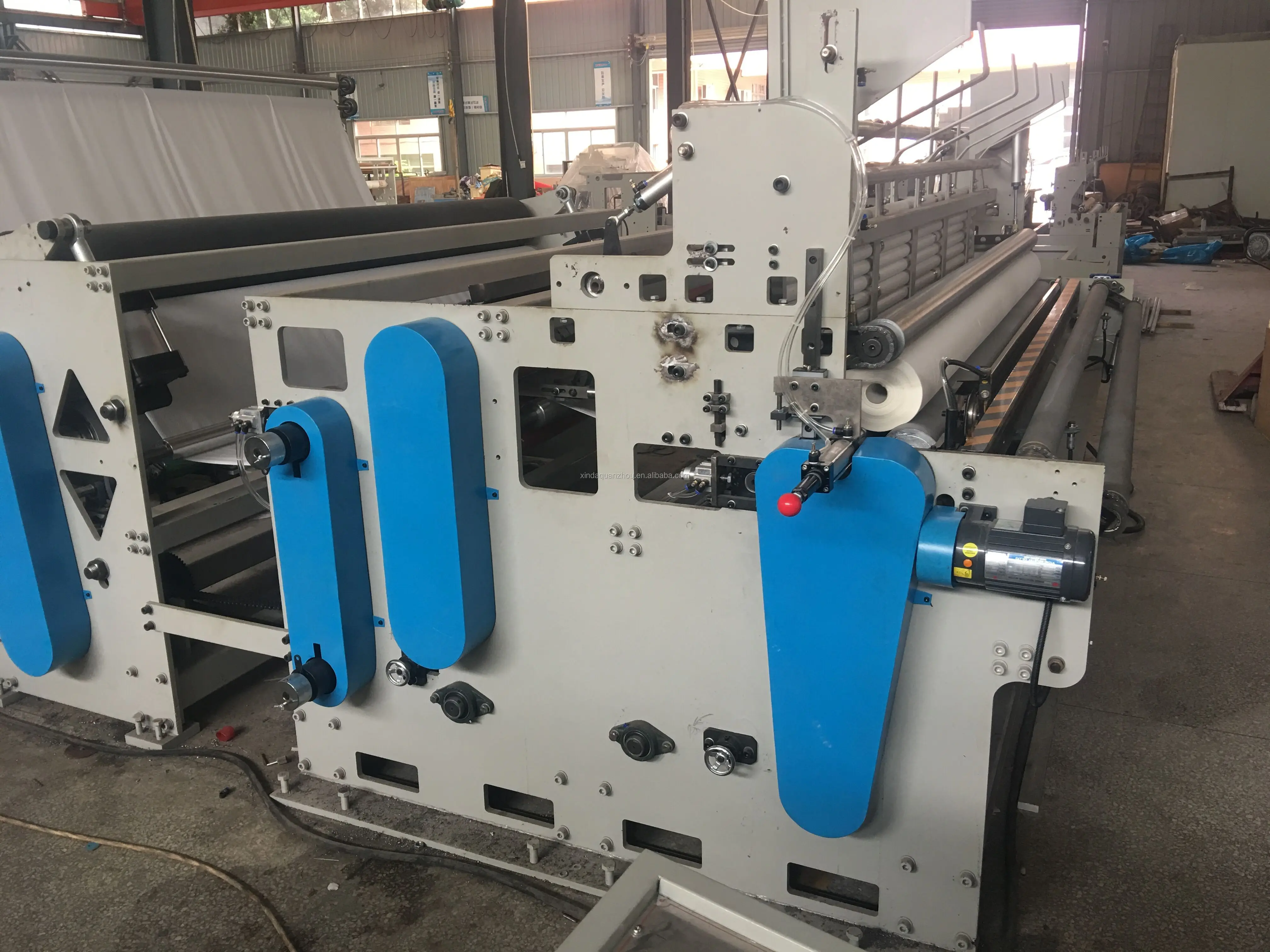

Easy operation machine used to making small toilet paper roll CIL-SP-B

Product Application

Easy operation machine used to making small toilet paper roll CIL-SP-B

this equipment is to perforate and cut the raw paper into various sizes according to the requested.

The finished product is neat, in good order and with equality tension.
It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 120-160m/min.
This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory. This equipment can process raw paper of 1.75m(75B type) in width. There are two types of this model:
A) is ordinary type, it used one embossed unit for 2 ply paper,
B) other is dot-by-dot type, it used embossed units respectally for each one.

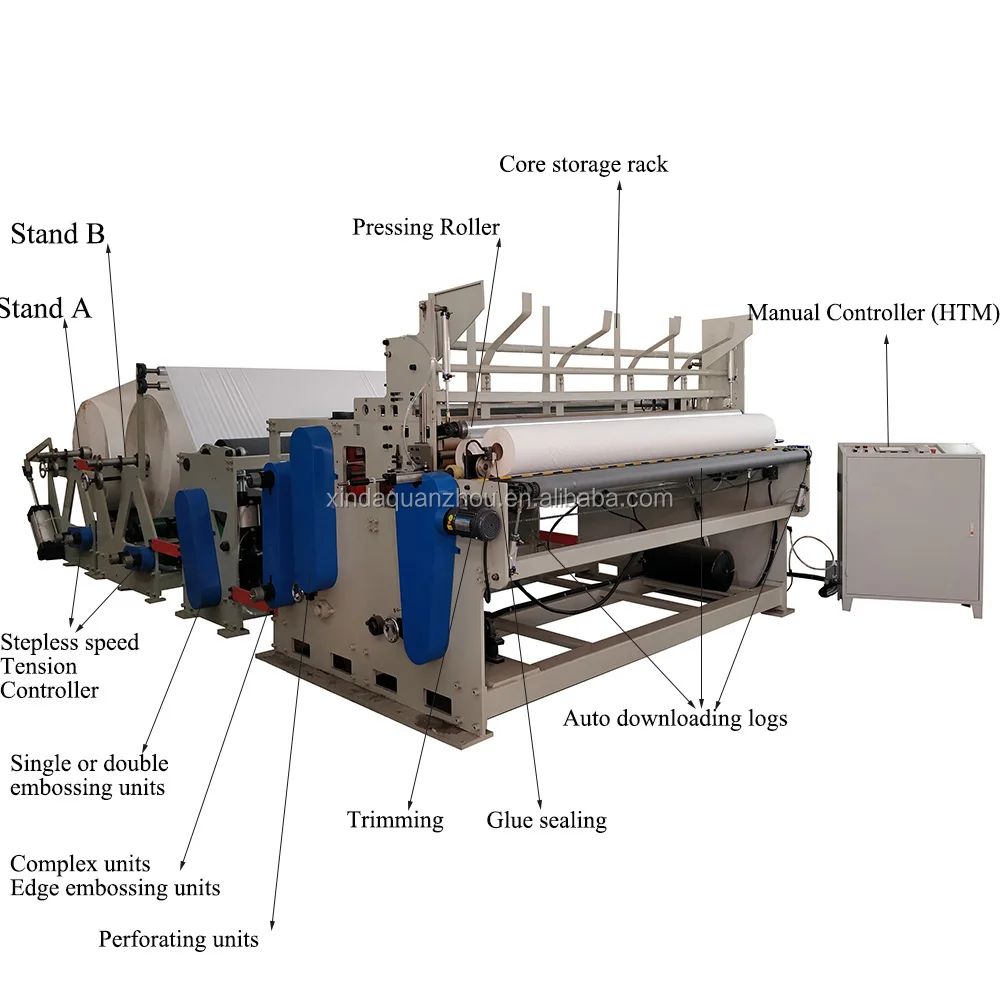

This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system.
The production process is : unreeling -→ embossing -→perforating-→furl-→slitting.

Machine Model
1092
1575
2000
2200
2400
2600
2800
Width of Jumbo Roll(mm)
1200
1800
2000
2200
2400
2600
2800
Production Speed
160-240m/min
Maximum diameter of rewinding
130-250mm
Diameter of inner core
40-60mm
Finished Products Diameter
80-120(Thighting can be adjustable)
Finished Products Inner Diameter
32-60mm
Overall Size
6200X2750X1800 (LxWxH)
Weight
About 4.2T
Parameter set
Touching-screen Multi-menu Man-machine Interface Operation System
Controller
PLC program
Mechanical driving
Driven by stepless regulator to guarantee the precise length of final products
Air pneumatic system
3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer)
Power
4kw-10kw (380V 50Hz)


Chosen items (Should be ordered separately)

Embossment
Single embossment, Double embossment, Edge embossment
Embossment down roller
Paper roller, rubber roller
Jumbo roll stander
1-3 plies
Rewinding unit
Non-core unit

Main Features

1. PLC (computer) control production, degree of full-automatic of production process is high, the function of machine is complete, and production efficiency is high.
2. Load and change the core, spray glue, seal can be done without stop the machine. When changing the core, the machine will low the speed and up the speed automatically.
3. When change the core to rewind, it will be tight first and then loose, to avoid the core loose.
4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.
5. When raw material broken, the machine will stop automatically.
6. Each raw material unreel separately , equip with tension control.
7. Easy to adjust in order to suitable different paper core.
8. There is tail after the finished product sealed with

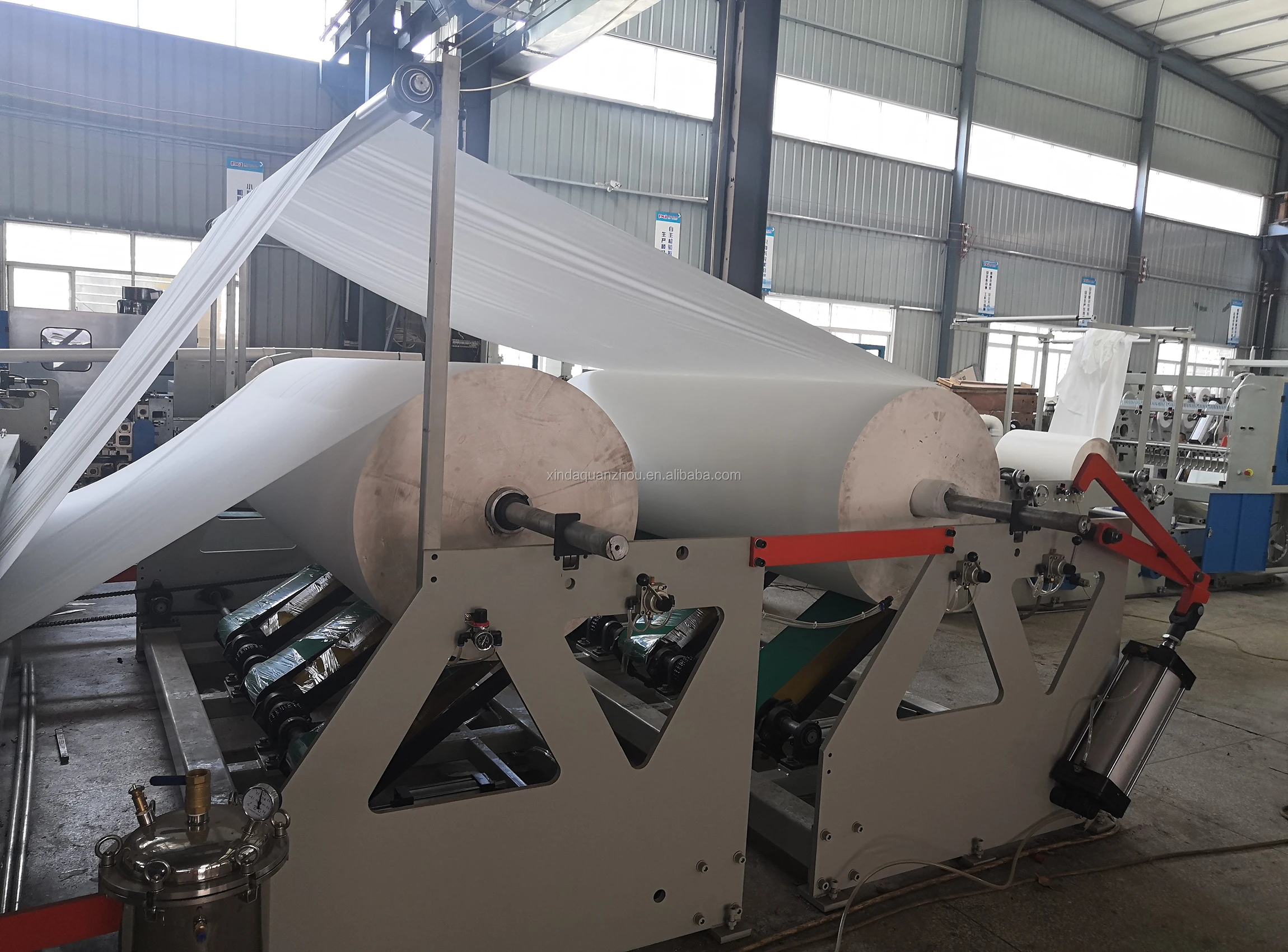

9. There is pneumatic jack to load the raw material on machine
As required, the machine can equip with single color or double colors printing device, the pattern is vivid.
The machine can equip with two sets of embossing device according to requirements.

Hot sale
Certifications
Packing & Delivery
Packaging
Size
3200 (L) * 2000 (W) * 1950 (H)
Weight
4.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

1.Why buy Machine from Our Factory Quanzhou Xinda Machinery Development Co.,Ltd ?
①. Good quality of machine with reasonable price.
②. Good service: For all the machines we sell, we will offer two-years guaranty for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need).

Welcome to contact us to get more details !
We can design the machine according to your requirement.

2:How about your machine quality, we are worry about the quality
A:Xinda is a mature brand in China, almost 30 years manufacturing experience of different kinds of paper machines. We strictly manufacture and manage according to IOS9001:2000 System, and can match all the CE standard or more strict standard. Our paper machine is running well in more
3:How we visit your factory and what will be the procedure?
A:Our factory located in Quanzhou, Fujian province, our nearest airport is JIN JIANG airport, if you take plane, it will need about 1 hours from Guangzhou,1.5hours from shanghai and 2 hours from Beijing. We will pick you up from airport as well as the train station. Welcome you and your team to visit us at any time!
4:Is there any discount of your machine price?
A:Please contact for details.

Send your Inquiry Details in the Below for More information & Video & Specifics of Machine, Click " Send " Now

Welcome to contact us to get more details
We can design the machine according to your request.
