Easy programming safe small industrial robotic arms 6 axis 3kg for Automation

FOB Reference Price:Get Latest Price
$22,500.00 - $41,500.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Han's Robot
Model Number:
Elfin 3
Condition:
New
Pay Load:
3KG
Color:
White
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard carton
Port
Shenzhen/Guangzhou
Lead Time :
7-20 working days
Product Description

                                       Collaborative Robot High Precision 6 Axis Robotic arm Elfin 3

                                                           6 Axis • 3 Kg Payload • 590mm/23.2ins  Reach

Product Application

The Light-weight, Modularity, and High accuracy  Collaborative Elfin 10 Industrial Robot is useful for integrated automatic production line, assembly, pick and place ,Injection moulding;CNC Packaging and palletizing;Quality inspection;Polishing ;Machine tending ;Screw driving;Lab analysis and testing;Gluing, dispensing and welding etc.

Technical Information
Weight
17kg
Payload
3kg
Reach
590mm/23.2ins
Joint range
± 360°
Joint speed
90°/s
Tool  speed
1m/s
Repeatability
± 0.05mm
I/O port
Digital input:    4
Digital output: 4
Analog input:   2
I/O  source
24V 2A
Power input
100-240VAC,50-60Hz
Working  temperature
0-50℃
IP class
IP54
Main material
Aluminum alloy

Main Features

1)  Safer work :

Elfin 10 has high collaborative performance  and can perform a protective stop immediately when they encounter resistance,ensuring the safety among co-worker, workpieces and production equipment.


2) More flexible deployment:

Elfin 10 can be mounted at any angle and installed anywhere to minimize the impact on the production line. Redeployments requires very short time  and is very suitable for small batches, customized and short cycle production.


3) Easier operation:

Elfin 10 can be easily teached by moving the end of the arm to the desired position or trajectory. 10 minutes is absolutely enough for building one  simple pick and place programe.


4) Highly interated joint modules:

The joint module is highly integrated with one drive controlling two motive joints. High torque and low cogging motors provide the best performance and stability.


5) Fast, stable EtherCAT bus communication

The controller and robot joint adopt industrial  EtherCAT communication, which enables the system to have excellent control performance and strong anti-interference ability.


6) ROS Support

Open  source ROS interface allows users to control robot joints in real time via Ether-CAT under ROS.

Detailed Images

Robot Arm

Name: Elfin 3
Brand:  Han's Robot
Original: China
Maximum payload  3 KG
Work radius  590mm/23.2ins


Name: Teach pendant
Brand: Han's Robot
Original: China



Name: Electric control box
Brand: Han's Robot
Original: China


Industry Application

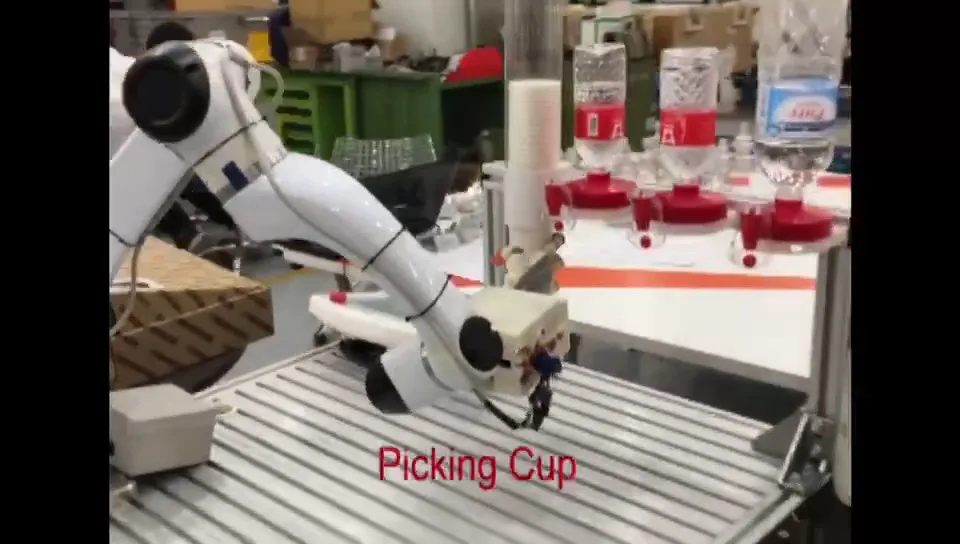

Pick and place

Flexible pick and place with 3-10KG payload

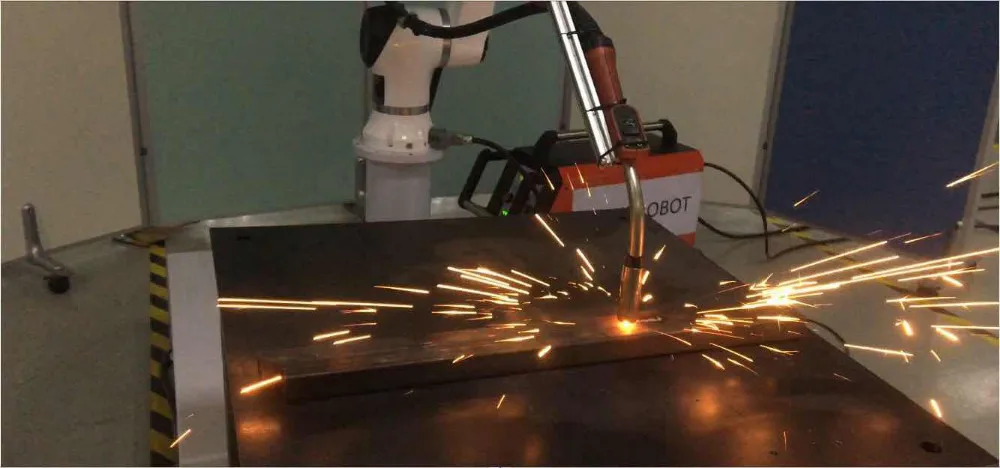

Welding


Quality inspection

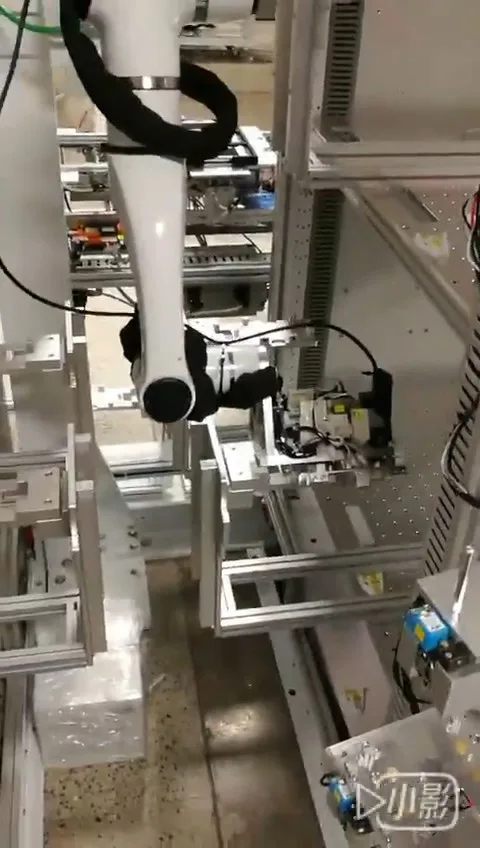

Inspection of phone quality  in 3C manufacture line

Monitoring and Inspection

cooperate with SCHRODER in pipeline inspection industry


Gluing


Spraying


Transportation of Wafer

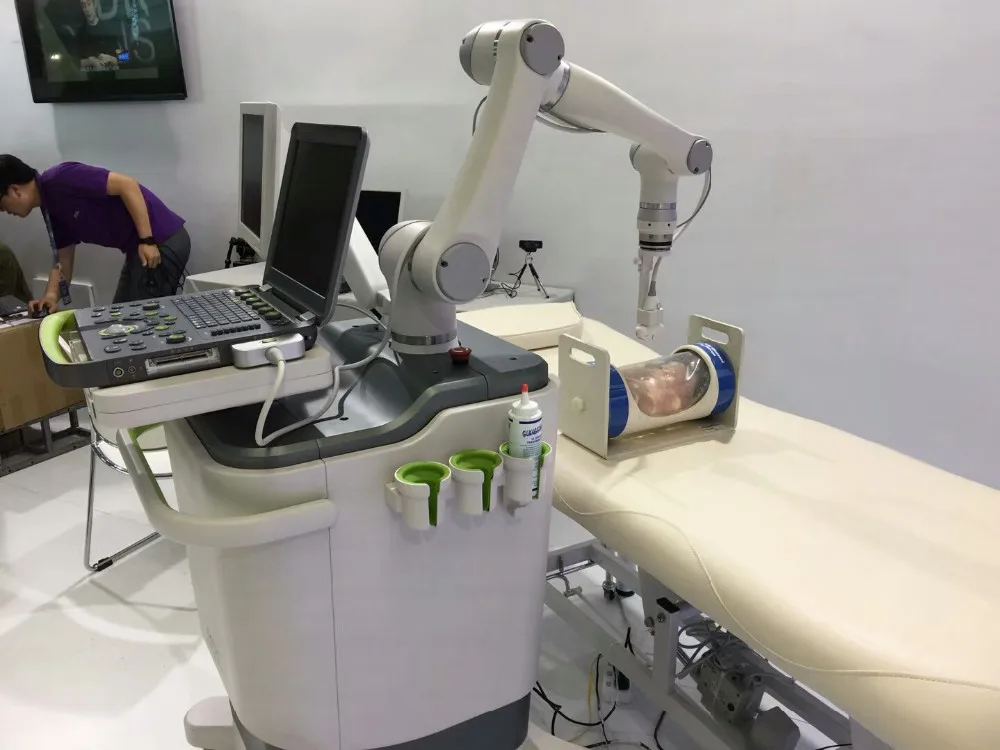

Medical industry Applications


Service

Your robot waiter

Our Service

Pre-sales

Inquiry and consulting support

Customer designed service

Factory inspection

After sales

12 month warrenty

7*24 hour on-line service (Email,skype, whatsapp)

5*8 hour online technical engineer support

Online maintaince training and off line training in factory (Shenzhen, China)



Contact

Lily Peng

Global sales

+8613420909755 (whatsapp/Wechat)

+8675523048732

www.hansrobot.com
