Economic A1 led uv flatbed 3d printer pen printing machine

FOB Reference Price:Get Latest Price
$5,980.00 - $7,680.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
Galaxy-jet
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Color & Page:
Multicolor
Type:
Inkjet Printer
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Shandong, China
Brand Name:
Yicai
Usage:
Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer
Automatic Grade:
Automatic
Voltage:
110V/220V 50Hz-60Hz
Gross Power:
750W
Dimensions(L*W*H):
200CM*180CM*95CM
Weight:
380kg
Certification:
CE SGS
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Economic A1 led uv flatbed 3d printer pen printing machine
Printing Material:
glass, metal, wood,plastic, leather, PVC, ceramic, stone,Rubber
Color:
CMYKWWWW or CMYKWWVV or CMYKCMYK
Ink type:
Uv curing ink, soft uv curing ink, eco solvent ink, pigment ink,
Cooling system:
Water circulation cooling system
Print head:
1 or 2 pcs DX5/DX7/5113/Tx800 Micro piezo head
Print speed:
A2size/165s
Max printing height:
20CM
Printing size:
60 CM *90 CM
Supply Ability
Supply Ability:
285 Set/Sets per Month of Economic A1 led uv flatbed 3d printer pen printing machine
Packaging & Delivery
Packaging Details
Galaxy-Jet Pro Economic A1 led uv flatbed 3d printer pen printing machine packed as below:
1. 200CM*180CM*95CM packing size.
2. International standard inport& export wooden package.
3. By sea, Airbus, Express available.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Video Description
Product Description

Product Application

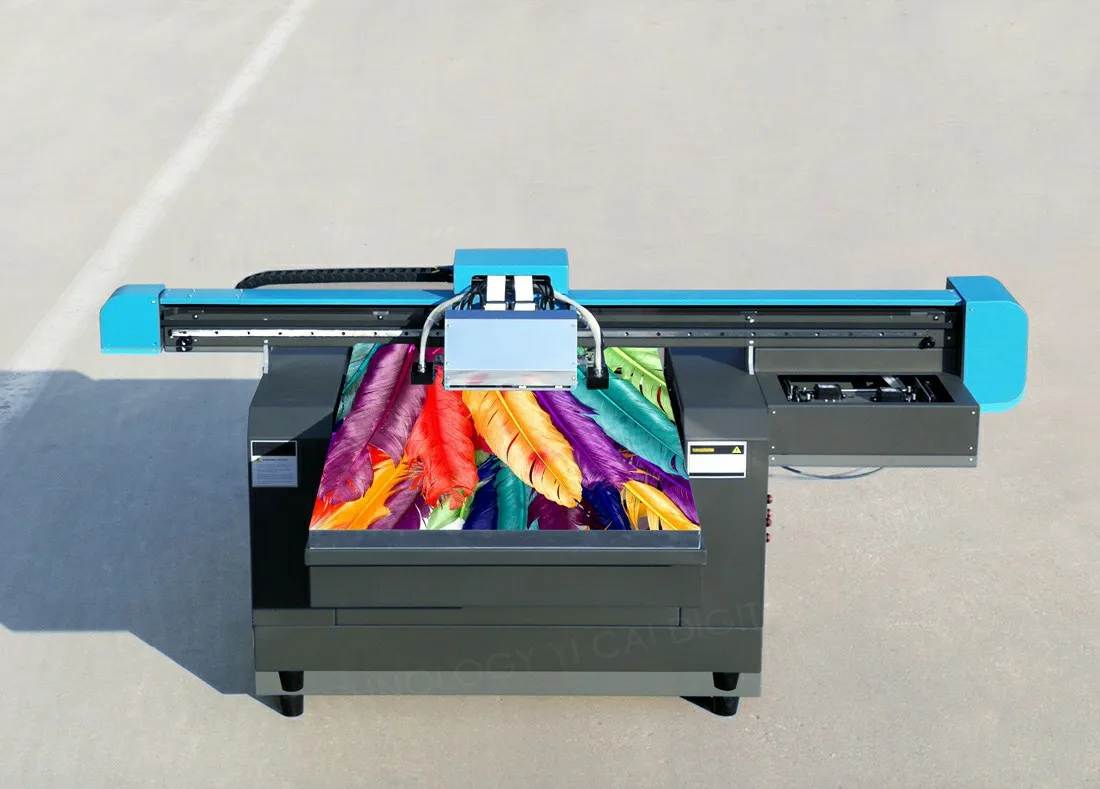

Economic A1 led uv flatbed 3d printer pen printing machine belongs to Galaxy-Jet Pro, which is a multi functional LED UV flatbed printer that created by Linyi Yi Cai Digital Machinery CO.,Ltd. Galaxy-Jet Pro was built with industrial configuration as thicken aluminum profile, water circulation cooling system, 100W automatic detect UV Curing system...16 color and max. 5760DPI*1440DPI printing resolution, Max. 200mm media height. This UV inkjet printer can print on rigid PVC board, glass, plastic, organic board, leather, pen, special paper, metal, wood, porcelain, PVC, ABS, acrylic, aluminum, iron sheet, ceramic tile, glass, marble, granite, paperboard, canvas, film, PP, bend, cylinder objects, balls and bottles etc. Output with good 3D texture printing result...

Specification of Economic A1 led uv flatbed 3d printer pen printing machine
Printing method
Drop on Demand ( non-contact micro piezoelectric ink-jet printing technology; micropiezoelectric printing technology; VSDT; intellingent nozzle cloggingsensor system ). 180nozzle/color*8; VSDT.
Head type
1 or 2 pcs DX5/DX7/5113/Tx800 Micro piezo head
Max Printing size
600mm*900mm ( 23.6"35.4" )
Material's Height
20CM max.
Printing resolution
5760*2880dpi, 2880*1440dpi, 1440*1440dpi, 1440*720dpi
Ink Type
Rigid Uv curing ink, soft uv curing ink, eco solvent ink, pigment ink
Ink color
CMYKWWWW or CMYKWWVV or CMYKCMYK

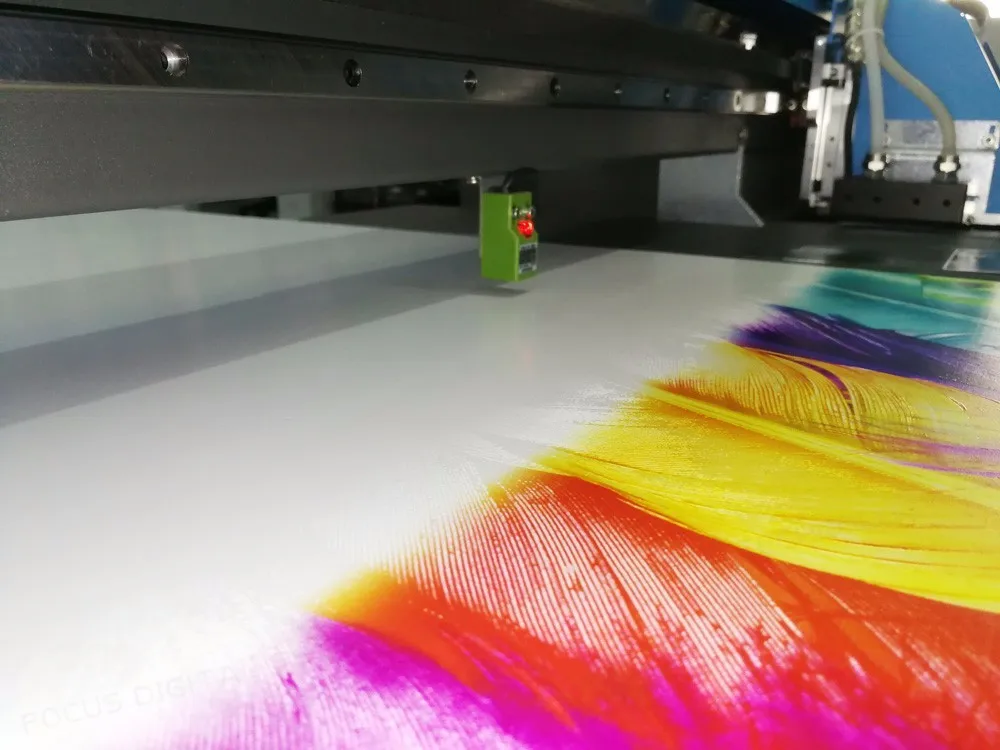

Media sensor
Two sides, front edge & rear edge
Ink Supply Method
Independent continuous ink supply systerm
Printing interface
USB 3.0 high speed interface & 100 Base-T Ethernet interface
Printing direction
Smart Bi-directional Printing Mode
Lamp type
LED UV curing lamp( with imported Led chips, brightness adjustable, with water cooling circulation)
Applicable Industry
Rigid PVC board, glass, plastic, organic board, leather, pen, special paper, metal, wood, porcelain, PVC, ABS, acrylic, aluminum, iron sheet, ceramic tile, glass, marble, granite, paperboard etc
Power consumption
136W/Hour.
Auto adjustment function
Nozzle automatic detection;print head automatic aligning
Normal working environment
Temperature 10-35Celsius Humidity 20-80RH
Power/ Voltage
About 750W / 110V/220V 50-60HZ
Operational software
FocusRIP Software and Ultraprint for Windows XP/7/8/10
Operation system
Windows 2000 / XP / WIN7 /8/10, etc.
Printing Speed
A2size/165s
Net weight/Gross weight
300KGS/380KGS
Printer size
160CM*155CM*79CM
Packing size
200CM*180CM*95CM
Detailed Images

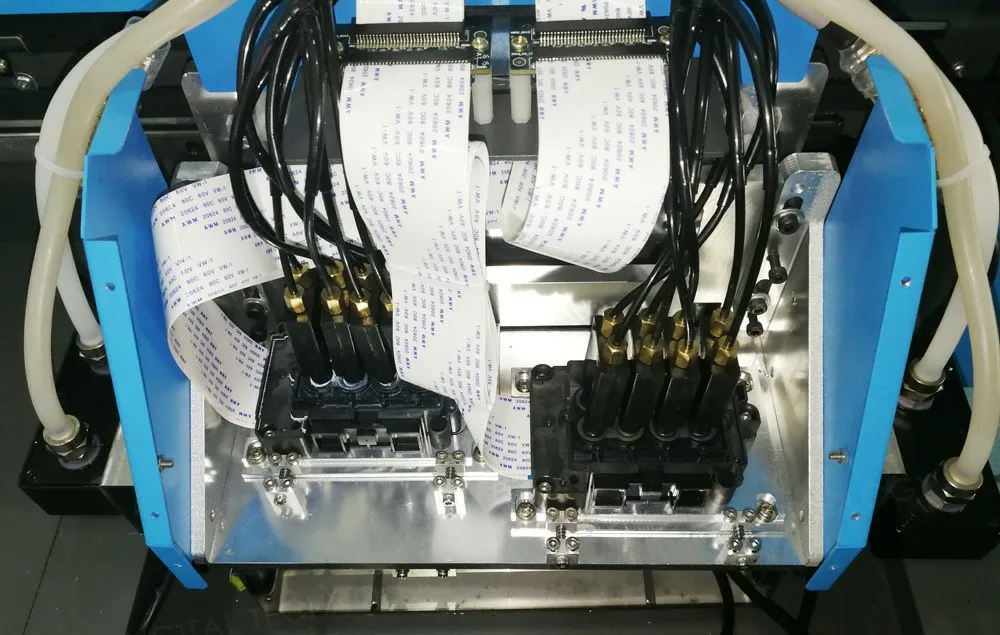

1.The Economic A1 led uv flatbed 3d printer pen printing machine configure with High precision CNC milling and laser engraving print head mounting plate to ensure it meet the print head perfectly.

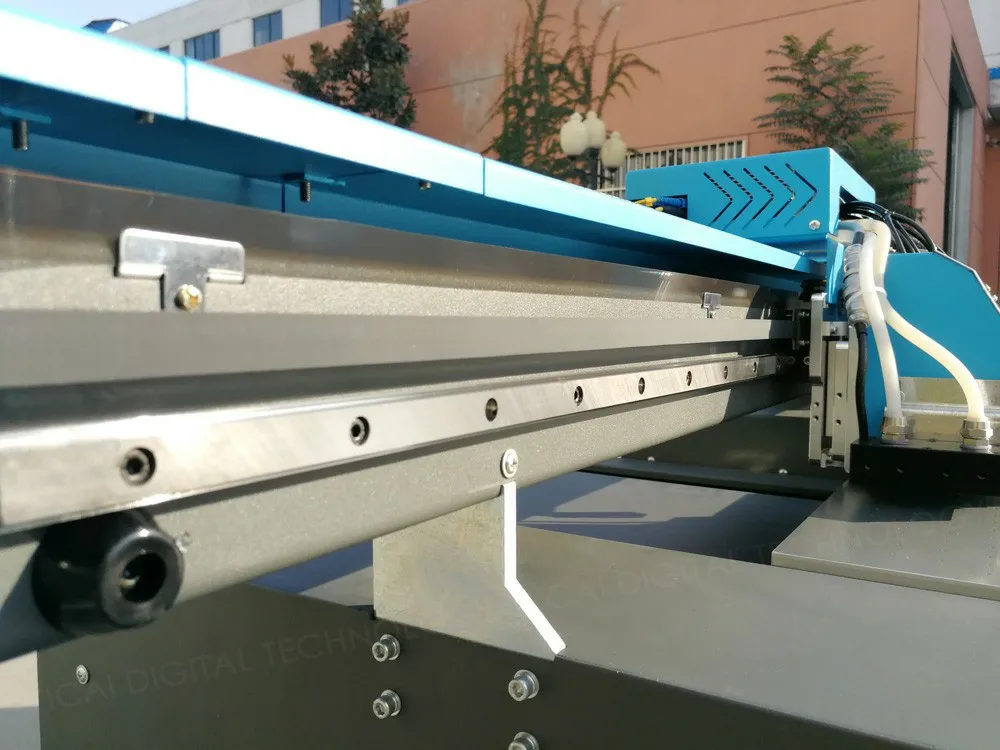

2.This Economic A1 led uv flatbed 3d printer pen printing machine apply the High-precision Japanese THK linear guide to make sure the printing in high precision


3. Galaxy-Jet Pro Economic A1 led uv flatbed 3d printer pen printing machine has Two heads cap stations to keep the print head wet after printing.



4. YICAI Own patent design printing main board to support one pass printing, FOG wave halftone rip data and variable data printing on this Economic A1 led uv flatbed 3d printer pen printing machine.

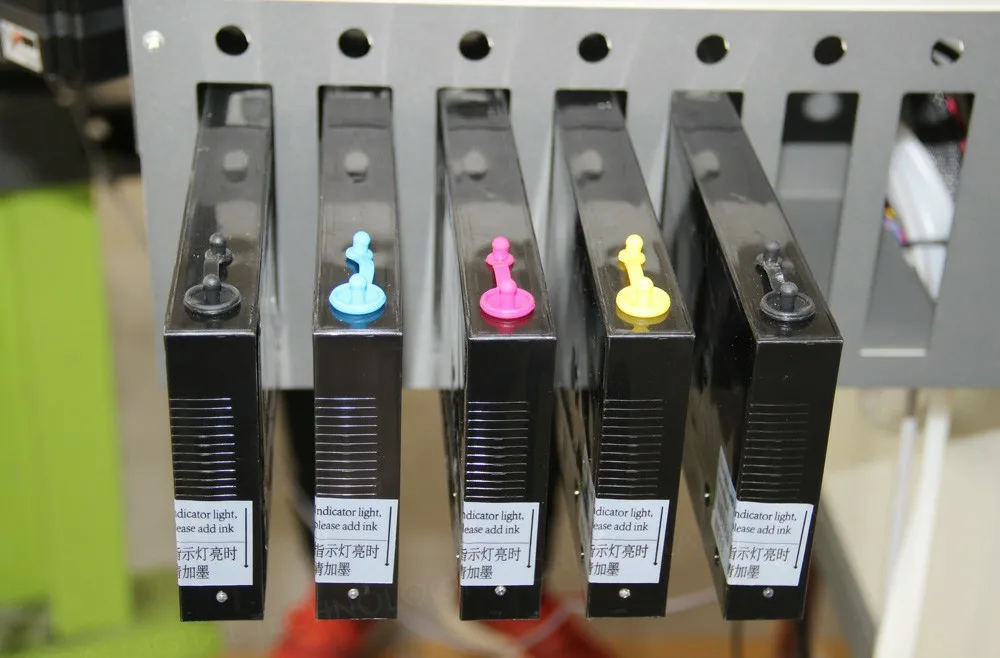

5. Easy loading ink tank system on this Economic A1 led uv flatbed 3d printer pen printing machine can help you save space .

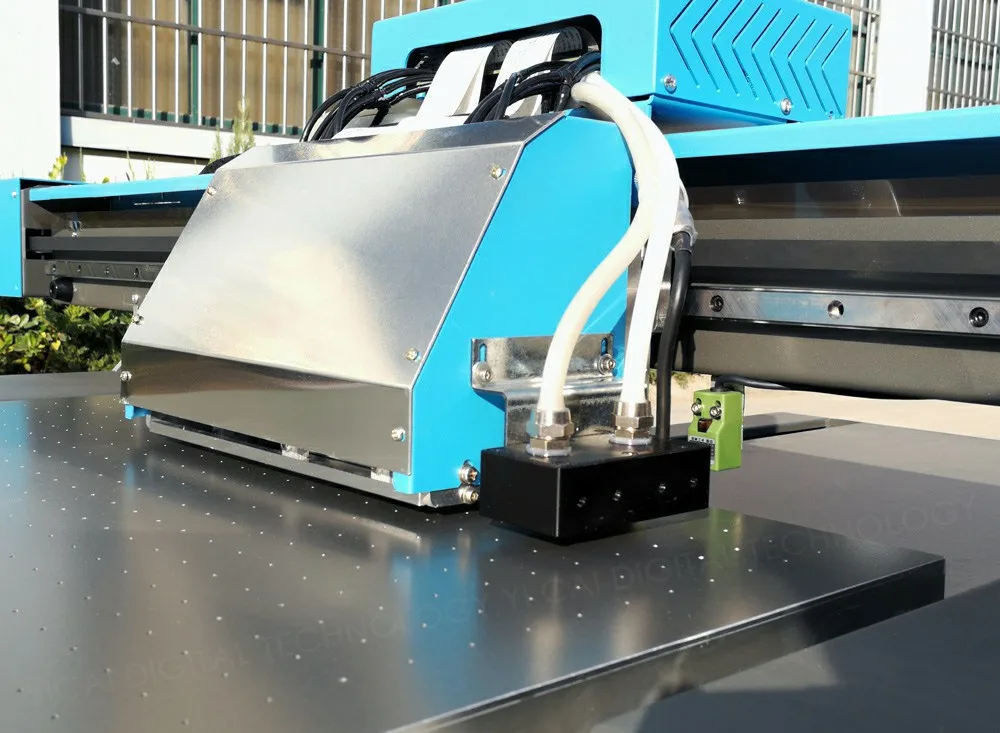

6. This Economic A1 led uv flatbed 3d printer pen printing machine equipped with Double UV LED Lamps to make the ink dry faster and make the printing area bigger.

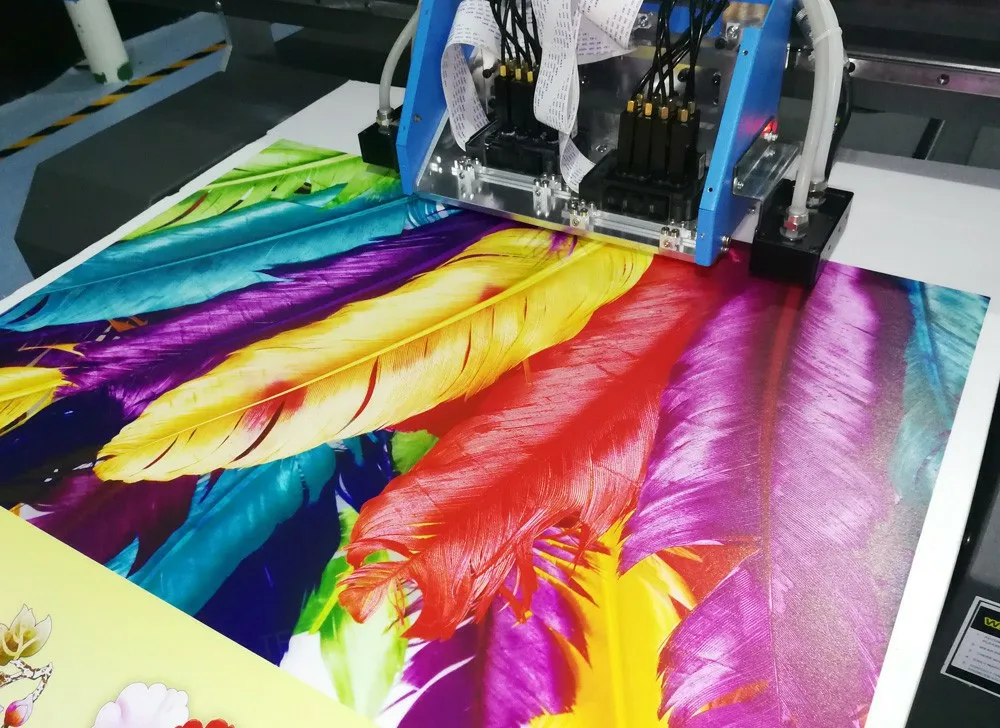

7. Double DX7 or DX5 heads print high quality colorful picture printing with Focus ICC printing profile by Economic A1 led uv flatbed 3d printer pen printing machine.


8. This Economic A1 led uv flatbed 3d printer pen printing machine can print white and color ink at the same time in one pass.






9. Max. 20cm object height available to be adjusted to meet more requirements from clients.


10. High quality water chiller cooling system applied by this Economic A1 led uv flatbed 3d printer pen printing machine to keep the UV LED lamp working longer and stable.

Printing Samples

Colorful picture test from Economic A1 led uv flatbed 3d printer pen printing machine.

ID card sample printing from Economic A1 led uv flatbed 3d printer pen printing machine.

Phone case sample from Economic A1 led uv flatbed 3d printer pen printing machine.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* 24 hours online professional technical support in English.

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Customer Visiting

Clients from North Europe visiting us to check our Digital printing machine for their printing business.

Zuhdi from Dubai to check his coffee printing machine from us and had a great time together with us on our Expo.

Clients from Mexico to check our A3 size uv flatbed printer in our office in Shanghai, they are very satisfied with our printing quality.

Packing & Delivery
Packaging
Size
200 cm(L) * 180 cm (W) * 95 cm (D)
Weight
380KG



Packaging Details

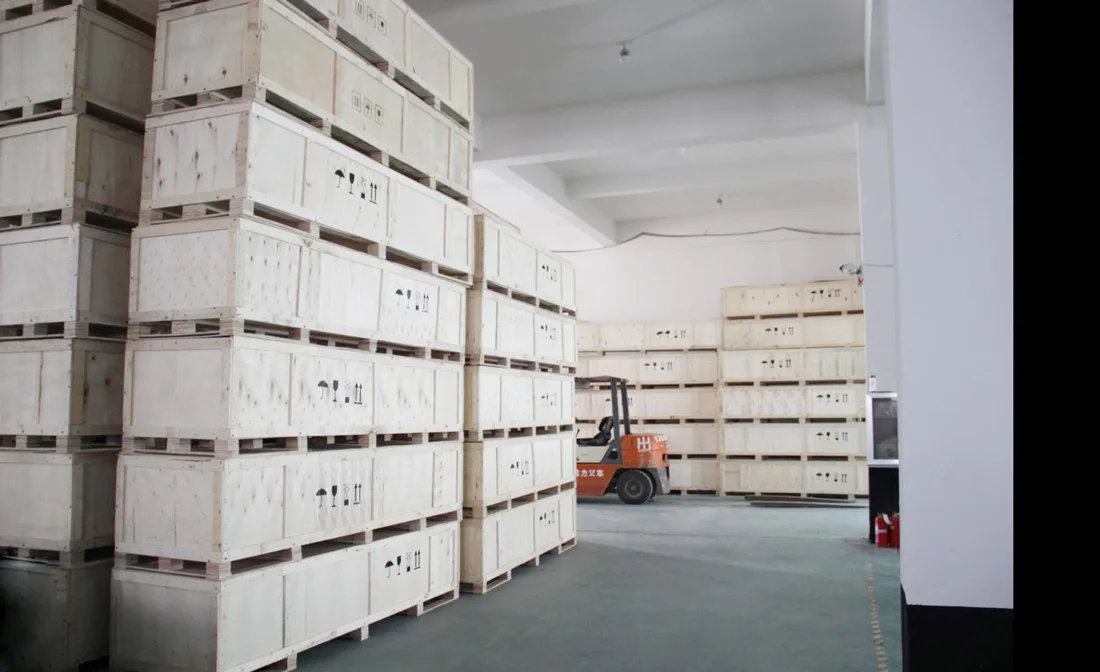

1. The normal package is International standard Import & export wooden box.
2.The wooden box will be fumigated. If container is too tighter, we will use pet film for packing or pack it according to customers special request
