Economical 5 Axis CNC Router Machine for Foam EPS Styrofoa Wood Mold, Sculpture 5 axis 5D CNC Milling wood Router Machine

Feedback Ratings
$78,000.00 / Set | 1 Set (Min. Order)
Model Number:
A-5-2030
$78,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $78,000.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Mold
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Voltage:
380V/220V or Customer made, AC380/3PH/50HZ
Dimension(L*W*H):
3500*1840*1900mm
Certification:
CE ISO9001
Weight (KG):
2000
Warranty:
2 Years
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Key Selling Points:
Multifunctional
Control system:
Taiwan SYNTEC control system
Positioning Accuracy:
XYZ Axis: 0.03mm
Working Speed:
0-10,000mm/min
Driving system:
Taiwan Syntec servo motor
Software:
PowerMill
Spindle speed:
0-2,4000 r/min
Keywords:
5 axis cnc router
Weight:
2000kg

Packaging & Delivery

Selling Units:
Single item
Single package size:
370X228X210 cm
Single gross weight:
2000.0 kg
Package Type:
Plywood Package
Lead Time :
Quantity(Set) 1 - 5 6 - 20 >20
Est. Time(days) 20 30 To be negotiated
Video Description
Product Description

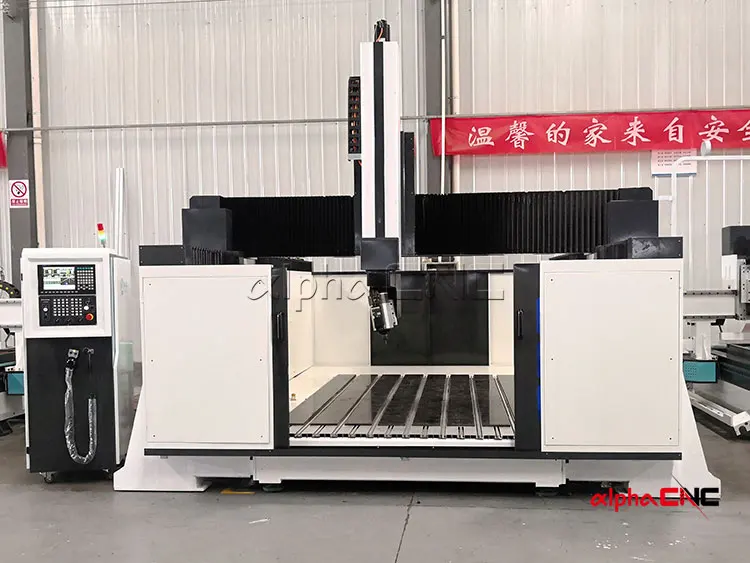

Economical 5 Axis CNC Router Machine for Foam EPS Styrofoa Wood Mold, Sculpture 5 axis 5D CNC Milling Machine

Product Application

V-method casting foam model, casting wood mold, sculpture engineering, industrial design, etc.
#Casting foam disappearing model of various mechanical parts such as automobile cover moulds, inspection tools, fixtures, cylinders and machines.

#Casting wood models of various mechanical castings such as ships, wind power, machines, pump valves, injection molding machinery, and printing machinery.
#Industrial design for automobiles, yachts, airplanes, sculpture projects, etc.
#rotomolding mold, injection mold, GRG/GRC exterior wall decoration material processing.

Features:
1. The top control system, powerful, high precision and speed.
2. The components use world-class brands.
3. 5 Axes 5 linkages, with RTCP function (real axis interpolation) for large three-dimensional surface model processing.
4. Diversification of control can control processing speed, idling speed, cutting speed, greatly improving the quality of processed products and processing efficiency.

Main Features

#CE Standard

#Moving size 2000*3000*1200mm

#CC 9KW ATC air cooling Spindle

#5 axis rotary spindle

#Taiwan Syntec servo system(1.1kw motor, Z axis with brake function)

#Japan Shimpo reducer on XYZ axes

#Syntec 220 MA-5 five axis control system

#Aluminum&PVC T slot work table

#German Steel rail

#Taiwan TBI higher precision ball screw

#Germany Herion rack & pinion

#Auto lubrication system

#Nitrogen pneumatic system

#Other electrical components use Schneider or Siemens

#Whole protect cover with front & back door)
Descriptions
                                                                     Parameters
Model
A-5-2030
XYZ Moving Size
2000*3000*1200mm
A/C Axis
A: ±90° C: ±180°

Max. Moving Speed

X axis: 25,000mm/min
Y axis: 25,000mm/min
Z axis: 10,000mm/min
Max. Feeding Speed

 X axis: 15,000mm/min
Y axis: 15,000mm/min
Z axis: 9,000mm/min
Positioning Accuracy

XYZ Axis: 0.03mm

Repeatability

X axis: 0.009mm
Y axis: 0.009mm
Z axis: 0.007mm

Working Speed

0-10,000mm/min

Spindle Speed
0-2,4000 r/min

Tool magazine

 8 slots in linear

Software
powermill

Control system

Taiwan SYNTEC control system

Drive System
Taiwan Syntec servo motor

Voltage
AC380/3PH/50HZ
RTCP
Our program can do this function

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

1325 4*8 feet wood panel mdf particleboard door cabinet furniture aluminum woodworking cutting milling carving ATC cnc router
Sample
Detailed Images

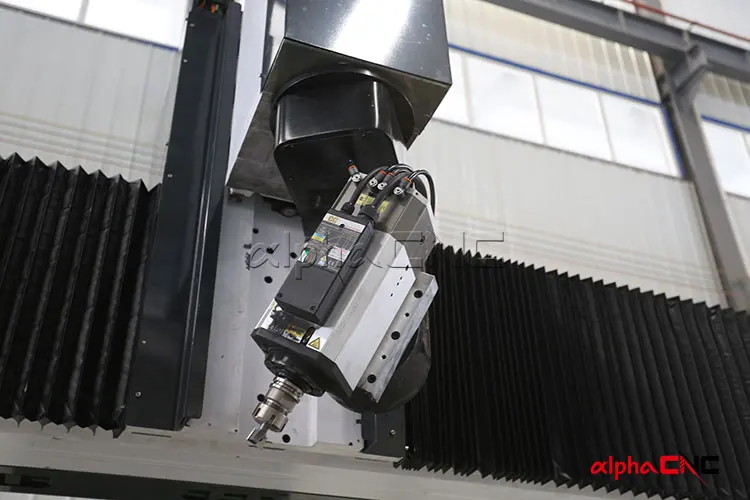

9Kw Spindle


9Kw ATC spindle 5 axis head, could change the tool automatically and realize real 5 axis function.

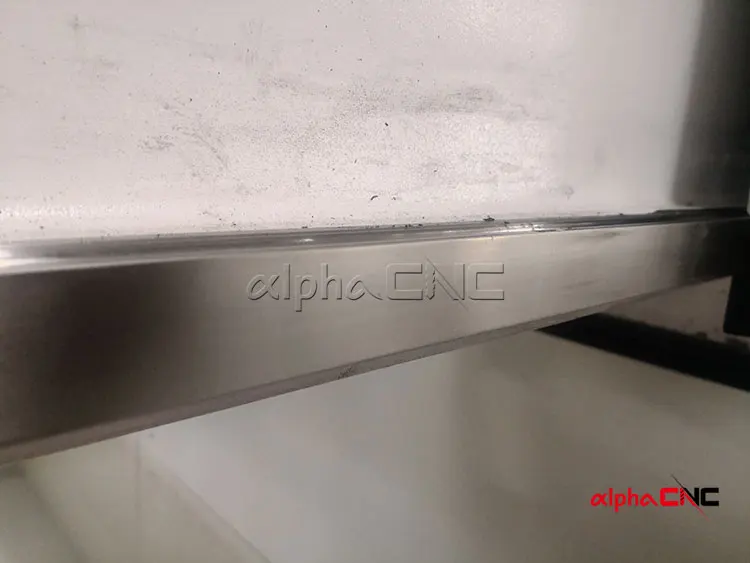

German Steel Belt Rail

The machine adopt German steel belt rail guide on XYZ axis, which is with better weight bearing.

Control system

Syntec 220 series 5 axis control system with USB connection and window control system to make the operation more easier and the control cabinet with USA heat exchange system.



Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
4500mm(L)*2280mm(W)*2100mm(H)

Weight
6000KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.
