Effison Sanitary 2LB Spool Extractor Passive / Active Closed Loop Systems

FOB Reference Price:Get Latest Price
$1,350.00 - $2,000.00 / Sets | 1 Set/Sets (Min. Order)
Type:
Flange Sight Glass Union
Pipe size:
4" * 24"
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
EFFISON
Material:
Stainless Steel, SS304
Technics:
Forged
Connection:
Flange
Shape:
Equal
Head Code:
Hexagon
Product name:
Closed Loop Systems
Material Capacity:
2LB, 900g
Application:
BHO extraction
Type:
Vertical Pressure Tank
Pressure:
150psi
Temperature range:
-40℃~RT
Collection Bowl:
8" * 2"
Solvent Tank:
10" * 12"
Material Column:
4" * 24"
Supply Ability
Supply Ability:
100 Set/Sets per Month Closed Loop Systems
Packaging & Delivery
Packaging Details
Fumigated wooden case for the Closed Loop Systems.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 10 To be negotiated
Product Description

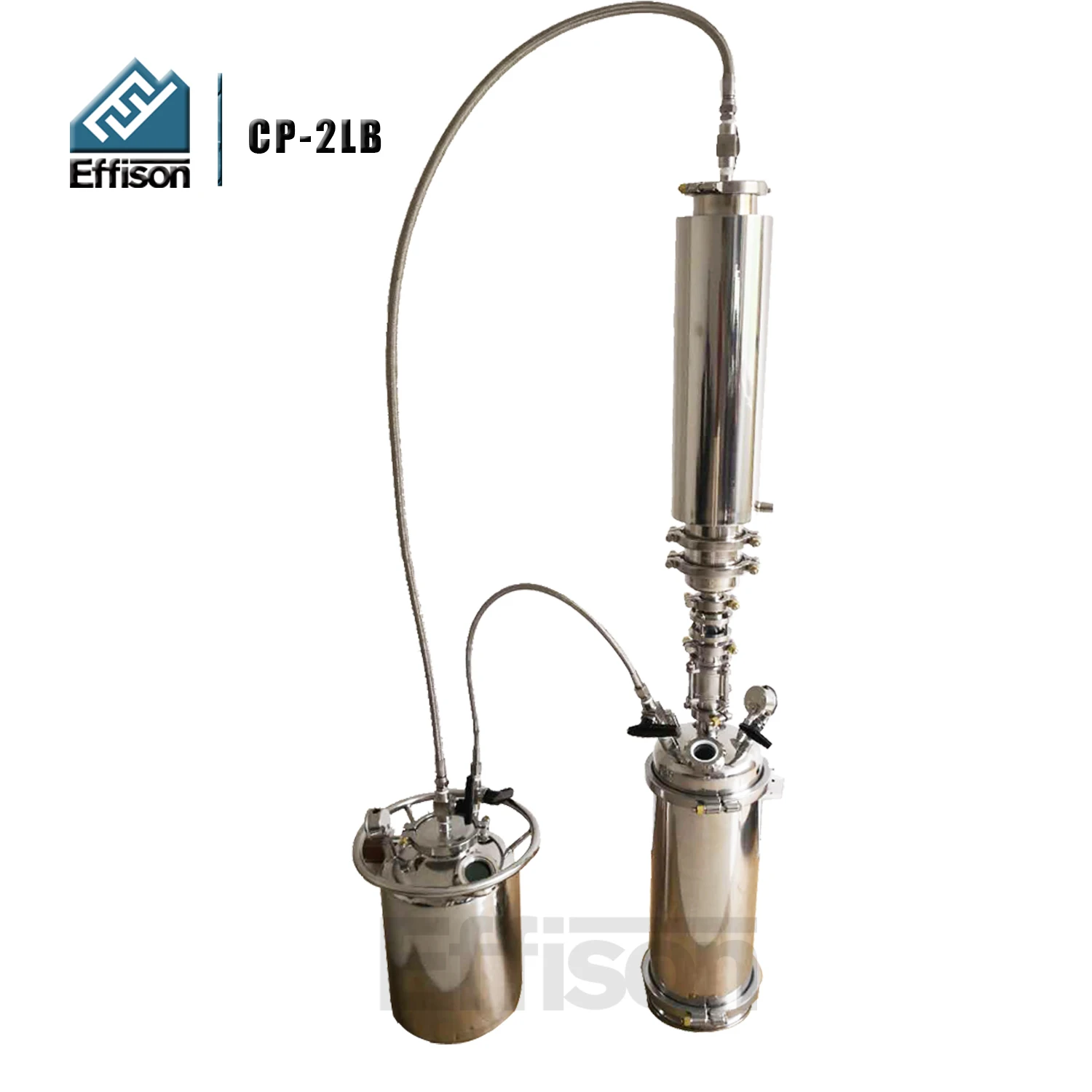

Effison Sanitary 2LB Spool Extractor Passive / Active Closed Loop Systems

Closed Loop Systems Starter Kit performs botanical extraction within a sealed, vacuumed system. Utilizing a top-fill input, solvent washes thru the material column, collecting oils as it passes over the material. Oil bearing solvent is collected in the collection base under the material column. Once collected, solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent.

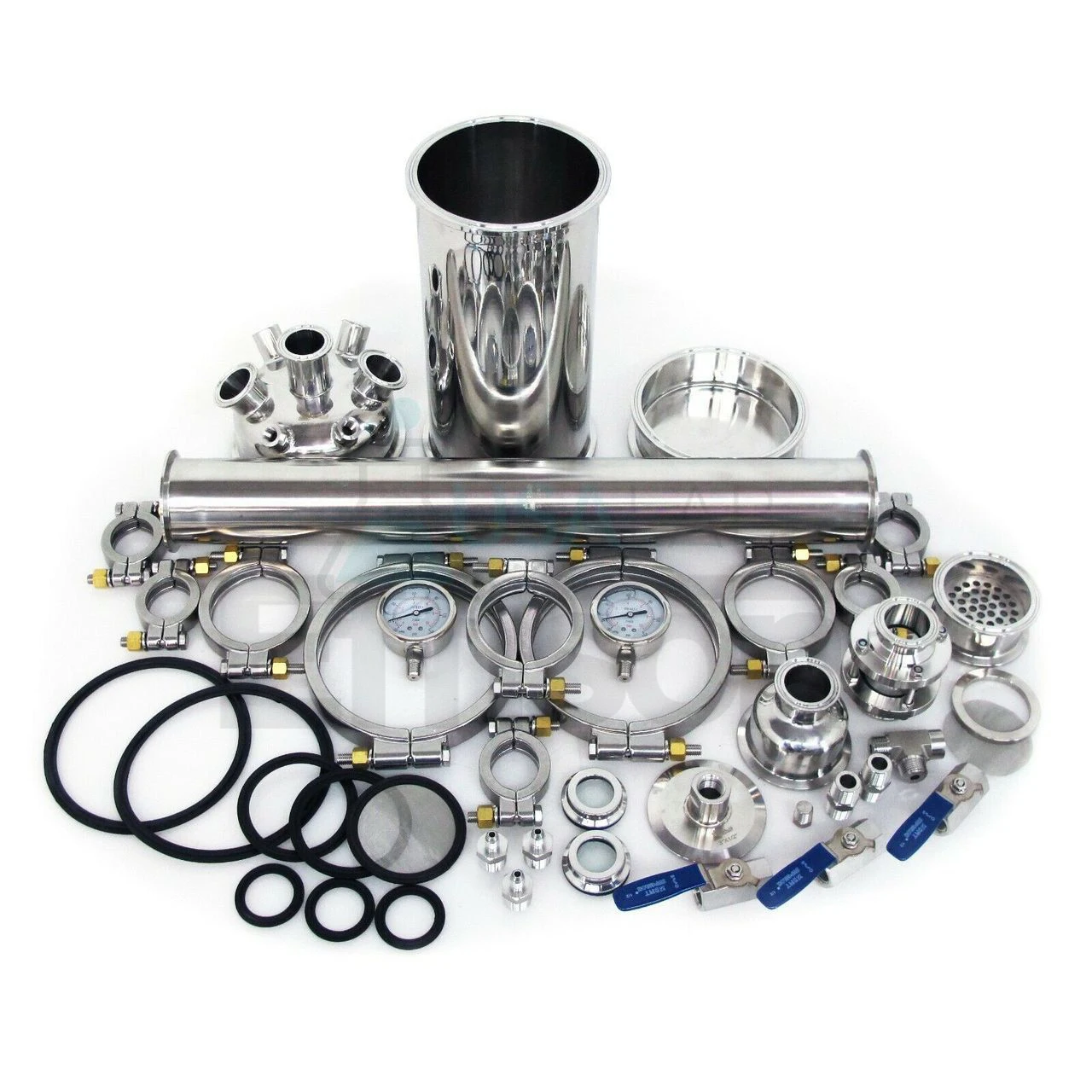

Features of Closed Loop Systems:

• 4"x 24" 304 Stainless Steel Material Tube 2lb (900g)
• 304 Stainless Steel Fully Encapsulated Miniature Ball Valves
• System Rated to 150PSI
• 304 Stainless Steel Base Container " diameter by 10" tall
• Tri-Clamps at all interfaces make for a high pressure, easy clean unit.
• Viton Gaskets are designed for Oil Processing Temp range -40F-200F
• Dimensions (Inches): 55" x 10" Diameter overall size
• Operating Temperature Range: -40F to 200F
• Ultimate Vacuum: as low as 10 Microns
• Construction: All components made of 304 Stainless Steel.
• Max Vacuum -29.9inHg
• High Polish Interior

Customized Closed Loop Systems is available!

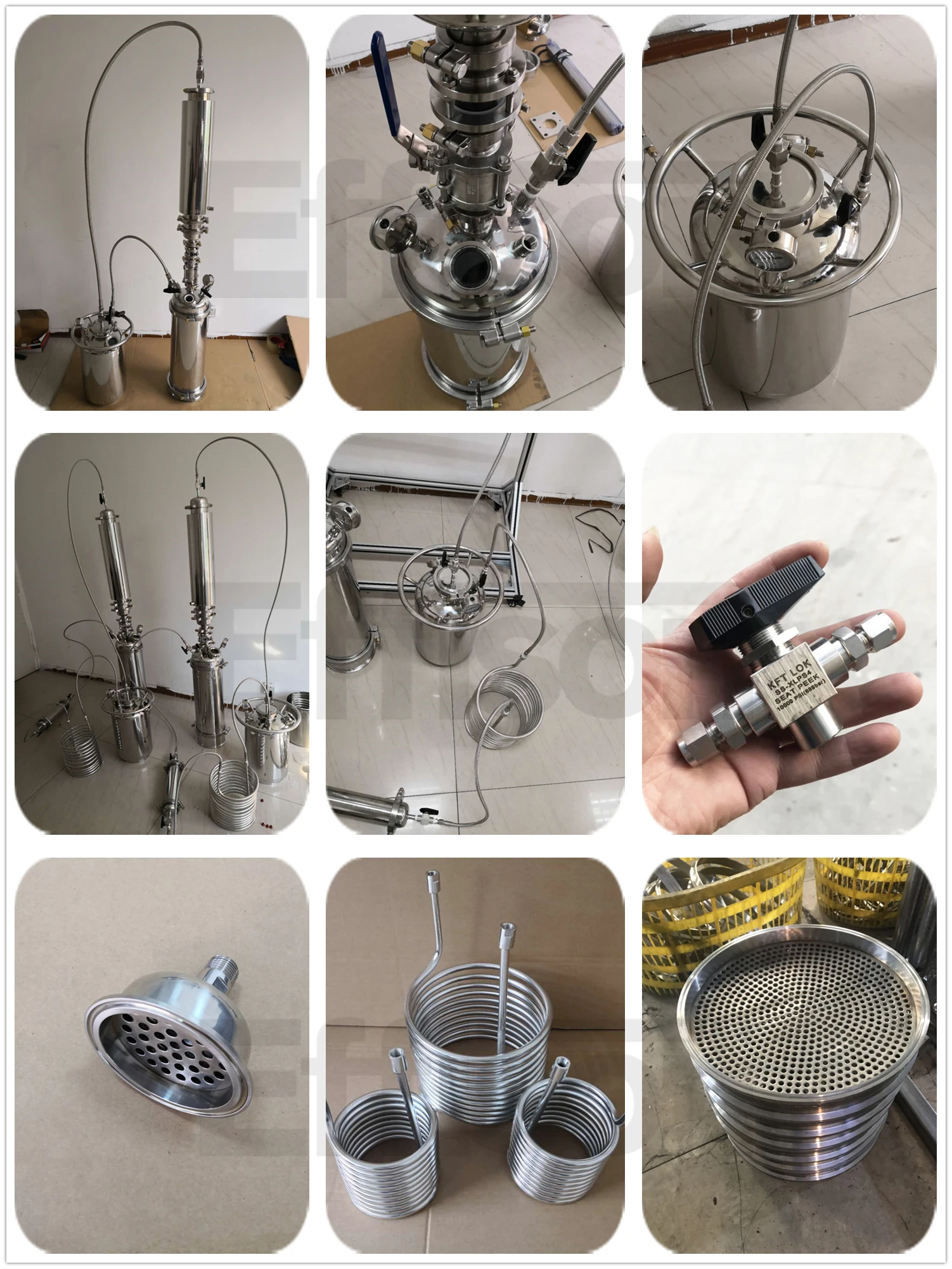

Detailed Images
