Egg tray production line Pulp moulding machine for coffee cup tray holder high-tech paper recycling equipment

FOB Reference Price:Get Latest Price
$25,000.00 - $210,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
FC-ZMG4-32
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Product Type:
Egg Tray Machine
Processing Type:
Pulp Molding Machine
Power(W):
200KW
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Warranty:
One Year
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
FC
Voltage:
220V50HZ / 380V50HZ
Dimension(L*W*H):
40m*10m*5m
Weight:
2500kg
Certification:
CE
Production Capacity:
2000 - 6000pcs/h
Product name:
machine for coffee cup tray holder high-tech paper recycling equipment
Machine matreial:
304 Stainless Steel
Raw material:
Waste Paper
Attribute:
Egg tray making machine
Power supply:
380V, 50HZ, 3Phase
Finished products:

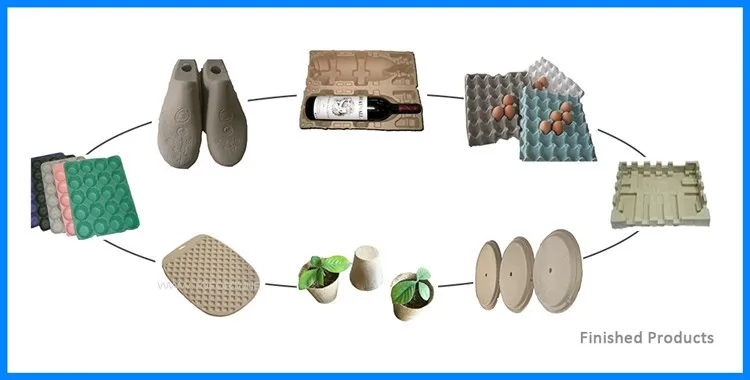

Egg tray/box,fruit tray,wine packs,seed pots,cup tray...
Main system:
Pulp making system, forming machine, drying line, packing part
Products size:
According to your design and samples
Drying method:
Coal,diesel oil,natural gas,electricity.etc
Supply Ability
Supply Ability:
20 Set/Sets per Year
Packaging & Delivery
Packaging Details
Standard export package for Egg tray production line pulp moulding machine for coffee cup tray holder high-tech paper recycling equipment
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

Egg tray production line pulp moulding machine for coffee cup tray holder high-tech paper recycling equipment

Roller type egg tray egg box making machine bring in advanced technology to develop and exploit our own FC brand products. It gets good comments from customer and gain social acceptance in society as a result of its excellent performance characteristic. The main part of our machine use stainless steel material, other auxiliary parts adopt domestic famous brand. We already develop automatic counting stacking and packing system etc. FC series pulp molding machine features of high efficiency, low maintenance and energy saving. The pulp molding system can use all kinds of waste paper to produce high quality molded fiber products. With different molds it can produce egg trays, egg boxes, vegetable trays, fruit trays, can trays, seedling tray, etc.

1. Pulping system :

Put the waster paper in to the hydra pulper, the paper and water will mix in hydra pulper, then go to the refiner machine, refiner machine make the pulp more small and uniform, then the pulp pump absorb the pulp to the pulp pool. After the second mix in the pulp pool, the pulp will go to the form machine pulp tank.

2. Forming system :

The vacuum pump will give the vacuum to make the forming mold absorb the pulp from the pulp tank. There is a PLC control the pulp absorb time, the finished product will be shaped on the forming mold, then the transfer mold transfer the products to the drying line, the air compressor will give the air to blow the products, then the products will be fall from the mold. The products delivery to the drying line automatic . The water will be go back to the water pool, will be recycle .

3. Drying line : (can use gas, dissel, coal on the drying line)

There are burners and blowers on the two sides of the drying line. Burner give the hot power and the blower increase it, there will be hot air mouth in the drying line also blow the hot air. The drying line is protect by the insulation board. The degree can reach 200 degree.

4. Automatic counting:

After drying line, the egg trays go to the automatic counting and stacking system, you can preset the quantity of one pile, such as 100pcs or 200pcs. When the quantity okay, it will be alarm. The products stacked at the same time. You can packaged them directly.

Egg tray / egg box making machine main technical parameters
Product Name
Roller Type Egg Tray Making Machine
Model
FC-ZMG3-12
FC-ZMG3-24
FC-ZMG4-16
FC-ZMG4-32
FC-ZMG6-48
Output (pcs/hr)
2000-2500
3000
3000-3500
4000
5500-6000
Molding Mould / pcs
12
24
16
32
48
Transfer Mould / pcs
3
3
4
4
6
Application
Packing & Delivery
Company & Factory

Longkou FuChang Packing Machinery Co., Ltd is located in Longkou, Shandong. We are the professional manufacturer of packing machinery since 1995 especially in paper pulp molding machine, EPE foam sheet extruder , EPE foam fruit net/ pipe extruder, log splitter wood chipper etc.

Based on so many years abundant experience of producing the paper pulp molding machine and plastic packing machine, we already develop PLC control forming machine, advanced multi-layer drying line, automatic packing system etc. Our factory has a perfect product quality, a high degree of mechanization, technology precision and is trusted by customers. Our machines have exported to many countries, such as Egypt, Ghana, South Africa, Uzbekistan, Thailand, Iceland, India, Venezuela, Vietnam and so on. We keep up the management concept of taking customer's profit into first consideration, helping customers reduce the production cost, improving the quality of the products and offering the best after-sale service.

The people of Fuchang Company promise that we will constantly improve our products and pursue outstanding quality. Top after-sales service is our pledge.

We together with all world friends, "work shoulder to shoulder ,cooperate sincerely, exchange business opportunities and create glories".

Our Service

We will service for you and solve all the problem for you by 7*24 hours:
1. We will arrange our professional engineer go to your country to install and test the machine and train your engineers.
2. Our salesman will be 7*24 hours online for you to solve any problems from your side.
3. We have been in this line for business for more than 20years.So we have abundant experience of producing machine.
4. Our machine is high quality. We are your reliable manufacturer of machine.
5. Contact with us. We can provide you non-stop service with the pre-sale, sale and after sale service. Save your purchasing cost and maintenance costs.

Q1: Will you conduce training for our staff here?
A1: Yes, we will arrange professional engineers to install and test machine and train the buyer's engineers.
Q2: How about the visiting?
A2:
We are located in Longkou City, Shandong Province, China. The nearest airport is Yantai Airport. You can transfer from Guangzhou, Beijing or Shanghai airport to Yantai airport. We will pick you at the Yantai airport when you come to visit us.
Q3: Could I test machine before placing order?
A3:
We will make the machine running during your visiting to check the working condition. And there are some client who bought our machine in our city. We will take you to their factory to check all working flow.
Q4: How many countries have your machine been installed?
A4:
Our machines have exported many countries such as Korea, Japan, Kazakhstan, Uzbekistan, Malaysia, Russia, Poland, France, Turkey, Thailand, Vietnam, Brazil, Columbia, Argentina, Costa Rica, Algeria, Nigeria, Malawi, Bolivia, Sudan, Jordan, Egypt, South Africa, etc.
Q5: What are your terms of payment?
A5:
We accept T/T, L/C, Western Union and Cash.
Q6: Guaranty period?
A6:
One year guaranty for the machine and 6 months for the electrical appliances.
