Electric Heating Element Stainless Steel Mica Band Heater for Extruder

  • 1-49 Pieces
    $20.00
  • 50-99 Pieces
    $16.20
  • 100-499 Pieces
    $14.20
  • >=500 Pieces
    $12.20
Model Number:
100*200mm
Power(W):
80W and can be customized.
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Samples: $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
Band Heater
Power Source:
Electric
Dimension(L*W*H):
100*200mm
Weight:
weigh after production
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Hongtai
Voltage:
220V and can be customized.
Certification:
CE
Sheath material:
SUS304
Heating elements:
Resistance Wire Cr-Ni
Insulation material:
mica
Max operating temp:
300℃
Wattage Tolerance:
+5%, -10%
Resistance tolerance:
+10%, -5%
Voltages available:
380V,240V, 220V,110V,36V,24V or 12V
Length tolerance:
±1 mm
Diameter tolerance:
±1 mm
Application:
extruder, injection molding machine and so on
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:
one year

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X20 cm
Single gross weight:
1.0 kg
Package Type:
pastic bag,carton and wooden case
Lead Time :
Quantity(Pieces) 1 - 10 11 - 50 >50
Est. Time(days) 7 10 To be negotiated

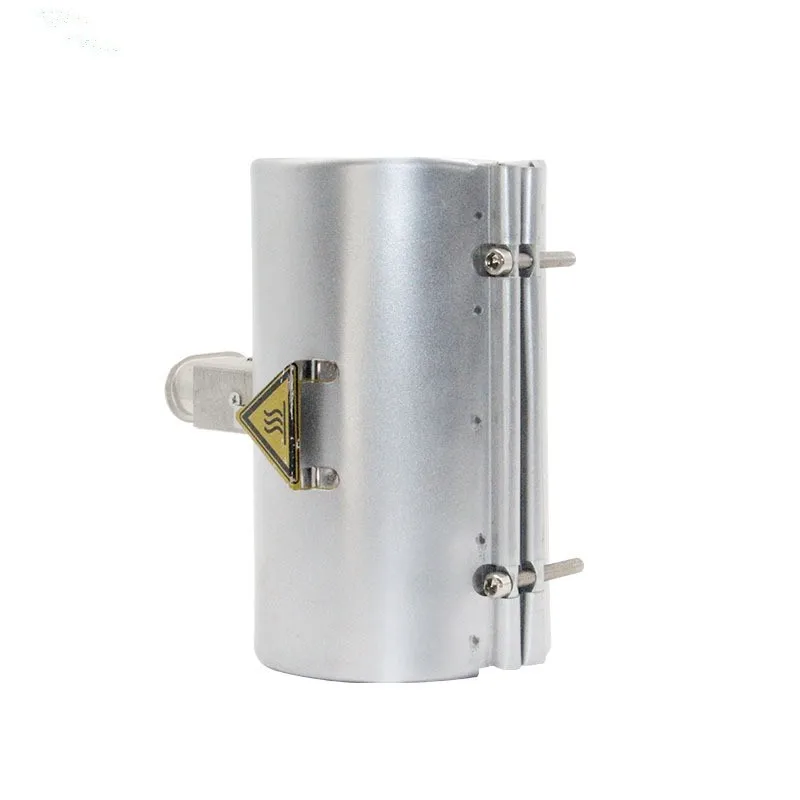

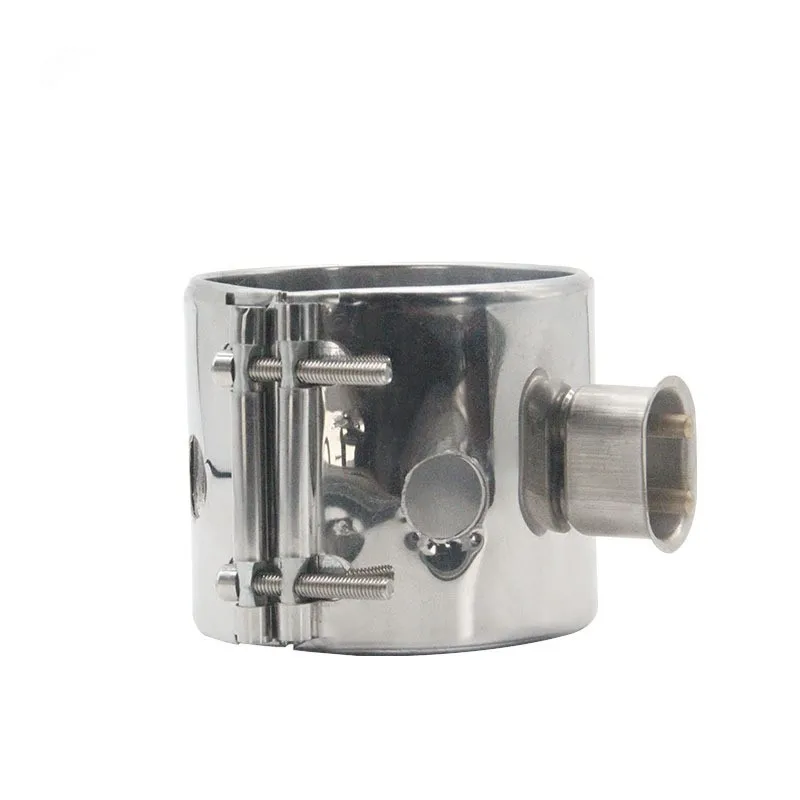

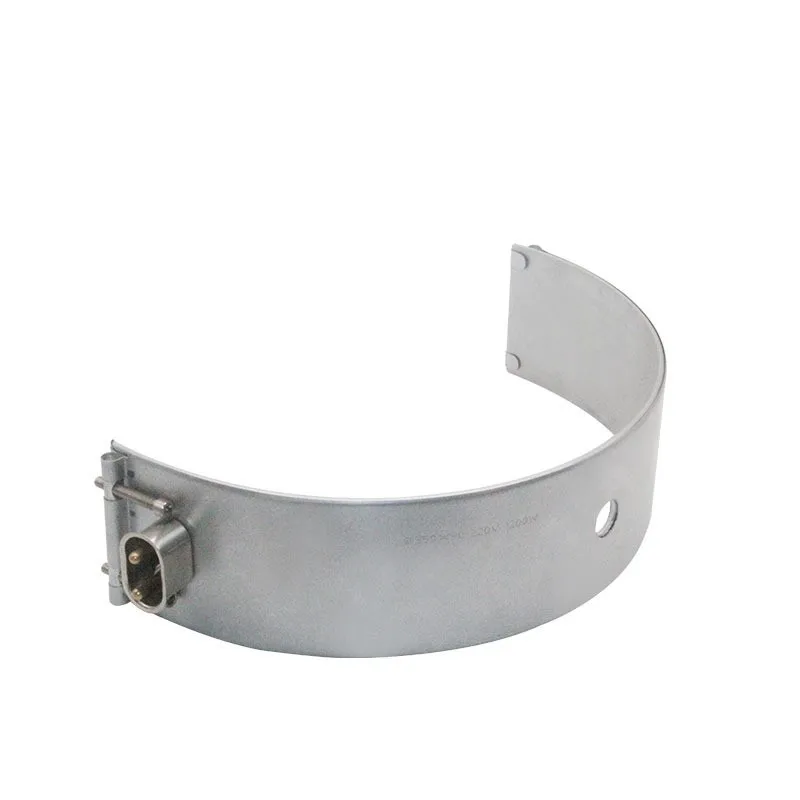

mica band heater
Product Description

Mica heaters are efficient and economical solutions to the heating requirements of many applications. Mica heaters can attain a maximum sheath temperature of 900°F, but with different electrical termination styles, clamping mechanisms, and ability to accommodate holes and cutouts, mica band heaters are successfully used in many applications, but are mostly sought for in the plastics industry..


Product Name
stainless steel mica band heater
Material
stainless steel, mica insulation and ni-ct resistance wire
Mini Size
diameter 20mm, height 20mm
Band Construction
one-piece or two-piece
Gap Locking Mecharism Type
flange, barrel nut or none
Termination Style
plug, ceramic block, screw or lead wire
Hole Availabliity
customized
Notches Availability
cuztomized
Products Show

How to order ?

Pls provide this informations:

1.Vottage :380V,240V, 220V,200V,110V and other can be customized.

2.Wattage :80W,100W,200W,250W and other can be customized.

3.Heater Inside Diameter :25mm, 30mm, 40mm, 60mm, 80mm, 100mm and other can be customized.

4.Heater Height :30mm, 40mm, 60mm, 80mm, 100mm and other can be customized.

5.Whether you need holes or not. If yes, it is necessary to provide holes' quantity, size and position.

6.Termination Stype :screw terminal, plug terminal, ceramic block terminal or lead wire terminal.

7.Quantity :the mini order quantity is 5pcs.
