Electric Hunting Car

FOB Reference Price:Get Latest Price
$3,000.00 - $5,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
HC 2
Lead Time:
Quantity(Units) 1 - 1 2 - 100 >100
Est. Time(days) 10 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Seats:
1 - 2
Fuel Type:
Electric
Battery Voltage:
48V
Certification:
CE
Color:
customized
Ground clearance:
390mm
Front/rear wheel width:
1270mm/1250mm
Wheelbase:
1650mm
Minimum turning radius:
2.6m
Max. speed:
18-40km/h adjustable
Gradeability:
40%
Range:
100-120km
Net weight:
245kg
Dimension:
2480*1320*1530mm
Supply Ability
Supply Ability:
3000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Iron frame
Port
Guangzhou, Foshan or Shenzhen
Lead Time :
Quantity(Units) 1 - 1 2 - 100 >100
Est. Time(days) 10 20 To be negotiated
About US

Uni Technology Co., Ltd. cooperates with such universities in China as Nanjing University of Science and Technology, Jiangnan University, Sichuan International Studies University to develop cost-effective powertrain systems with high power density, high reliability, matching ISO26262 for different models (tricycles, logistics cars, commercial vehicles and passenger vehicles) based on the their requirements and future markets, at the same time, we also work with automobile manufacturers like Jiangling, Marshell Green Power, China FAW Group Corporation.

Our team members:
1. Managers with a comprehensive understanding of the market
2. Experienced engineers who have engaged in electric vehicle industry for more than 10 years with full proficiency in technology
3. Energetic and motivated colleagues
After years of development, the supply & sales chain was adjusted and improved constantly and now became a completed system. We can provide comprehensive service from pre-sales introduction to after-sales technical support.

Our products:
1. AC driving system (3kw-15kw): AC motor and controller
2. PMSM driving system (3kw-100kw): PMSM motor and controller
3. Transmission assembly: rear axle, front live shaft, reducer and rear/front drive assembly
4. Power supply system: battery charger and Lithium battery
5. Other components: DC-DC converter, dashboard, pedal, encoder and brake
6. Electric golf cart, hunting car and street sweeper

Discription
Features:
Electronic power steering system
Non-contact angle sensor accelerator
Differential lock rear axle
Electromagnetic automatic parking and four-wheel hydraulic disc brake
PP plastic cover
High strength aluminum alloy chassis

Components

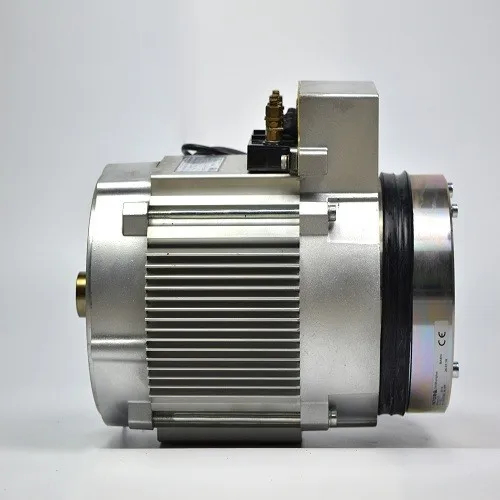

AC Motor 48V 4KW

1. Simple but robust in structure


2. High reliability


3. Free maintenance


4. Big torque and high efficiency


5. Pure copper winding

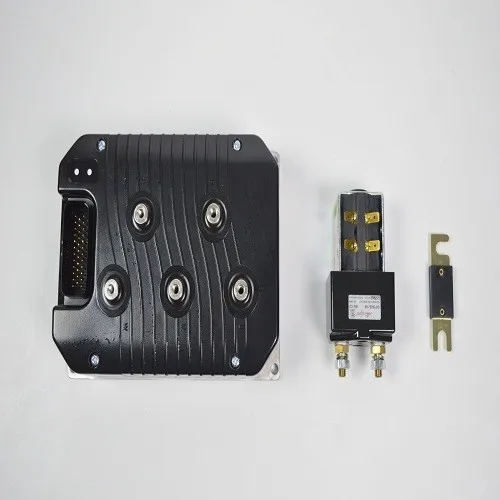

Curtis Controller 1234-5271

1. High temperature adaptability

2. Programmable

3. Anti-rollback function

4. Regenerative braking effect

5. Multiple protections (under-voltage and over-voltage and high temperature)



Trojan Battery 8V 6pcs

1. Imported from US


2. Closed PP plastic battery box


3. Strong toughness and durability


4. It has the function of preventing battery liquid from overflowing and corroding the car body

Battery Charger

1. Carried with the car


2. Automatic winding device


3. Convenient to charge the battery


4. Charging time: 8-10hrs

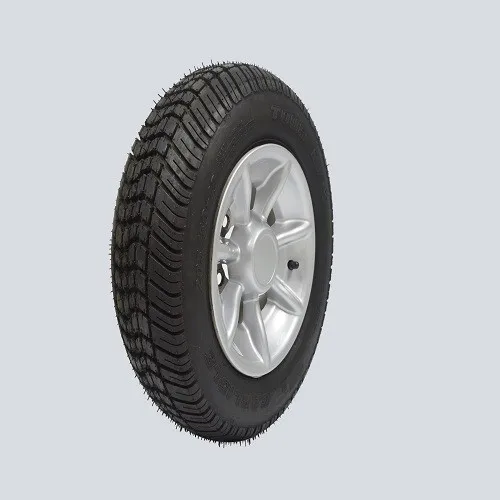

Tire

1. Imported 23*10-14 tires


2. More resistant to wear

Base Plate

1. High-strength PP plastic underbody


2. Never rust


3. Resist corruption


3. Easy to clean

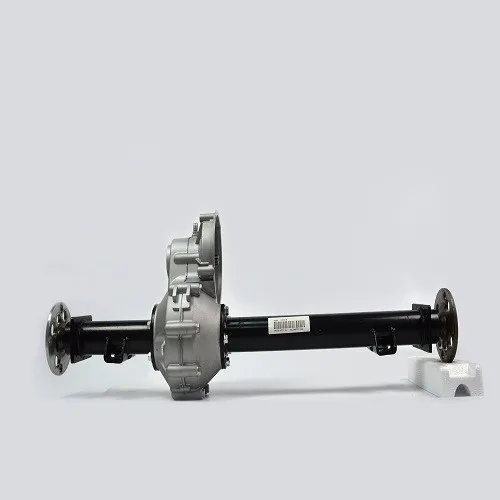

12:1 Ratio Rear axle

1. It has a three-axis hard-toothed gear


2. Flexible to turn because it is with a differential


3. Aluminum alloy die-casting box


4. Has good air tightness and no oil leakage

Experiment

In the road test, our car was driving on muddy, bad roads and hillsides. It was driving safely on rough roads and climbs 40% of the hillside effortlessly.

Application
Packing & Delivery

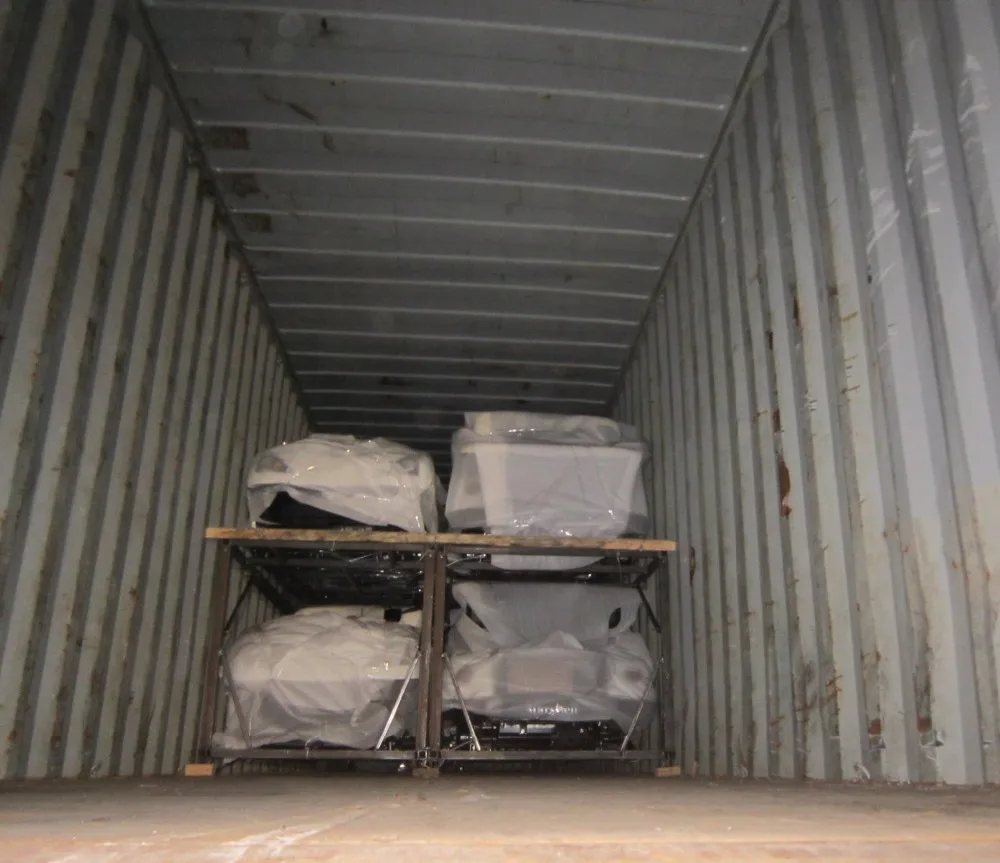

The vehicle will be packed in iron frame and delivered via sea.

Certifications
