Electric Power Source and Meat Processing Machinery,Deck Baking Oven Type Fish Smoking Machine

FOB Reference Price:Get Latest Price
$2,000.00 - $13,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
YZYX-50
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
smoke oven
Application:
Smoking Meat
Automatic Grade:
Automatic
Production Capacity:
100%
Place of Origin:
Henan, China (Mainland)
Brand Name:
YIZE
Voltage:
220/380V can be changed
Power(W):
3.5kw
Dimension(L*W*H):
1200*1000*1680mm
Weight:
400kg
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support
Product name:
Deck Baking Oven Type Fish Smoking Machine
Material:
Stainless Steel
Function:
fish chicken sausage salmon smoking machine
Capacity:
50 kg/stove
High Steam Pressure:
0.3-0.6Mpa
Low Steam Pressure:
0.1-0.2Mpa
Inner stove temperature:
<120°C
Hydraulic Pressure:
0.2Mpa
Keywords:
smoke oven
Other keywords:
meat smoking machine
Supply Ability
Supply Ability:
110 Set/Sets per Month Deck Baking Oven Type Fish Smoking Machine
Packaging & Delivery
Packaging Details
Electric Power Source and Meat Processing Machinery,Deck Baking Oven Type Fish Smoking Machine for cooking will be packaged by standard non fumigation wooden box.
Port
Qingdao/Shanghai/Guangzhou
Product Description

The machine has the super function of baking, drying, steaming, boiling, cold smoking, hot smoking and cooling, which is now widely used in the smoking meat,chicken,beef, fish, sausage, and some other food that need to be smoked. The users can choose the proper processes to suit yours special needs, achieving the purpose of being cooked, smoked and sterilized.


Structure and working principle :

The smoker is mainly composed by furnace, heating system, air circulation system , smoke system , and electric control system, etc.

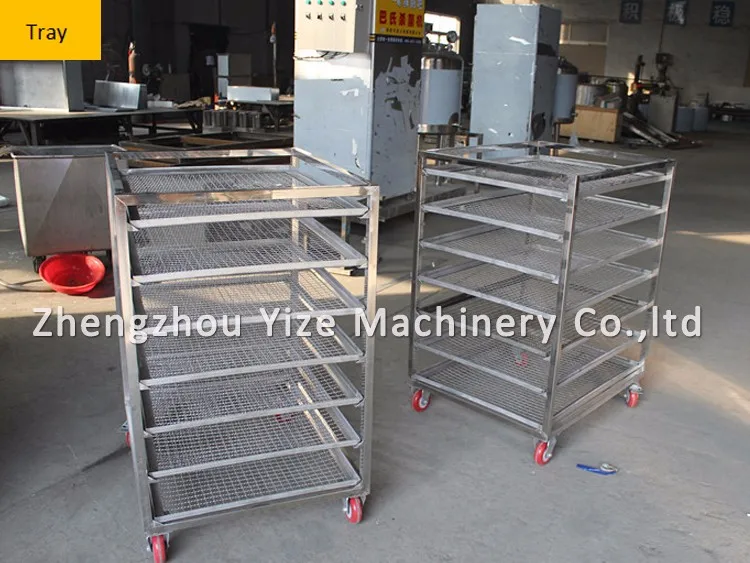

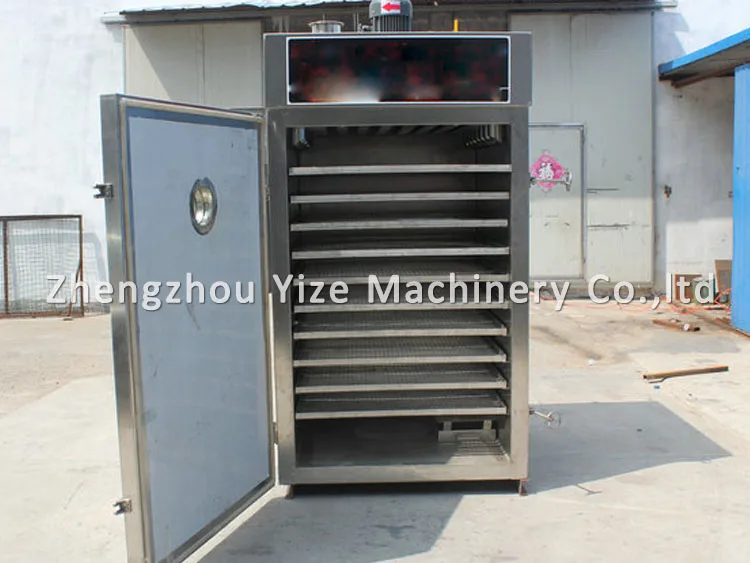

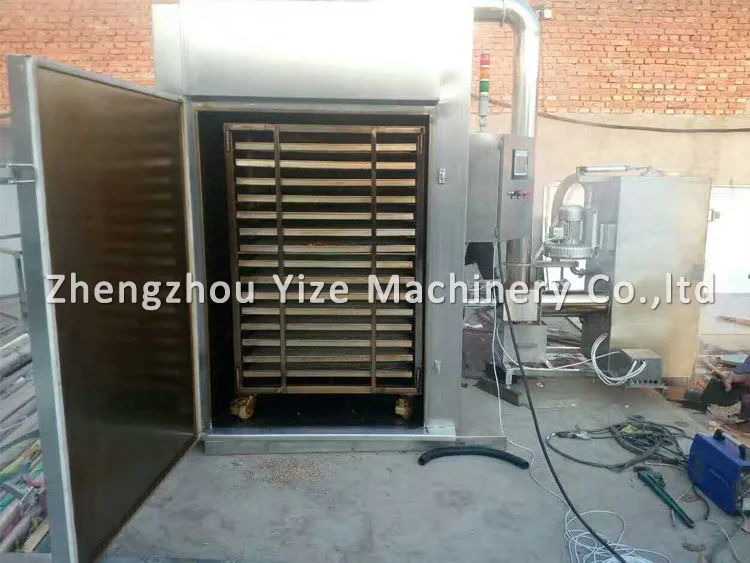

Furnace : furnace wall and all internal components are made of stainless steel , corrosion-resistant. Hang the on the trailer, push the trailer into the furnace, close the door, then you can set the cooking and other processing parameters.

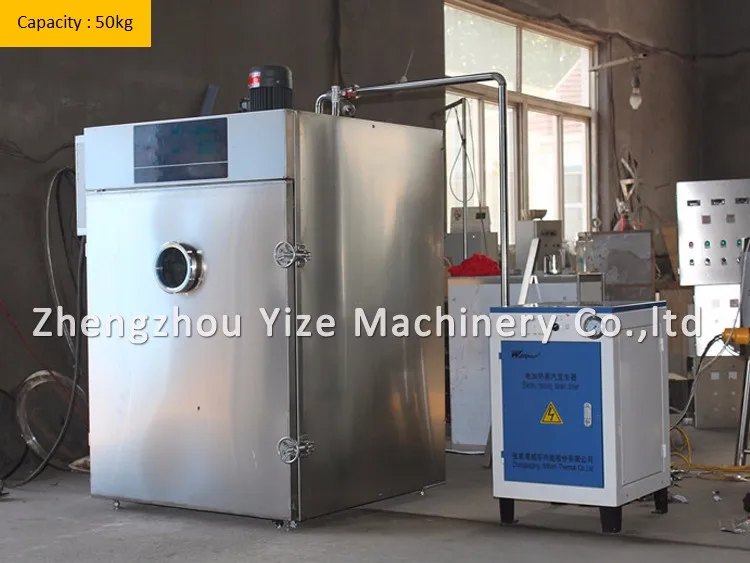

Heating and cooking system: the smoker is connected with the external steam system, and the steam heat the food directly while enter into the smoker, the steam production capacity can be adjusted according to different product.

Air circulating system : the electric fan is equipped on the top of smoker. High power and high winds make sure the smoker is heated up, so that a uniform temperature throughout , thus making sure that the stable and reliable quality of products.

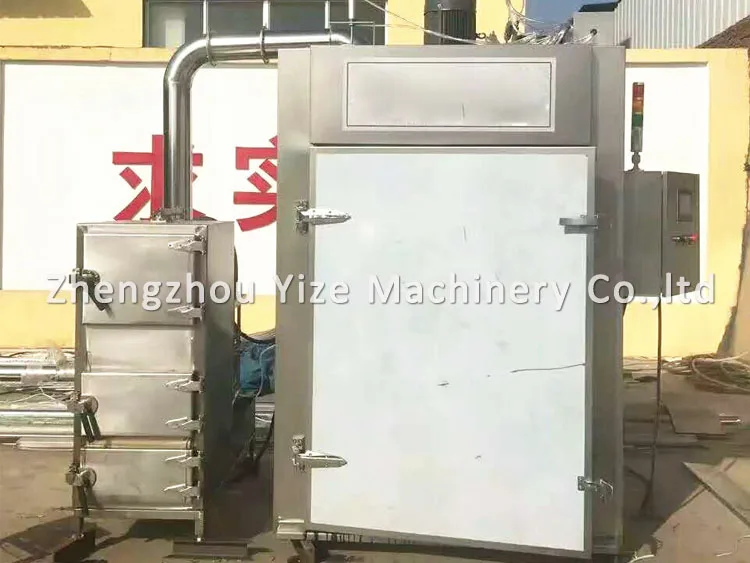

Smoking system: The sawdust box is on the top of the smoke box, the reducer drive stirring mechanism, the sawdust is sent to lower plate heater periodically. The smoke switch control button is on the electrical control box. The sawdust will produce smoke while heating , and the smoke is sent to the smoker machine by the the fan.

Model
YZYXL-50
YZYXL-100
YZYXL-200
YZYXL-250
Productivity
50kg
100kg
200kg
250kg
Host machine size (mm)
1200*1000*1680
1350*1050*1978
1800*1200*2600
1840*1350*3000
Total power
4kw
4.2kw
5.5kw
7.5kw
Voltage
220v/380v
220v/380v
220v/380v
220v/380v
High pressure
0.3-0.6
0.3-0.6
0.3-0.6
0.3-0.6
Low pressure
0.1-0.2
0.1-0.2
0.1-0.2
0.1-0.2
Water pressure
0.2
0.2
0.2
0.2
Trailer size(mm)
No
816*860*1150
1000*1000*1380
1100*1350*1840
Weight(kg)
330
650
900
1200
weight (kg)
400kg
680kg
800kg
1400kg
Standard Trailer(mm)
No
800*800*1280
820*820*1600
1000*1030*1980
Machine Dimension(mm)
1200*1000*1680
1340*1200*1800
1360*1400*2200
1600*1320*3000

Features :

Steam heating (cooking) , hot air (drying or baking), smoke, exhaust and other functions.
Steam heating temperature, generally applicable to users of the boiler or steam generator configuration.
Using double stainless steel structure, thick sandwich filled with insulation materials, reduce energy consumption. The process parameters (time, temperature, etc.) is displayed by the man-machine interface, control, ensuring accurate.
Work completed or halfway machine fails, with automatic alarm function. There are two temperature detection (furnace temperature and product temperature)

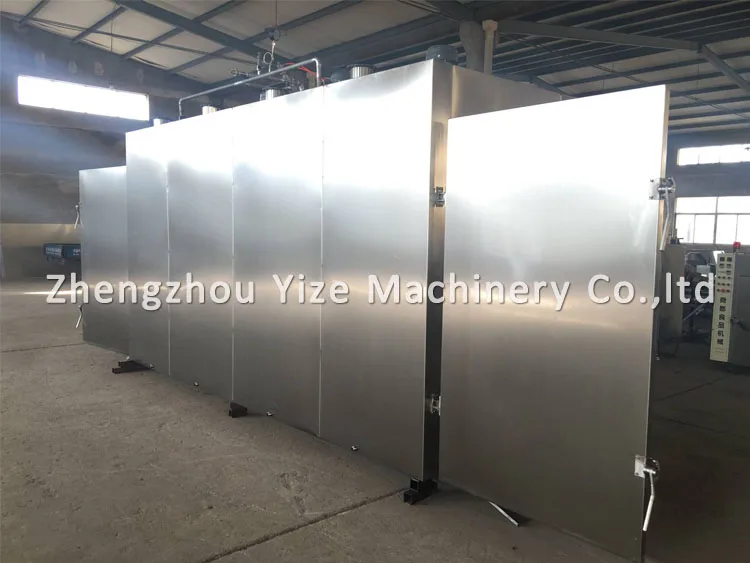

Detailed Images
Related Products
Transaction history

We are the supplier of the Trade Assurance amount guaranteed by Alibaba, your payment will be 100% protected, the following is our Trade Assurance Transaction History:

Packing & Delivery

Packing

We send the machine picture which you order . then packing it with standard export wooden box after you confirm machine is ok .
Different machines package will different . we supply standard export wooden box ,carton box package . if big machine and production line machine it will be loaded in the container directly

Delivery

1.Delivery by sea :After delivery it to seaport . will tell you the shipping time and addrive time . Finally , send all origin documents to you by Express for free .
2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport .Will tell you the Express tracking number
3.Delivery to the warehouse which you reques . Will tell you
logistic or express tracking number

Our Service

Service before sale

Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.

Service on sale

We are confident that we sell our machines to customers at low prices and activated. Professionally and patiently introduction
pictures and video to show machine

Service after sale

1, Free insurance for goods
2, 24 hours online to solve any

questions.Supply manual book and technical support,maintain video to help you.

Certifications

Zhengzhou Yize Machinery CO.,Ltd’s factory was built in 2008, its exporting company was assessed gold supplier in 2015 by alibaba. It is specialized in the production of food machinery, We will supply 100% QC inspection before shipment and 100% guaranteed after sales service. Top quality machinery is waiting for your choose.
