Electric/Steam/ Direct Flame Heating Beer Machine Supplier Beer Making Equipment

FOB Reference Price:Get Latest Price
$11,124.00 - $35,421.00 / Sets | 1 Set/Sets Beer Making Equipment (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUMBER
Model Number:
hb-100l
Processing Types:
Alcohol
Voltage:
220-330
Power(W):
65/85
Dimension(L*W*H):
40
Weight:
800-1500KG
Certification:
CE ISO
Material:
SUS304 or copper
Control system:
PLC Siemens or LG brand
Tank thickness:
2-4mm
Heating method:
Steam/electric/direct fire heating
Insulation layer:
PU or rockwool
Fermenter cone:
60-75°
Cooling jacket:
Miller board or Ice water belt
Certificate:
CE/ISO/TUV
Guarantee:
2-5 years, all life service
Name:
Beer Making Equipment
Warranty:
5
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
23 Set/Sets per Month Beer Making Equipment
Packaging & Delivery
Packaging Details
Plastic Film and Corrugated Paper
Port
QINGDAO
Lead Time :
30 Days at Factory After Deposit

Electric/Steam/ Direct Flame Heating Beer Machine Supplier Beer Making Equipment

Product Description

Electric/Steam/ Direct Flame Heating Beer Machine Supplier Beer Making Equipment



Beer Brewing Equipment Manufacturer. Whole Beer Production Line Can Be Supplied.



Welcome To Visit us At Any Time.







Company Information

♦ One of biggest factory in Jinan city;
♦♦ Can supply CE certificate;
♦♦♦ Supply 30L/Batch---30,000L/Batch turnkey beer brewing system;
♦♦♦♦ Supply turnkey bottle filling system;
♦♦♦♦♦ Tell us how much beer do you need everyday. We offer you detailed specification, price, drawing and layout.
♦♦♦♦♦♦ We send engineer to install system and brew beer for you.

♦♦♦♦♦♦♦ Trade assurance is available.







Complete System









System introduction

Grinding SystemMain equipmentMalt mill; screw feeder, grain hoppers, grist hydrator
Working capacity80-800Kg/h
FunctionMalt mill breaks grains, make it easier for sugar to separate out when saccharify
Mashing SystemMain equipmentMashing tun, lauter tun, kettle and whirlpool tank
OptionalCold liquid tank (CLT), hot liquid tank (HLT), Boiler
Capacity30L--30000L per batch
Heating waySteam heating, electric heating, direct fire heating
MaterialSUS304, thickness: 2.0-4.0mm
InsulationPolyurethane/Rock wool, thickness: 80mm
Polishing precisionRa0.4um
Accessories Pump, pipeline, heat exchanger, valve, raker, platform, and all other accessaries
FunctionSeparate all sugar from grains and solve sugar in water.  Also solve hops in water. Then separate grains and impurities from water. Finally get pure wort
Fermentation systemMain equipmentSeveral fermentation tanks. Quantity is decided by you
Capacity30L--30000L per tank
Material SUS304, thickness: 2.0-4.0mm
InsulationPolyurethane/Rock wool, thickness: 80mm
Polishing precisionRa0.4um
Cooling wayIce water belt cooling
Cone bottom60° resist compression design
Sampling method1 piece of aseptic sampling valve
Fermentation tank pressureDesign pressure 0.3MPa; Working pressure 0.15Mpa
AccessoriesPump, pipeline, yeast adding tank, valve, and all other accessaries
FunctionYeast has aerobic respiration and  anaerobic respiration in fermentation tank. Turn sugar into CO2 and alcohol. Finally we get original beer
Refrigeration SystemMain equipmentIce water tank, chiller
Capacity90L--90000L per tank
ChillerCompressor is USA copeland
MaterialSUS304, thickness: 2.0-4.0mm
InsulationPolyurethane/Rock wool, thickness: 80mm
Polishing precisionRa0.4um
Cooling mediaGlycol water or alcohol water
AccessoriesPump, pipeline, valve, and all other accessaries
FunctionCool down wort when fermentation tank temperature is high. Control fermentation carries on under appropriate temperature. Sometime, ice water is also used to cold down hot wort before wort goes into fermentation tank
CIP systemMain equipmentNaOH tank, H2O2 tank
FunctionClean all tanks before brewing beer or finish brewing beer. Use NaOH to clean firstly, secondly is H2O2, finally is water. Then begin to brew beer
Control SystemMain equipmentButton control box or PLC control box
Function: Control all the pump and motor. Control mashing system and CIP system manually, control fermentation tank temperature automatically.
OthersCan also supply auto filling system, capping system, filtering system, water treatment system,  pasteurizer and so on.





Product Description6



Main Equipment



1. Malt Milling System



Malt Mill: Material: carbon steel and chrome plate roller;



Double roller type malt mill machine;



Equipped with motor, belt pulley, belts, etc;



Working capacity, power and dimension is decided according to mashing system.













2. Mashing System

Mashing/Lauter Tank:

Inner-Jacket (SUS304 SS) thickness: 2.5-4.0mm;



External-Jacket (SUS304 SS) thickness: 2.0-3.5mm;



Mushroom-shaped head (SUS304 SS) thickness: 2.5-4.0mm;



Insulation layer: PU/Rock Wool-thickness: 80mm;



Lauter tank equipped with plow knife;



CIP cleaning ball: Material: SUS 304; Comprehensive cleaning;



Polishing precision up to: Ra0.4µm;



Outsourcing surface: Plate protection and sand polish on welding seal.







Boiling/Whirlpool Tank:

Inner-Jacket (SUS304) thickness: 2.5-4.0mm;



External-Jacket (SUS304) thickness: 2.0-3.5mm;



Mushroom-shaped head (SUS304) thickness: 2.5-4.0mm;



Insulation layer: PU/Rock Wool-thickness: 80mm;



Heating way: Electricity heating/Steam heating/Direct fire heating;



Exhaust chimney for condensate;



CIP cleaning device: Material: SUS 304; Comprehensive cleaning;



Polishing precision up to Ra0.4µm;



Outsourcing surface: Plate protection and sand polish on welding seal.











3. Fermentation System

Fermentation Tank:

Material: Inner (SUS304)thickness: 2.5-4.0mm;



External-Jacket(SUS304) thickness: 2.0-3.5mm;



Oval head cone bottom, thickness: 2.5-4.0mm.



Insulation: Polyurethane-thickness: 80mm;



Cooling way: Ice water belt cooling;



Design pressure 0.3MPa; Working pressure 0.15Mpa;



Spray ball for cleaning, comprehensive cleaning;



Foot bolt: Adjust the height of the equipment, easy to install.





Yeast Adding Tank:

Material: SUS304;



Adopts SUS 304 stainless steel fine polished process, outsider stainless steel polishing, have three connection mouths;



Adding yeast sight glasses, aseptic air mouth, and wort pipe connection mouth.





4. Cooling System

Ice Water Tank:

Inner-jacket (SUS304) thickness: 2.5-4.0mm;



External-jacket (SUS304) thickness: 2.0-3.5mm;



Insulation: Polyurethane-thickness 80 mm;



Internal and external plate protection and sand polish on welding seal;



Temperature mode: PT100 temperature probe, temperature transmitting, temperature control panel display;



Feeding method: Ethylene glycol or alcohol water fill into the tank from the top manhole. Refrigeration water fill into ice water tank from the top manhole;



Discharging method: Ethylene glycol water discharge from the ethylene glycol outlet on bottom of ice water tank. Refrigeration water discharge from the refrigeration water outlet on bottom of ice water tank.





Chiller:

Compressor is USA Copeland;



Its power and working capacity will be decided according to whole brewing system.

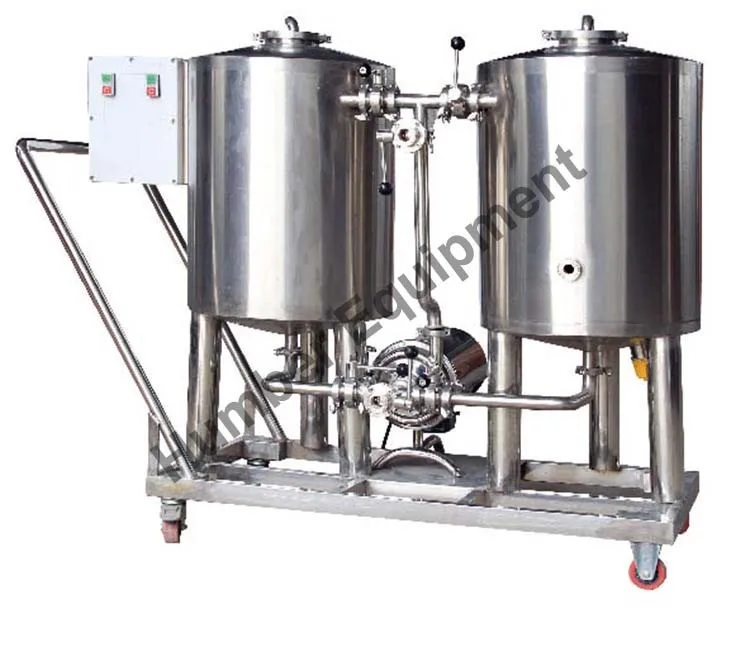

5. CIP System

Disinfection Tank:

Material is SUS304;



Thickness is 2mm;



Weld slinging band;



Material all adopt the international standard of 304 stainless steel, all welding are argon protection single-sided, double-sided forming.



Alkali tank:

Material is SUS304;Thickness is 2mm;



Weld slinging band;  Valves, accessories supporting;



Material all adopt the international standard of 304 stainless steel, all welding are argon protection single-sided, double-sided forming.



6. Control System

Control Cabinet:

All specification is decided according to whole brewing system.







Customer Case







Company Information

Jinan is manufacturing base of beer brewing system.

We are one of top 3 factory in Jinan.

Jinan Humber equipment technology co., ltd is one professional beer brewing equipment manufacture in China;

We specialize in manufacturing small, medium and big sized brewery plants;

We also manufacture all types and sizes of fermenting and storage tanks;

Our breweries can be designed according to the specific wishes of our customers;

We also can offer you a wide variety of technical solutions;

We  provide beer recipe, train brewing master;









Why Choose US?

1. Professional manufacturer. Design specifically for you.3D & CAD drawing can be offered.
2. Products are 100% tested.
3. Engineer & training available.
4. 30 days delivery time.
5. 5 years warranty.
6. 7*24 hours service.
7. L/C is available
.

8. CE/ISO certificate is available.
