Electric infrared halogen bulb ir lamp for water drying

Feedback Ratings
  • 1-9 Pieces
    $16.00
  • 10-49 Pieces
    $14.50
  • 50-99 Pieces
    $13.50
  • >=100 Pieces
    $13.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Contact Supplier
Samples - $16.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
E-DEN
Color:
Transparent
Specification:
10mm/11mm/12mm/14mm/15mm/19mm
Material:
Quartz Glass
Certification:
CE
Single halogen tube:
short wave infrared lamp
Peak Wavelength:
1.0-1.4 μm
Quartz diameter:
10mm/11mm/12mm/14mm/15mm/19mm
Reflector 1:
Ceramic White 70% reflective rate
Reflector 2:
Gold 90% reflective rate
Ceramic ending cap:
R7s/C
Voltage:
220-240V
Wattage:
1000-6000W
Total length:
120-2500mm
Response heating time:
1 second

Packaging & Delivery

Selling Units:
Single item
Single package size:
65X10X10 cm
Single gross weight:
0.08 kg
Lead Time :
7
Infrared Heating

Infrared heating technology radiates and conveys large amounts of energy in a short time. Infrared lamps are suitable for printing、packing、plastic processing、heating food、drying wood、auto industry and other areas what you need. Our lamps are available for large surfaces, for three dimensional shapes and for small work pieces. By matching the optimum wavelength of infrared, the lamps can save energy up to 50%. Twin tube shape is a better stable design for short wave infrared lamp with high radiation density and high power intensity.


Quick heating: 1~2 seconds fast response time.

Special reflectors: Gold reflector (90% reflective rate), White ceramic reflector (70% reflective rate).

Matched IR radiation wavelength: Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).

Higher density power output: The highest surface power output of short wave lamp is 200KW/M2, Fast response medium wave lamp is 130KW/M2, Medium wave lamp is 60KW/M2.

Long working life: We can promise the working life of short wave and fast response medium wave lamp 5000hrs and medium wave lamp 8000hrs.

Standard Design

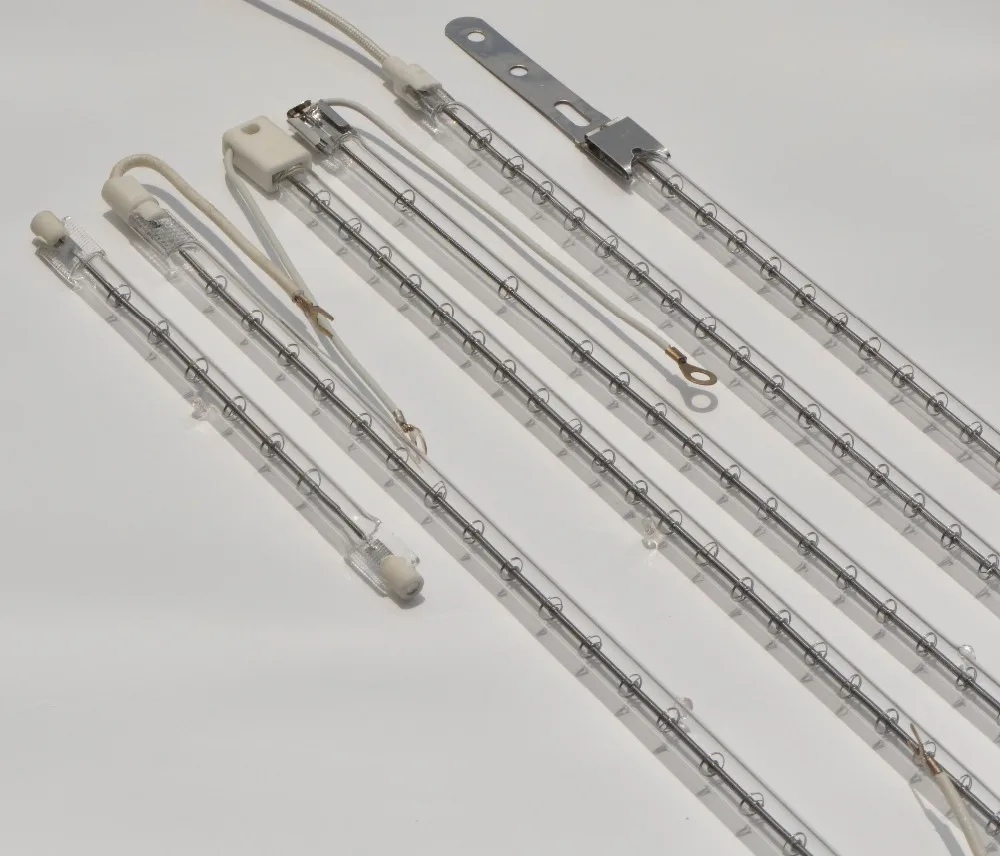

According to the different ending caps, single tube infrared lamps can be produced in the following different types.

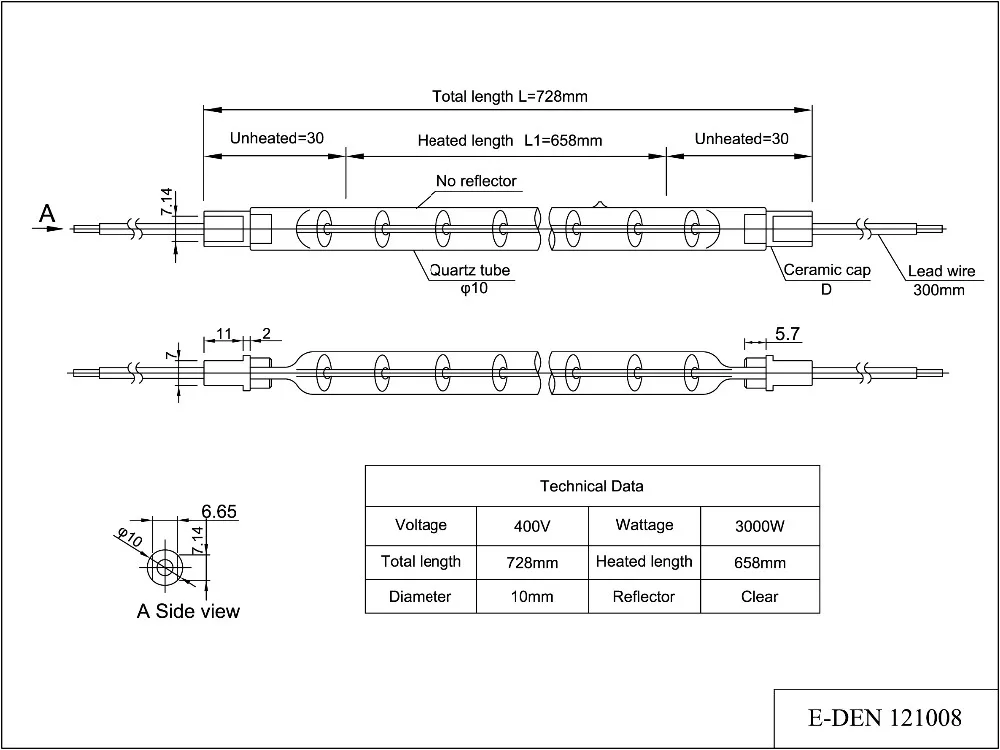

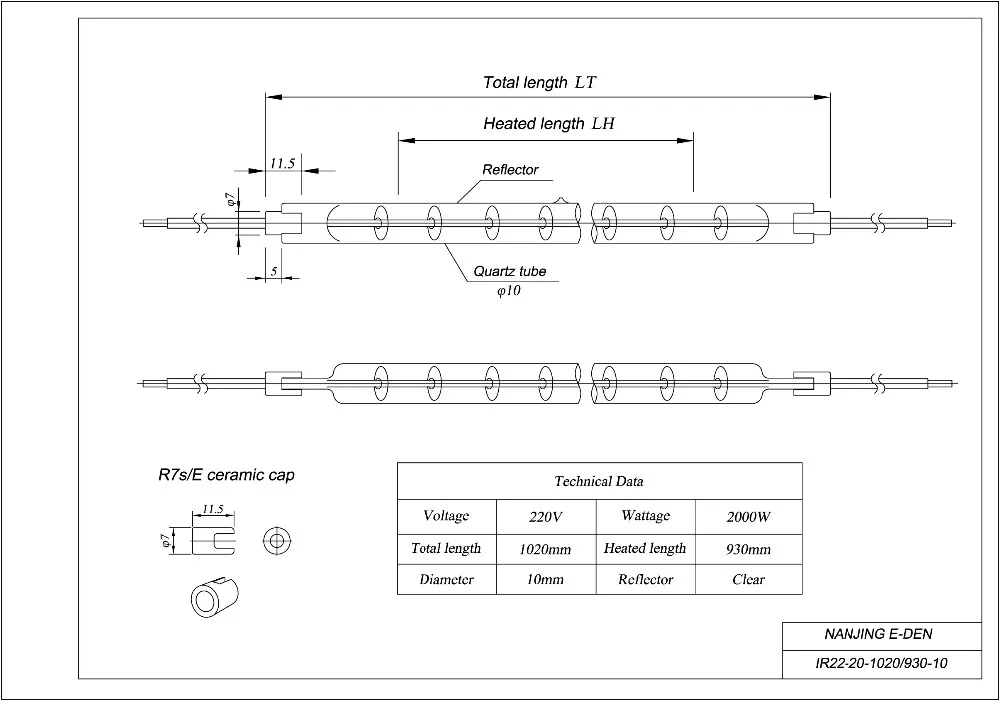

Technical drawing
Voltage
Wattage
Total length
Heated length
Diameter
Reflector
Burning position
End Type
220V
2000W
555mm
490mm
10mm
Ceramic
Universal
SK15/A
400V
3000W
728mm
658mm
10mm
Clear
Horizontal
D
220V
2000W
1020mm
930mm
10mm
Clear
Horizontal
R7s/E
More Specifications
Alternative model
Company Information

Nanjing E-DEN Lighting Technology Co., Ltd., a professional manufacturer and trading company established in 2011, specialized in producing infrared heating lamps and providing IR heating solutions. Our customers spread all over the Euro-Asia and south and north America, such as Germany, Italy, UK, Spain, USA, Canada, Russia and other dozens of countries. We also offer OEM/ODM manufacturing service for our customers all over the world. We can design and produce infrared heating lamps or heaters according to your requests. We manufacture singe and twin tube IR heating lamps in short wave, fast response medium wave, carbon medium wave and medium wave. Base on reliable quality and honest reputation, our IR products pass the ISO 9001 international quality certification and CE safety certificate. We always do our best to provide our customers highest quality products and most satisfactory after-sales service.

FAQ

1: We offer Full Refund Agreement in case of bad quality!


2: We sign a Contract with Legal Liability not only invoice!


Q1. Can I have a sample order for infrared heating lamp?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks

Q3. Do you have any MOQ limit for IR lamp order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for infrared lamp?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the infrared lamp product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 5000 hours average working life warranty to our products.

Q8: How to deal with the broken lamps after orders?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less

than 1%.

If there is any breakage during the transport, please take clear photos for the broken products and send the photos to us within 48 hours after receiving the package.
If there is any breakage during the guarantee period, we will send new lamps with new order for small quantity. For defective batch products, we will resend them to you or we can discuss the solution including re-call according to real situation.


Attention:


Price only for part number IR22-20-555/490-10VW
