Electrical Substation Transformer Equipment Waterproof Electric Boxes

FOB Reference Price:Get Latest Price
$5,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
HK
Model Number:
YB
Product Name:
Substation
Type:
YB
Application:
Real estate
Standard:
IEC60439
Certificate:
Test Report/CESI/ CTQC/ISO9001
Rated current:
630A
Rated Voltage:
40.5kV
Material:
Steel
Color:
Green
Name:
Electrical Substation Transformer Equipment Waterproof Electric Boxes
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. The wooden tray on the bottom
2. The wooden surrounded all of the Electrical Substation Transformer Equipment Waterproof Electric Boxes.
3. Individually packaged
4. Other depends on the demand of the customer.
Port
NANJING/SHAGNHAI/NINGBO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

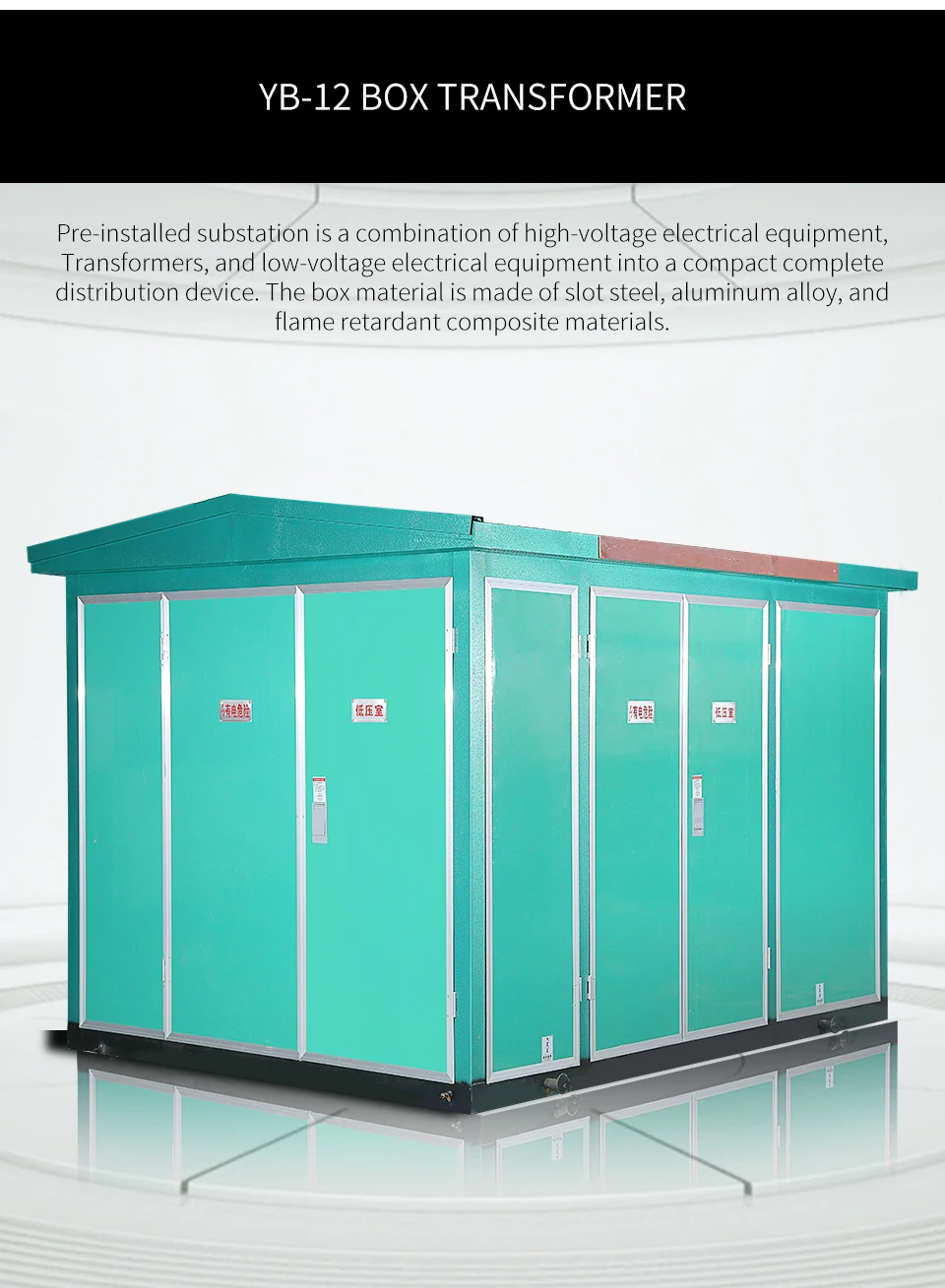

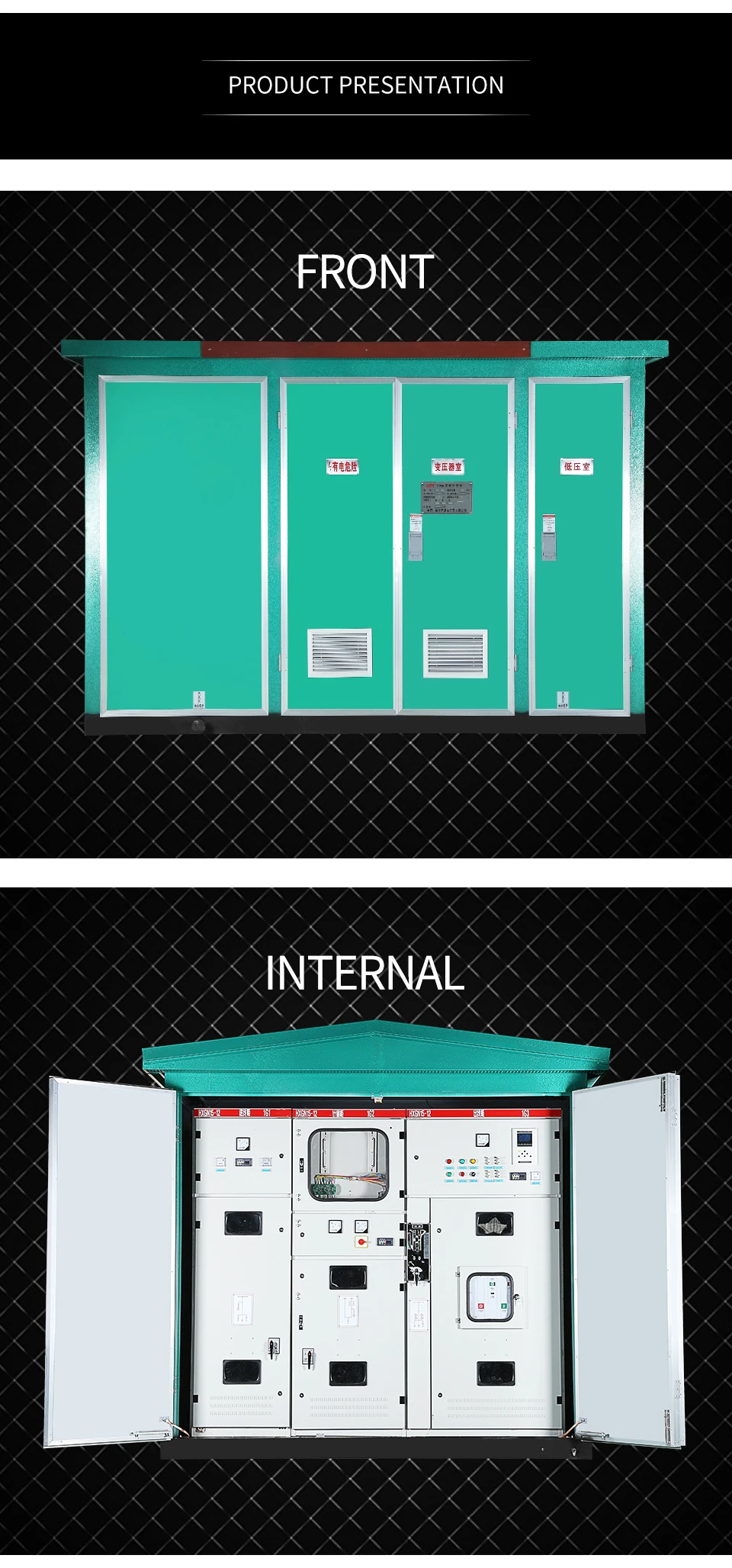

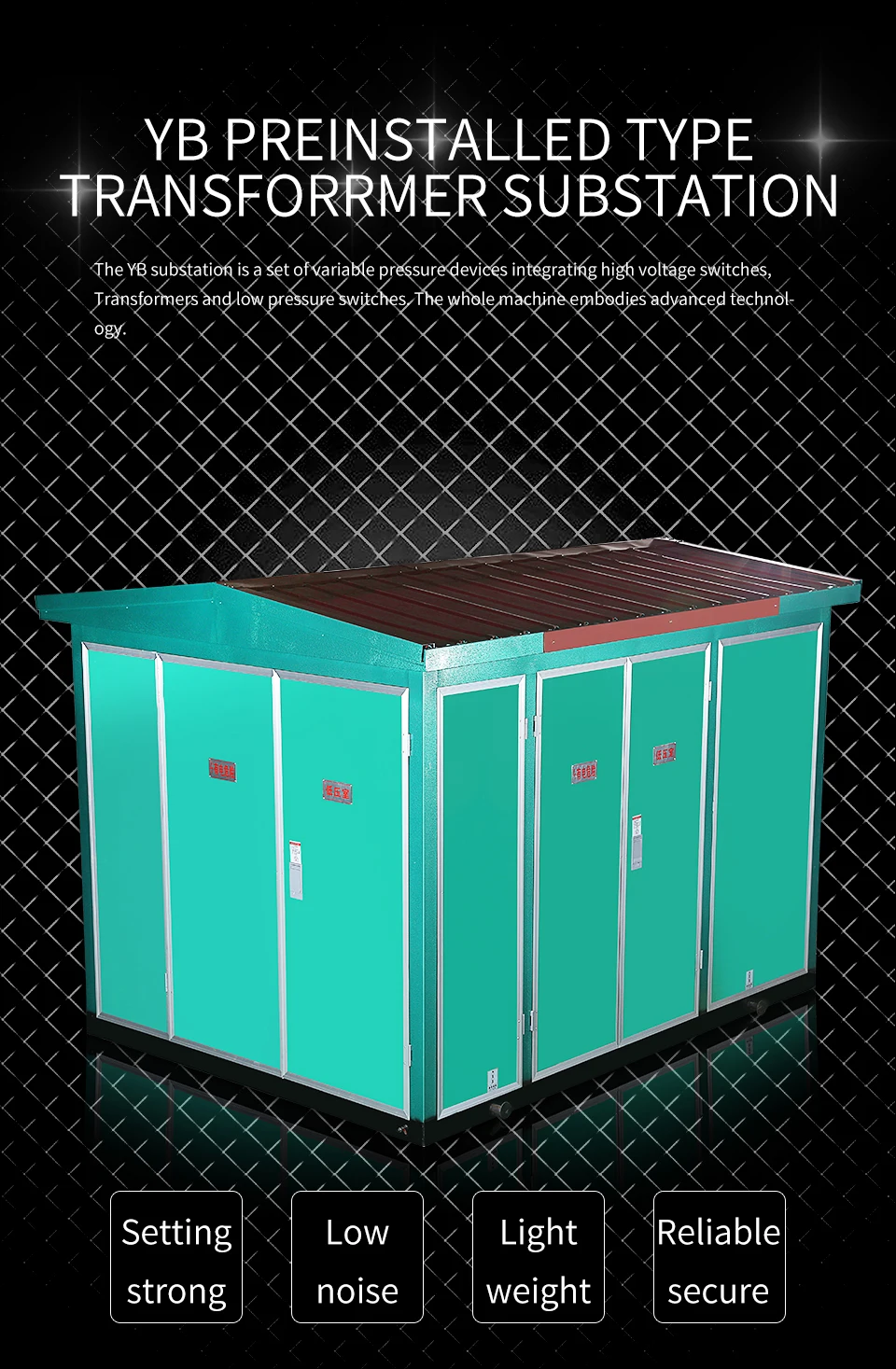

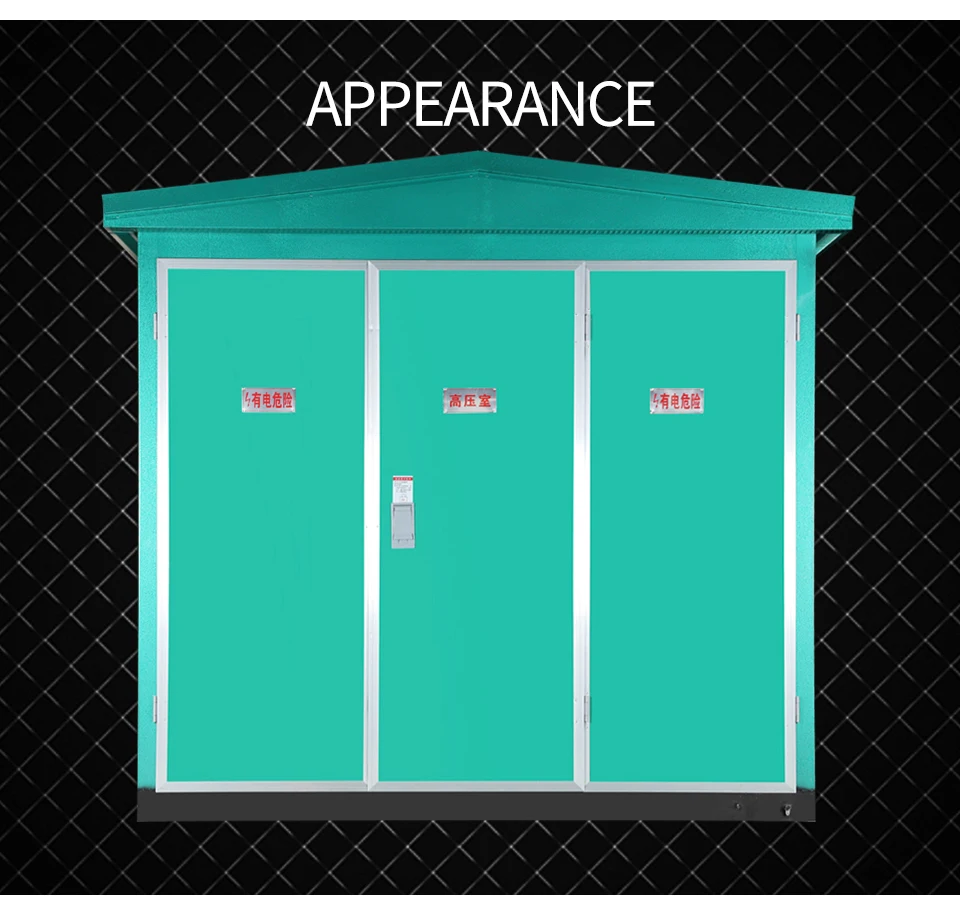

YB Preinstalled Type Transforrmer Substation

YB box-type series prefabricated box-type substation is used for 6-24KV \ 50HZ distribution system to act as a small capacity independent substation. When acting as 6-24 / 0.4KV step-down station, the general capacity of it is below 1250KV, which is suitable for factories, mines, ports, stations, residential quarters and underground facilities and other places. It has advantages of small area and flexible movement, which can go deep into the load center and adjust the radius of power supply and save energy. So it is popular with users.
Product Features

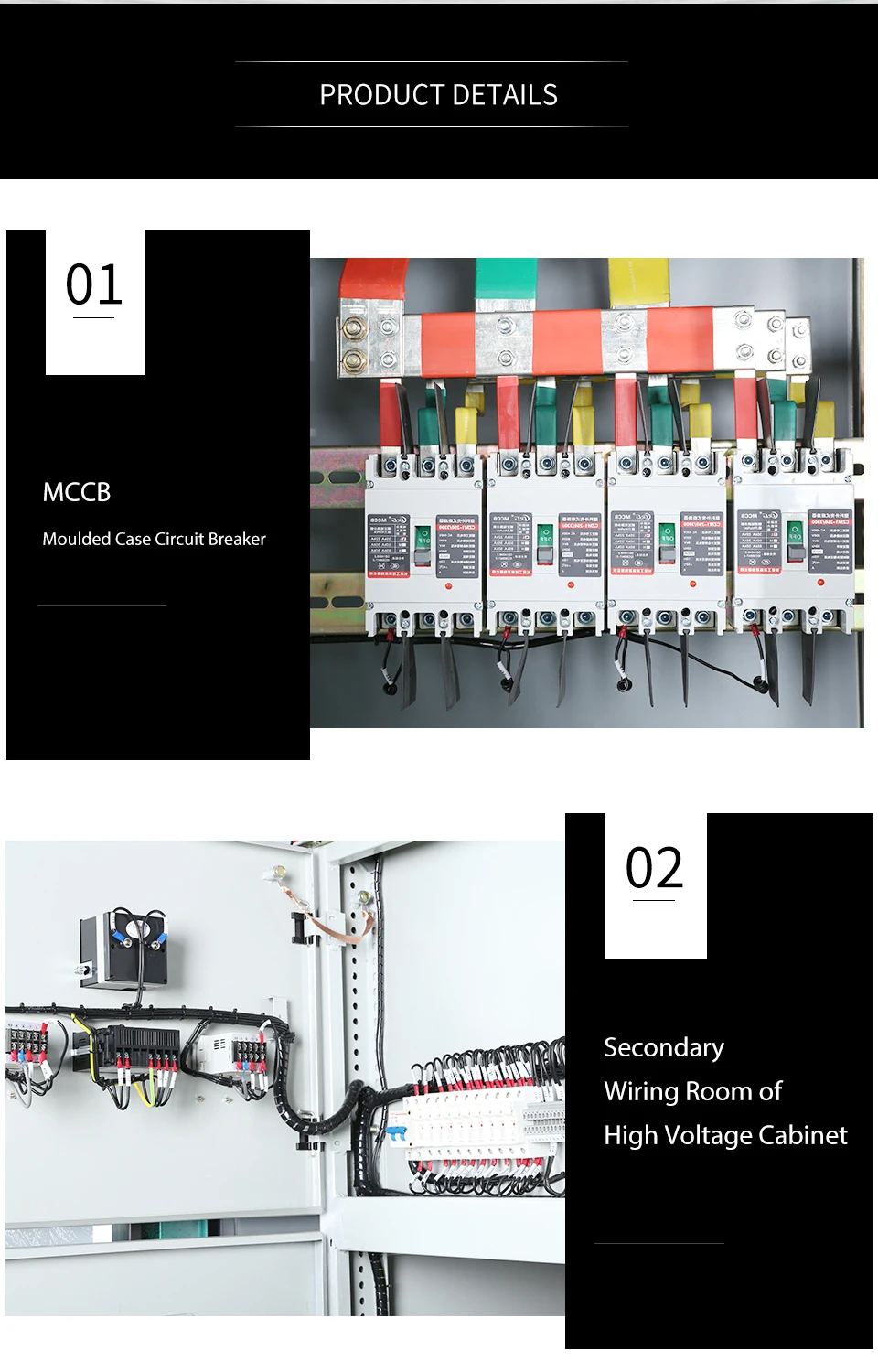

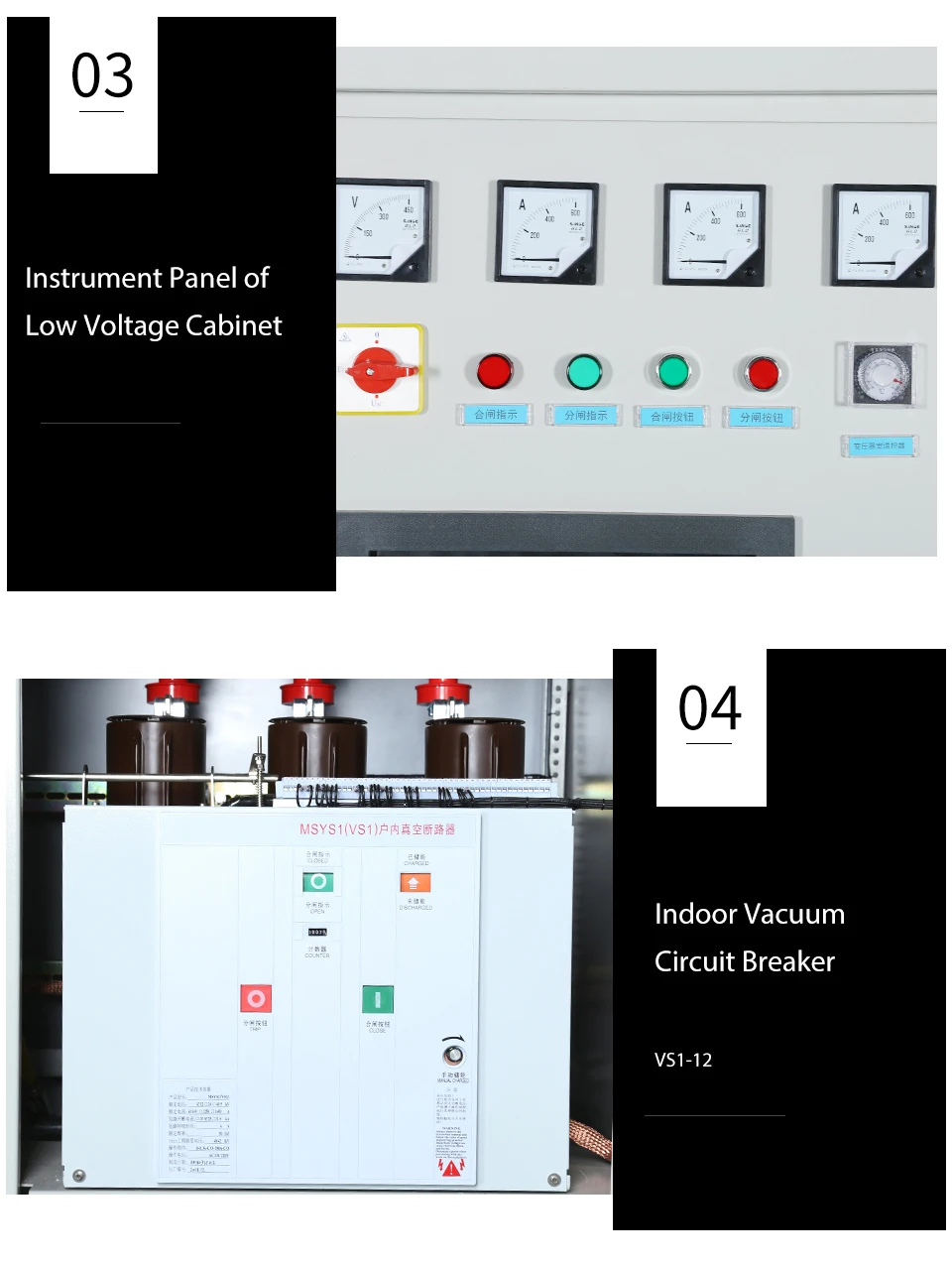

The optional components of high pressure part include Schneider SM6 / SC6 / ABB's SafeRing, vacuum circuit breaker cabinets and vacuum load switchgear. High pressure part can be big or small size, even be a switching station.
Low pressure part can be divided into panel type, fixed type and drawer type.
Normal Using Conditions
Altitude is not more than 2000m.
Ambient Temperature:-30℃~+40℃
Relative humidity:<90%
Wind speed is not more than 35 m/s

waterproof level: ip65

Electrical Substation Transformer Equipment Waterproof Electric Boxes

Project
Parameter
High voltage unit
Rated voltage
7.2kV
12kV
40.5kV
Rated current
400/6300A
Low voltage unit
Rated voltage
380/220V
Rated current
100~3200A
Transformer unit
Nominal capacity
50-2000kVA
Tapping range
±2×2.5%/±50%
Join groups
Yyn0/Dyn11

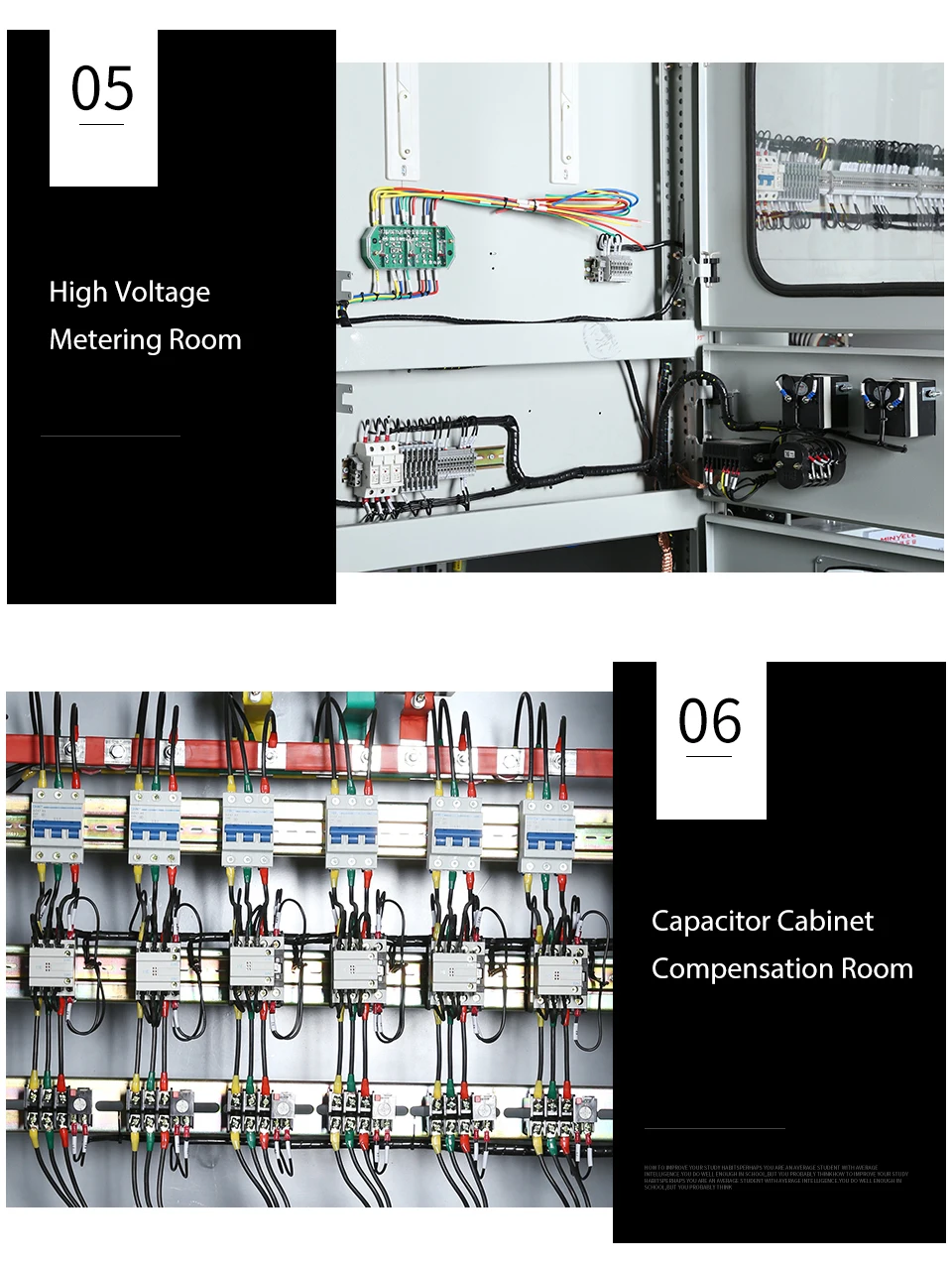

Detailed Images
Certification
FAQ

Q1: Are you a trading company or manufacturer?
A1: We are a factory of more than 10 years' experiences.

Q2: Is OEM/ODM available?
A2: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.

Q3: What's your MOQ?
A3: One Set.

Q4: How is the delivery time ?
A4: It depends your order quantity and it normally takes 5-20 days .

Q5: Why choose us?
A5:
a.We are China Leading manufacturer and confident that with our experience in Switchgear,Transformer,Substation etc. Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete satisfaction.
b.100% QC inspection before shipping.
c. For large order, engineer can go to your country for on-site maintenance instructions.

Q6: How do you control the quality?
A6: We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.Every product will be fully assembled and carefully tested before packing and shipping.

Q7: How long is the warranty ?
A7: Within one year from the sale date, if there are any accessory problems,
you just provide the photos of damaged accessory, then we will provide free accessory.
According to the number of products, we will provide easily damaged accessories for free.
We also can provide technical support if you need.
