Electrical wire silicone rubber cover 3kvdcsiliconecable silicone heater wire

FOB Reference Price:Get Latest Price
$0.20 - $9.90 / Meters | 3000 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 10000 Meters)
Customized packaging (Min. Order: 10000 Meters)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
AusRun
Model Number:
UL3135
Type:
Insulated
Application:
home
Conductor Material:
Copper
Conductor Type:
Stranded
Insulation Material:
silicone rubber
Product name:
silicone rubber cover 3kv dc silicone cable silicone heater wire
Color:
Black,Brown,Red and so on
Certification:
UL Certification
Rated Voltage:
600V
Rated Temperature:
-60~200℃
Conductor:
Tinned cooper or bare cooper
Insulation:
Silicone Rubber
Sample:
Free sample
Size:
10-26AWG
Key word:
Silicone rubber wire
Supply Ability
Supply Ability:
10000000 Meter/Meters per Year
Packaging & Delivery
Packaging Details
Electrical wire silicone rubber cover 3kv dc silicone cable silicone heater wire
1.100 or 200 Meters per roll
2.500 or 1000 per roll
3.rolls or coils or spools
4.Customize
Port
SHANGHAI
Lead Time :
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 7 To be negotiated

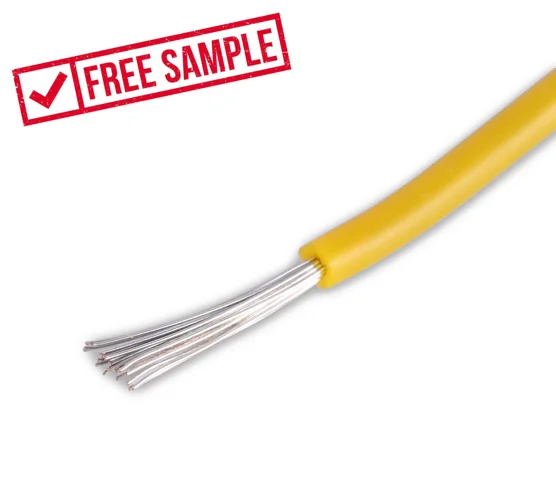

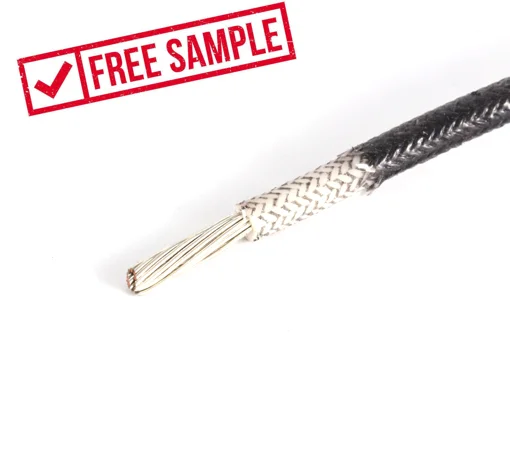

Free Sample


Welcome to send us ENQUIRY, we can SUPPLY FREE SAMPLE !

Product Description

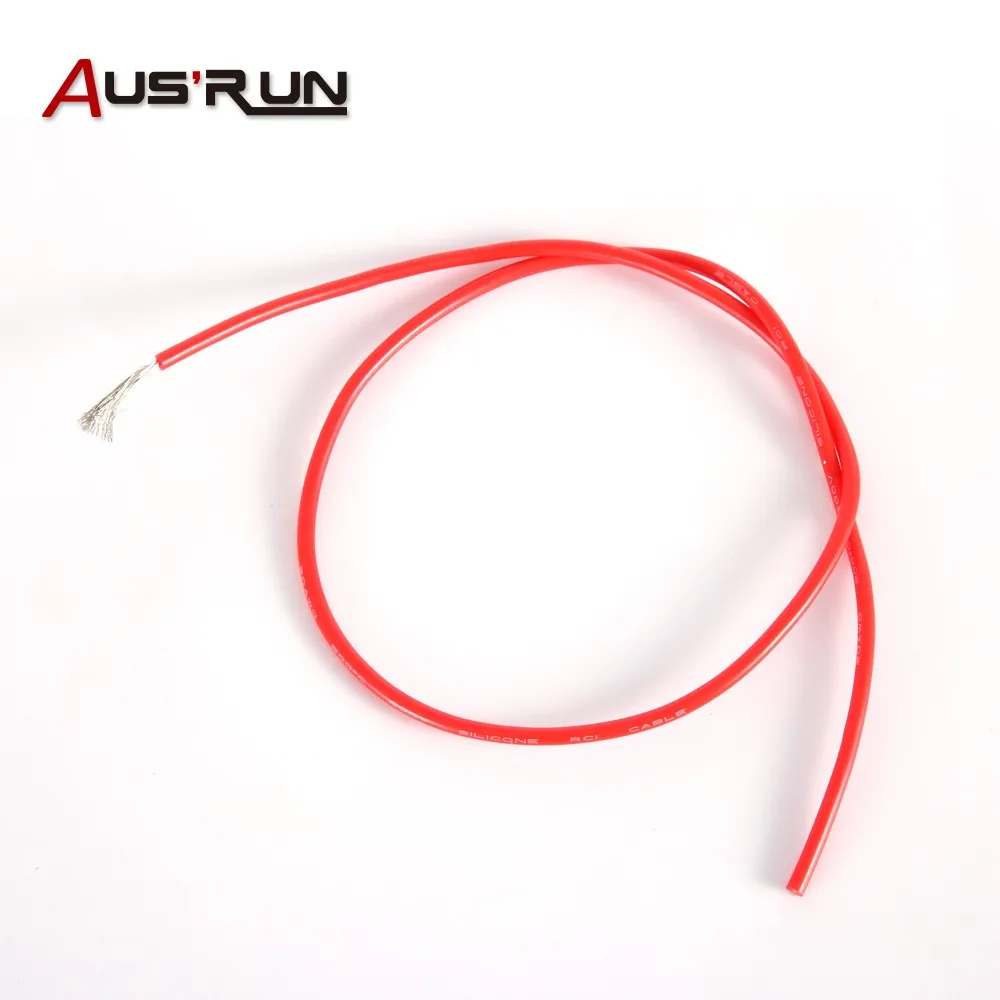

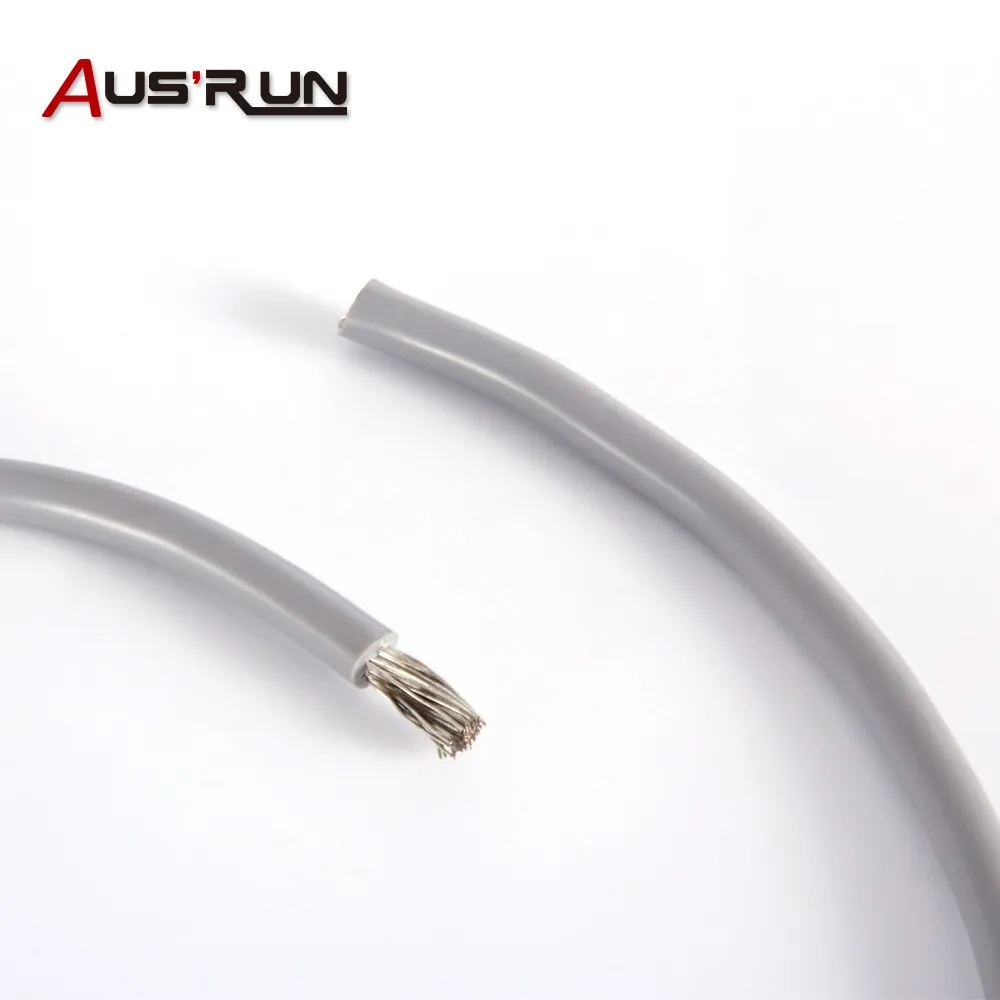

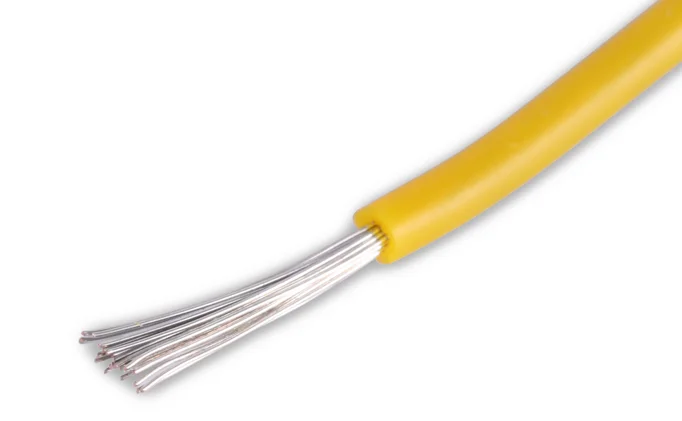

Electrical wire silicone rubber cover 3kv dc silicone cable silicone heater wire


Composition:


Conductor: Flexible tinned copper or bare copper core
Insulation : Silicone Rubber

Specification:
Rated Voltage: 600 V
Testing Voltage: 2000 V
Rated Temperature: -60°C~+200°C



Feature:


1. High temperature resistance , insulation

2. Fire retardant, corrosion resistance, aging resistance High temperature resistance

3. High strength, high modulus

4. Anti-static, smooth appearance






Application:

1. Wiring of electrical household appliance
2. Lamps
3. Electrical equipment and high temperature environment ,etc..
4. Rice cooker; Electromagnetic furnace; Electric kettle... and so on..



Electrical wire silicone rubber cover 3kv dc silicone cable silicone heater wire

Type
Section
(AWG)
Conductor Structure
(No.*mm)
Outer Diameter
(mm)




Electrical wire silicone rubber cover 3kv dc silicone cable silicone heater wire
26
7/0.16
0.48
24
7/0.20
0.6
22
7/0.25
0.75
20
7/0.31
0.93
18
7/0.395
1.19
16
7/0.495
1.49
14
41/0.25
1.82
12
45/0.32
2.50

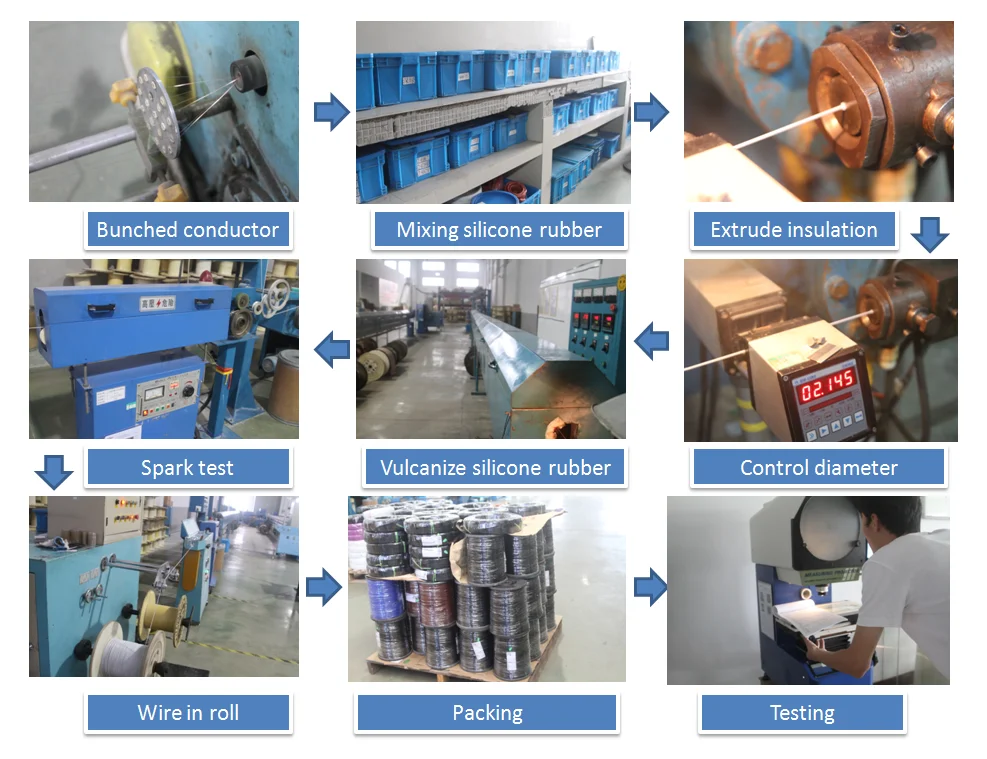

Process Flow

Electrical wire silicone rubber cover 3kv dc silicone cable silicone heater wire

-Bunched and stranded conductor and preheat it ,mixing silicone rubber
-Put insulation into extruding machine to extrude
-Controlled the diameter of wires by infrared thermal camera
-Heat the wire to vulcanize silicone rubber through drying oven
-Print the part No.temperature range and so on on the surface of silicone rubber
-To see whether the wire is breakdown wire or not through testing by spark test instrument
-Examine the wires and pack them


Testing Machine

Copper wire elongation tester


 Hi-pot Tester

Company Information

Ao Si Lang Cable Jiangyin Co.Ltd is located in the provincial level high and new technology industries development zone in Jiangsu, which is full of famous enterprises with a graceful and elegant environment. With abundant human resources, expedite transport. The history of our company can date back to 1980s, and after so many years, our company becomes the key power in the area. With strong capabilities of R&D and innovation Ao Si Lang Cable Jiangyin Co.Ltd has owned a number of exclusive essential manufacture technologies and has passed the certification of ISO9001&ITAF16949 Quality Management System,ISO14001 Environmental Management System from China and abroad.

Ao Si Lang Cable Jiangyin Co., Ltd., always adhere to the

 "customer first,honest is gold,people-oriented,team,efficient and innovative,ambitious"

business philosophy.

Contact Us

Hot Sale!!!


Silicone wire

Fiberglass braided silicone wire

Super flexible silicone wire

Teflon wire

High voltage silicone wire

Irradiation crosslinked wire

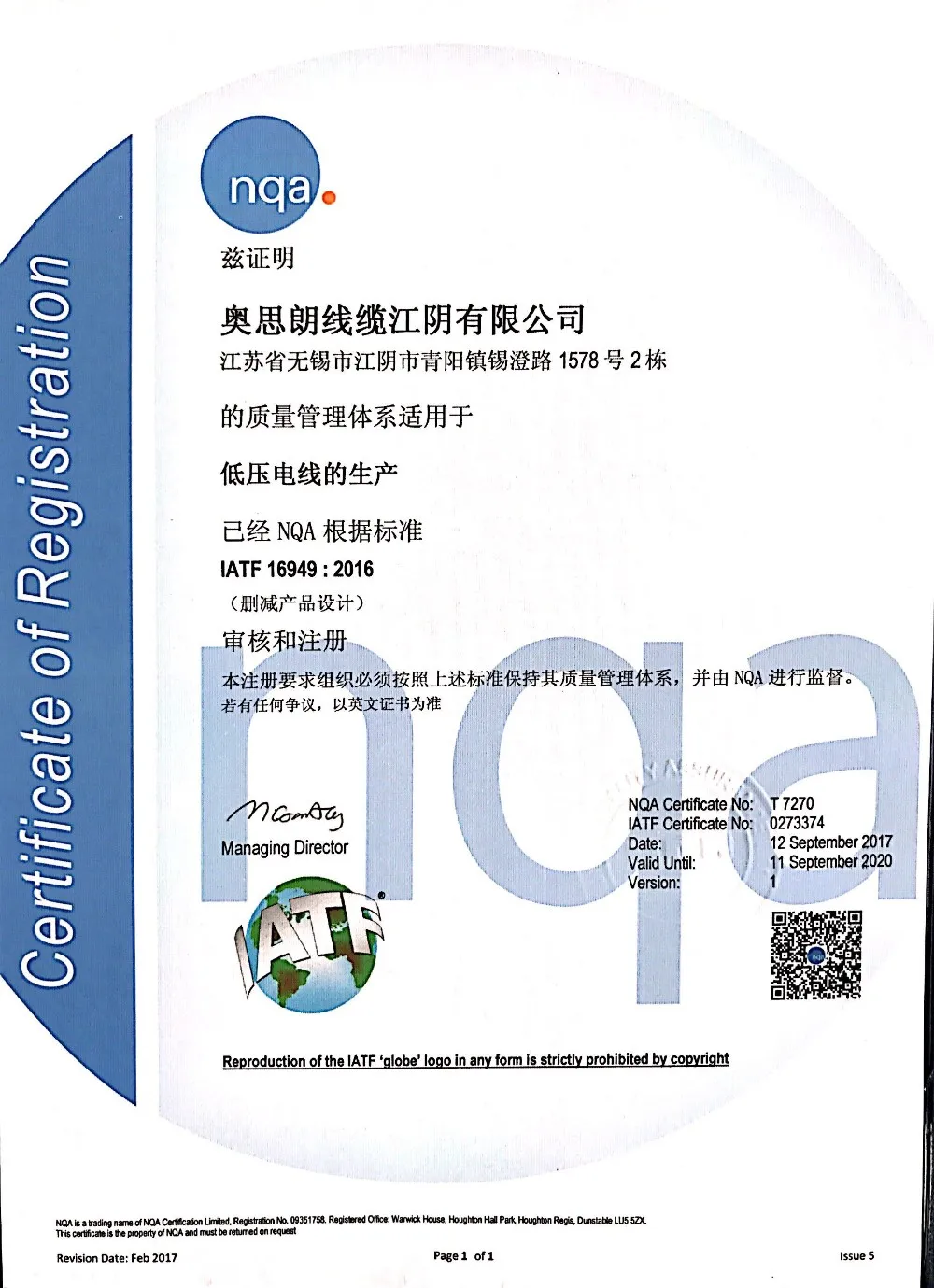

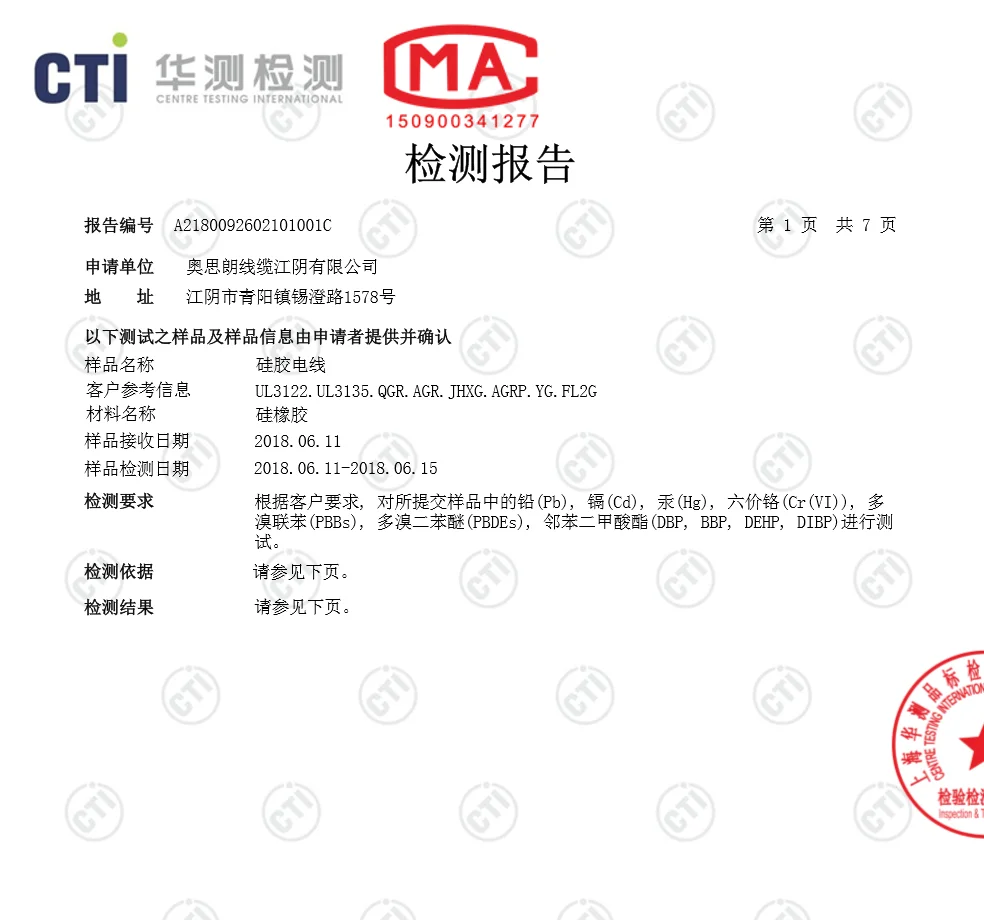

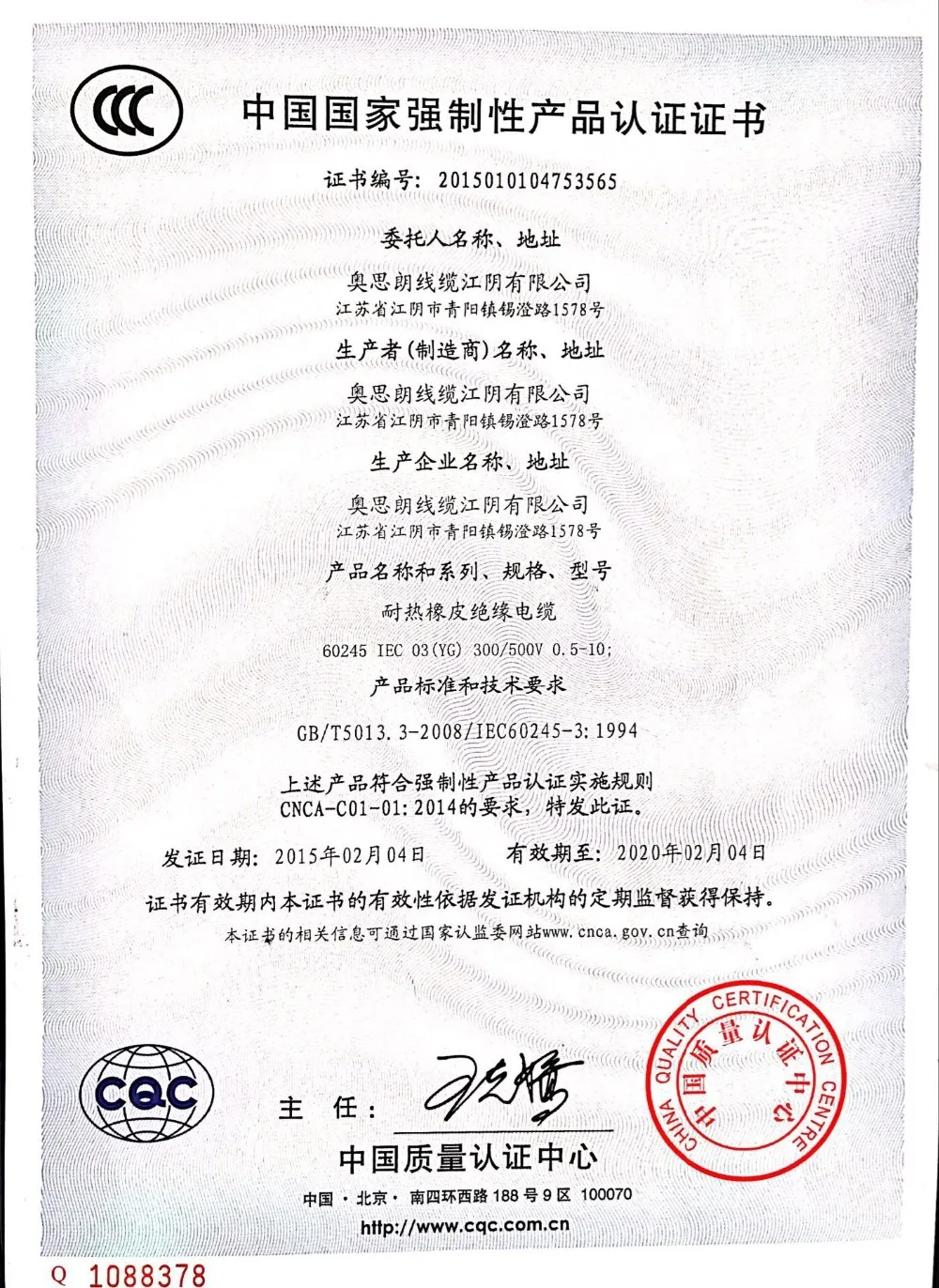

Certifications
FAQ

Q1. Are you factory or trade company?

A: We are professional wire and cable products factory!

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. How can I get your price list?

A: Send an inquiry to us and tell us u need our price list, our sales will reply u within 12 hours with price list.

Q4. Any guarantee for your products?

A: Our company's culture is "Quality is our culture !"All of our products with 6 months FREE GUARANTEE , never need to worry about the after-sale service , we will always be here to support your business!

Q5. Any certifications for your products?

A:Our electric wire products can pass IATF 16949, ROHS , etc. certifications , so they can be sold to worldwide safely!

Q6. How about the delivery time?

A: Usually for sample order 1-3 days,for mass order 5-25 days

Q7: Do u support OEM/ODM service?

A: Yes, we do support, we have experienced R&D team ,so welcome to place OEM/ODM orders to us.

Q8: At last, about the payment terms, any convenient and safe way for our buyers?

A: We have Paypal , alibaba pay , T/T , payment terms options ,do business with us, your money will be in safe, your business will be in safe!
