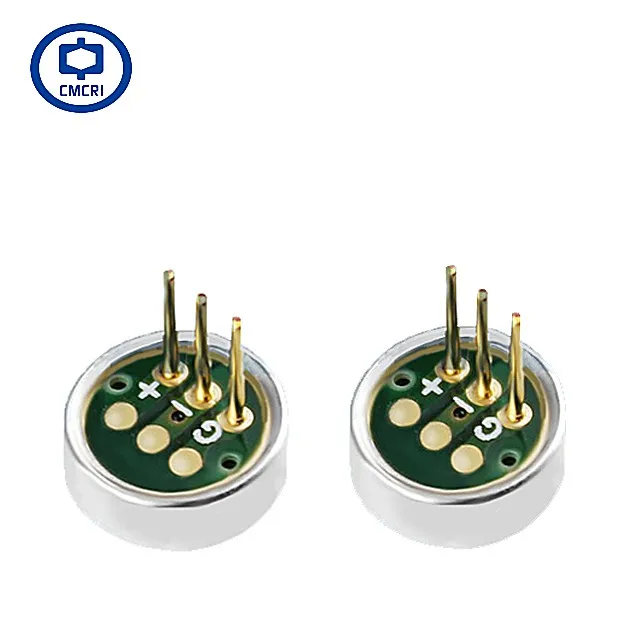

S087 E-cigarette Flow Sensor

The function of S087 is to sense the signal of the midhead and then process the signal to convert it into a control signal. With ASIC design, there will be no downtime of the current MCU scheme, and no chip can not be reset due to the lower critical voltage. In power-saving mode, the static current is less than 5uA, and the peripheral application circuit is simple. The IC of the product is packaged with SOT-23-5, which has small volume, few peripheral original boundaries and low system cost.

ASIC Design

In power saving mode, the static current is small (< 5uA)

The peripheral application circuit of the system is simple and the cost is low.

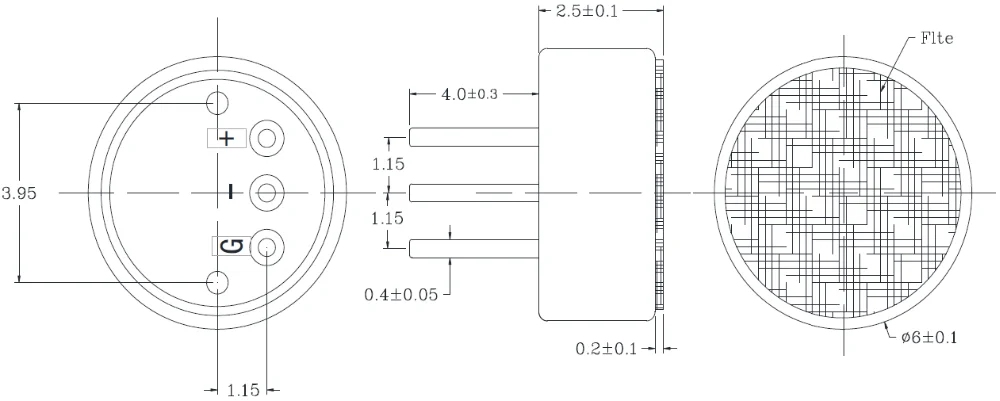

Outline and Dimension

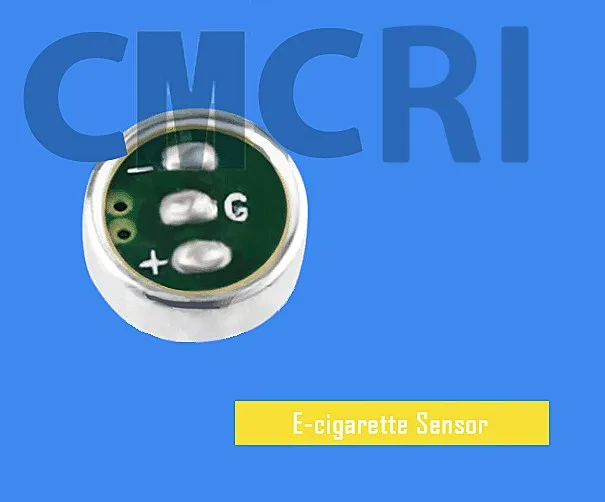

Pin
Symbol
Remarks
1
+
Battery positive terminal
2
-
Battery negative terminal
3
G
I/O Terminal Connected with Single Chip Microcomputer

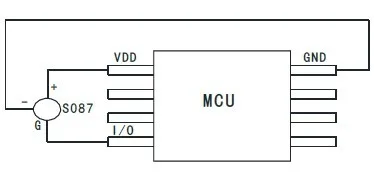

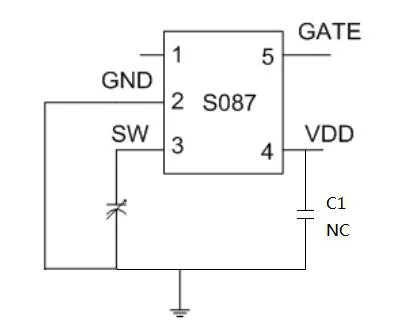

Wiring diagram

Note: No pull-down resistance is required at the I/O port of G terminal.


Description: When smoking G-terminal output high level signal, when standby G-terminal output low level.

VDD
supply voltage
-0.3 to 4.5
V
VSW
Sampling terminal voltage
-0.3 to VDD +0.3
V
Vgate
Control signal output
-0.3 to VDD +0.3
V
PD
power loss
Internally limited
mW
TOPR
Operating temperature
-20 to +75
TSTG
Storage temperature
-40 to +75

Note: Exceeding the limit parameters specified in the table above will cause permanent damage to the device. It is not recommended that the device be operated beyond the above limit conditions, otherwise the reliability of the device may be affected.

Electrical characteristics

Conditions: VDD = 3.7V, T = 25 C (unless otherwise specified)

Symbol
parameter
condition
min
typ.
max.
unit
VDD
Input voltage range
DC input voltage
1.5
3.7
4.2
V
Iq
Quiescent current
Power saving mode

3
5
uA
Isw
SW terminal current
SW end to ground

267

nA
Fosc
Internal clock frequency


33

KHz
Vol
Output low voltage
VDD=3.7V, Io=1mA


0.3
V
Voh
Output high voltage
VDD=3.7V, Io=1mA
3.7-0.3


V
Tr
Rise time
Gate to Ground Connection 1nF Capacitor

30

ns
Tf
Fall time
Gate to Ground Connection 1nF Capacitor

10

ns
Top_max
Delay protection time


10

S
