Introduction of Products
At this exhibition, Dahao Company will promote the emCAD Dahao Patten-designing System formally. The highlight of this system is at its sequin pattern-designing. Beside to the kinds of sequin input methods, this system also provides several edition methods of the sequin pattern, which makes the creation and modification of sequin pattern become easier. The various pattern copy methods also improve the efficiency of designing. Meanwhile, due to its strong capability to handle the huge multi-sequin pattern, the edition and modification of that huge pattern is as easy as the normal pattern, which is easy for user to use in their production. It meets the pattern-design requirement of lockstitch looping embroidery, carpet embroidery, cross embroidery and other latest special embroideries. Input the picture with the camera on the computer. Then the system will recognize the picture and create the stitch form automatically. The function of photo-and-embroider is realized.
Introduction of Basic Functions
Compound Filling (with hole)
The complex close shape with hole can be created easily. The controller will intelligently create the stitch forms bypassing the internal area and keep the holes, and the satin stitches, tatami stitches or the motif stitches can be filled.
With the zigzag function, user can easily make the effects of the fur, feather or petals. For realizing the zigzag function in manual method, it will take a long time at before. But now, user can achieve this effect in one step operation.
By setting the properties of corner, user can adjust the stitch form of the corner. At present, there are two kind of corner effect. One is mitre corner, the other is cap corner.
Loading image as the background will make the patterndesigning become easier.
As different from the traditional filling method, it is to gradually fill the stitches from one side of the outline to the other side.
With this function, user can use the direction keys to fast copy the shape at four directions after pointing the copy distances in horizontal direction and vertical direction.
In the close area, the system will randomly sew a wave line at certain interval and use that wave to fill this close area.
The system will copy a series of objects in circle or matrix method.
Create the filling effect of wave. At present, the system support one wave line and double wave line, whose effect can be set freely.
Multiple Satin Stitch
User can sew the satin stitches for many times to receive the effect of thick thread embroidery. The normal satin stitch counter can only provide the multiple sewing in one direction, but after the setting, this system can make the multiple sewing in two directions.
Compound Filling Stitch with Deviation
At filling the stitches in the close shape, if the connection line of the different stitch section is on the outline, the embroidery effect will be not so good at low embroidery density. At this moment, user can use this function to deviate the connection line away from the outline so that the stitch forms can be limited within the range of the outline.
Insert Deviation Object
Create a series of objects that is parallel to the original shape in certain distance, direction and amount.
For the close object, user can set whether to connect them in screw way. For the open object, user can set different connection methods.
User can add one or more curves as the dividing lines, which are used to divide the pattern. With this function, the embroidery effects of leaves and petals are more natural.
User can add one or more curves as the dividing lines, which are used to divide the shape or object. With this function, user can divide the original shape or object into several shapes or objects.
Zigzag Edge Method:
This software provides many ways to handle the zigzag edge.
1. Normal single-side zigzag and double-side zigzag
2. The single-side zigzag and double-side zigzag disposed according to scale coefficient and scale amount
3. Special Effect
Introduction of Letter Embroidery
The software provides several built-in fonts which is easy for user to edit the letter pattern. The letter pattern provides the handling methods for letter filling stitch and letter outline stitch. By the way, the letter array methods are also provided in the software.
2. Shuti Font
3. Black Font
4. Thin Black
5. Li Font
3. Vertical Line
4. Free Curve
Stitch of Font Outline
User can load the font built in the software or the font installed in the operation system to create the outline stitch of font in the software.

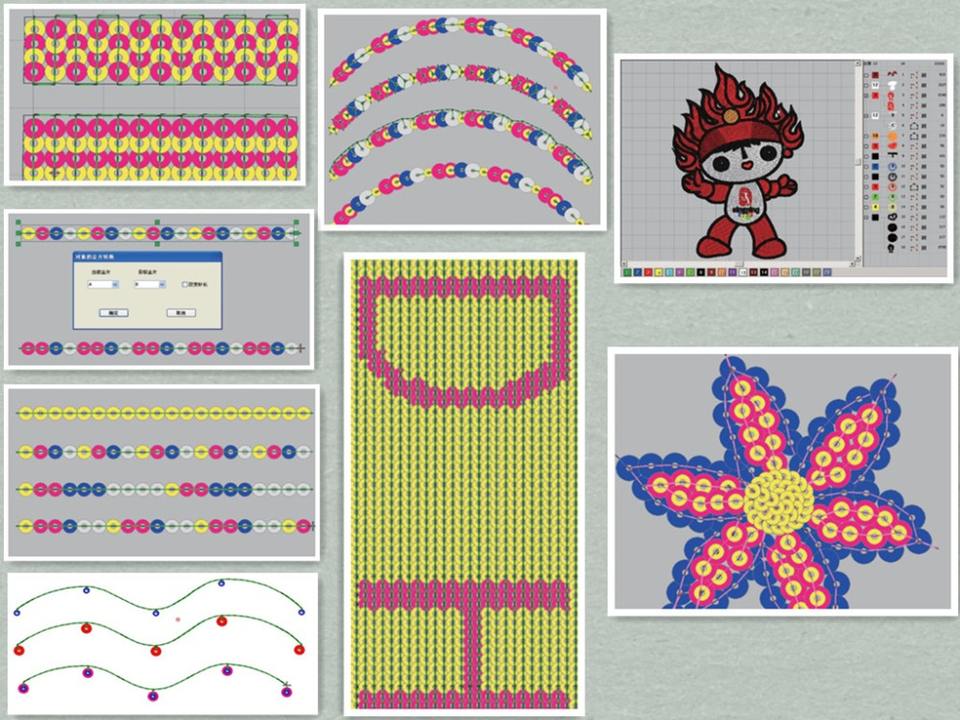

Introduction of Sequin Pattern-designing Function
Manual Sequin Function
With manual sequin function, user can put sequins in different sizes on the basis of the manual stitch form randomly. User can set the sequin size at inputting the point, which enables to make the irregular sequin pattern more conveniently.
Automatic Sequin Function
This function enable to put the sequins with certain sequence on a curve, and user can set the sizes of the sequins used, stitch form of the fixing line and sequin density. User needn't to set the sequin one by one any more, while the software can automatically create the sequin pattern according to the input outline.
Manual Sequin Functions
For the sequin pattern with low density, user can use the manual sequin function to design the pattern and set the stitch along with the curve outline.
Enable to fill sequin with many input methods and stitch methods.
Support the Tatami in input method A, B and C. The E-shape stitch for sequin can make the sequin-fill in the special shape become easier.
With the sequin edition function, user can turn the sequin in one style to other styles, or to series of sequins in other styles, so as to achieve the complicated sequin effect.
Sequin Texture Function
With this function, user can set the different sequin codes according to the drawn vector figure so as to match the sequin shape to the vector figure.
Object Sequin Transfer
This function enables to turn the original sequin codes within the object to other sequin codes in batch. User has no needs to select the sequin stitch forms for transferring.
The DHA Format Combining to Dahao Controller
After user inputs the pattern to controller, the system will set the color-changing order and user can directly pull the bar for embroidery. Meanwhile, because the thread color is also set, user can directly check the actual embroidery effect and select the thread according to the displayed pattern. For the pattern with many colors or sequins, this function rapidly enhances the performance of the controller, simplifies the user operation and improves the productivity.
emCAD Dahao pattern-making software for embroidery machines supports automatic generation of pattern barcode at pattern-designing
Dahao computerized control systems support barcode scanning
Support barcode-scanning and auto selection of pattern
User can use the barcode scanner to automatically select the pattern, which is easy for user to manage.
