Energy Saving Industrial Barite Gypsum Grinding Mill

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $10,000.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Raymond Mill
Motor Type:
AC Motor
Power(W):
30kw
Capacity(t/h):
13-40t/hr
Place of Origin:
Henan, China (Mainland)
Brand Name:
SHUGUANG
Model Number:
6R4525
Dimension(L*W*H):
1.1*1.5*3m
Weight:
5t
Certification:
ISO9001:2008
Name:
Gypsum Powder Making Machine
Color:
Blue
Application:
Construction
Installation:
Engineer's Guide
Spare parts supplying:
Lifelong Provide
After sale service:
Life-long Service
Material:
Casting Steel
Feeding size:
25mm
Market:
Asia
Output size:
60-325 mesh
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard packing
Port
QINGDAO, SHANGHAI, TIANJIN
Lead Time :
Shipped in 10 days after payment

Energy Saving Industrial Barite Gypsum Grinding Mill

Product Description

Gypsum Grinding Mill Description

Gypsum Grinding Mill is used for grinding the barite, limestone, kaolin, cement, slag, etc, below scale 9.3 of Mohs hardness and 280-odd sorts of non-inflammable and nonexclusive stuff in the trades of mining, metallurgical industrial, chemical engineering and building material for high fine powder generation and processing. The product size is adjustable in the range of 80-325 (600 the largest) meshes. It is possible to produce 30-80 mesh coarse powder through special device in the Gypsum Grinding Mill


After the materials are put into the grinding room of Gypsum Grinding Mill, the grinding roll swings outward and presses closely upon the grinding ring due to the centrifugal force in rotation of the main shaft. The shovel carries materials to the space between the grinding roll and grinding ring, and materials are ground as the grinding roll rolls. After being ground, the powder is selected by Separator via the cycle wind of the blower and the rough powder will be back to the grinding room for regrinding. The proper powder is brought into the powder collector together with airflow. The powder comes out as end products while the airflow goes back to the powder collector in cycling to make the Gypsum Grinding Mill work normally. The increased airflow comes out after purification.


1) The materials must be non-flammable and non-explosive materials such as:

a) Minerals:limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaoline, medical stone, rock phosphate,etc.

b) Metallurgy materials: manganese ore, iron ore.etc.

c) Chemical materials: active carbon, carbon black,etc.

d) Building materials:glass, ceram, fireproof materials, heat preservation materials,etc.


2) Conditions for the application and output granularity:

a) The materials should have the hardness less than 7 in Moh’s scale and humidity less than 6 percent.

b) The granularity of the end products can be adjusted from 30 to 325 meshes.

Gypsum Grinding Mill Main Parts

Technical Parameters of Gypsum Grinding Mill

Model

6R4525

5R4119

4R3216

4R3016

3R3015 4R3015

3R2615

3R2115

3R1510

Particle size of feed(mm)

≤30

≤25

≤25

≤25

≤20

≤20

≤15

≤15

Particle of finished product
(mm)

0.125-0.044

0.125-0.044

0.125-0.044

0.125-0.044

0.125-0.044

0.125-0.044

0.125-0.044

0.125-0.044

Shift output at different material fine degree

16-120

8-60

4-45

3-35

2-28

1.5-20

1-18

0.5-8

Rotate speed of central axis
(r/min)

82

105

130

160

160

160

180

280

Inner diameter of Pulverizing ring (mm)

1620

1270

970

880

830(800)

780

650

410

Diameter of Pulverizing roller (mm)

450

410

320

300

270

260

210

140

Height of Pulverizing roller(mm)

250

190

160

160

150

150

150

100

main motor
(KW)

y315m-4-32

y280s-4-75

y225s-4-37

y225m-8-30

y225m-8-22

y225s-8-18.5

y200L-8-15

y160m-6-7.5

Fan motor
(KW)

y315m-4-132

y250m-4-75

y200L-4-37

y180m-4-18.5

y160L-4-18.5

y160L-4-15

y160m-4-11

y132s-4-5.5

Motor
(KW)

y160m-4-11

yc200-4-7.5

yc120-4-5.5

y112m-6-2.2

y112m6-2.2

y112m-6-2.2

y112m-6-2.2

y90L-6-1

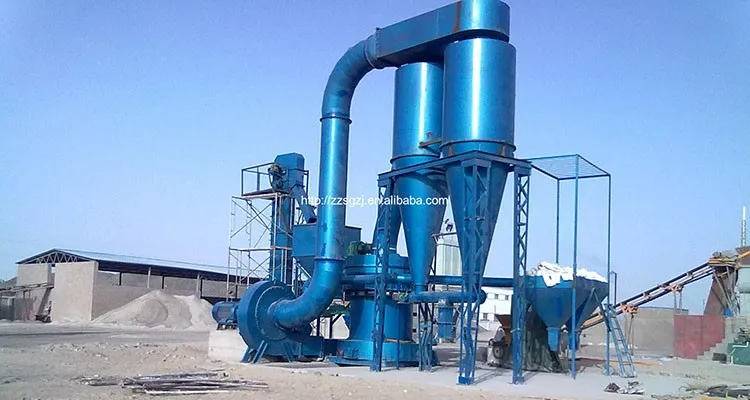

Detailed Images
Shuguang Supplying High Quality Gypsum Grinding Mill One Stop Service with Best Price,See the following photos for the Gypsum Grinding Mill
Packaging & Shipping
Our Gypsum Grinding Mill have sold many countries and areas, especially Asia, Africa, and South America.Welcome to come to our factory for visiting.

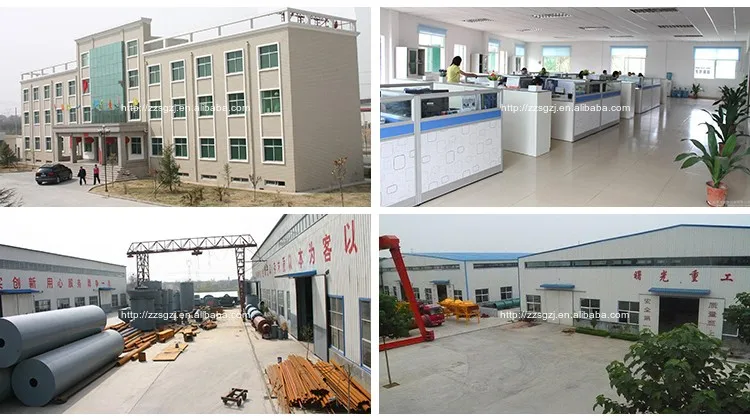

Company Information

Professional Manufacturer and Exporter of Gypsum Grinding Mill in China.

Zhengzhou Shuguang Heavy Machinery Co., Ltd. is a professional manufacturer of Gypsum Grinding Mill, with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry and mining industry and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. SHUGUANG is China Top suppliers and manufacturers of Gypsum Grinding Mill,


1.Factory Size : 10,000-30,000 square meters, No. of Production Lines : 10


2.More than 20 years manufacturing experience


3.70% products exported in more than 130 countries


4 Long life after-service for SHUGUANG BRAND machine.

Welcome to contact with us to ask more informatiom about the Gypsum Grinding Mill.
FAQ

Q: Are you trading company or manufacturer of Gypsum Grinding Mill ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide free design solution?

A: Yes, we could offer design solution for free.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
