Energy-saving anti-function waterproof anti-theft solar remote car parking lock

FOB Reference Price:Get Latest Price
$1.00 - $70.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Space
Height (mm):
460mm
Width (mm):
460mm
Place of Origin:
Zhejiang, China
Brand Name:
KAVASS
Model Number:
KXH-PL02
Warranty:
12 Months
Model:
KXH-PL02
Dimension:
460*460*80mm
Net Weight:
8KG
Rated Voltage:
DC6V
Static Current:
3.5MA
Working Current:
3.5A
Rise/Fall Running Time:
5S
Remote Controlled Distance:
≤50M
Effective Load:
2000KG
Environment Temperature:
-30℃~+70℃
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Plywood Pallet
Port
Hangzhou/Ningbo/Shanghai
Lead Time :
10 days
Product Description

With the touch of your remote control lower your automatic parking lock or parking barrier to lay flat, allowing you to drive your vehicle into your parking space.

Model
KHX-PL02
Dimension
460*460*80mm
Net Weight
8kg
Rated Voltage
DC6V
Static Current
3.5MA
Working Current
3.5A
Rise/Fall Running Time
5S
Remote Controlled Distance
≤50M
Environment Temperature
-30℃~+70℃
Effective Load
2000KG
Protection Grade
IP67
Advantages

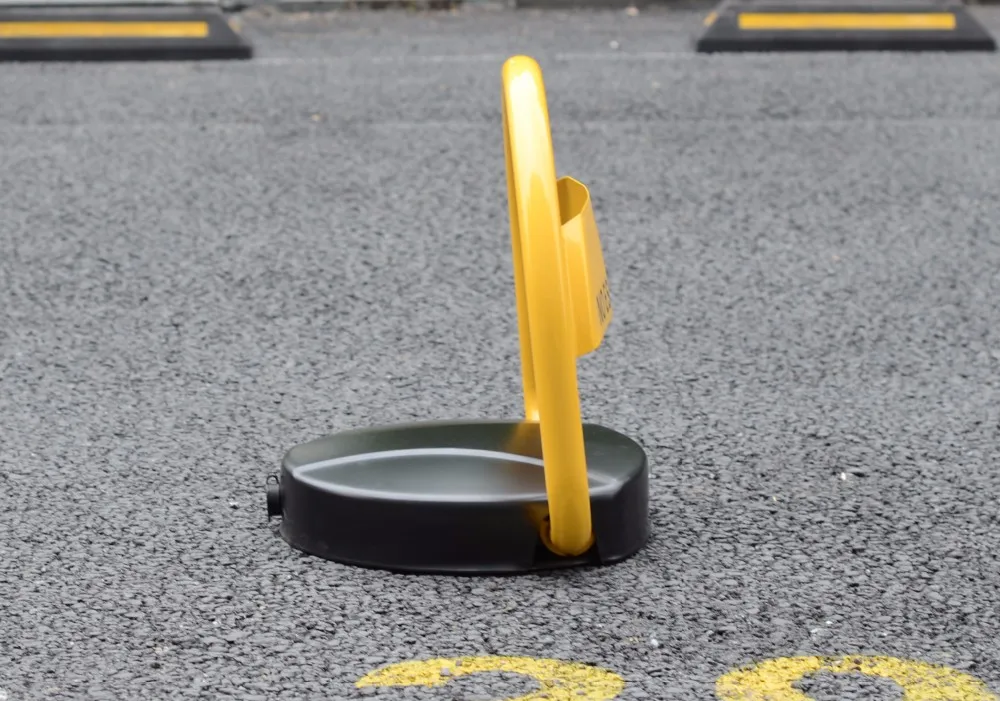

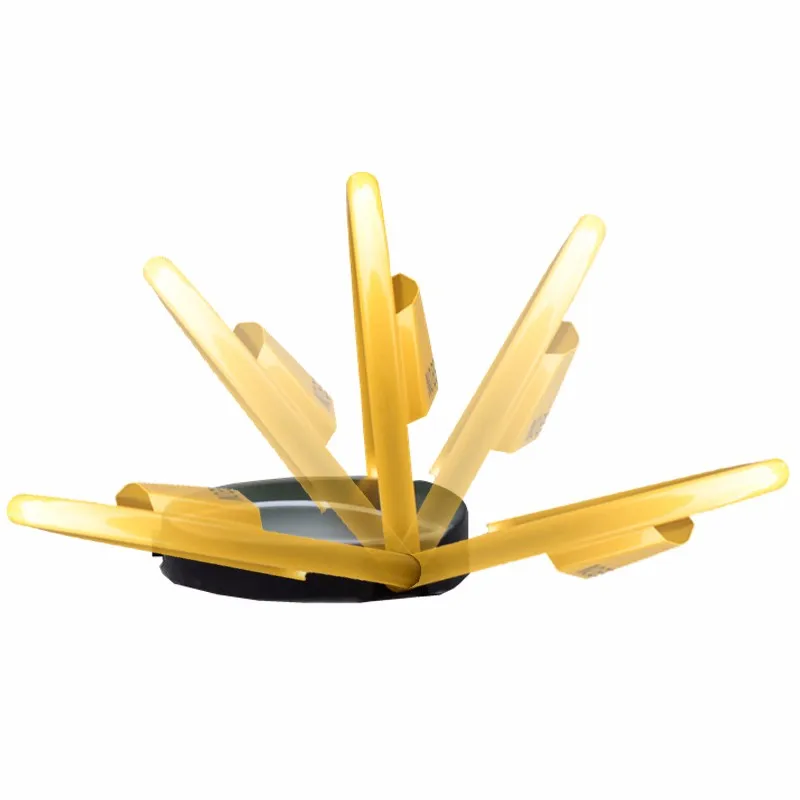

180°anti collision


The parking lock has flexible design and self-protection function.


It can rotate back and forth to protect itselffrom external collision.And the parking lock will alarm.

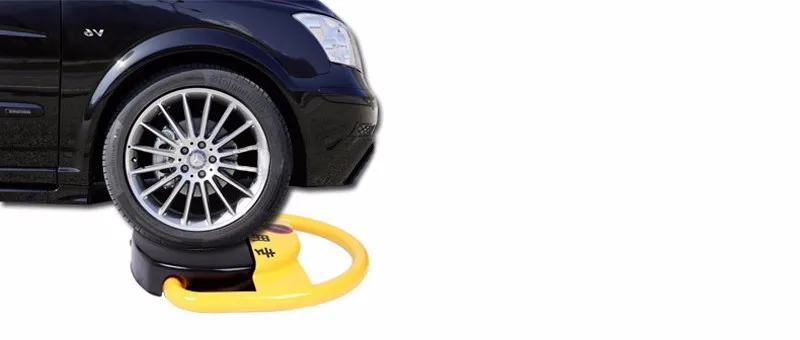

Pressure resistance


Curved design and thicker steel shell make it have a good performance in pressureresistance.


The parking lock can endure a pressure of 1000kg without damage .

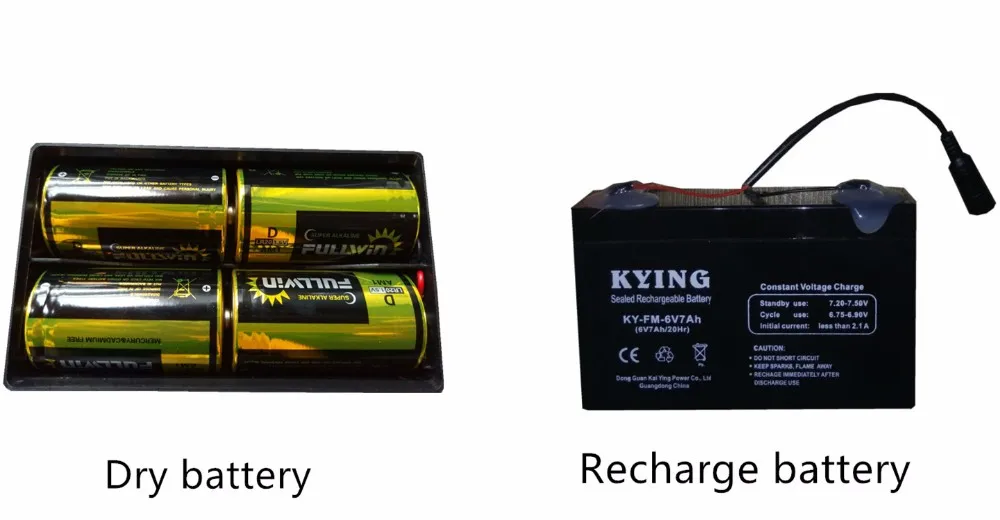

High capacity dry battery & Recharge Battery


Use dry battery or recharge battery as optional

It is very easy to maintain.


Long remote control distance



Adopt loading coil to increase signal intensity.It has stronger penetration .

The effective distance is
10~50 meters.You will feel easy and comfortable to control it.

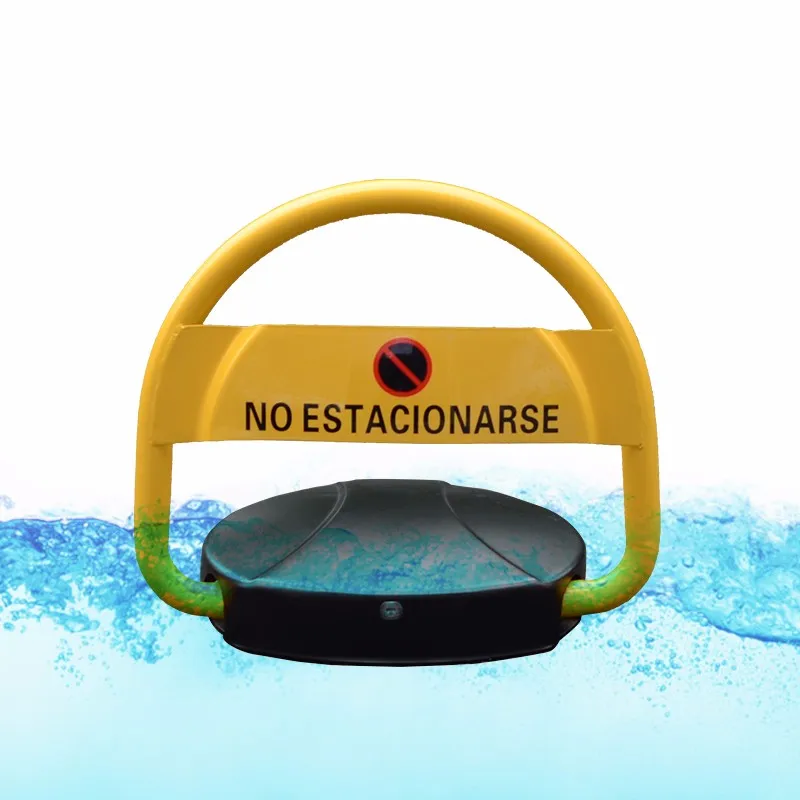

IP 67 Waterproof


Could work under the water more than 24 hours without any influence to the function.

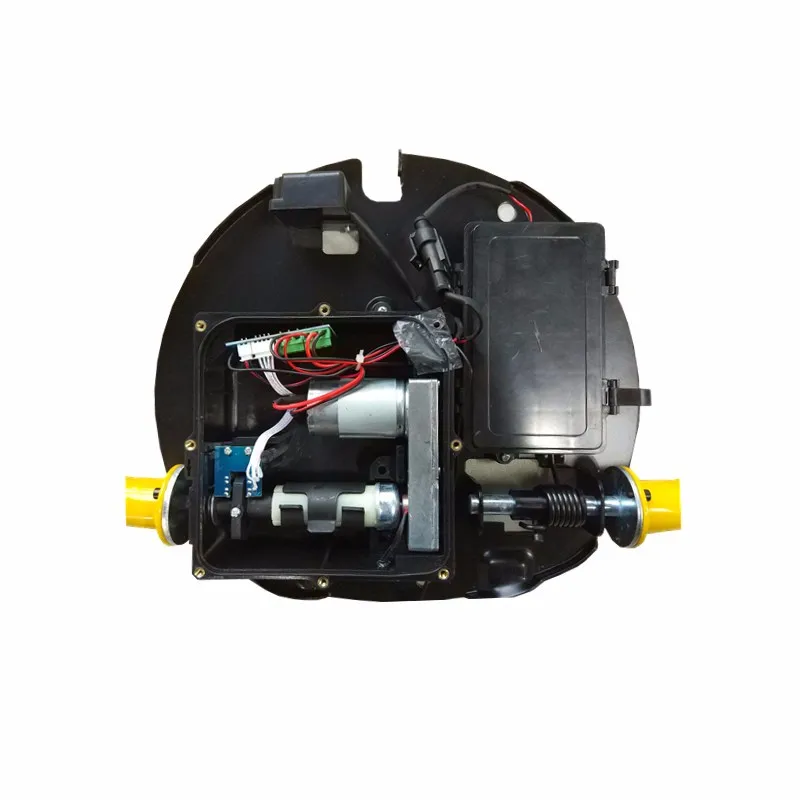

Inside Structure
1.Arm                              2.Mounting hole                           3.Alarm                                                   4.Battery
5.Energy saving              6.Motor                                        7.Laser anti-impact device                      8.Control board

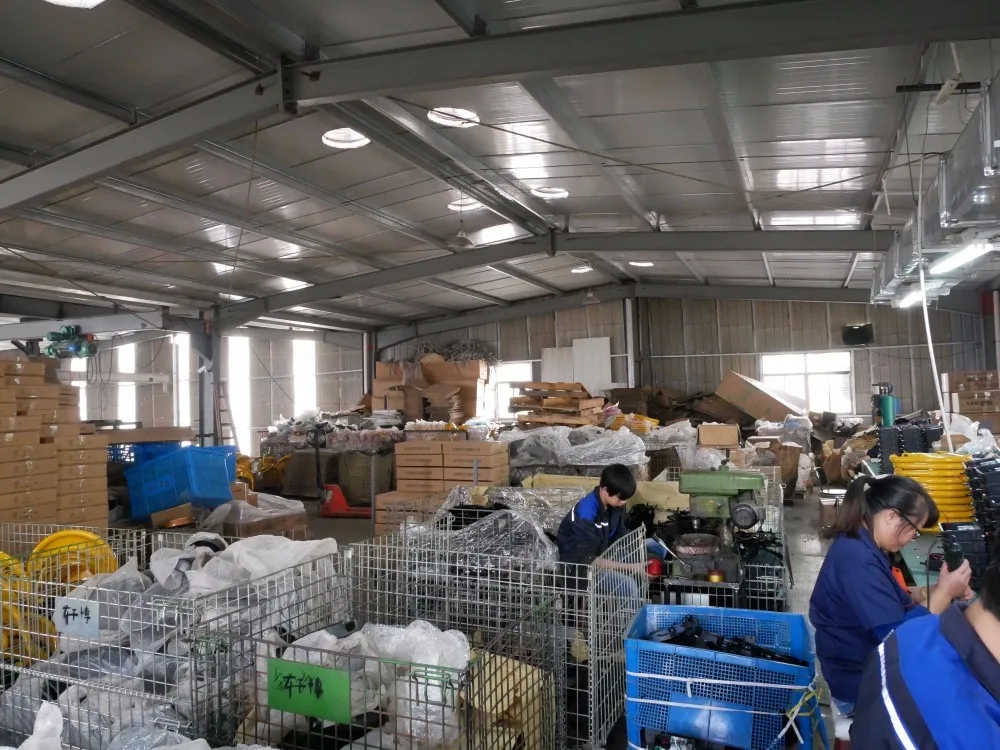

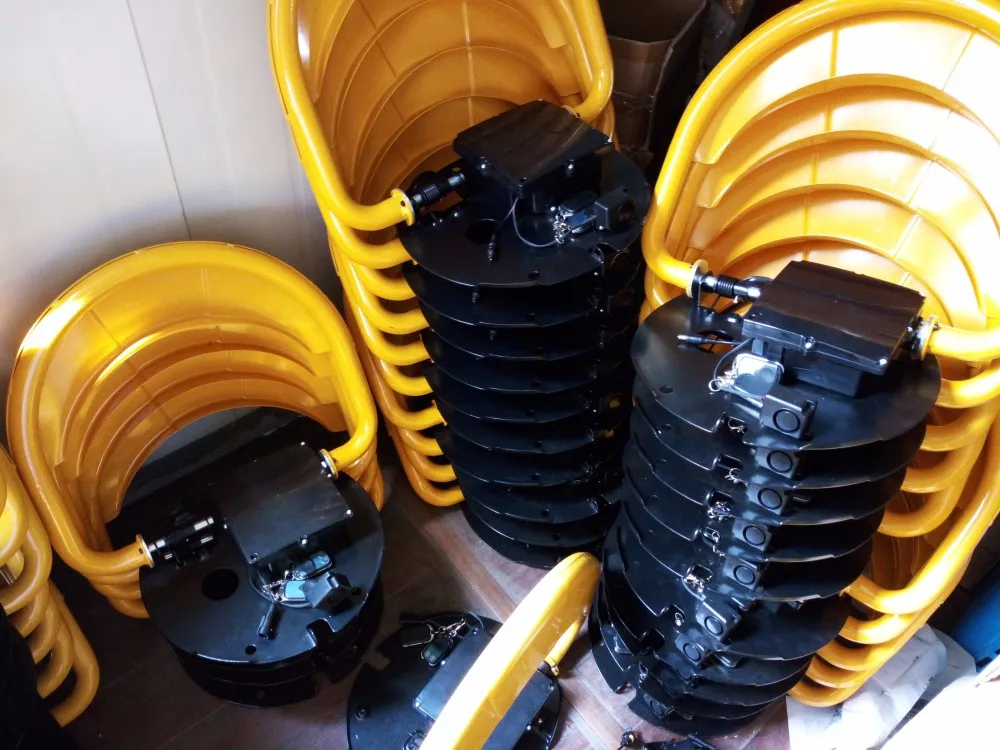

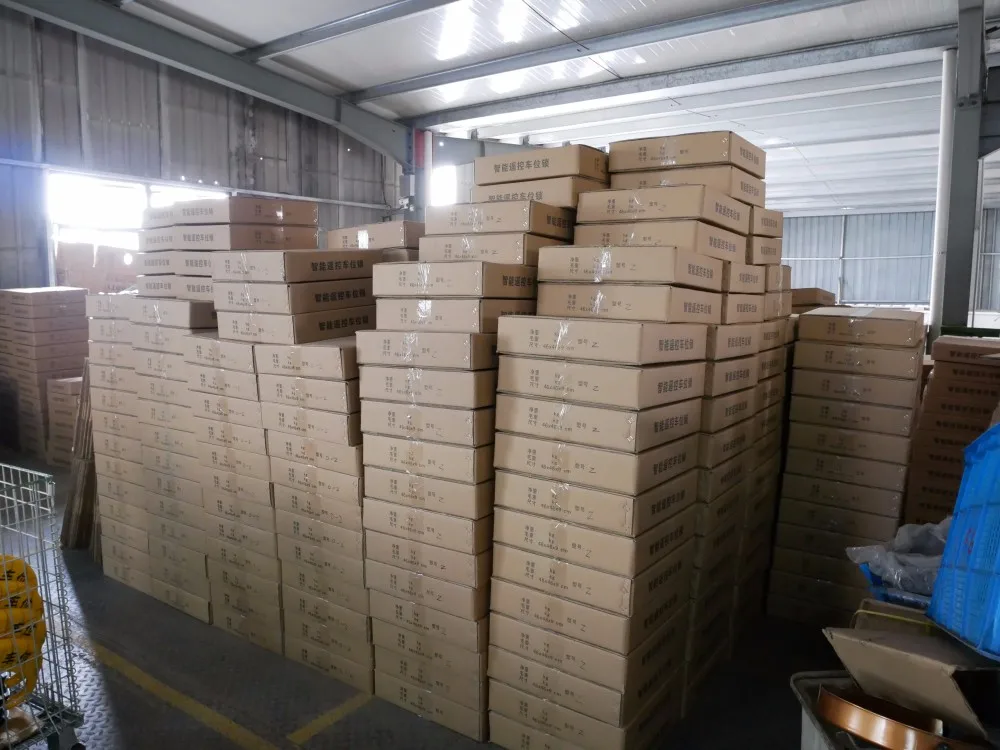

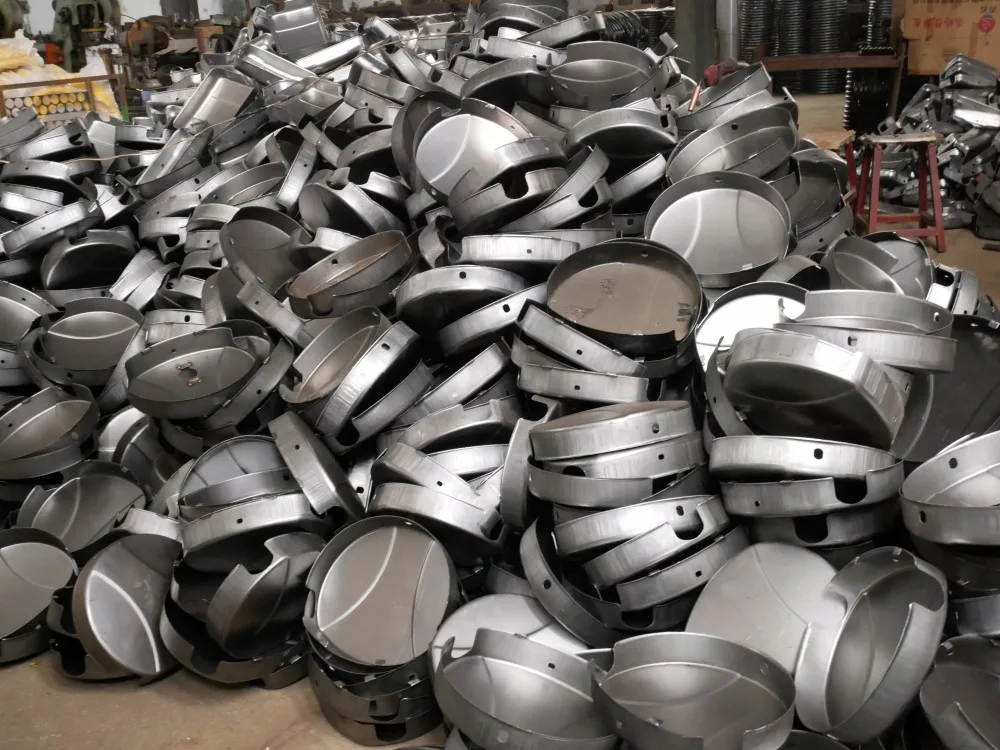

Production & Packing
Installtion

Installation Position


Do not touch the parking lock when the automobile is going in and out of the parking lock. The parking lock is suggested to be installed in the middle of parking lock entrance.

Installation Site


The lock is required to be installed on level and dry cement ground.

Installation Method

A. Rotate the worm with manual crank to raise the rocker, open the lock with key. Open uper cover to install the lock

B. Drill three holes (12mm of diameter and 50mm of depth) and install M8 expansion bolts according to the locations of three installation holes on the parking lock foundation.

C. Cover three foundation spacers on the expansion bolts. and then cover parking lock foundation. install and tighten the bolts to finish installation.

D. When using the lock, open the upper cover and insert the battery plug to the parking lot socket.Then set the battery level.

E. Install the upper cover. Keep the upper and lower fixed blocks joggling (Hold the back of upper cover to push forward. as indicated in the schematic ),the lock the upper cover.

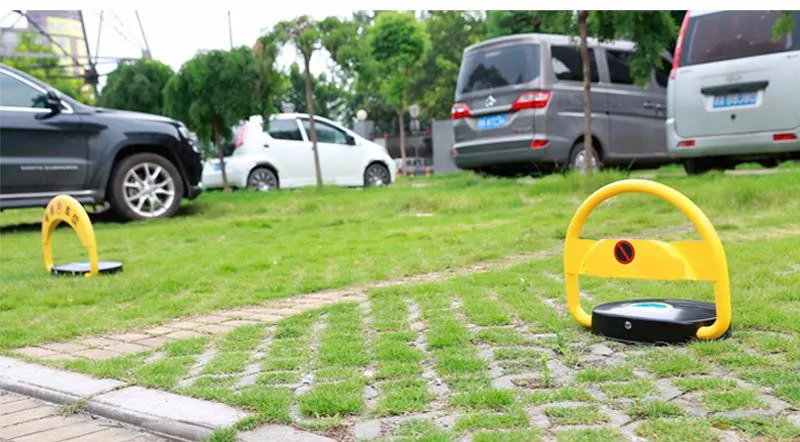

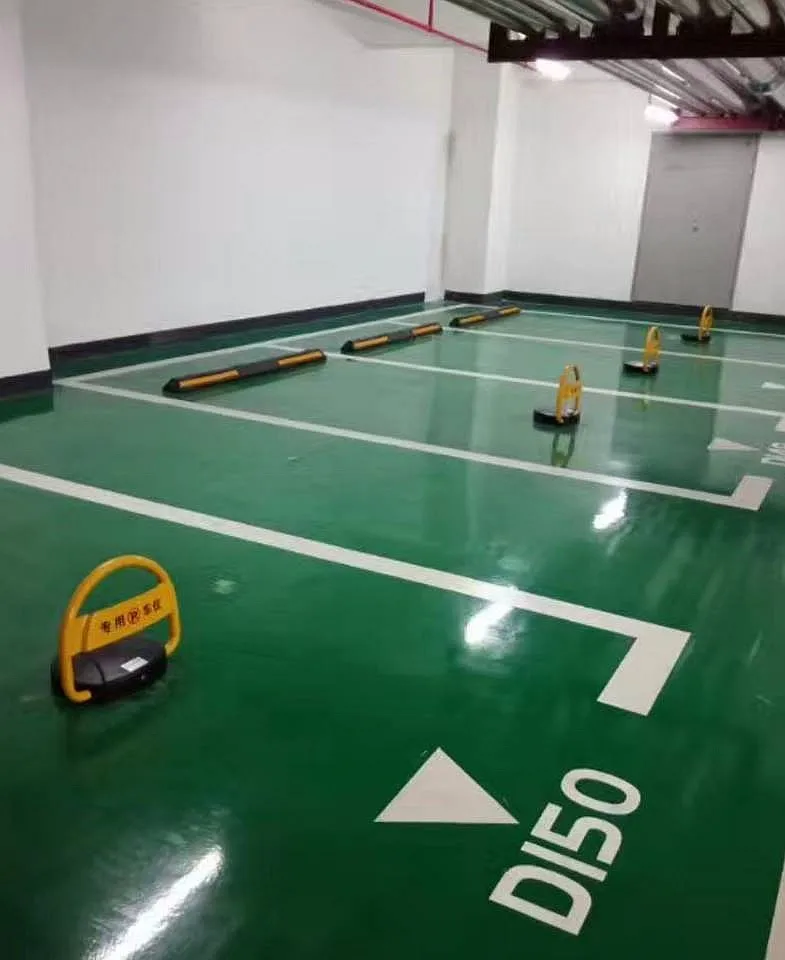

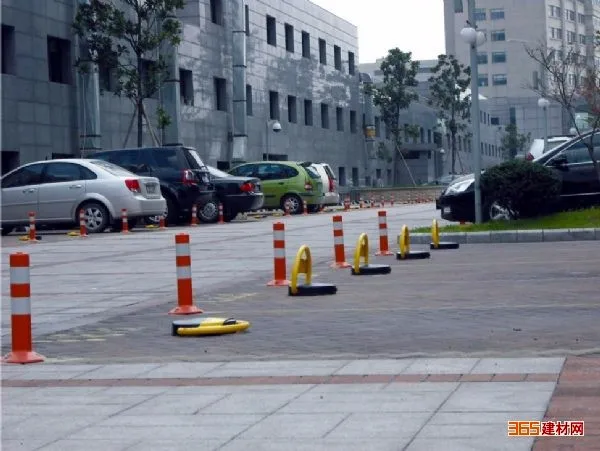

Our Project
FAQ

Q: Are you trading company or manufacturer ?
A:
We are factory,more than 50 employees,covering an area of 800 square meters,2 floors.


Q: How long is your delivery time?

A: Generally it is 5 to 15 days,it is according to quantity.


Q: Do you provide samples ? is it free or extra ?

A: Yes!Sample is availble.And sample fee can be returned to you after you place formal order.


Q: What is your terms of payment ?

A: 30% T/T in advance,balance before shippment.
