Europe technical steel coil strapping cutter steel sheet cut to length cutting machine

$280,000.00 / Unit | 1 Unit (Min. Order)
Model Number:
SPZ4.0-16*2200
$280,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
140 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Sino power
Warranty:
18 Months
Condition:
New
Voltage:
220V/380V/420V/450V
Rated Power:
300-600kw
Dimension(L*W*H):
10x38m
Weight:
15-35tons
Certification:
CE,ISO,SGS
Name:
steel coil cutting machine
Classify:
steel coil cutting machine
Coil Thickness:
4-16 mm
Coil Width:
900~2200mm
Coil Weight:
≤35t
Main power:
280kw
Coil Inner Diameter:
508mm,610mm,760mm, 820mm,etc
Coil Outer Diameter:
≤2200mm
Coil Material:
Cold-rolled Coil,Hot-rolled Coil,Stainless Coil,Galvanized Coil,etc
Speed:
25m/min
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single volume:
65 cm 3
Single gross weight:
80000.0 kg
Package Type:
wooden box and other
Lead Time :
Quantity(Unit) 1 - 1 >1
Est. Time(days) 140 To be negotiated
Cut to length line
Machine Name: metal coil cut to length machine line

SINO POWER High speed flying cut to length machine line production line is applicable to coils of various specifications. the machine produced by cut to length line is used for the producing flattened cut to length steel plate through the procedure of uncoiling, flattening and cutting to required width and length.

1: Specification of steel coil cutting machine for sale
Mark: Below are our standard series, we also accept customized. We have 0.2-2.0, 0.3-3.0, 1-8mm, 2-10mm, 2-12mm, 3-16mm, 4-20mm, 5-25mm,etc.
Model
SP0.2-1.8×500
SP0.3-4.0×1250(1600)
SP1.0-6.0×1600
SP3.0-12.0×2000
Coil Material
HR,CR,PPGI,GI, steel coil, copper coil, aluminum coil.
Coil Thickness
0.2~1.8mm
0.3~4.0mm
1.0~6.0mm
3.0~12.0mm
Coil Width
100~500mm
800~1250(1600)mm
800~1600mm
1000~2000mm
Coil Weight
≤15T
≤20T(25T)
≤25T
≤30T
Coil Inner Diameter
φ508mm,φ610mm,φ760mm
φ508mm,φ610mm,φ760mm
φ508mm,φ610mm,φ760mm
φ610mm,φ760mm,φ820mm
Coil Outer Diameter
≤φ1600mm
≤φ2200mm
≤φ2200mm
≤φ2200mm

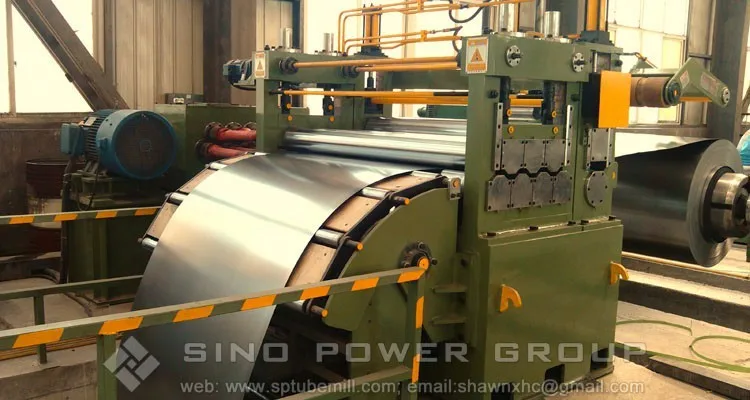

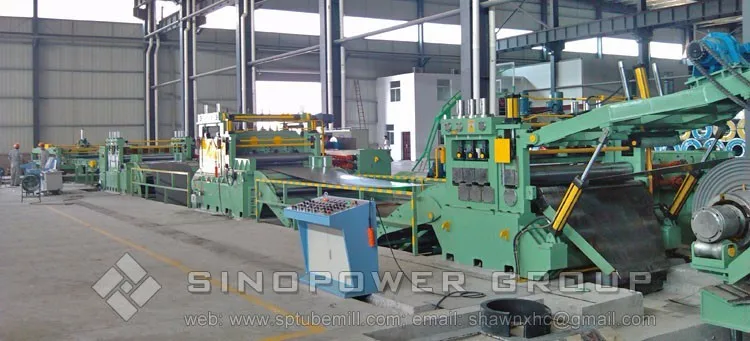

2: Whole review of slitting machine line

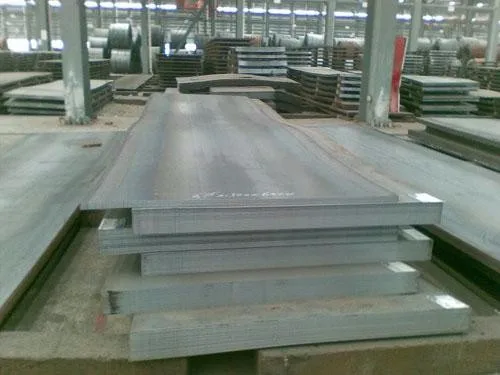

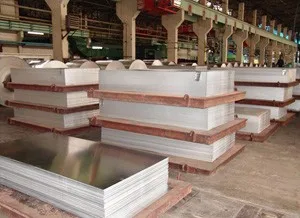

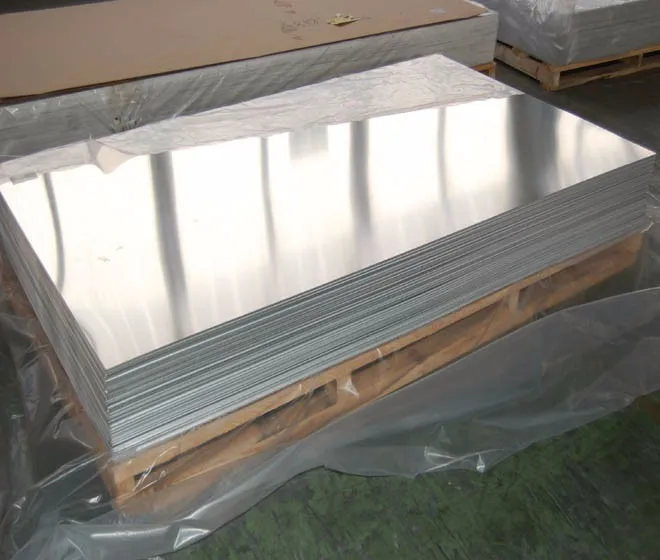

3: Final products produced by our steel coil cut to length machine
Our cut to length line can cut HR, CR, PPGI, GI, SS, Aluminum Copper coil to plate sheet, the min length can be 1m.

Flow Chart & Machine

Standard Flow chart of cut to length line machines:

Coil lifter --- hydraulic decoiler --- snubbed roller --- pinch roll & pre-leveler --- loop bridge --- side guide roller --- main leveling machine --- encode & measuring device (with tail plate pinching) --- shear --- conveyor --- hydraulic lift platform --- stacker with blower device --- unload cart

Please check video and pic on our official website.

Step 1:   Uncoiling of steel cut to length line machine

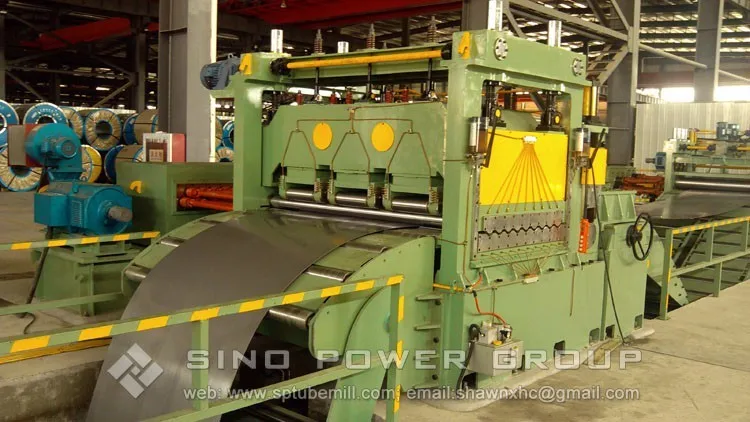

Step 2: Pre-Leveling of steel cut to length line machine

Step 3: Leveling of steel cut to length

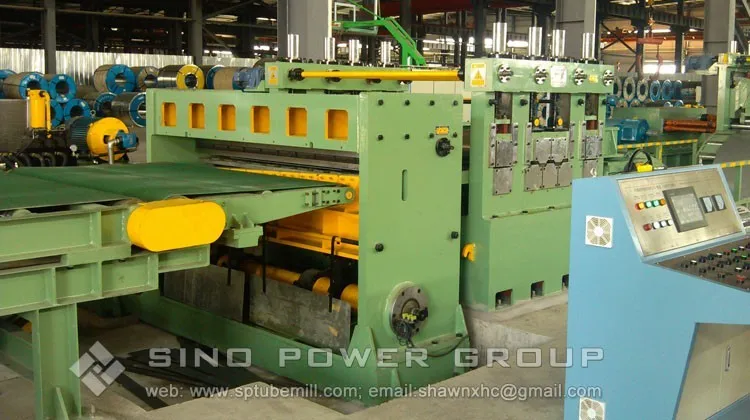

Step 4: Cutting of  steel coil cutting machine

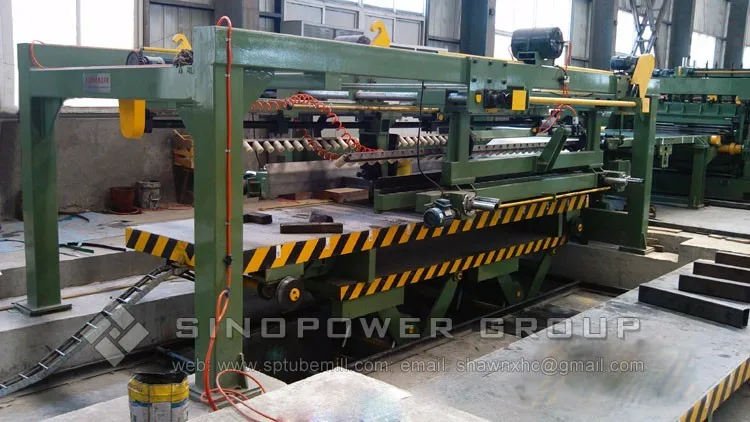

Step 5: Storage of  coil cutting machine

Packing & Delivery

Package by plywood case, Load in containers, and Shipping by Sea/ Truck / Train.

Company Introduce

1: Introduce

Sino Power Group is the professional manufacturer with the factory covers an area of 85,000 Square meters and has more than 200 employees and over 25 years on steel pipe making machine, slitting machine, cut to lenth machine and other metal cold forming machine design, manufacturing, sales and after-sales experience.

SINOPOWER INDUSTRIAL have With the ISO9001 quality control system, ISO1400 management system and CE / SGS standard of European Union,, also presented quite a few patents rights. Besides, we also become a member of the CE warranty system. For this pipe mill line, we added the PLC encoded control by Touchscreen, with intelligent processing method, it can control the exact details of the output pipes in a method that is actual precise.

2: Certifaction

Our cut to length machine line remain CE, ISO9001, then SGS passed, that incomes the quality remains same trust-worthy meantime, we as well apply a portion towards recover the procedure then superiority for our patrons.
We have a lot of patents,such as uncoiler patent / cut to length machine patent / leveling machine device patent / decoiler patent etc.
